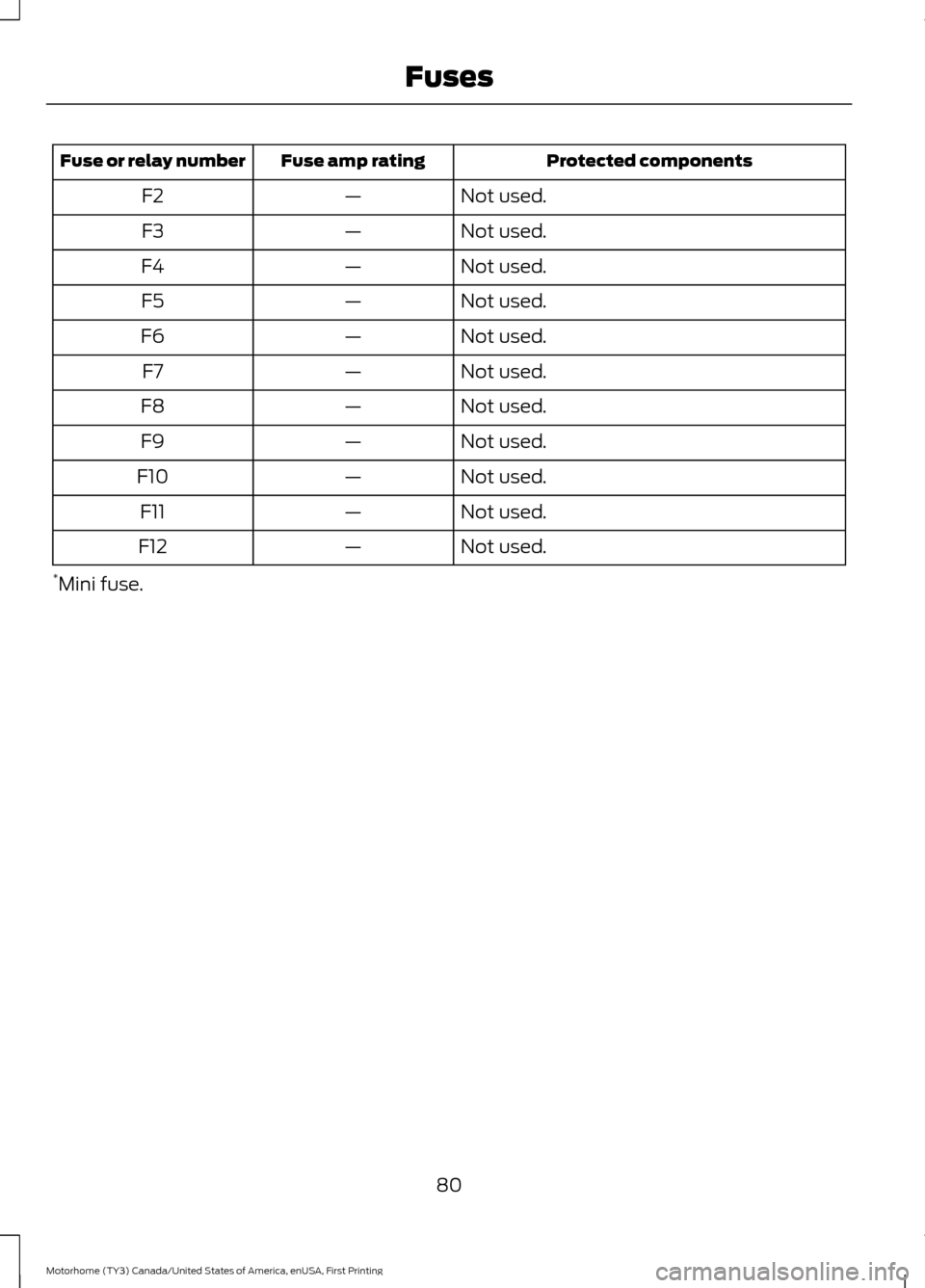

2017 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS relay

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
F2
Not used.
—
F3
Not used.
—
F4
Not used.
—
F5
Not used.
—
F6
Not used.
—
F7
Not used.
—
F8
Not used.
—
F9
Not used.
—
F10
Not used.
—
F11
Not used.
—
F12
* Mini fuse.
80
Motorhome (TY3) Canada/United States of America, enUSA, First Printing Fuses

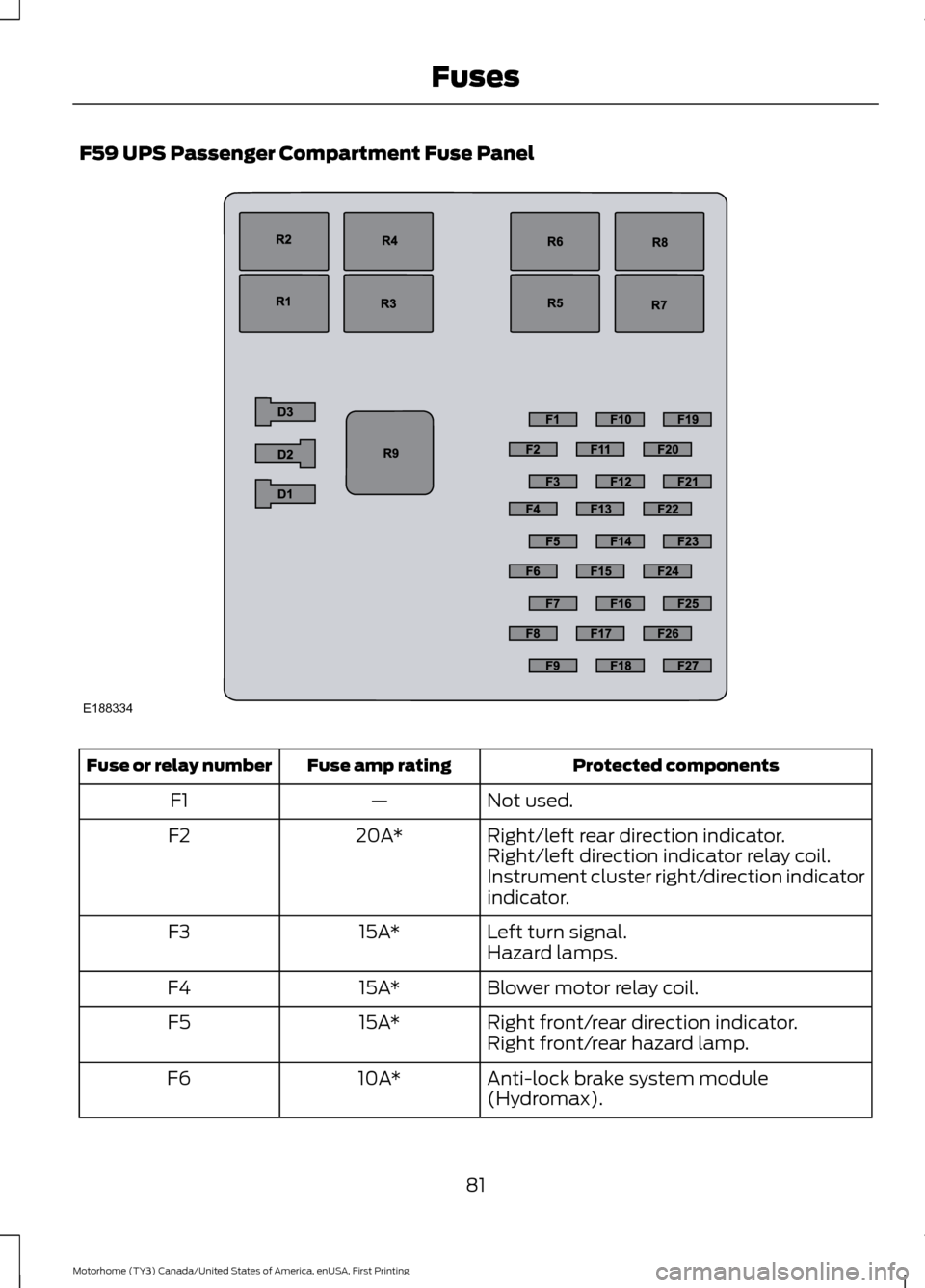

F59 UPS Passenger Compartment Fuse Panel
Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
F1
Right/left rear direction indicator.
20A*
F2
Right/left direction indicator relay coil.
Instrument cluster right/direction indicator
indicator.
Left turn signal.
15A*
F3
Hazard lamps.
Blower motor relay coil.
15A*
F4
Right front/rear direction indicator.
15A*
F5
Right front/rear hazard lamp.
Anti-lock brake system module
(Hydromax).
10A*
F6
81
Motorhome (TY3) Canada/United States of America, enUSA, First Printing FusesE188334

Protected components
Fuse amp rating
Fuse or relay number
Right low beam headlamp.
10A*
F7
Daytime running lamps relays.
5A*
F8
Left low beam headlamp.
10A*
F9
Transmission control switch.
10A*
F10
Cluster battery (+12V) #1.
10A*
F11
Not used.
—
F12
Cluster battery (+12V) #2.
10A*
F13
Switch illumination.
10A*
F14
Instrument cluster lighting.
Body builder battery (+12V) feed.
20A*
F15
Not used.
—
F16
Trailer tow direction indicators.
20A*
F17
Trailer tow stop lamps.
Trailer tow hazard lamps.
Body builder off/run.
10A*
F18
Trailer brake control module BOO signal.
10A*
F19
Body builder brake lamps.
Left/right brake lamps.
Body builder run/accessory feed.
10A*
F20
Anti-lock brake system module.
10A*
F21
Instrument cluster.
Wiper/washer module.
30A*
F22
Wiper feed.
Reverse lamps.
10A*
F23
Body builder radio feed.
5A*
F24
Trailer tow reverse lamps.
10A*
F25
Cluster run/accessory.
10A*
F26
High beam indicator.
20A*
F27
Daytime running lamps.
Micro relay
R1
Parking brake.
82
Motorhome (TY3) Canada/United States of America, enUSA, First Printing Fuses

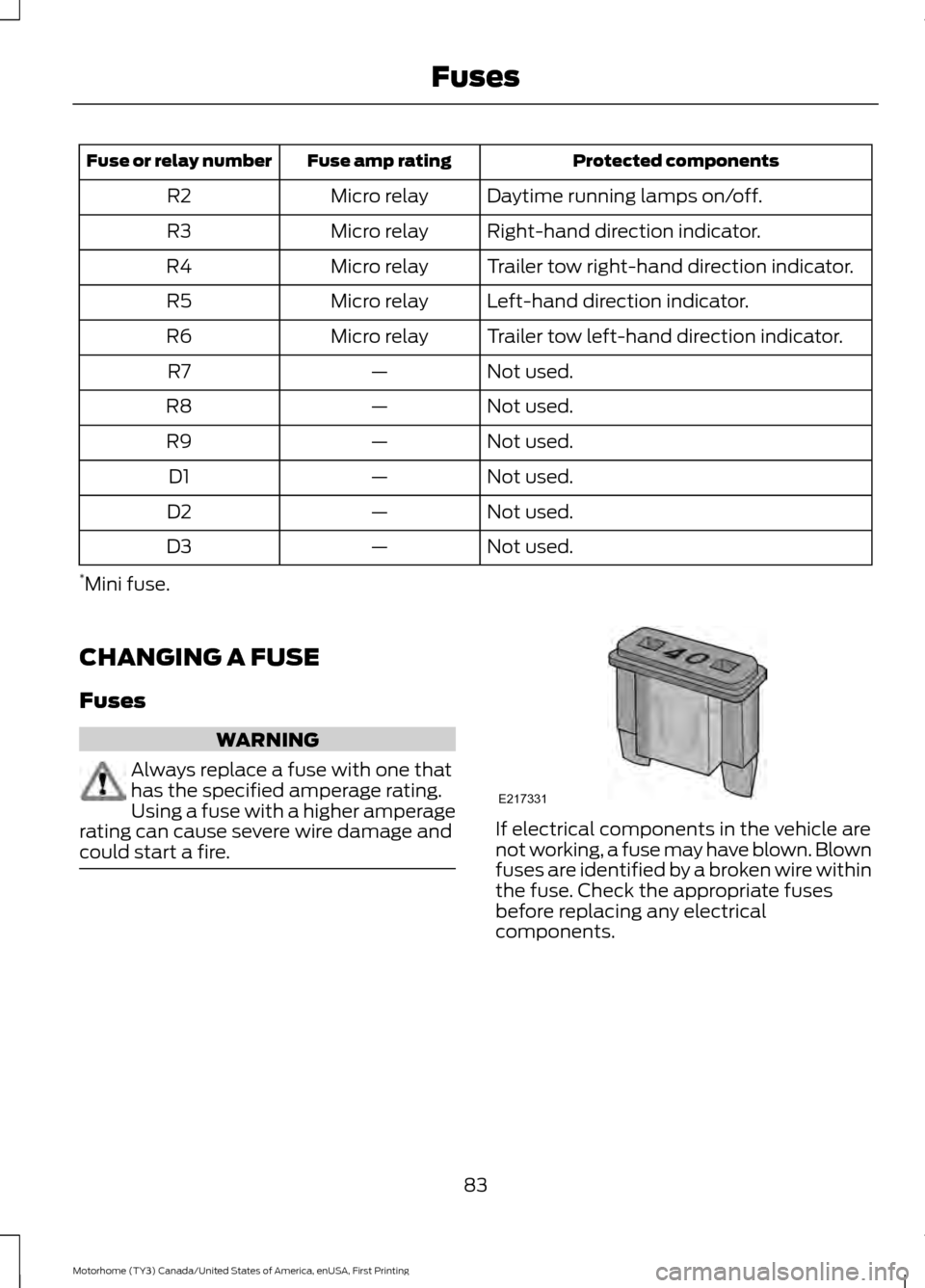

Protected components
Fuse amp rating
Fuse or relay number
Daytime running lamps on/off.
Micro relay
R2
Right-hand direction indicator.
Micro relay
R3
Trailer tow right-hand direction indicator.
Micro relay
R4
Left-hand direction indicator.
Micro relay
R5
Trailer tow left-hand direction indicator.
Micro relay
R6
Not used.
—
R7
Not used.
—
R8
Not used.
—
R9
Not used.
—
D1
Not used.
—
D2
Not used.
—
D3
* Mini fuse.
CHANGING A FUSE
Fuses WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
83
