2017 FORD EDGE remote start

Settings
Select
setting
Traffic Set Up
Auto Highbeam Select setting
Autolamp Delay
Daytime Lights
Autolock
Locks
Autounlock
Relock
Mislock Select setting
Remote Unlock
Switch Inhibit
Autofold
Mirrors
XXX% - Hold OK to Reset
Oil Life
Reset
Select setting
Power
Liftgate
Select setting
Climate Control
Remote
Start
Seats or Seats and
Wheel
Duration
System
Seatbelts Remote Open
Windows
Remote Close
Courtesy Wipe
Wipers
Rain Sensing
Hold
OK to Create MyKey
Create
MyKey
MyKey
112
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Information Displays

Remote Start
Action
Message
A reminder to apply the brake and push the gearshift buttonto drive your vehicle after a remote start.
To Drive: Press Brake
and Gear Shift Button
Seats Action
Message
A reminder that memory seats are not available while driving.
Memory Recall Not
Permitted While Driving
Shows where you have saved your memory setting.
Memory {0} Saved
Starting System Action
Message
A reminder to apply the brake when starting your vehicle .
To START Press Brake
The starter has exceeded its cranking time in attempting tostart your vehicle.
Cranking Time Exceeded
The starter is attempting to start your vehicle.
Engine Start Pending
Please Wait
The system has cancelled the pending start.
Pending Start Cancelled
Tire Pressure Monitoring System Action
Message
One or more tires on your vehicle has low tire pressure. SeeTire Pressure Monitoring System (page 324).
Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If thewarning stays on or continues to come on, contact an
authorized dealer. See
Tire Pressure Monitoring System (page 324).
Tire Pressure Monitor
Fault
A tire pressure sensor is malfunctioning or your spare tire is inuse. See
Tire Pressure Monitoring System (page 324). If
the warning stays on or continues to come on, contact an authorized dealer.
Tire Pressure Sensor
Fault
125
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Information Displays

Recommended Settings for
Heating
1. Press the AUTO button.
2. Adjust the temperature control to the desired setting. Use 72°F (22°C) as a
starting point, then adjust the setting
as necessary.
Cooling the Interior Quickly
Press the
MAX A/C button.
Recommended Settings for
Cooling
1. Press the
AUTO button.
2. Adjust the temperature control to the desired setting. Use 72°F (22°C) as a
starting point, then adjust the setting
as necessary.
Side Window Defogging in Cold
Weather
1. Press the defrost and panel buttons.
2. Select
A/C.
3. Adjust the temperature control to maintain comfort. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.
4. Set the fan to the highest speed.
5. Direct the outer instrument panel air vents toward the side windows.
6. To increase the airflow to the outer instrument panel vents, close the air
vents in the middle of the instrument
panel and in the rear of the center
console.
HEATED WINDOWS AND
MIRRORS
Note: Make sure the engine is running
before operating the heated windows. Note:
Depending on your remote start
settings, the heated windows, mirrors and
wipers may remain on after remote starting
the vehicle.
Heated Rear Window Press the button to clear the
heated rear window of thin ice
and fog. The heated rear
window will automatically turn off after a
short period of time. Press the button
again to switch it off.
Note: An indicator on the button illuminates
when active.
Note: Do not use razor blades or other
sharp objects to clean or remove decals
from the inside of the heated rear window.
The vehicle warranty does not cover
damage caused to the heated rear window
grid lines.
Heated Exterior Mirrors
(If Equipped)
When you switch the heated rear window
on, the heated exterior mirrors will
automatically turn on.
Note: Do not remove ice from the mirrors
with a scraper or adjust the mirror glass
when it is frozen in place.
Note: Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products.
Windshield Wiper De-icer
(If Equipped)
When you switch the heated rear window
on, the windshield wiper de-icer
automatically turns on.
134
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Climate ControlE184884

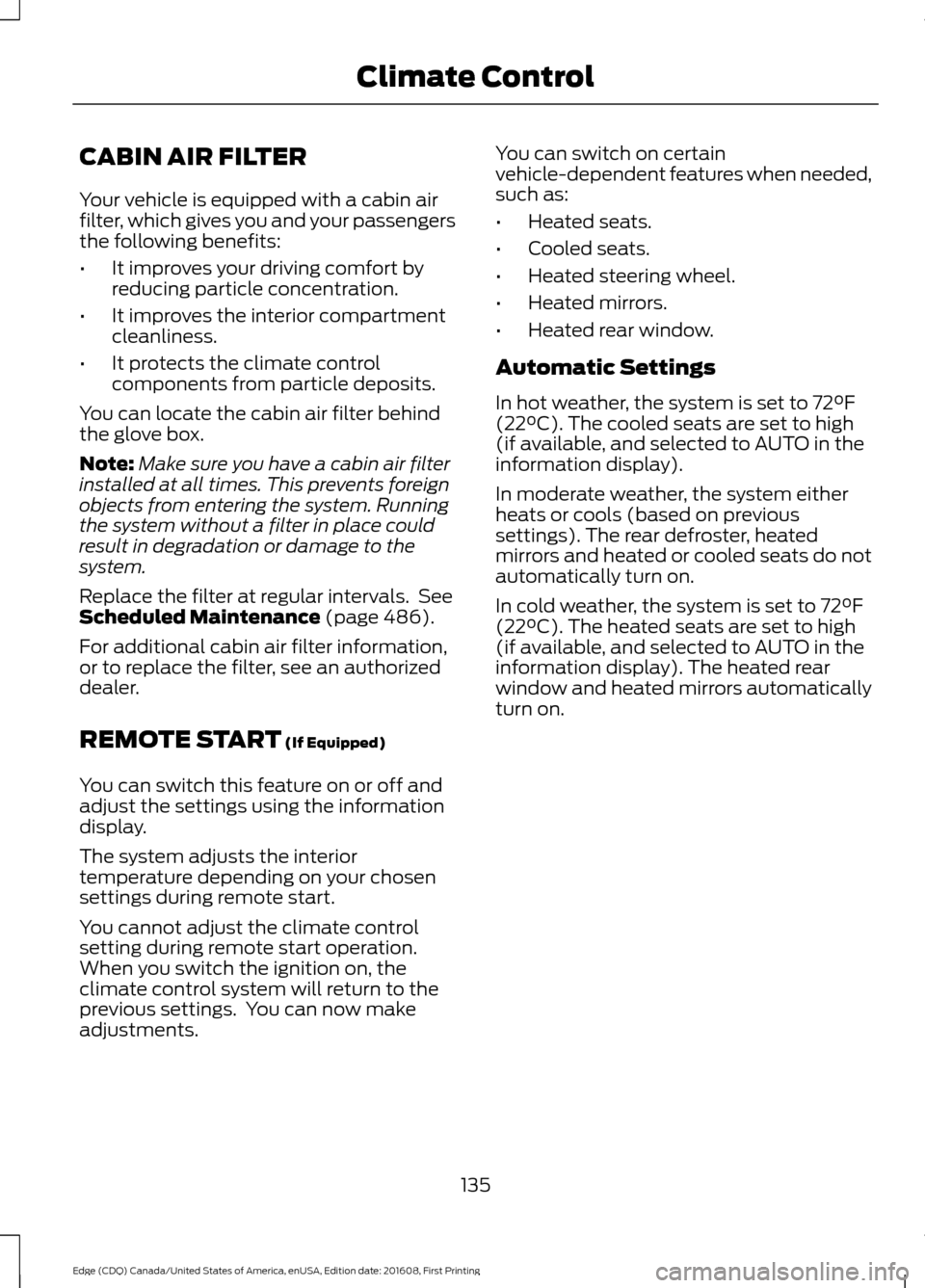

CABIN AIR FILTER
Your vehicle is equipped with a cabin air
filter, which gives you and your passengers
the following benefits:
•
It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
You can locate the cabin air filter behind
the glove box.
Note: Make sure you have a cabin air filter
installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.
Replace the filter at regular intervals. See
Scheduled Maintenance (page 486).
For additional cabin air filter information,
or to replace the filter, see an authorized
dealer.
REMOTE START
(If Equipped)
You can switch this feature on or off and
adjust the settings using the information
display.
The system adjusts the interior
temperature depending on your chosen
settings during remote start.
You cannot adjust the climate control
setting during remote start operation.
When you switch the ignition on, the
climate control system will return to the
previous settings. You can now make
adjustments. You can switch on certain
vehicle-dependent features when needed,
such as:
•
Heated seats.
• Cooled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window.
Automatic Settings
In hot weather, the system is set to
72°F
(22°C). The cooled seats are set to high
(if available, and selected to AUTO in the
information display).
In moderate weather, the system either
heats or cools (based on previous
settings). The rear defroster, heated
mirrors and heated or cooled seats do not
automatically turn on.
In cold weather, the system is set to
72°F
(22°C). The heated seats are set to high
(if available, and selected to AUTO in the
information display). The heated rear
window and heated mirrors automatically
turn on.
135
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Climate Control

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:
Web Address (United States)
www.Accessories.Ford.com Web Address (Canada)
www.Accessories.Ford.ca
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Original Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories.
Ford Motor Company warrants your
vehicle's accessory through the warranty
that provides the greatest benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior Style
• Side window deflectors.
• Splash guards.
Interior Style
• Ambient lighting.
• Electrochromic compass and
temperature interior mirrors.
• Floor mats.
• Rear seat entertainment system*. Lifestyle
•
Ash cup or coin holder.
• Cargo organization and management.
• Cross bars*.
• Roof rack and carriers*.
• Roof rails.
• SUV camping tent*.
• Trailer hitches, wiring harnesses and
accessories.
Peace of Mind
• Bumper protector.
• Car cover*.
• Cargo area protector.
• Cargo security shade.
• Keyless entry keypad.
• Remote start.
• Vehicle security.
• Wheel locks.
*Ford Licensed Accessory. The accessory
manufacturer designs, develops and
therefore warrants Ford Licensed
Accessories, and does not design or test
these accessories to Ford Motor Company
engineering requirements. Contact an
authorized Ford dealer for the accessory
manufacturer's limited warranty details
and request a copy of the Ford Licensed
Accessories product limited warranty from
the accessory manufacturer.
482
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Accessories

Fuse Specification Chart..........................254
Passenger Compartment Fuse
Panel................................................................. 260
Power Distribution Box.................................... 254
G
Garage Door Opener See: Universal Garage Door Opener...........146
Gauges................................................................97 Engine Coolant Temperature Gauge............98
Fuel Gauge............................................................. 98
Information Display............................................. 97
Left Information Display................................... 99
Type 1........................................................................\
. 97
Type 2....................................................................... 99
General Information on Radio Frequencies....................................................51
Intelligent Access.................................................. 51
General Maintenance Information
.......486
Multi-Point Inspection.................................... 488
Owner Checks and Services.......................... 487
Protecting Your Investment.......................... 486
Why Maintain Your Vehicle?......................... 486
Why Maintain Your Vehicle at Your Dealership?.................................................... 486
Getting Assistance Outside the U.S. and Canada.........................................................250
Getting the Services You Need...............247 Away From Home.............................................. 247
Global Opening
...............................................93
Remote Control Front Windows.................... 93
H
Hazard Warning Flashers..........................242
Headlamp Adjusting See: Adjusting the Headlamps..................... 283
Headlamp Exit Delay....................................87
Headlamp Removal See: Removing a Headlamp.......................... 285
Head Restraints
............................................136
Adjusting the Head Restraint..........................137
Tilting Head Restraints ..................................... 137
Heated Seats
..................................................143
Front Seats............................................................ 143
Rear Seats............................................................. 143
Heated Steering Wheel
................................81 Heated Windows and Mirrors..................134
Heated Exterior Mirrors..................................... 134
Heated Rear Window........................................ 134
Windshield Wiper De-icer................................ 134
Heating See: Climate Control......................................... 128
Hill Start Assist..............................................183 Switching the System On and Off...............184
Using Hill Start Assist....................................... 183
Hints on Controlling the Interior Climate..........................................................133
Cooling the Interior Quickly............................. 134
General Hints........................................................ 133
Heating the Interior Quickly............................ 133
Recommended Settings for Cooling ..........134
Recommended Settings for Heating..........134
Side Window Defogging in Cold Weather............................................................. 134
Hints on Driving With Anti-Lock Brakes............................................................180
Home Screen.................................................419
Hood Lock See: Opening and Closing the Hood..........266
I
In California (U.S. Only)............................248
Information Display Control........................81 Information Display Control Features...........81
Information Displays
...................................104
General Information.......................................... 104
Information Messages
.................................113
Active Park............................................................. 114
Adaptive Cruise Control.................................... 114
Adaptive Steering................................................ 115
Airbag....................................................................... 115
Alarm........................................................................\
115
All-Wheel Drive.................................................... 116
Automatic Engine Shutdown.......................... 116
Automatic High Beam Control....................... 116
Auto Start-Stop.................................................... 117
Battery and Charging System.......................... 117
Blind Spot Information and Cross Traffic Alert System..................................................... 118
Doors and Locks.................................................. 118
Driver Alert.............................................................. 119
Electronic Stability Control.............................. 119
Engine...................................................................... 119
535
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index

Fuel........................................................................\
..
120
Hill Start Assist.................................................... 120
Keys and Keyless Entry..................................... 120
Lane Keeping System......................................... 121
Maintenance.......................................................... 121
MyKey...................................................................... 122
Park Aid................................................................... 123
Park Brake.............................................................. 123
Power Steering.................................................... 124
Pre-Collision Warning System....................... 124
Remote Start........................................................ 125
Seats........................................................................\
125
Starting System .................................................. 125
Tire Pressure Monitoring System.................. 125
Towing..................................................................... 126
Traction Control.................................................. 126
Transmission........................................................ 126
Installing Child Restraints............................19 Child Seats............................................................... 19
Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for Children (LATCH)............................................ 24
Using Tether Straps............................................. 26
Instrument Cluster.........................................97
Instrument Lighting Dimmer......................87
Instrument Panel Overview........................16
Interior Lamps
.................................................89
Front Interior Lamp............................................. 89
Rear Interior Lamp............................................... 90
Interior Mirror
...................................................95
Auto-Dimming Mirror......................................... 95
Introduction.........................................................7
J
Jump Starting the Vehicle........................243 Connecting the Jumper Cables.................... 243
Jump Starting...................................................... 244
Preparing Your Vehicle..................................... 243
Removing the Jumper Cables....................... 244
K
Keyless Entry
....................................................72
SECURICODE™ KEYLESS ENTRY
KEYPAD............................................................... 72
Keyless Starting
............................................154
Starting Your Vehicle......................................... 155Switching the Ignition On................................
154
Keys and Remote Controls..........................51
L
Lane Keeping System.................................210 Switching the System On and Off.................211
Lighting Control
..............................................85
Headlamp Flasher............................................... 86
High Beams............................................................ 85
Lighting..............................................................85 General Information............................................ 85
Load Carriers See: Roof Racks and Load Carriers.............224
Load Carrying
................................................224
Load Limit.......................................................225
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................ 229
Vehicle Loading - with and without a Trailer................................................................. 225
Locking and Unlocking
................................64
Activating Intelligent Access........................... 66
Autolock .................................................................. 67
Auto Relock............................................................ 66
Autounlock.............................................................. 67
Battery Saver.......................................................... 67
Illuminated Entry.................................................. 67
Illuminated Exit..................................................... 67
Locking and Unlocking the Doors with the Key Blade........................................................... 65
Power Door Locks................................................ 64
Remote Control.................................................... 64
Smart Unlocks for Intelligent Access Keys...................................................................... 66
Lug Nuts See: Changing a Road Wheel........................ 327
M
Maintenance.................................................266 General Information......................................... 266
Manual Climate Control - Vehicles With: Electronic Manual Temperature
Control (EMTC)
..........................................128
Manual Liftgate..............................................68
Closing the Liftgate............................................. 68
Opening the Liftgate........................................... 68
536
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index

R
Rear Parking Aid...........................................188
Obstacle Distance Indicator.......................... 189
Rear Seat Armrest........................................145
Rear Seats
.......................................................142
Adjusting the Rear Seats................................. 142
Rear Under Floor Storage.........................224 Cargo Management System.......................... 224
Rear View Camera
.......................................198
Camera Guidelines............................................ 199
Manual Zoom..................................................... 200
Obstacle Distance Indicator......................... 200
Rear Camera Delay........................................... 200
Using the Rear View Camera System.........198
Rear View Camera See: Rear View Camera................................... 198
Rear Window Wiper and Washers..........84 Rear Window Washer......................................... 84
Rear Window Wiper............................................ 84
Recommended Towing Weights.............231
Refueling.........................................................164 System Warnings............................................... 166
Remote Control
...............................................51
Car Finder................................................................ 55
Intelligent Access Key.......................................... 51
Memory Feature.................................................... 57
Remote Start......................................................... 56
Replacing the Battery......................................... 53
Sounding a Panic Alarm.................................... 55
Using the Key Blade............................................. 52
Remote Start
..................................................135
Automatic Settings............................................ 135
Removing a Headlamp.............................285
Repairing Minor Paint Damage
..............294
Replacement Parts Recommendation........................................12
Collision Repairs.................................................... 12
Scheduled Maintenance and Mechanical Repairs.................................................................. 12
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control.............................................................57
Reporting Safety Defects (Canada Only)..............................................................252
Reporting Safety Defects (U.S. Only)..............................................................252 Roadside Assistance...................................241
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 241
Vehicles Sold in Canada: Roadside Assistance Program Coverage.................242
Vehicles Sold in Canada: Using Roadside Assistance....................................................... 242
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 241
Vehicles Sold in the United States: Using Roadside Assistance.................................... 241
Roadside Emergencies
...............................241
Roof Racks and Load Carriers.................224
Running-In See: Breaking-In................................................. 238
Running Out of Fuel....................................163 Adding Fuel From a Portable Fuel
Container.......................................................... 164
Filling a Portable Fuel Container.................. 164
S
Safety Canopy ™
............................................48
Safety Precautions.......................................162
Satellite Radio..............................................364 Satellite Radio Electronic Serial Number
(ESN)................................................................ 365
Satellite Radio Reception Factors..............365
SIRIUS® Satellite Radio Service.................. 365
Troubleshooting................................................. 366
Scheduled Maintenance Record...........494
Scheduled Maintenance
..........................486
Seatbelt Extension........................................40
Seatbelt Height Adjustment......................37
Seatbelt Reminder........................................38
Belt-Minder™........................................................ 38
Seatbelts...........................................................32 Principle of Operation......................................... 32
Seatbelt Warning Lamp and Indicator Chime...............................................................37
Conditions of operation..................................... 37
Seats.................................................................136
Security...............................................................75
Settings............................................................457 911 Assist............................................................... 462
Ambient Lighting............................................... 467
Bluetooth.............................................................. 459
Clock...................................................................... 458
538
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index
