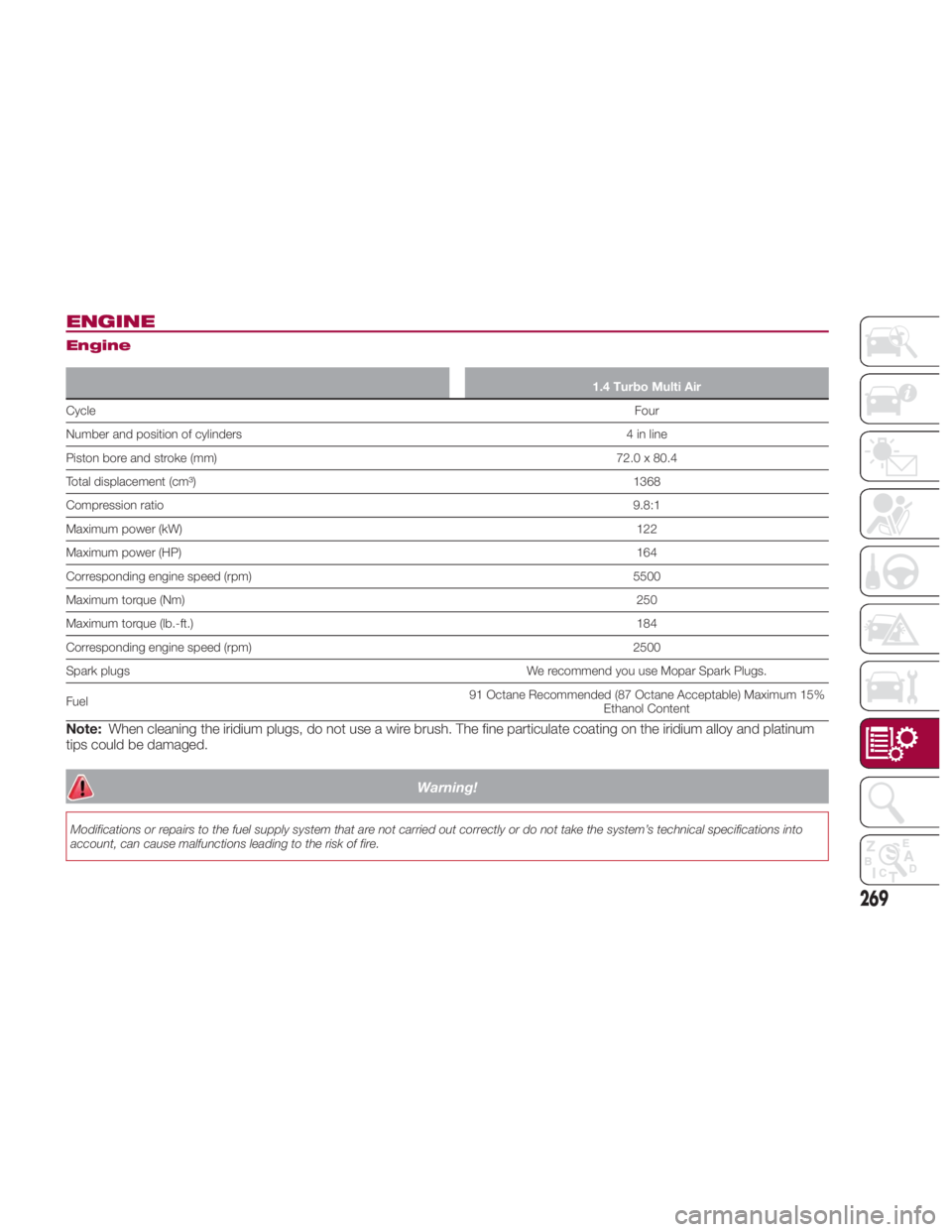

ENGINE Engine 1.4 Turbo Multi Air
Cycle Four
Number and
position of cylinders 4 in line
Piston bore and stroke (mm) 72.0 x 80.4
Total displacement (cm³) 1368
Compression ratio 9.8:1
Maximum power (kW) 122
Maximum power (HP) 164
Corresponding engine speed (rpm) 5500
Maximum torque (Nm) 250
Maximum torque (lb.-ft.) 184
Corresponding engine speed (rpm) 2500
Spark plugs We recommend you use Mopar Spark Plugs.
Fuel 91 Octane Recommended (87 Octane Acceptable) Maximum 15%
Ethanol Content
Note: When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum
tips could be damaged.
Warning!Modifications or repairs to the fuel supply system that are not carried out correctly or do not take the system’s technical specifications into
account, can cause malfunctions leading to the risk of fire.
269
