2017 FIAT SPIDER ABARTH fuse

Fuse location
Fuses are grouped together in two fuse
boxes located in the interior on the left
side of the vehicle and under the hood.
Interior Fuses
If the electrical system does not work,
first inspect the fuses on the vehicle's
left side.
Proceed as follows:
1. Make sure the ignition is placed in
the OFF mode, and other switches are
turned off.
2. Open the fuse panel cover (located
near the door).
3. Press retaining clip and remove
protection cover.
4. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment. 5. Inspect the fuse and replace it if it is
blown. 6. Insert a new fuse of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, contact
your authorized dealer. If you have no
spare fuses, borrow one of the same
rating from a circuit not essential to
vehicle operation, such as the audio or
outlet circuit.
7. Reinstall the cover and make sure
that it is securely installed.
Note: Always replace a fuse with a
genuine FCA fuse or equivalent of the
same rating. Otherwise you may
damage the electric system.07031601-121-001
Fuse Panel Cover 07031601-122-001
Fuse Puller 07031601-ALL-001
Fuses
1 — Normal Fuse
2 — Blown Fuse
195

Underhood Fuses
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block in the engine compartment. If a
fuse is blown, it must be replaced.
Make sure the ignition is placed in the
OFF mode, and other switches are
turned off and remove the fuse block
cover. If the lock is forcefully opened,
the fuse block cover may come in
contact with the frame when it is
removed and become scratched. When removing the cover, remove it
slowly according to the following
procedure:
1. Disengage the rear lock by pressing
down on the front tab with your fingers.
2. Remove the front tab while slightly
lifting the front of the cover.
3. Remove the cover while lifting it and
sliding it to the rear. 4. If any fuse but the main fuse is
blown, replace it with a new one of the
same amperage rating.
5. Reinstall the cover and make sure
that it is securely installed. 07031601-123-001
Underhood Fuse Block
1 — Lock
2 — Cover 07031601-ALL-002AB
Fuse
1 — Normal Fuse
2 — Blown Fuse
196
IN CASE OF EMERGENCY

Fuse Block (Engine Compartment)
07031602-121-001
197

DESCRIPTION FUSE RATING PROTECTED COMPONENT
F01 ENG IG3 5 A Engine Control Systems
F02 ENG
IG2 5 A Engine Control Systems
F03 HORN2 7.5 A Horn
F04 C/U IG1 15 A For Protection Of Various Circuits
F05 ENG IG1 7.5 A Engine Control System
F06 — — —
F07 INTERIOR 15 A Overhead Light
F08 — — —
F09 AUDIO2 15 A Audio System
F10 METER1 10 A Instrument Cluster
F11 SRS1 7.5 A Air Bag
F12 — — —
F13 RADIO 7.5 A Audio System
F14 ENGINE3 20 A Engine Control System
F15 ENGINE1 10 A Engine Control System
F16 ENGINE2 15 A Engine Control System
F17 AUDIO1 25 A Audio System
F18 A/C MAG 7.5 A Air Conditioner
F19 AT PUMP H/L HI 20 A Transmission Control System (If Equipped)
F20 AT 15 A Transmission Control System (If Equipped)
F21 D LOCK 25 A Power Door Locks
F22 H/L RH 20 A Headlight (RH)
F23 ENG + B2 7.5 A Engine Control System
198
IN CASE OF EMERGENCY

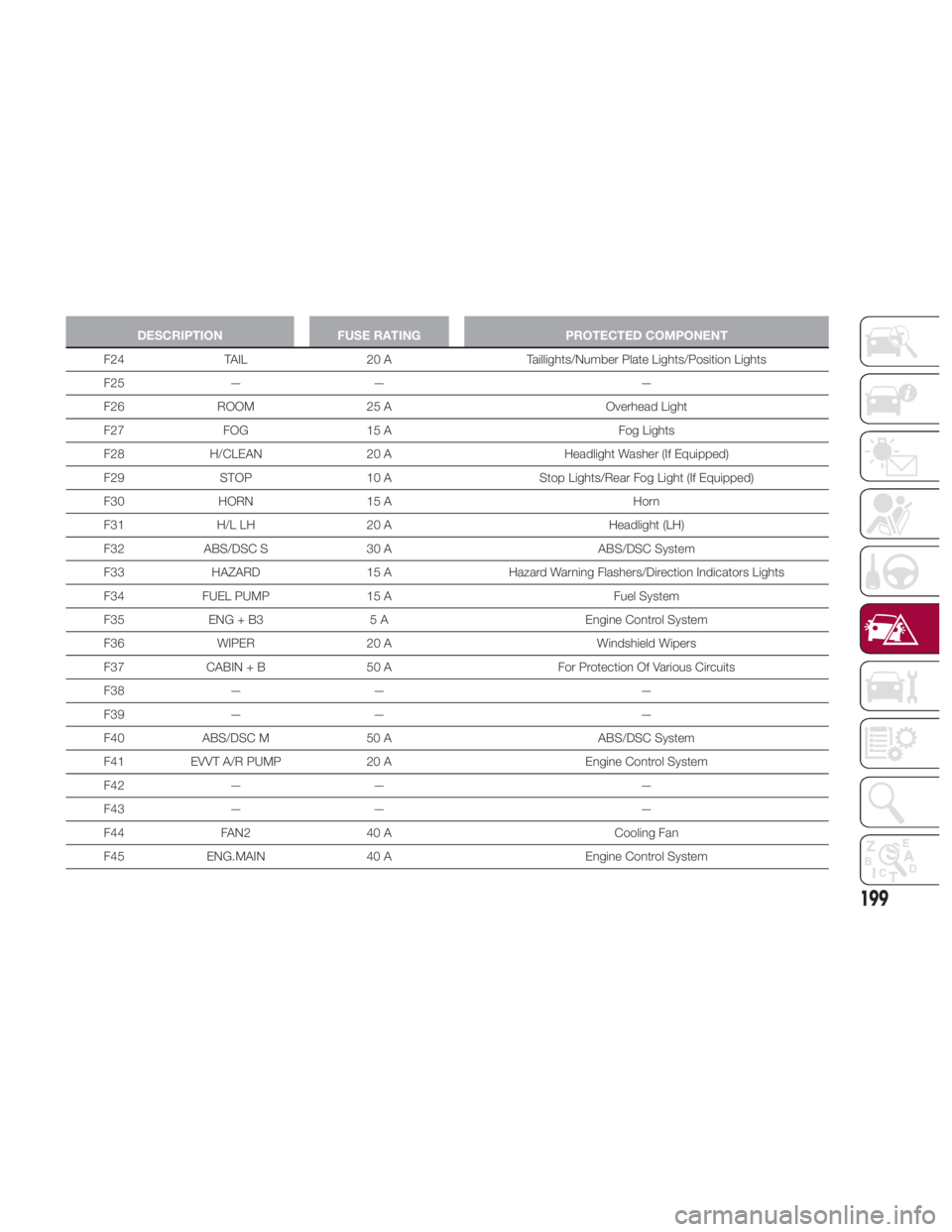

DESCRIPTION FUSE RATING PROTECTED COMPONENT
F24 TAIL 20 A Taillights/Number Plate Lights/Position Lights
F25 — — —
F26 ROOM 25
A Overhead Light
F27 FOG 15 A Fog Lights
F28 H/CLEAN 20 A Headlight Washer (If Equipped)
F29 STOP 10 A Stop Lights/Rear Fog Light (If Equipped)
F30 HORN 15 A Horn
F31 H/L LH 20 A Headlight (LH)
F32 ABS/DSC S 30 A ABS/DSC System
F33 HAZARD 15 A Hazard Warning Flashers/Direction Indicators Lights
F34 FUEL PUMP 15 A Fuel System
F35 ENG + B3 5 A Engine Control System
F36 WIPER 20 A Windshield Wipers
F37 CABIN + B 50 A For Protection Of Various Circuits
F38 — — —
F39 — — —
F40 ABS/DSC M 50 A ABS/DSC System
F41 EVVT A/R PUMP 20 A Engine Control System
F42 — — —
F43 — — —
F44 FAN2 40 A Cooling Fan
F45 ENG.MAIN 40 A Engine Control System
199

DESCRIPTION FUSE RATING PROTECTED COMPONENT
F46 EPS 60 A Power Steering System
F47 DEFOG 30
A Rear Window Defogger
F48 IG2 30 A For Protection Of Various Circuits
F49 — — —
F50 HEATER 40 A Air Conditioner
F51 — — —
F52 — — —
200
IN CASE OF EMERGENCY

Fuse Block Interior
07031602-03F-002
201

DESCRIPTION FUSE RATING PROTECTED COMPONENT
F01 RHT R 30 A —
F02 RHT
L 30 A —
F03 — — —
F04 — — —
F05 F.OUTLET 15 A Accessory Sockets
F06 — — —
F07 AT IND 7.5 A AT Shift Indicator — If Equipped
F08 MIRROR 7.5 A Power Control Mirror
F09 R_DECK R 30 A —
F10 R_DECK L 30 A —
F11 F.WASHER 15 A Windshield Washer
F12 P.WINDOW 30 A Power Windows
F13 — — —
F14 SRS2/ESCL 15 A —
F15 — — —
F16 — — —
202
