2017 FIAT QUBO fuse box

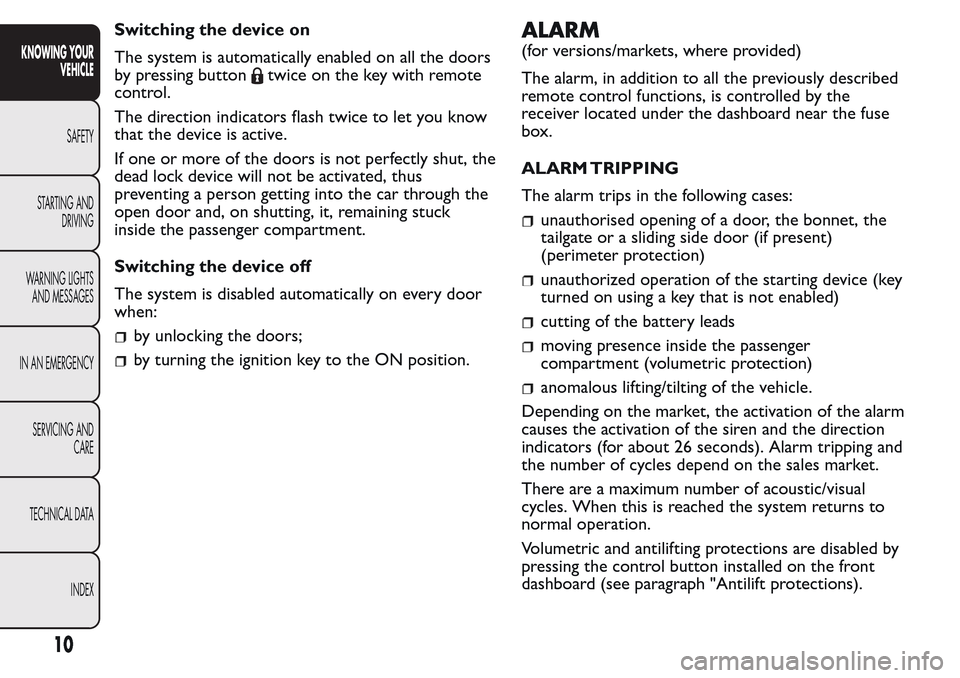

Switching the device on
The system is automatically enabled on all the doors
by pressing button
twice on the key with remote
control.
The direction indicators flash twice to let you know
that the device is active.
If one or more of the doors is not perfectly shut, the
dead lock device will not be activated, thus
preventing a person getting into the car through the
open door and, on shutting, it, remaining stuck
inside the passenger compartment.
Switching the device off
The system is disabled automatically on every door
when:
by unlocking the doors;
by turning the ignition key to the ON position.
ALARM
(for versions/markets, where provided)
The alarm, in addition to all the previously described
remote control functions, is controlled by the
receiver located under the dashboard near the fuse
box.
ALARM TRIPPING
The alarm trips in the following cases:
unauthorised opening of a door, the bonnet, the
tailgate or a sliding side door (if present)
(perimeter protection)
unauthorized operation of the starting device (key
turned on using a key that is not enabled)
cutting of the battery leads
moving presence inside the passenger
compartment (volumetric protection)
anomalous lifting/tilting of the vehicle.
Depending on the market, the activation of the alarm
causes the activation of the siren and the direction
indicators (for about 26 seconds). Alarm tripping and
the number of cycles depend on the sales market.
There are a maximum number of acoustic/visual
cycles. When this is reached the system returns to
normal operation.
Volumetric and antilifting protections are disabled by
pressing the control button installed on the front
dashboard (see paragraph "Antilift protections).
10
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

WARNING
If a fuse blows again, contact a Fiat
Dealership.
Never replace a blown fuse with metallic
wires or other material.
WARNING
Never replace a fuse with another
having higher amperage; FIRE HAZARD.
WARNING
If a general protection fuse (MEGA-
FUSE, MIDI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
Remove the key from the ignition and
switch off or disable all devices before
replacing a fuse.
WARNING
Contact Fiat Dealership if a safety
system (air bags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.
To identify the protective fuse, see the tables on the
following pages.
ENGINE BAY FUSE BOX
The fuse box is on the right-hand side of the engine.
Removing the fuse box cover
Proceed as follows:
remove protective lid A fig. 169 from the positive
battery terminal by lifting it upwards;
fig. 169F0T0171
170
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

press the tab A fig. 170 and remove the fuse box
protective lid B;
move the lid towards the headlight, turning it
anticlockwise (as shown by the arrow) and then
remove it fig. 171;
the fuse box can be accessed in this manner
fig. 173.
If you need to clean the engine
compartment , take care not to direct the
jet of water specifically onto the engine
compartment wired casing.
fig. 170F0T0172fig. 171F0T0173
171
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Refitting the fuse box cover
To refit the cover proceed as follows:
insert the two tabs A fig. 172 in the respective
seats located on the fuse box;
refasten the tab B in the corresponding seat until
it clicks.
fig. 172F0T0174
172
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

PASSENGER COMPARTMENT FUSE BOX
To access the fuses undo the two screws A fig. 174
using the metallic insert of the ignition key then
remove the flap B.
The fuses are located in the two fuse boxes shown in
fig. 175.
fig. 174F0T0178fig. 175F0T0183
175
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

rinse thoroughly to avoid soap marks staying on
the bodywork or less visible parts.
Some car washes with old-style blades
and/or in a poor state of repair can
damage the paintwork, facilitating the
formation of lines that give the paint a dull/misty
appearance, especially on dark colours. If this
happens, lightly polish the paintwork with
appropriate products.
Dry the less visible parts particularly carefully, such
as the door frames, bonnet and the headlight frames,
where water may stagnate more easily. It is a good
idea to leave the vehicle outdoors for a while after
washing it to give water time to evaporate.
Do not wash the vehicle after it has been left in the
sun or with the bonnet hot: this may alter the shine
of the paintwork.
Exterior plastic parts should be cleaned in the same
way as the rest of the vehicle. Where possible, do
not park the vehicle under trees; the resinous
substances released by many species give the paint a
dull appearance and increase the possibility of rust.
IMPORTANT Bird droppings should be washed
off immediately and thoroughly as the acid
they contain is particularly aggressive.
Detergents cause water pollution.The
vehicle should be washed in areas
equipped for collecting and purifying the
liquid used in the washing process.
Windows
Use specific detergents to clean the windows. Also
use clean cloths to avoid scratching the glass or
altering the transparency.
IMPORTANT Wipe the rear window gently with a
cloth in the direction of the filaments to avoid
damaging the heating device.
Engine compartment
At the end of each winter, thoroughly wash the
engine compartment, taking care to avoid spraying
the water jet directly onto the electronic control
units and the relay/fuse box on the left side of the
engine compartment (as you look from behind
the wheel). Have this operation performed at a
specialist garage.
IMPORTANT The washing should take place with the
engine cold and the ignition key in the STOP
position. After the wash, make sure that the various
protective devices (e.g. rubber caps and guards)
have not been removed or damaged.
205
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Controls........................................ 51
Coupling the tow ring............... 180
Cruise control ............................. 46
Cruise Control (warning
light) ............................................ 144
Cruise Control warning
light ............................................. 144
Dashboard .................................... 3
Dead lock ..................................... 9
Dead Lock .................................... 9
Degraded engine oil warning
light ............................................. 137
Dimensions ................................. 222
Dipped beam headlights ............ 42
Dipped/main beam
headlights ................................... 161
Dipped/main beam
headlights (changing a bulb)... 161
Direction indicators ................... 43
– Left direction indicator
warning light ......................... 145
– Right-hand indicator
warning light .......................... 145
Direction indicators
(changing a bulb) ...................... 161
Door open .................................. 138
Doors (unlocking/locking) ........ 55
Double rear wing doors............ 61DPF (particulate filter) .............. 96
Driver side armrest .................... 52
Driving style ................................ 129
EBD (fault warning light) .......... 136
EBD fault warning light............. 136
EBD system .................................. 72
Emergency starting.................... 124
Engine ........................................... 211
Engine bay fuse box ................... 170
Engine codes ............................... 210
Engine compartment fuse
box table .................................... 174
Engine coolant ............................ 193
Engine coolant fluid
(warning light)........................... 134
Engine coolant fluid warning
light ............................................. 134
Engine coolant temperature
indicator...................................... 14
Engine marking ........................... 209
Engine oil ..................................... 192
Engine oil (degraded oil
warning light) ............................ 137
Engine oil (low pressure
warning light) ............................ 137
EOBD (engine control
system fault warning light) ..... 138
EOBD system .............................. 82ESC (system) ............................... 73
Extending the boot .................... 63
Exterior lights .............................. 42
Fiat CODE (vehicle
protection system fault
warning light) ............................ 141
Fiat CODE system ..................... 6
Fiat CODE vehicle
protection system fault
warning light.............................. 141
Fix&Go automatic kit ............... 153
Fix&Go Automatic quick
tyre pressure restoration....... 154
Flashing the headlights ............... 42
Fluids and lubricants.................. 229
Fog lights ....................................... 51
– Warning light ......................... 144
Fog lights (changing a bulb)...... 162
Fog lights warning light ............. 144
Follow Me Home ........................ 43
Front airbags ............................... 113
– Front airbag driver's side .... 114
– Manually deactivating the
front airbag and side bag .... 115
– Passenger side front
airbag....................................... 114
Front ceiling light ....................... 166
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Left direction indicator
warning light.............................. 145
Lifting the vehicle....................... 180
Light beam direction .................. 70
Low battery charge warning
light ............................................. 135
Low engine oil level ................... 138
Low engine oil pressure
warning light.............................. 137
Luggage Compartment.............. 59
Main beam headlights................. 42
Main beam warning light .......... 145
Maintenance and care -
regular checks........................... 189
Maintenance and care -
Scheduled Servicing ................. 183
Maintenance and care -
scheduled servicing plan......... 184
Manual climate control
system ......................................... 39
Manually deactivating the
front airbag and side bag ........ 115
MSR system.................................. 76
Multifunction display
– Control buttons .................... 16
– Setup menu............................. 17
– Standard screen ..................... 15
Number plate lights................... 165Number plate lights (bulb
replacement) ............................. 165
On-board instruments............... 13
Ordering additional remote
controls ....................................... 9
Parking .......................................... 125
Parking lights ................................ 42
Parking sensor fault warning
light ............................................. 143
Parking sensors ........................... 84
Parking sensors (warning
light) ............................................ 143
Particulate filter (DPF) .............. 96
Partition ........................................ 30
Passenger compartment
fuse box ..................................... 175
Passenger compartment
fuse box table ........................... 177
Performance................................ 223
Pollen filter .................................. 197
Power steering fluid .................. 196
Power supply............................... 212
Pre-tensioners ............................ 100
pressure restoring...................... 156
Prolonged vehicle inactivity ..... 132
Protecting the environment ..... 96
Radio.............................................. 91Radio transmitters and
mobile phones ........................... 92
Rear ceiling light ......................... 167
Rear fog lights .............................. 51
– Warning light ......................... 144
Rear fog lights (changing a
bulb) ............................................ 163
Rear fog lights warning light .... 144
Rear light clusters ...................... 163
Rear light clusters (changing
a bulb)......................................... 163
Rear side windows ..................... 54
Rear window washer ................. 45
Rear window wiper .................... 45
Rear-view mirrors
– Interior rear-view mirror..... 33
– Wing mirrors ......................... 33
Refuelling...................................... 226
Refuelling the vehicle ................. 93
Removable ceiling light ............. 168
Replacing the battery ................ 198
Replacing the rear window
wiper blade................................ 202
Replacing the windscreen
wiper blades .............................. 202
Rev counter.................................. 13
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
