2017 FIAT PUNTO technical specifications

52
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Courtesy light timing
On certain versions, to facilitate getting
in/out of the car at night or in poorly-lit ar-
eas, two timed modes have been provided.
TIMING WHEN GETTING INTO THE CAR
The courtesy lights switch on as follows:
❒for about 10 seconds when unlocking the front doors;
❒for about 3 minutes when opening oneof the side doors;
❒for about 10 seconds when closing thedoors.
The timed period is interrupted when the
ignition is turned to MAR.
TIMING WHEN GETTING OUT OF THE CAR
After removing the key from the ignition,
the courtesy lights switch on as follows:
❒within 2 minutes from turning the en-
gine off for about 10 seconds;
❒when opening one of the side doors forabout 3 minutes;
❒when one of the doors is closed fora period of about 10 seconds.
The timed period stops automatically
when the doors are locked.
CAUTION Before getting out of the car,
make sure both switches are in the cen-
tral position; when the doors are closed,
the lights switch off to prevent the battery
from running down.
In any case, if the switch is left in the ‘per-
manently on’ position, the courtesy light
goes off automatically 15 minutes after the
engine switching off.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 52

53
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CONTROLS
HAZARD WARNING LIGHTS

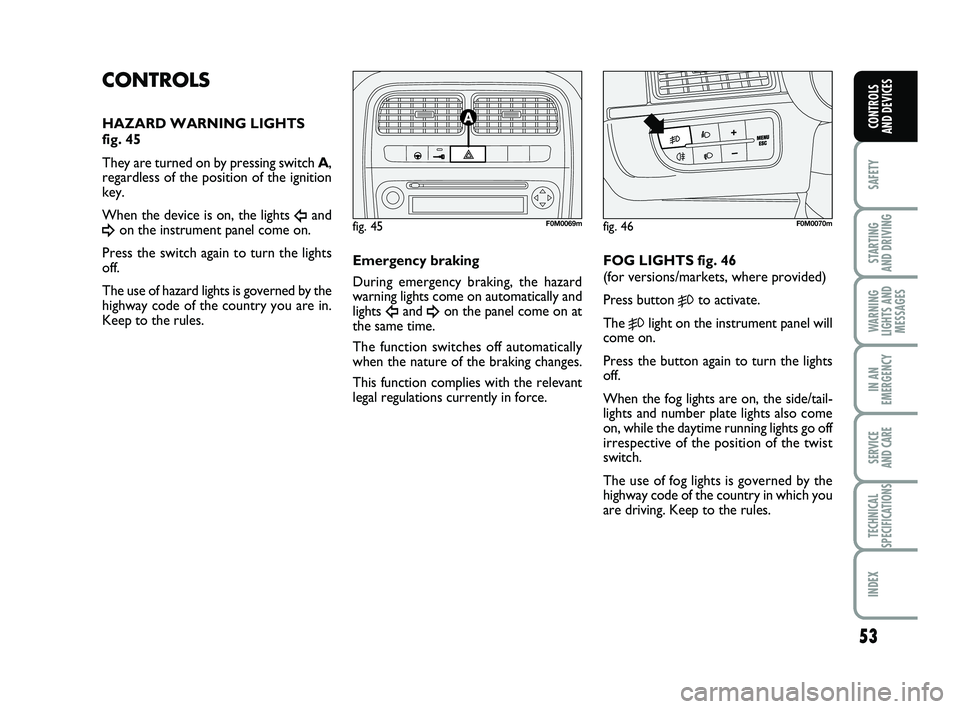

fig. 45
They are turned on by pressing switch A ,
regardless of the position of the ignition
key.
When the device is on, the lights
Îand
¥on the instrument panel come on.
Press the switch again to turn the lights
off.
The use of hazard lights is governed by the
highway code of the country you are in.
Keep to the rules. Emergency braking
During emergency braking, the hazard
warning lights come on automatically and
lights
Îand ¥on the panel come on at
the same time.
The function switches off automatically
when the nature of the braking changes.
This function complies with the relevant
legal regulations currently in force. FOG LIGHTS fig. 46
(for versions/markets, where provided)
Press button 5to activate.
The
5light on the instrument panel will
come on.
Press the button again to turn the lights
off.
When the fog lights are on, the side/tail -
lights and number plate lights also come
on, while the daytime running lights go off
irrespective of the position of the twist
switch.
The use of fog lights is governed by the
highway code of the country in which you
are driving. Keep to the rules.
fig. 45F0M0069mfig. 46F0M0070m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 53

54
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
HEATED REAR WINDOW fig. 49
Press button A to activate. The device will
be switched off automatically after ap-
proximately 20 minutes.
fig. 49F0M0036m
PARKING LIGHTS
These lights can be turned on, only with
the key turned to STOPor removed, by
turning the twist switch on the left stalk
first to O and then to
6or 2.
The
3light on the instrument panel
comes on.
DUALDRIVE ELECTRIC POWER
STEERING SYSTEM fig. 48
Press button A to activate the “CITY”
function (see the “Electric power steering
system” paragraph in this section). When
the function is active, the word CITY is
lit up on the instrument panel. Press the
button again to deactivate the function.
fig. 48F0M0617m
REAR FOG LAMPS fig. 47
Press button 4to turn these lights on
with the dipped beam headlights or the
front fog lights (for versions/markets,
where provided) switched on.
The 4light on the instrument panel will
come on.
Press the button again to turn the lights
off or turn off the dipped beam headlights
and/or the front fog lights (for versions/
markets, where provided).
The use of rear fog lamps is governed by
the highway code of the country you are
in. Keep to the rules.
fig. 47F0M0071m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 54

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Door unlocking in the event of
a crash
If the fuel cut-off switch trips following an
accident, the doors will be automatically
unlocked to allow access to the passenger
compartment and the ceiling lights will be
switched on at the same time. The doors
can always be opened from the inside of
the car by using the appropriate controls.
if no fuel leakage is found and the car is
roadworthy, ensure the correct operation
of the vehicle by adhering to the following
instructions.
DOOR LOCKING fig. 50
To lock all doors at the same time, press
button
A, located on the central console
control panel, regardless of the position
of the ignition key.FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒cut-off of fuel supply with consequent switching off of the engine;
❒automatic door unlocking;
❒switching on of all interior lights.
When the system has been triggered, the
message “Fuel cut off, see handbook” is
displayed.
Carefully check the car for fuel leaks, for
instance in the engine compartment, un-
der the car or near the tank area.
After a crash, turn the key to STOP to
avoid draining the battery.fig. 50F0M0618m
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reactivate the sys-
tem to avoid the risk of fire.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 55

56
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
fig. 52F0M0077m
fig. 51F0M0104m
fig. 53F0M0078m
INTERIOR FITTINGS
GLOVE BOX fig. 51-52
Use the handle to open the compartment
A-fig. 51.
Inside the compartment there is a space
A-fig. 52 to keep documents (for ver-
sions/markets, where provided).
GLOVE COMPARTMENTS
glove compartment A-fig. 53 is located in
the dashboard, on the left of the steering
wheel.
The following procedure should be car-
ried out to restore the correct operation
of the vehicle:❒turn the ignition key to
MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the key to STOP;
❒turn the ignition key to MAR.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 56

57
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
DOOR POCKETS fig. 56
There are document/map pockets locat-
ed in each of the door panels. FRONT ARMREST WITH
GLOVE COMPARTMENT
(for versions/markets, where provided)
Certain versions are fitted with an arm-
rest
A-fig. 67 between the front seats.
To use it as an armrest, push it down as
shown in fig. 57.
Press button A-fig. 58 to raise the upper
part of the arm and access compartment
B . Operate lever C to lower the angle
of the armrest.
fig. 54F0M0619m
fig. 55F0M0080mfig. 57F0M0225m
fig. 58F0M0245mfig. 56F0M0081m
Glove compartment B-fig. 54 is located
in the middle of the dashboard.
Glove compartment Bcan be removed to
install a sound system.
CENTRAL CONSOLE GLOVE
COMPARTMENT
Compartment A-fig. 55is located on the
central console in front of the handbrake.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 57

58
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CIGARETTE LIGHTER fig. 62
This is located on the central console in
front of the handbrake.
Press button A to activate the cigarette
lighter with ignition key at MAR.
After about 15 seconds the button will
return to its original position and the cig-
arette lighter is ready for use.
IMPORTANT Always check that the cig-
arette lighter has turned itself off.
fig. 62F0M0084m
The cigarette lighter gets
very hot. Handle it carefully
and make sure children don’t touch
it: risk of fire and/or burning.
WARNING
CUP HOLDERS – CAN HOLDERS
fig. 59-60
There are two cup/can holders in front of
the handbrake and one behind it on the
central console. CARD HOLDER – CD HOLDER
fig. 61
The central console features slots for te
-
lephone cards CDs, magnetic cards or
motorway toll tickets.
fig. 59F0M0082mfig. 61F0M0083m
fig. 60F0M0118m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 58

59
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
ASHTRAY fig. 63-64
The ashtray is a removable plastic box that
can be fitted into the cup/can holders on
the central console.
IMPORTANT Do not use the ashtray as
a waste paper basket at the same time: fire
hazard. SUN VISORS fig. 65
These are located at the sides of the rear
view mirror. They may be positioned at
the front and to the side.
A mirror can be applied to the back of the
driver-side sun visor:
To use the mirror (for versions/markets,
where provided), on some versions you
need to open the sliding cover
A.
fig. 63F0M0085mfig. 65F0M0086m
fig. 64F0M0116m
SOCKET
(for versions/markets, where provided)
This is located in the boot, on the left side
of the plastic support for the parcel shelf
fig. 66.
To use it, open cap A.
EXTINGUISHER fig. 66a
(for versions/markets, where provided)
The extinguisher is located on the left side
of the luggage compartment.
fig. 66F0M0249m
fig. 66aF0U0530m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 59
