2017 FIAT GRANDE PUNTO ACTUAL fuel filter

90
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
REFUELLINGTHECAR
PETROL ENGINES
Use only unleaded petrol.
To avoid mistakes, the diameter of the fu-
el tank opening is too small to insert the
nozzle of a leaded petrol pump. The petrol
octane rating (RON) must not be lower
than 95.
IMPORTANT An inefficient catalytic con-
verter leads to harmful exhaust emissions,
thus contributing to air pollution.
IMPORTANT Never use leaded petrol,
even in small amounts or in an emergency,
as this would damage the catalytic con-
verter beyond repair.DIESEL ENGINES
If the outside temperature is very low, the
diesel thickens due to the formation of
paraffin clots and could clog the diesel fu-
el filter.
In order to avoid these problems, differ-
ent types of diesel are distributed ac-
cording to the season: summer type, win-
ter type and arctic type (cold, mountain
areas).
If refuelling with diesel fuel whose speci-
fications are not suitable for the usage
temperature, it is advisable to mix in the
TUTELA DIESEL ART additive in the pro-
portions shown on the container. Pour
the additive into the tank before the fuel.
When using or parking the vehicle for
a long time in the mountains or cold ar-
eas, it is advisable to refuel using locally
available diesel.
In this case, it is also advisable to keep the
tank over 50% full.For diesel engines, use only
diesel fuel for motor vehicles
in accordance with EN590
European specifications. The
use of other products or mixtures may
damage the engine beyond repair and
consequently invalidate the warranty,
depending on the damage caused. If
you accidentally introduce other types
of fuel into the tank, do not start the
engine. Empty the tank. If the engine
has run, even for a very short time, you
will need to have the entire fuel system
emptied in addition to the tank.
072-092 ACTUAL 1ed EN 26-07-2010 10:55 Pagina 90

91
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
FUEL TANK CAP fig. 111
To carry out refuelling, open lidAand un-
screw capB;thecapisfittedwithade-
viceCwhich fastens it to the lid so it can-
not be mislaid.
In some versions, capBmay be provided
with a lock and key; use the ignition key
to access the flapA, turn it anti-clockwise
and unscrew the cap itself.
The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction
noise when you release the cap is there-
fore entirely normal.
When refuelling, hook the cap onto the
device inside the lid as shown infig. 111.
fig. 111F0M0138m
Do not place naked flames
or lit cigarettes near to the
fuel tank opening: fire risk. Keep your
face away from the fuel tank open-
ing to avoid breathing in harmful
vapours.
WARNING
Filling the tank
To fill the tank completely, top up twice
after the first click of the trigger. Further
top ups could cause faults in the fuel sup-
ply system.
PROTECTING
THEENVIRONMENT
The devices for reducing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation prevention system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The following devices are used for reduc-
ing diesel fuel engine emissions:
❒oxidising catalytic converter;
❒exhaust gas recirculation system (E.G.R.);
❒diesel particulate filter (DPF) (for ver-
sions/markets, where provided).
072-092 ACTUAL 1ed EN 26-07-2010 10:55 Pagina 91

123
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS ..................................................... 124
LOW BRAKE FLUID LEVEL .............................................. 124
HANDBRAKE ON .............................................................. 124
AIRBAG FAULT ................................................................... 125
OVERHEATED ENGINE COOLANT ............................ 125
LOW BATTERY CHARGE ................................................ 126
LOW ENGINE OIL PRESSURE -
EXHAUSTED ENGINE OIL ............................................... 126
“DUALDRIVE” ELECTRIC POWER
STEERING FAULT ............................................................... 127
DOOR OPEN ....................................................................... 127
LOW ENGINE OIL LEVEL ................................................ 127
EBD FAULT ........................................................................... 127
INJECTION SYSTEM FAULT
(Multijet versions) ................................................................. 128
ENGINE CONTROL SYSTEM FAULT (EOBD)
(petrol versions) ................................................................... 128
FRONT PASSENGER AIRBAG DEACTIVATED .......... 129
ABS FAULT ........................................................................... 129
FUEL RESERVE ...................................................................... 129
SEAT BELT NOT FASTENED ........................................... 129
GLOW PLUG HEATING ................................................... 130
GLOW PLUG HEATING FAULT .................................... 130WATER IN DIESEL FILTER ............................................... 130
FIAT CODE CAR PROTECTION SYSTEM FAULT .... 131
EXTERIOR LIGHTS FAULT .............................................. 131
REAR FOG LAMPS .............................................................. 131
GENERIC WARNING ........................................................ 131
DPF CLEANING IN PROGRESS
(Multijet versions) ................................................................. 132
ESP SYSTEM FAULT ............................................................ 132
WORN BRAKE PADS ........................................................ 132
HILL HOLDER FAULT ....................................................... 132
SIDELIGHTS AND DIPPED BEAM HEADLIGHTS ...... 133
FOLLOW ME HOME .......................................................... 133
FOG LIGHTS ........................................................................ 133
LEFT-HAND DIRECTION INDICATOR ....................... 133
RIGHT-HAND DIRECTION INDICATOR ................... 133
“DUALDRIVE” ELECTRIC POWER STEERING ON ... 133
MAIN BEAM HEADLIGHTS .............................................. 133
POSSIBLE ICE ON ROAD ................................................. 134
LIMITED RANGE ................................................................. 134
ASR SYSTEM ......................................................................... 134
SPEED LIMIT EXCEEDED .................................................. 134
W W
A A
R R
N N
I I
N N
G G

L L
I I
G G
H H
T T
S S

A A
N N
D D

M M
E E
S S
S S
A A
G G
E E
S S
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 123

130
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES

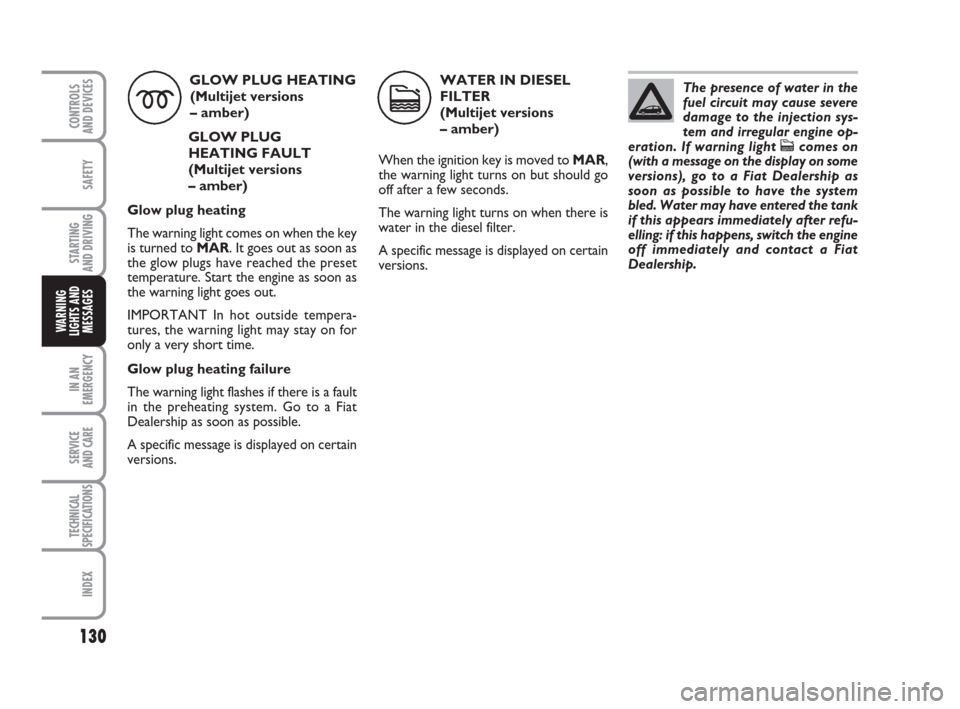

GLOW PLUG HEATING
(Multijet versions
– amber)
GLOW PLUG
HEATING FAULT
(Multijet versions
– amber)
Glow plug heating
The warning light comes on when the key
is turned to MAR. It goes out as soon as
the glow plugs have reached the preset
temperature. Start the engine as soon as
the warning light goes out.
IMPORTANT In hot outside tempera-
tures, the warning light may stay on for
only a very short time.
Glow plug heating failure
The warning light flashes if there is a fault
in the preheating system. Go to a Fiat
Dealership as soon as possible.
A specific message is displayed on certain
versions.
m
WATER IN DIESEL
FILTER
(Multijet versions
– amber)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light turns on when there is
water in the diesel filter.
A specific message is displayed on certain
versions.
c
The presence of water in the
fuel circuit may cause severe
damage to the injection sys-
tem and irregular engine op-
eration. If warning light
ccomes on
(with a message on the display on some
versions), go to a Fiat Dealership as
soon as possible to have the system
bled. Water may have entered the tank
if this appears immediately after refu-
elling: if this happens, switch the engine
off immediately and contact a Fiat
Dealership.
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 130

172
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
Thousands of kilometres
Check battery charge status and possibly recharg
Check operation of engine management systems
(using diagnostic socket)
Replace accessory drive belt/s
Replace fuel filter
Replace air filter cartridge
Change engine oil and oil filter (Multijet versions without DPF)
(or every 24 months)
Change engine oil and oil filter
(Multijet versions with DPF) (**)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
(*) Regardless of the distance covered, the timing belt must be changed every 4 years for particularly demanding use (cold climates, city driving, long periods of
idling) or at least every 5 years.
(**) The engine oil and the filter must be replaced when the warning light on the dashboard comes on (see the “Warning lights and messages” section) or at least
every 24 months.
If the vehicle is used mainly around town or the annual distance travelled is less than 10,000 km, the engine oil
and oil filter must be changed every 12 months.
30 60 90 120 150 180
●●●●● ●
●●●●● ●
●
●● ●
●●●●● ●
●●●●● ●
●● ●
●●●●● ●
167-186 ACTUAL 1ed EN 18-01-2011 14:40 Pagina 172

173
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
DEMANDING USE
OF THE CAR
Should the car be used predominantly in
one of the following particularly demand-
ing conditions:
❒trailer or caravan towing;
❒dusty roads;
❒short (less than 7-8 km) and repeated
journeys in sub-zero temperatures;
❒ frequently idling engine or long-dis-
tance, low-speed driving (e.g. door-to-
door deliveries) or lengthy inactivity;
❒ driving in towns and cities;
you should perform the following inspec-
tions more frequently than shown on the
Scheduled Servicing Plan:
❒ check front disc brake pad conditions
and wear;
❒check cleanliness of bonnet and boot
locks, and cleanliness and lubrication of
linkages;
❒ visually inspect the conditions of: en-
gine, gearbox, transmission, pipes and
tubes (exhaust – fuel – brakes), rubber
parts (boots, sleeves, bushes, etc.);
❒check battery charge and liquid level
(electrolyte);
❒visually inspect the condition of the ac-
cessory drive belts;
❒check pollen filter and replace, if re-
quired;
❒check air filter and replace, if required.
REGULAR CHECKS
Every 1,000 km or before long journeys,
check and, if necessary, top up:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer level;
❒tyre pressure and conditions.
❒operation of lights (headlights, direction
indicators, hazard lights, etc.);
❒operation of the windscreen wiper/
washer system, position and wear of
the windscreen and rear window wiper
blades;
Every 3,000 km, check and top up, if re-
quired, the engine oil level.
You are recommended to use PETRONAS
LUBRICANTS products, which have been
designed and produced specifically for
Fiat cars (see table “Capacities” in the
“Technical specifications” section).
167-186 ACTUAL 1ed EN 27-07-2010 10:30 Pagina 173

201
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
1.3 Multijet
–
–
45
5 ÷ 7
7.4/6,7 (*)
–
–
3.0
3.2
1.7
0.5
2.2
4.5 1.4
45
5 ÷ 7
–
–
5.27
2.4
2.6
–
–
1.5
0.5
2.2
4.5 1.2
45
5 ÷ 7
–
–
5.27
2.4
2.6
–
–
1.5
0.5
2.2
4.5
CAPACITIES
Fuel tank: litres
including a reserve of: litres
Fuel tank: litresincluding a reserve of: litres
Engine cooling
system: litres
Engine sump: litres
Engine sump and filter: litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/differential
casing: kg
Hydraulic brake circuit: kg
Windscreen/rear window
washer fluid reservoir: litres
with headlight washers: litres
(❒) For particularly harsh climate conditions, a mixture of 60% PARAFLUUPand 40% distilled water is recommended.
(*) EURO 5
Recommended fuels
and original lubricants
Unleaded petrol with no less
than 95 R.O.N.
(EN228 Specification)
Diesel for motor vehicles
(EN590 Specification)
50-50 mixture of water and
PARAFLU
UPliquid (❒)
SELENIA K P.E.
SELENIA WR P.E.
TUTELA CAR TECHNYX
TUTELA TOP 4
Mixture of water and
TUTELA
PROFESSIONAL SC35
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 201

205
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICESBonnet ............................................ 70
Boot ................................................. 67
– opening the boot
in an emergency ...................... 67
– opening and closing
the boot .................................... 67
– extension .................................. 68
Boot extension .............................. 68
Brake Assist (emergency
braking assistance) ..................... 75
Brake fluid level ............................. 178
Brakes
– properties ................................. 193
– fluid level ................................... 178
Bulb (replacement)
– general information ................ 147
– bulb types ................................. 148
Car inactivity ................................ 122
Card/CD holder ........................... 58
Carrying children safely ............... 99
Ceiling lights ................................... 51
Changing a wheel .......................... 137
Chassis (marking) ......................... 188Checking levels ............................. 174
Child lock ....................................... 64
Child seats
(suitability for use) ............102-104
Cigarette lighter ............................ 58
Clutch .............................................. 192
CO
2emissions .............................. 204
Code Card ..................................... 8
Consumptions
– fuel ............................................. 204
– engine oil .................................. 176
Control buttons ............................ 53
Cup/can holder ............................. 58
Cup/can holders ............................ 58
Dashboard .................................... 5
Dashboard and controls ............. 4
Dead lock (device) ....................... 63
Digital display ................................. 16
Dimensions .................................... 198
Dipped beam headlights
– control ...................................... 47
– bulb replacement .................... 150
Ability to install
navigation system ....................... 88
ABS .................................................. 74
ABS system .................................... 74
Accessories purchased
by the owner ............................... 88
Air filter .......................................... 179
Alarm .............................................. 10
Arm rest ......................................... 57
Ashtray ........................................... 59
ASR .................................................. 77
– activation/deactivation ............ 77
ASR system .................................... 77
Battery
– jump starting ............................ 136
– checking the charge ............... 179
– recharging ................................. 163
– replacement ............................. 179
Bodywork
– maintenance ............................. 184
– version codes .......................... 190
I I
N N
D D
E E
X X
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 205
