Do not take unnecessary
risks, even if your vehicle is
fitted with this system. Your driving
style must always be suited to the
road conditions, visibility and traffic.
The driver is always responsible for
road safety.
WARNING
For correct operation of the ASR system,
the tyres must be of the same brand and
type on all wheels, in perfect conditions
and, above all, of the type, brand and size
recommended.
FAILURE INDICATIONS
In the event of a failure, the ASR system
will be automatically switched off and
warning light
áwill appear permanently
on the instrument panel along with a mes-
sage on the multifunction display (for ver-
sions/markets, where provided) (see
“Warning lights and messages”). In this
case, contact a Fiat Dealership as soon as
possible.

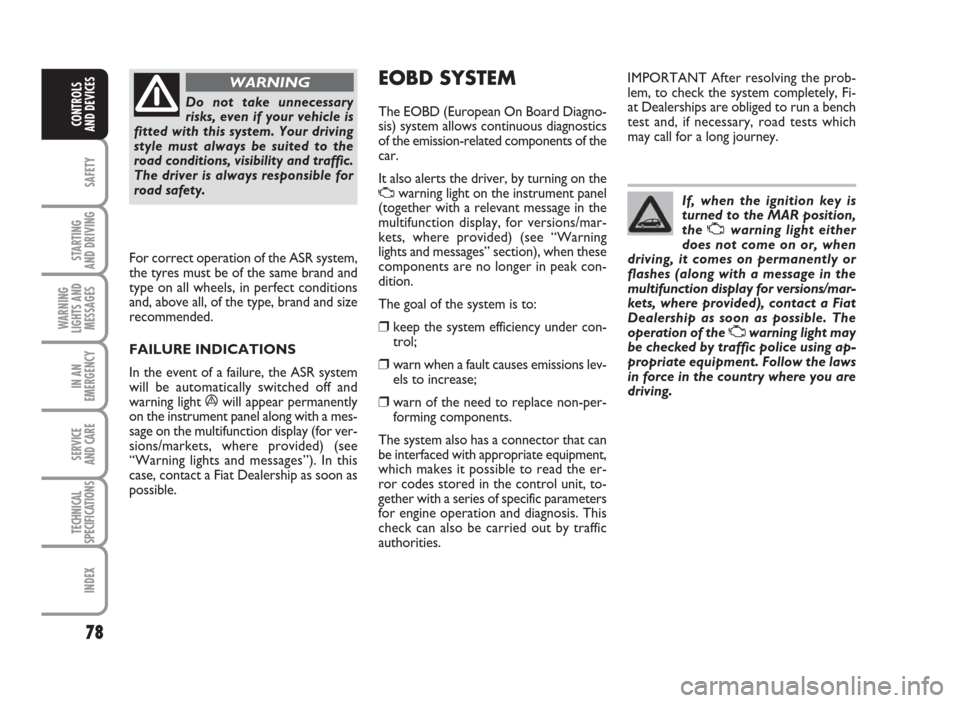

EOBD SYSTEM
The EOBD (European On Board Diagno-
sis) system allows continuous diagnostics
of the emission-related components of the
car.
It also alerts the driver, by turning on the
Uwarning light on the instrument panel
(together with a relevant message in the
multifunction display, for versions/mar-
kets, where provided) (see “Warning
lights and messages” section), when these
components are no longer in peak con-
dition.
The goal of the system is to:
❒keep the system efficiency under con-
trol;
❒warn when a fault causes emissions lev-
els to increase;
❒warn of the need to replace non-per-
forming components.
The system also has a connector that can
be interfaced with appropriate equipment,
which makes it possible to read the er-
ror codes stored in the control unit, to-
gether with a series of specific parameters
for engine operation and diagnosis. This
check can also be carried out by traffic
authorities.IMPORTANT After resolving the prob-
lem, to check the system completely, Fi-
at Dealerships are obliged to run a bench
test and, if necessary, road tests which
may call for a long journey.
If, when the ignition key is
turned to the MAR position,
theUwarning light either
does not come on or, when
driving, it comes on permanently or
flashes (along with a message in the
multifunction display for versions/mar-
kets, where provided), contact a Fiat
Dealership as soon as possible. The
operation of theUwarning light may
be checked by traffic police using ap-
propriate equipment. Follow the laws
in force in the country where you are
driving.
