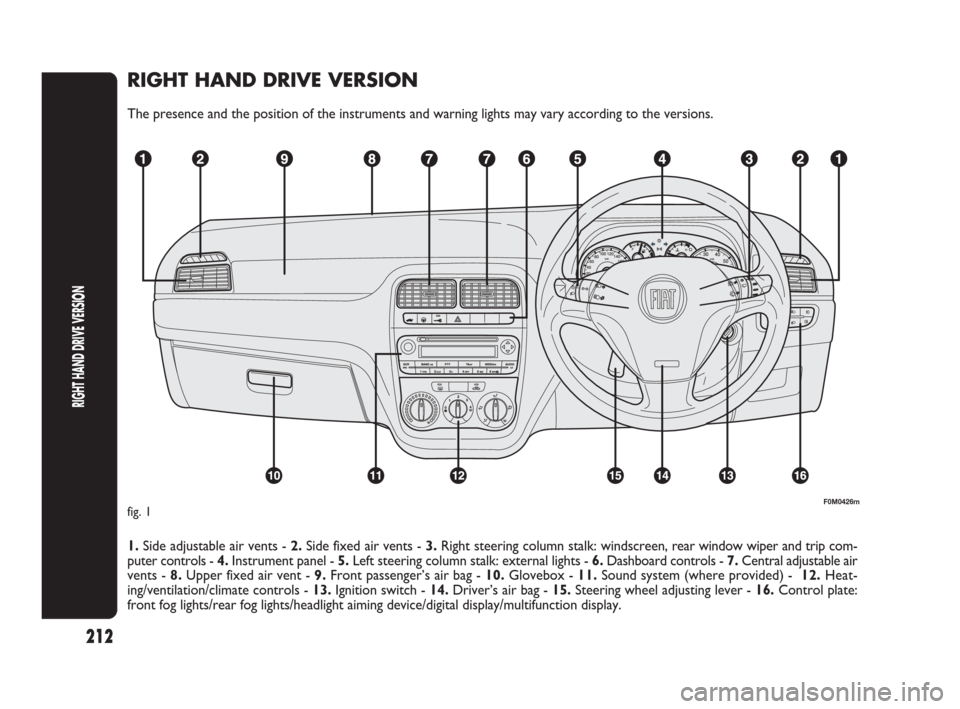

RIGHT HAND DRIVE VERSION
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side adjustable air vents - 2.Side fixed air vents - 3.Right steering column stalk: windscreen, rear window wiper and trip com-
puter controls - 4.Instrument panel - 5.Left steering column stalk: external lights - 6.Dashboard controls - 7.Central adjustable air
vents - 8.Upper fixed air vent - 9.Front passenger’s air bag - 10.Glovebox - 11.Sound system (where provided) - 12.Heat-
ing/ventilation/climate controls - 13.Ignition switch - 14.Driver’s air bag - 15.Steering wheel adjusting lever - 16.Control plate:
front fog lights/rear fog lights/headlight aiming device/digital display/multifunction display.
F0M0426mfig. 1
212
RIGHT HAND DRIVE VERSION
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 212

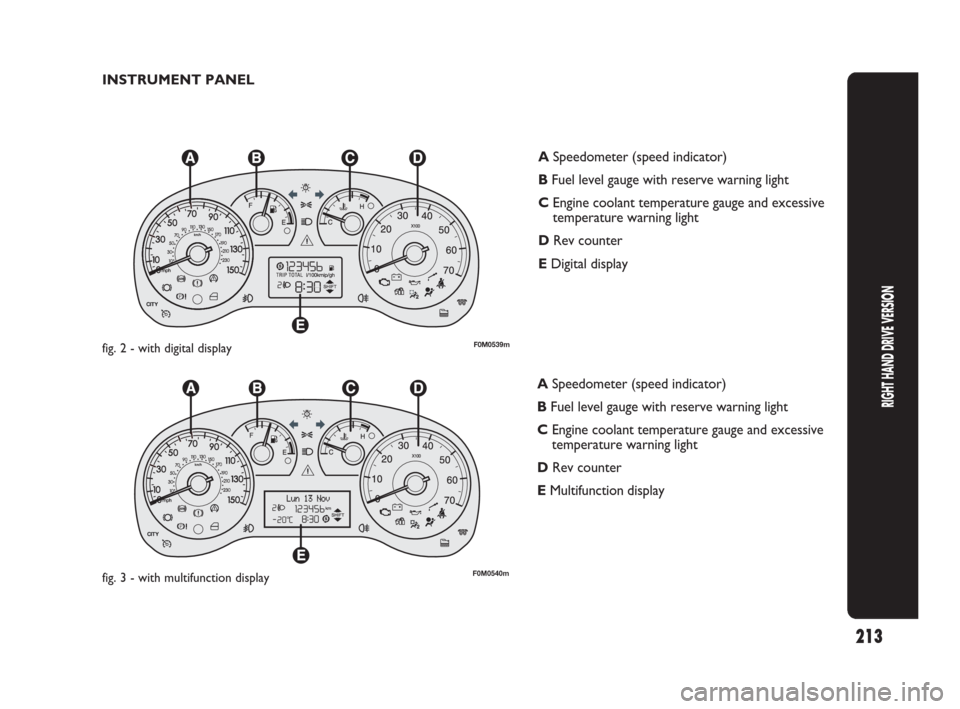

INSTRUMENT PANEL
F0M0539mfig. 2 - with digital display
F0M0540mfig. 3 - with multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning light
CEngine coolant temperature gauge and excessive
temperature warning light
DRev counter
EDigital display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning light
CEngine coolant temperature gauge and excessive
temperature warning light
DRev counter
EMultifunction display
213
RIGHT HAND DRIVE VERSION
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 213
