2017 FIAT GRANDE PUNTO ACTUAL dashboard warning lights

106
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
WARNING: Do not put child
seats facing backwards on
the front seat if the passen-
ger’s airbag is enabled
(ON). Deployment of the
airbag in an accident could
cause fatal injuries to the baby.
Should it be absolutely necessary to
place a child seat on the front seat,
always deactivate the passenger
airbag. Also, the passenger seat
should be as far back as possible to
avoid contact between the child seat
and the dashboard. Although this is
not mandatory by law, the airbag
should be immediately reactivated
when children are no longer carried
to ensure better protection for adults.
WARNING
FRONT AIRBAG ON
PASSENGER’S SIDE fig. 16
This consists of an instant-inflating bag
contained in a special compartment in the
dashboard: this bag has a larger volume
than that of the driver’s.
fig. 15F0M0360mfig. 16F0M0053m
FRONT AIRBAG ON DRIVER’S
SIDE fig. 15
This consists of an instant-inflating bag
contained in a special compartment in the
centre of the steering wheel.
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 106

107
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
MANUAL DEACTIVATION
OF FRONT AND SIDE CHEST/
PELVIS PASSENGER AIRBAGS
(for versions/markets, where provided)
Whenever a child needs to be carried on
the front seat, the passenger’s front and side
chest/pelvis airbags (for versions/ markets,
where provided) must be deactivated.
The warning light
“on the instrument
panel stays on steadily until the passenger’s
front and side chest airbags (for versions/
markets, where provided) are re-activated.
To manually deactivate the
passenger’s front and side
chest/pelvis airbags (for versions/mar -
kets, where provided), refer to para-
graphs “Digital display” and “Mul -
tifunction display” in the section
“Dashboard and controls”.
WARNING
SIDE AIRBAGS
The car is fitted with front side airbags
for driver and passenger (for versions/
mar kets, where provided) for protecting
the chest and pelvis, and window bags
(for versions/markets, where provided)
for protecting the heads of front and rear
passengers.
Side airbags (for versions/markets, where
provided) protect car occupants from
side-on crashes of medium/high severity
by placing the bag between the occupant
and the internal parts of the side structure
of the car.
Non-activation of side bags in other types
of collisions (head-on collisions, rear
shunts, roll-overs, etc…) is not an indi-
cation of system malfunction.
In the event of a side-on crash, an elec-
tronic control unit triggers the inflation of
the bag if required. The cushion immedi-
ately inflates, placing itself between the oc-
cupant’s body and structures that could
cause injuries, the cushion deflates Imme-
diately afterwards.
Side bags (for versions/markets, where
provided) are not a replacement for, but
rather a complement to, the seat belts,
which should be worn at all times as spec-
ified by law in Europe and most non-Eu-
ropean countries.FRONT SIDE AIRBAGS
- CHEST AND PELVIS
ZONE PROTECTION fig. 17
(for versions/markets, where provided)
Front side airbags are housed in the seat
backrests. They consist of an instant-in-
flation bag designed to increase protection
of the occupants’ chest and pelvis zone in
the event of a side-on crash of medium/
high severity.
fig. 17F0M0140m
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 107

112
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING
STARTING THE ENGINE
The car is fitted with an electronic engine
lock device: if the engine fails to start, see
the paragraph on “The Fiat CODE sys-
tem” in the “Dashboard and controls”
section.
The engine may be noisier during the first
few seconds of operation, particularly af-
ter a long period of inactivity. This is a fea-
ture of hydraulic tappets, the timing sys-
tem chosen to reduce the number of
servicing interventions, and effects neither
functionality nor reliability.
We recommend that during
the initial period you do not
drive to full car performance
(e.g. excessive acceleration,
long journeys at top speed, sharp brak-
ing etc.).
When the engine is switched
off, never leave the key in
the ignition switch to prevent
draining the battery.
It is dangerous to have the
engine running indoors. The
engine consumes oxygen and pro-
duces carbon dioxide, carbon monox-
ide and other toxic gases.
WARNING
Remember that the brake
booster and power steering
are not operational until the engine
has been started, therefore you need
to apply much more force than usu-
al to the brake pedal and steering
wheel.
WARNING
STARTING PROCEDURE
FOR PETROL VERSIONS
Proceed as follows:
❒ensure that the handbrake is on;
❒put the gear lever into neutral;
❒press the clutch pedal all the way down
without touching the accelerator;
❒turn the ignition key to AVVand re-
lease it the moment the engine starts.
If the engine does not start at the first at-
tempt, return the ignition key to STOP
before repeating the starting procedure.
111-122 ACTUAL 1ed EN 20-07-2010 16:10 Pagina 112

128
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
Go to a Fiat Dealership as
soon as possible if warning
light
Udoes not light up
when the key is turned to
MAR or if, while travelling, it either
comes on permanently or flashes
(along with a message on the display
on some versions). The operation of the
Uwarning light may be checked by
traffic police using appropriate equip-
ment. Respect the regulations in force
in the country where you are driving.
If the light flashes, come off the accelera-
tor pedal to reduce engine revs until the
warning light stops flashing; continue the
journey at moderate speed, trying to avoid
driving conditions that may cause further
flashing, and get to a Fiat Dealership as
soon as possible. EOBD engine control
system failure
Under normal conditions, turning the ig-
nition key to MAR, the warning light turns
on but it should go off after the engine
starts. This indicates that the warning light
is working correctly. If the warning light ei-
ther stays on or comes on while travelling:
❒on permanently: this means there is
a fault in the supply/ignition system
which could cause high exhaust emis-
sions, loss of performance, poor han-
dling and high fuel consumption levels.
A specific message is displayed on certain
versions.
Under these conditions, the vehicle can
continue travelling at moderate speed
without demanding excessive effort from
the engine. Prolonged use of the car with
the warning light on may cause damage.
Go to a Fiat Dealership as soon as possi-
ble. The warning light goes out after the
fault disappears, but the indication is
stored in the system.
❒flashing: this indicates possible damage
to the catalytic converter (see “EOBD
system” in the “Dashboard and con-
trols” section). INJECTION SYSTEM
FAULT
(Multijet versions
– amber)
EOBD SYSTEM FAULT
(petrol versions – amber)
Injection system failure
Under normal conditions, turning the ig-
nition key to MAR, the warning light turns
on but it should go off after the engine
starts.
If the warning light stays on or comes on
when travelling, it means there is a fault in
the injection system which could cause
loss of performance, poor handling and
high fuel consumption levels.
A specific message is displayed on certain
versions.
Under these conditions, the vehicle can
continue travelling at moderate speed
without demanding excessive effort from
the engine. In any case, you should go to
a Fiat Dealership as soon as possible.
U
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 128

134
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES

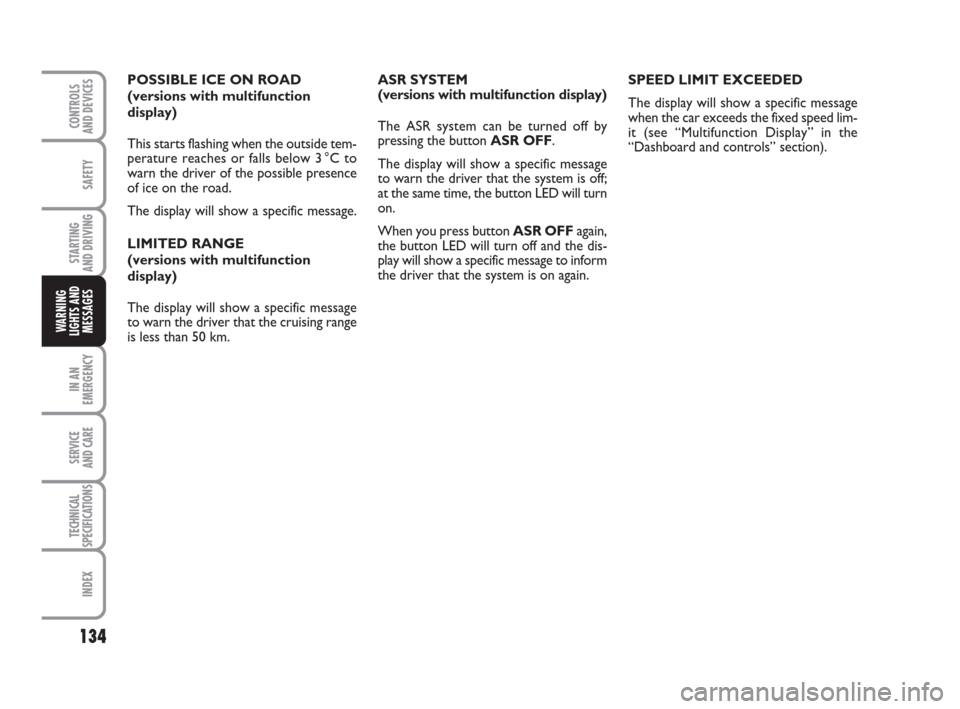

ASR SYSTEM
(versions with multifunction display)
The ASR system can be turned off by
pressing the button ASR OFF.
The display will show a specific message
to warn the driver that the system is off;
at the same time, the button LED will turn
on.
When you press button ASR OFFagain,
the button LED will turn off and the dis-
play will show a specific message to inform
the driver that the system is on again. POSSIBLE ICE ON ROAD
(versions with multifunction
display)
This starts flashing when the outside tem-
perature reaches or falls below 3 °C to
warn the driver of the possible presence
of ice on the road.
The display will show a specific message.
LIMITED RANGE
(versions with multifunction
display)
The display will show a specific message
to warn the driver that the cruising range
is less than 50 km. SPEED LIMIT EXCEEDED
The display will show a specific message
when the car exceeds the fixed speed lim-
it (see “Multifunction Display” in the
“Dashboard and controls” section).
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 134

136
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

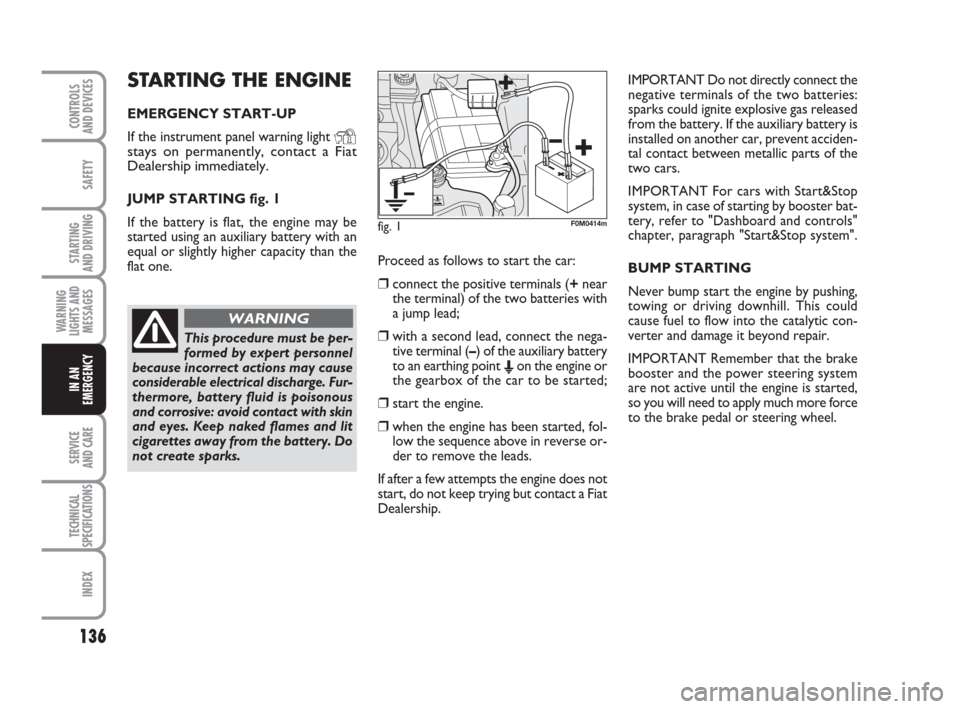

STARTING THE ENGINE
EMERGENCY START-UP
If the instrument panel warning light
Ystays on permanently, contact a Fiat
Dealership immediately.
JUMP STARTING fig. 1
If the battery is flat, the engine may be
started using an auxiliary battery with an
equal or slightly higher capacity than the
flat one. Proceed as follows to start the car:
❒connect the positive terminals (+near
the terminal) of the two batteries with
a jump lead;
❒with a second lead, connect the nega-
tive terminal (–) of the auxiliary battery
to an earthing point
Eon the engine or
the gearbox of the car to be started;
❒start the engine.
❒when the engine has been started, fol-
low the sequence above in reverse or-
der to remove the leads.
If after a few attempts the engine does not
start, do not keep trying but contact a Fiat
Dealership.IMPORTANT Do not directly connect the
negative terminals of the two batteries:
sparks could ignite explosive gas released
from the battery. If the auxiliary battery is
installed on another car, prevent acciden-
tal contact between metallic parts of the
two cars.
IMPORTANT For cars with Start&Stop
system, in case of starting by booster bat-
tery, refer to "Dashboard and controls"
chapter, paragraph "Start&Stop system".
BUMP STARTING
Never bump start the engine by pushing,
towing or driving downhill. This could
cause fuel to flow into the catalytic con-
verter and damage it beyond repair.
IMPORTANT Remember that the brake
booster and the power steering system
are not active until the engine is started,
so you will need to apply much more force
to the brake pedal or steering wheel.
This procedure must be per-
formed by expert personnel
because incorrect actions may cause
considerable electrical discharge. Fur-
thermore, battery fluid is poisonous
and corrosive: avoid contact with skin
and eyes. Keep naked flames and lit
cigarettes away from the battery. Do
not create sparks.
WARNING
fig. 1F0M0414m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 136

142
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
QUICK TYRE REPAIR KIT
FIX&GO automatic
The Fix&Go automatic quick tyre repair
kit is located in the boot.
The kit fig. 7includes:
❒a cylinder A , containing sealant, which
is fitted with:
– filling tube B;
– an adhesive label Cwith the message
“max. 80 km/h” to be placed where
the driver can easily see it (on the
dashboard) after repairing the tyre;
❒instruction brochure (see fig. 8), to be
used for prompt and proper use of the
quick repair kit and then presented to
the personnel charged with handling the
treated tyre;
❒compressor D-fig. 7including gauge
and connections;
❒a pair of protective gloves located in the
side part of the compressor;
❒adapters for inflating different elements.
fig. 7F0M0198m
You can also store the screwdriver and
tow hitch in the quick repair kit contain-
er (stored in the boot under the carpet).
fig. 8F0M0199m
Hand over the instruction
booklet to the personnel
charged with treating the tyre re-
paired with the kit.
WARNING
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 142

156
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
ACCESSING THE FUSES
The fuses are grouped in three control
units: on the dashboard, in the engine
compartment and in the left-hand side of
the boot.
Dashboard fusebox fig. 36
To access the dashboard fusebox, loosen
the screws A-fig. 35and remove the
cover.
fig. 36F0M0415m
3 4 5 6 7
8 9 10 11 12
13 141 2
fig. 35F0M0016m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 156
