2017 FIAT FULLBACK engine

Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsApplication
Protective agent for
radiatorsCUNANC 956-16
ASTM D 33069.55523
or MS.90032PARAFLU UPContractual
Technical Reference
N° F101.M01
(1)Engine Coolant
Washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522
or MS-90043PETRONAS DURANCE SC
35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount we recommend completely changing the coolant in the percentages given.
IMPORTANT
229)The use of products with specifications different than those indicated above could cause damage to the engine that is not covered by
the warranty.
295

FUEL CONSUMPTION / CO2EMISSION
COMBINED USE
Euro 5 engine Transmission CO2 (g/km)Fuel consumption
(L/100km)
2WD Hi-RiderWith Start&Stop 6M/T 166 6.3
Without Start&Stop 5A/T 185 7.0
4WDWith Start&Stop 6M/T 169 6.4
Without Start&Stop6M/T173
188
(*)192(**)
6.6
7.1(*),7.3(**)
5A/T189
197(*),203(**)
7.2
7.5(*),7.7(**)
(*) Vehicles for Russia
(**)Vehicles for Ukraina
296

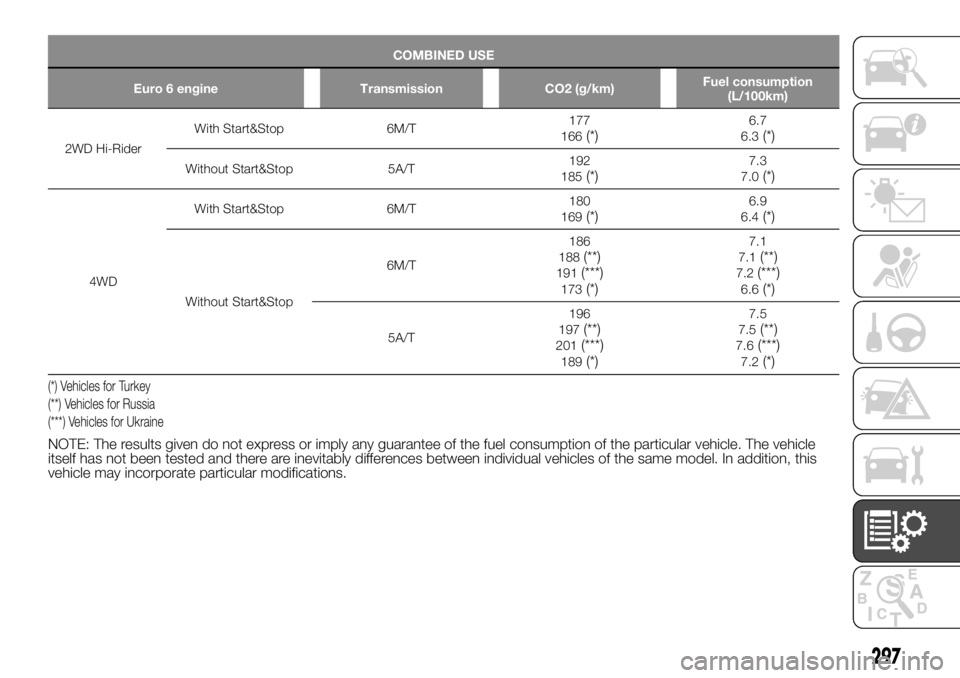

TECHNICAL SPECIFICATIONS

COMBINED USE
Euro 6 engine Transmission CO2 (g/km)Fuel consumption
(L/100km)
2WD Hi-RiderWith Start&Stop 6M/T177
166(*)6.7
6.3(*)
Without Start&Stop 5A/T192
185(*)7.3
7.0(*)
4WDWith Start&Stop 6M/T180
169
(*)6.9
6.4(*)
Without Start&Stop6M/T186
188
(**)191(***)173(*)
7.1
7.1(**)7.2(***)6.6(*)
5A/T196
197(**)201(***)189(*)
7.5
7.5(**)7.6(***)7.2(*)
(*) Vehicles for Turkey
(**) Vehicles for Russia
(***) Vehicles for Ukraine
NOTE: The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle. The vehicle
itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this
vehicle may incorporate particular modifications.
297

INDEX
4Wheel drive operation........178
Accessory socket............80
Active safety systems..........137
Air conditioning system.........56
Air purifier..................68
Ashtray....................79
Assist grip..................83
Automatic climate control air
conditioner................61
Automatic transmission.........159
Auxiliary driving system.........141
Battery..................258
Bleeding the fuel system........211
Bottle holder................82
Brake fluid.................255
Cargo area.................75
Cargo loads.................75
Catalytic converter.........72,252
Central Door Locks............28
Checking levels..............251
Child restraint...............113
Child restraint system..........116
Child-protection rear doors (Double
cab)....................30
Cigarette lighter..............79
Cleaning the exterior of your vehicle
.263Cleaning the interior of your vehicle .262
Clutch fluid................256
Coat hook..................83
Combination headlamps and
dipper switch..............44
Convenient hook.............83
Cruise control...............183
Cup holder.................82
Dead lock system............29
Demanding vehicle use.........250
Diesel particulate filter..........72
Digital clock.................80
Doors.....................27
Driving, alcohol and drugs.......145
Easy select 4WD............164
Economical driving...........144
Electric window control.........70
Electrical system.............288
Electronic immobilizer..........13
Emergency starting...........209
Emission..................296
Engine compartment...........74
Engine coolant..............253
Engine oil.................252
Engine overheating...........210
Engine specifications..........274
Engine switch...............25
Era Glonass................204
External Lights...............44
Fluids and Lubricants.........293
Fog lamp switch..............48
Force limiter................112
Front seats.................33
Fuel consumption............296
Fuel selection................84
Fuses....................227
Fusible links................227
General maintenance.........261
Graphical index...............9
Handling of 4 wheel drive vehicles.181
Hazard warning flasher switch.....47
Head restraints...............36
Headlamp levelling switch........46
Heater/Manual air conditioning.....58
High Load System.............75
Horn switch.................40
How to change a tyre..........216
If the vehicle breaks down.......208
Ignition switch...............24
Important operation tips for the air
conditioning...............67
Inside rear view mirror..........40
Instruments.................90
Interior features..............78
Interior lamps................50
ISOFIX positions.............116
Key number tag..............13
Keyless Entry System...........14

Keyless operation system........17
Keys.....................13
Lane departure warning........195
Manual transmission..........157
Masking the headlamps.........48
Multi information display.........90
Operation under adverse driving
conditions...............226
Outside rear view mirrors........41
Parking..................149
Parking brake...............148
Periodic checks.............250
Power steering fluid...........257
Pretensioners...............112
Read this carefully.............2
Rear Differential lock..........174
Rear gate..................31
Rear seat..................34
Rear view camera............199
Rear view mirrors.............40
Rear window demister switch.....68
Refill capacities..............290
Replacement of lamp bulbs......235
Safe driving techniques........145
safety systems..............137
SBR system................110
Scheduled Servicing Plan.......245
Seat adjustment..............33
Seat belts
Use ...................108
Seats.....................33
Service precautions...........244
Side airbags................132
Speed limiter...............189
Sports mode...............159
Start&Stop System...........154
Starting and stopping the engine. . .150
Steering wheel...............38
Steering wheel height and reach
adjustment................38
Steering wheel lock............39
Storage spaces..............80
Sun visors..................78
Super Select 4WD II...........169
Supplemental restraint system
airbag..................127Tools, jack and jack handle......211
Towing...................223
Trailer towing................76
Turbocharger operation........153
Turn-signal lever..............47
Tyres ....................267
Tyres and wheels.............289
Use of the Owner Handbook......3
Vanity mirror................78
Vehicle care precautions........261
Vehicle changes/alterations........5
Vehicle dimensions...........276
Vehicle labeling..............272
Vehicle performance..........282
Ventilators..................56
Washer fluid...............255
Weights..................283
Window...................70
Wiper and washer switch........52
Wiper blade replacement.......260
FCA Italy S.p.A. - MOPAR - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Turin (Italy)
INDEX
Print no.603.91.226 - -Edition 0 2017 /3 6
