Instrument Cluster Display Setup Menu
The menu comprises a series of functions arranged in a
cycle. The menu includes the following functions:
NOTE:Some of the Menu Items could be managed by
Uconnect (if equipped). In that case, some of these are
not present in instrument cluster display.
• Dimmer
• Headlight Adj
• Speed Buzzer
• Headlamp Sensor
• Cornering Lights
• Rain Sensor
• Trip B Data
• Set Time
• Set Date
• First Page
• See Radio
• Autoclose •
Units
• Language
• Buzzer Volume
• Seat Belt Buzzer
• Service
• Passenger Airbag
• Day Lights
• Hill Start
• Tire Reset
• City Brake Control
Selecting An Option Of The Main Menu Without
Submenu
1. Briefly push and release the MENUbutton to select
the main menu option to set.
2. Push and release the upordown button (by single
pushes) to select the new setting.
3. Briefly push and release the MENUbutton to store
the new setting and go back to the main menu option
previously selected.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 153

If the distance unit set is “mi,” the fuel economy unit
will be displayed in “mpg.”
If the distance unit set is “km,” the fuel economy unit
will be displayed in either km/l or l/100km.
1. Push and release theup
ordownbutton for
setting.
2. Briefly push and release the MENUbutton to return
to the sub-menu.
3. When accessing the “Temperature” submenu: briefly push and release the MENUbutton. Either “°F” or
“°C” will appear on the display (according to the
previous setting).
4. Push and release the up
ordownbutton for
setting.
5. Briefly push and release the MENUbutton to return
to the Tire Pressure — PSI/KPA sub-menu.
When you have made the required settings, briefly
push and release the MENUbutton to go back to the
sub-menu screen, or push and hold the MENUbutton
(approximately one second) to go back to the main
screen without storing the settings.
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English, Turkce, Nederlands, Spanish,
French, Dutch, Polish, Brasilian.
To set the required language, proceed as follows:
1. Briefly push and release the MENUbutton. Push and
release the up
ordownbutton to highlight
Language. Push and release the MENUbutton to
enter the Language MENU.
2. Push and release the upordownbutton for
setting.
3. Briefly push and release the MENUbutton to go
back to the menu screen, or push and hold the
MENU button (approximately one second) to go
back to the main screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompa-
nying any failure/warning indication can be adjusted
to one of eight volume levels.
164 UNDERSTANDING YOUR INSTRUMENT PANEL

complete, either press the back arrow or Done button on
the touchscreen or the Back button on the faceplate to
return to the previous menu. Pressing the Up or Down
Arrow buttons on the touchscreen on the right side of
the screen will allow you to toggle up or down through
the list of available settings.
NOTE:All settings should be changed with the ignition
in the “Run” position.Display
After pressing the “Display” button on the touchscreen
the following settings will be available:
Setting Name Selectable Options
Display Mode Auto Manual
NOTE: When the “Display Mode” feature is set to “Auto” the radio touchscreen’s brightness will be adjusted
with all other Instrument Panel displays and lights when they are adjusted using the instrument cluster display
buttons on the right-hand side of the instrument cluster display. When the “Display Mode” feature is set to
“Manual” the radio screen brightness can be adjusted independently using the “Brightness” feature below.
Language EnglishEspañolFrançais
Touchscreen Beep On Off
US Changes the instrument cluster display to US units of measure.
Metric Changes the instrument cluster display to Metric units of measure.
Display Trip B On/Off ON OFF
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

Display
After pressing the “Display” button on the touchscreen
the following settings will be available:
Setting NameSelectable Options
Display Mode AutoManual
NOTE: When Day or Night is selected for the Display Mode, the usage of the Parade Mode feature will cause
the radio to activate the Display Brightness Day control even though the headlights are on.
Display Brightness With Headlights ON +–
Display Brightness With Headlights OFF +–
Set Language Select Language
NOTE: When in this display, you may select one of multiple languages (English / Français / Español) for all
display nomenclature, including the trip functions and the navigation system. Press the Set Language button on
the touchscreen, then press the desired language button on the touchscreen.
Touchscreen Beep OnOff
Navigation Turn-By-Turn In ClusterOnOff
NOTE: When this feature is selected, the turn-by-turn directions will appear in the display as the vehicle ap-
proaches a designated turn within a programmed route. To make your selection, press the “Navigation Turn-
By-Turn In Cluster” button on the touchscreen.
178 UNDERSTANDING YOUR INSTRUMENT PANEL

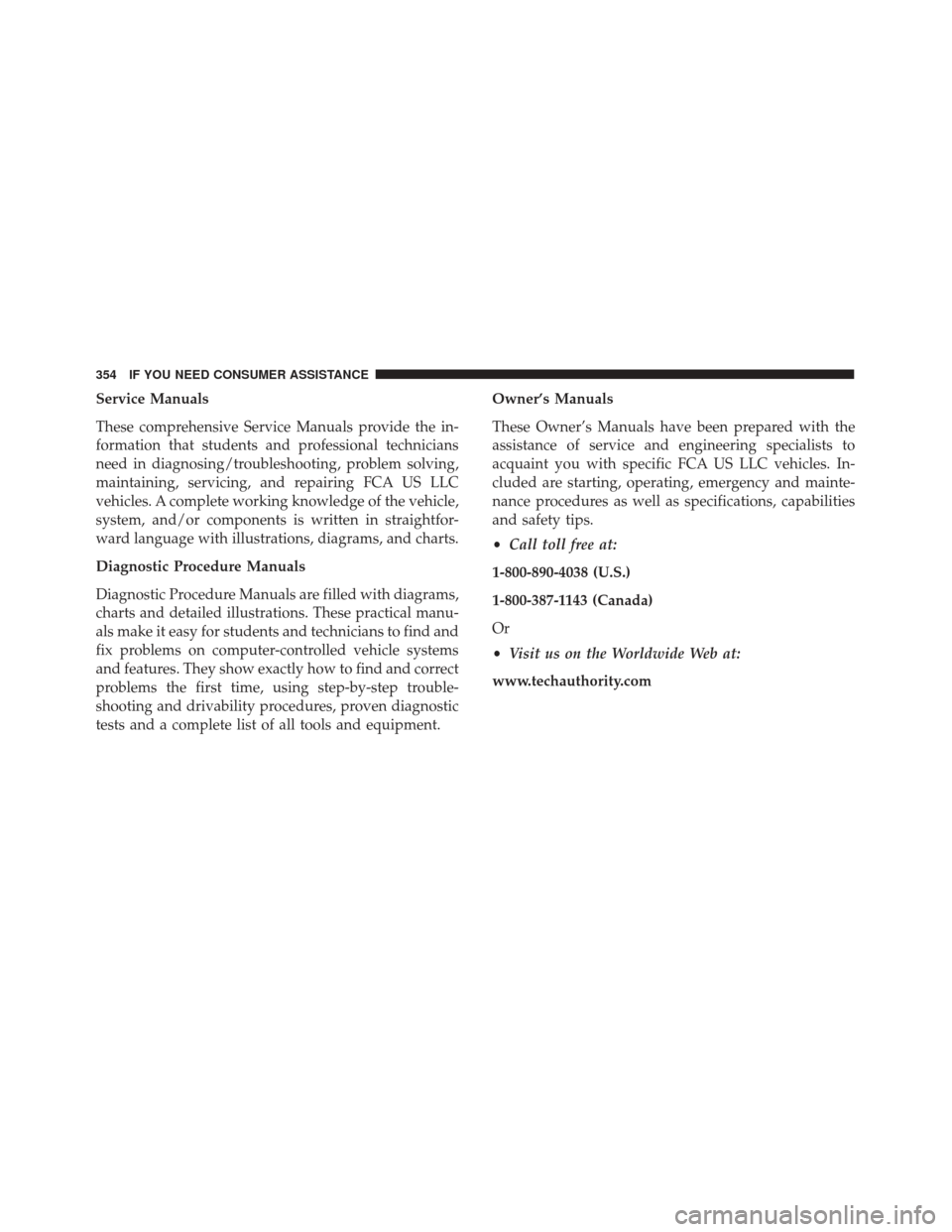

Service Manuals
These comprehensive Service Manuals provide the in-
formation that students and professional technicians
need in diagnosing/troubleshooting, problem solving,
maintaining, servicing, and repairing FCA US LLC
vehicles. A complete working knowledge of the vehicle,
system, and/or components is written in straightfor-
ward language with illustrations, diagrams, and charts.
Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with diagrams,
charts and detailed illustrations. These practical manu-
als make it easy for students and technicians to find and
fix problems on computer-controlled vehicle systems
and features. They show exactly how to find and correct
problems the first time, using step-by-step trouble-
shooting and drivability procedures, proven diagnostic
tests and a complete list of all tools and equipment.Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists to
acquaint you with specific FCA US LLC vehicles. In-
cluded are starting, operating, emergency and mainte-
nance procedures as well as specifications, capabilities
and safety tips.
•
Call toll free at:
1-800-890-4038 (U.S.)
1-800-387-1143 (Canada)
Or
• Visit us on the Worldwide Web at:
www.techauthority.com
354 IF YOU NEED CONSUMER ASSISTANCE
