Cavity Vehicle Fuse Number Mini FuseDescription
20 F315 Amp Tan Climate Control, Seat Regulation
21 F4720 Amp Yellow Driver Power Window
Rear Interior Fuses
The rear interior fuse panel is located on the driver’s
side in the rear compartment.
CavityVehicle Fuse Num-
ber Mini Fuse
Description
1 F6115 Amp Blue Lumbar Regulation Seats
2 F6215 Amp Blue Heated Seats
3 F6420 Amp Yellow Hi Fi System
4 F6520 Amp Yellow Sun Blind
5 F6620 Amp Yellow Sunroof
Rear Fuse Panel
7
MAINTAINING YOUR VEHICLE 333
Light...............................145
Materials Added .......................268
Methanol ............................267
Octane Rating ........................ .266
Requirements ........................ .266
Tank Capacity ........................339
Fueling ...............................269
Fuses .................................327
Garage Door Opener (HomeLink) .............110
Gasoline, Clean Air .......................266
Gasoline (Fuel) .......................266, 339
Gasoline, Reformulated .................266, 267
Gear Ranges ............................222
Gear Select Lever Override .................290
General Maintenance ..................... .302
Glass Cleaning ..........................326
Hazard Driving Through Flowing, Rising, Or Shallow
Standing Water ........................229
Headlights ..............................91
Cleaning ............................325
Passing ..............................91
Heated Mirrors ...........................77 Hill Start Assist
........................ .234
Holder, Cup ............................120
HomeLink (Garage Door Opener) .............110
Hood Release ............................89
Ignition Key.................................11
Immobilizer (Sentry Key) ...................13
Inside Rearview Mirror .....................74
Instrument Cluster .................134, 139, 150
Instrument Cluster Display Instrument Cluster Display ...............152
Instrument Panel And Controls ..............133
Instrument Panel Cover ....................326
Instrument Panel Lens Cleaning ..............326
Interior Appearance Care ...................325
Interior Lighting ..........................93
Introduction .............................4
Jacking Instructions .......................282
Jack Location .......................... .280
Jack
Operation .......................280, 282
Jump Starting .......................... .286
Key-In Reminder .........................13
360 INDEX

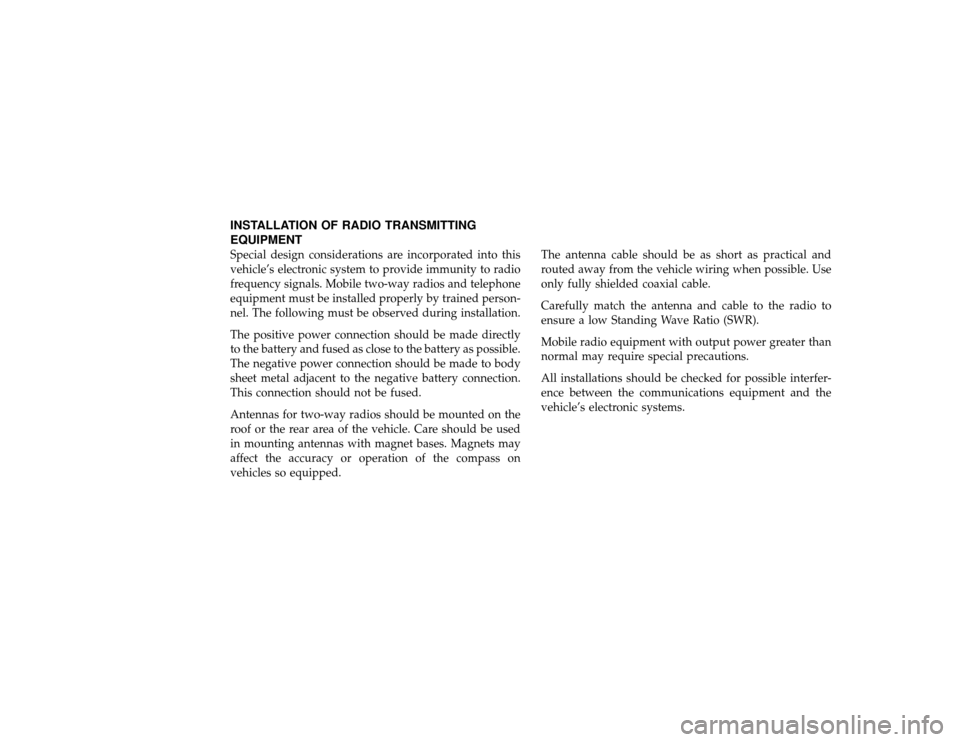

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENTSpecial design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained person-
nel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
