THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
IMPORTANT VEHICLE INFORMATION .......9
▫ High Voltage Battery ....................9
 500e ELECTRIC VEHICLE FEATURES ........11
▫ Audible Pedestrian Warning System ........11
▫ Single-Speed Transmission ...............11
▫ Auto Park ...........................11
▫ E-Park .............................11
▫ Climate Control (HVAC System) ...........12
▫ Electric Air Conditioning Compressor .......12
▫ Electric Power Steering .................12
▫ Smartphone Features ...................13
 HIGH VOLTAGE CHARGING OPERATION . . .14
▫ SAE J1772 Charging Inlet ................14
▫ AC Level 1 Charging (120V, 15 Amp) .......15▫
AC Level 2 Charging (240V, 30 Amp) .......26
▫ Charge Times ........................27
 A WORD ABOUT YOUR KEYS ............28
▫ Ignition Key Removal ..................28
▫ Locking Doors With A Key ...............29
▫ Key-In-Ignition Reminder ...............29
 SENTRY KEY .........................29
▫ Replacement Keys ....................30
▫ General Information ...................30
 VEHICLE SECURITY ALARM .............31
▫ To Arm The System ....................31
▫ To Disarm The System .................31
 REMOTE KEYLESS ENTRY ...............32
▫ To Unlock The Doors And Liftgate .........32
2

▫Remote Key Unlock, Driver Door/All Doors
1stPress ...........................32
▫ To Lock The Doors And Liftgate ...........32
▫ Key Fob Battery Replacement ............33
▫ General Information ...................34
 DOOR LOCKS ........................35
▫ Power Door Locks — If Equipped .........36
▫ Auto Door Locks .....................36
 POWER WINDOWS ....................37
▫ Power Window Switches ................37
▫ Auto-Down .........................37
▫ Wind Buffeting ......................37
 LIFTGATE ...........................38
OCCUPANT RESTRAINT SYSTEMS .........38
▫ Occupant Restraint Systems Features .......38
▫ Important Safety Precautions .............38
▫ Seat Belt Systems .....................40
▫ Supplemental Restraint Systems (SRS) .......49
▫ Child Restraints ......................60
▫ Transporting Pets .....................75
 SAFETY TIPS .........................76
▫ Transporting Passengers .................76
▫ Safety Checks You Should Make Inside The
Vehicle ............................76
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ...................78
8 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Smartphone Features
With the “Uconnect Access” app, you can monitor the
state of charge of the high voltage battery or initiate
charging from your phone. You can also turn on your
vehicle’s climate control system remotely. The app
provides the following features:
•Monitor battery charge level
• Display available driving distance
• Check charging status
• Remotely activate vehicle climate control system
• Unlock and lock doors
• Assist with locating your vehicle
• Locate charging stations
• Send a point-of-interest to your vehicle’s navigation
system
• Schedule a charge
• View energy consumed
• Notifications for charging and preconditioning
events How do I get the “Uconnect Access” smartphone App?
Visit the 500e registration website:
www.fiatusa.com/500eRegistration
Once in the registration website, you will need to enter
your vehicle’s VIN and Connectivity ID. The connectiv-
ity ID is found in the vehicle’s instrument cluster. To
locate the connectivity ID follow the steps below:
1. Push the menu button on the instrument cluster.
2. Choose “Settings” and scroll down to the “Connec-
tivity ID.”
Registration Website
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

The system uses ignition keys which have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle.
NOTE:A key which has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
If the vehicle security light is on after the key is turned
to the MAR (ACC/ON/RUN) position, it indicates that
there is a problem with the electronics.
CAUTION!
• Always remove the Sentry Key from the vehicle
and lock all doors when leaving the vehicle
unattended.
• The Sentry Key Immobilizer system is not com-
patible with some aftermarket remote starting
systems. Use of these systems may result in
vehicle starting problems and loss of security
protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it
cannot be programmed to any other vehicle. When
having the Sentry Key Immobilizer System serviced,
bring all vehicle keys with you to an authorized dealer.
The VIN is required for authorized dealer replacement
of keys. Duplication of keys may be performed at an
authorized dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
liftgate from distances up to approximately 66 ft (20 m)
using a hand-held key fob. The key fob does not need to
be pointed at the vehicle to activate the system.
NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock The Doors And Liftgate
Push and release the unlock button on the key fob once
to unlock the driver ’s door or twice, within five sec-
onds, to unlock all doors and the liftgate. The turn
signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors 1st
Press
This feature lets you program the system to unlock
either the driver ’s door or all doors on the first press of
the unlock button on the key fob. Refer to “Uconnect
Settings” in “Understanding Your Instrument Panel”
for further information.
To Lock The Doors And Liftgate
Push and release the lock button on the key fob to lock
all doors and the liftgate. The turn signal lights will
flash and the horn will chirp to acknowledge the signal.
Key Fob
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal
occurrence and can be minimized. If the buffeting
occurs with the sunroof open, adjust the sunroof open-
ing to minimize the buffeting or open any window.
LIFTGATE
To unlock the liftgate, use the Remote Keyless Entry key
fob or activate the power door lock switches located on
the front door handles.
To open the liftgate, squeeze the liftgate release handle
and pull the liftgate open with one fluid motion.Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your
vehicle are the restraint systems:
Occupant Restraint Systems Features
•
Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Child Restraints
Some of the safety features described in this section
may be standard equipment on some models, or may be
optional equipment on others. If you are not sure, ask
your authorized dealer.
Important Safety Precautions
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
Liftgate Handle
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

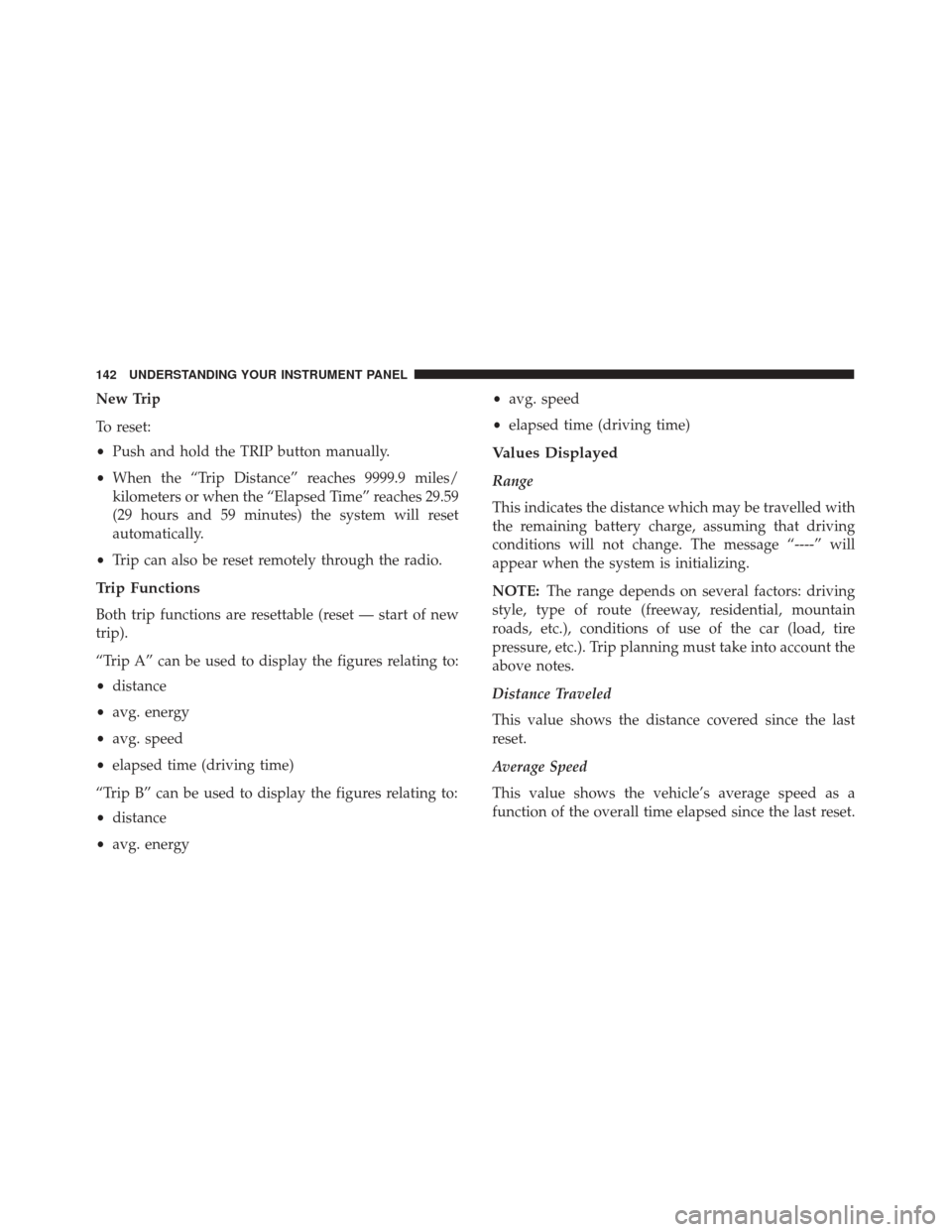

New Trip
To reset:
•Push and hold the TRIP button manually.
• When the “Trip Distance” reaches 9999.9 miles/
kilometers or when the “Elapsed Time” reaches 29.59
(29 hours and 59 minutes) the system will reset
automatically.
• Trip can also be reset remotely through the radio.
Trip Functions
Both trip functions are resettable (reset — start of new
trip).
“Trip A” can be used to display the figures relating to:
•distance
• avg. energy
• avg. speed
• elapsed time (driving time)
“Trip B” can be used to display the figures relating to:
• distance
• avg. energy •
avg. speed
• elapsed time (driving time)
Values Displayed
Range
This indicates the distance which may be travelled with
the remaining battery charge, assuming that driving
conditions will not change. The message “----” will
appear when the system is initializing.
NOTE: The range depends on several factors: driving
style, type of route (freeway, residential, mountain
roads, etc.), conditions of use of the car (load, tire
pressure, etc.). Trip planning must take into account the
above notes.
Distance Traveled
This value shows the distance covered since the last
reset.
Average Speed
This value shows the vehicle’s average speed as a
function of the overall time elapsed since the last reset.
142 UNDERSTANDING YOUR INSTRUMENT PANEL

DrivingThrough Flowing, Rising, Or Shallow Standing
Water .............................. .179
Electrical Power Outlets ....................110
Electric Remote Mirrors .....................84
Electronic Brake Control System Brake Assist System ....................184
Electronic Stability Control (ESC) .............185
Emergency, In Case Of Hazard Warning Flasher .................220
Towing ............................ .235
Engine Compartment ........................ .239
Starting ............................ .173
Enhanced Accident Response Feature ..........236
Exterior Lights ...........................79
Filters Air Conditioning ..................... .168
Flashers Turn Signal ....................... .79, 135
Fluid Leaks .............................79
Fluids, Lubricants And Genuine Parts ..........270
Fog Lights ..............................98 Freeing A Stuck Vehicle
....................233
Fuses ................................ .259
Gear Ranges ........................... .176
General Information ..................... .215
General Maintenance ..................... .241
Glass Cleaning ......................... .257
Hazard Driving Through Flowing, Rising, Or Shallow
Standing Water ....................... .179
Headlights ..............................94
Cleaning ........................... .257
Passing ..............................94
Switch ...............................94
Head Restraints ..........................90
Heated Mirrors ...........................85
Heated Seats ............................89
Holder, Cup ............................113
Hood Release ............................92
Ignition ................................28
Key.................................28
Ignition Key Removal ......................28
Immobilizer (Sentry Key) ...................29
286 INDEX
