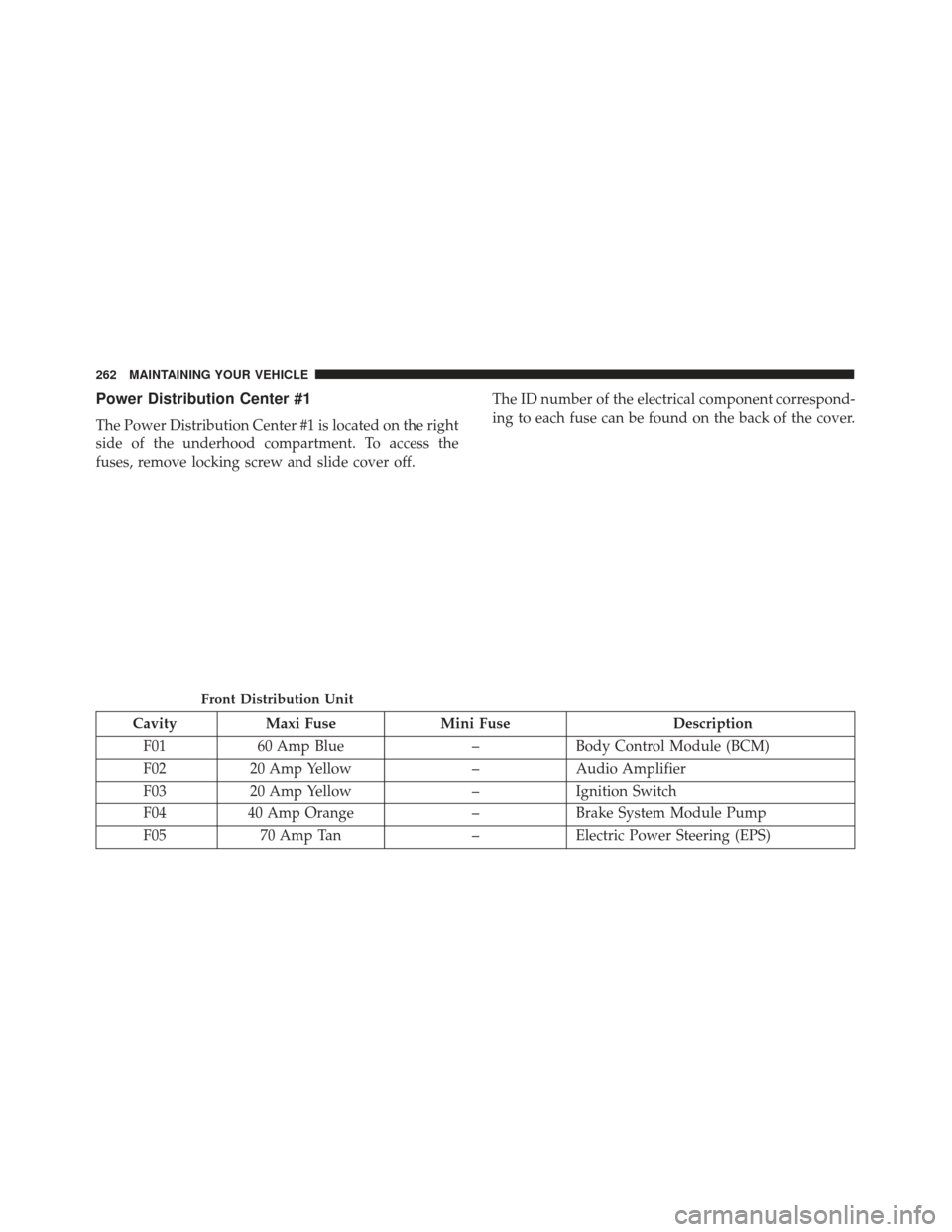

Power Distribution Center #1
The Power Distribution Center #1 is located on the right
side of the underhood compartment. To access the
fuses, remove locking screw and slide cover off.The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
Cavity
Maxi Fuse Mini Fuse Description
F01 60 Amp Blue –Body Control Module (BCM)
F02 20 Amp Yellow –Audio Amplifier
F03 20 Amp Yellow –Ignition Switch
F04 40 Amp Orange –Brake System Module Pump
F05 70 Amp Tan –Electric Power Steering (EPS)
Front Distribution Unit
