2017 FIAT 500C jacking

WHAT TO DO IN EMERGENCIES
CONTENTS
HAZARD WARNING FLASHERS ..........247
 IF YOUR ENGINE OVERHEATS ..........247
 TIRE SERVICE KIT — IF EQUIPPED ........248
▫ Tire Service Kit Storage ................248
▫
Tire Service Kit Components And Operation . .249
▫ Tire Service Kit Usage Precautions ........250
▫ Sealing A Tire With Tire Service Kit .......252
 WHEEL AND TIRE TORQUE
SPECIFICATIONS .....................256
▫ Torque Specifications ..................256
 JACKING AND TIRE CHANGING — IF
EQUIPPED ......................... .258
▫ Jack Location ...................... .258▫
Spare Tire Removal ...................259
▫ Preparations For Jacking ...............261
▫ Jacking Instructions ..................261
▫ Road Tire Installation ..................266
▫ Spare Tire Stowage ...................268
 JUMP-STARTING PROCEDURE ...........268
▫ Preparations For Jump-Start .............269
▫ Jump-Starting Procedure ...............270
 FREEING A STUCK VEHICLE ............271
 GEAR SELECTOR OVERRIDE ............272
 TOWING A DISABLED VEHICLE ..........274
▫ Automatic Transmission ................275
▫ Manual Transmission ..................275
6

JACKING AND TIRE CHANGING — IF
EQUIPPED
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous.
The vehicle could slip off the jack and fall on you.
You could be crushed. Never put any part of your
body under a vehicle that is on a jack. If you need
to get under a raised vehicle, take it to a service
center where it can be raised on a lift.
• Never start or run the engine while the vehicle is
on a jack.
• The jack is designed to be used as a tool for
changing tires only. The jack should not be used
to lift the vehicle for service purposes. The ve-
hicle should be jacked on a firm level surface
only. Avoid ice or slippery areas.
Jack Location
The jack and jack wrench tool are stowed in a bag under
the front driver ’s seat.
Jack And Jack-Handle Location
258 WHAT TO DO IN EMERGENCIES

Preparations For Jacking
1. Park the vehicle on a firm level surface, avoiding iceor slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
2. Turn on the Hazard Warning flashers.
3. Set the parking brake.
4. Place the gear selector in PARK (automatic transmis- sion) or REVERSE (manual transmission).
5. Turn Off the ignition.
6. Block both the front and rear of the wheel diagonally opposite of the jacking position. For example, if
changing the right front tire, block the left rear wheel.
NOTE:Passengers should not remain in
the vehicle while the vehicle is being
jacked.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
• Always park on a firm, level surface as far from
the edge of the roadway as possible before raising
the vehicle.
• Turn on the Hazard Warning flashers.
• Block the wheel diagonally opposite the wheel to
be raised.
• Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
• Never start or run the engine with the vehicle on
a jack.
• Do not let anyone sit in the vehicle when it is on
a jack.
• Do not get under the vehicle when it is on a jack.
If you need to get under a raised vehicle, take it to
a service center where it can be raised on a lift.
(Continued)
6
WHAT TO DO IN EMERGENCIES 261

WARNING!(Continued)
•Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely
careful of motor traffic.
• To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground. NOTE:
Refer to the “Compact Spare Tire” section of the
“Tires-General Information” under “Starting And Op-
erating” for information about the spare tire, it’s use,
and operation.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the scissors jack and tool bag from under the driver’s seat.
2. Remove center cap.
Jack Warning Label
262 WHAT TO DO IN EMERGENCIES

NOTE:Before using the swivel wrench to remove the
wheel bolts be sure to remove the center cap of the
wheel by inserting the angled tab end of the swivel
wrench into the notched part of the center cap.
3. Loosen, but do not remove, the wheel bolts by turning them to the left one turn while the wheel is
still on the ground. NOTE:
•There are front and rear jacking locations on each
side of the body (as indicated by the triangular lift
point symbol on the sill molding)
• Do not raise the vehicle until you are sure the jack
is securely engaged.

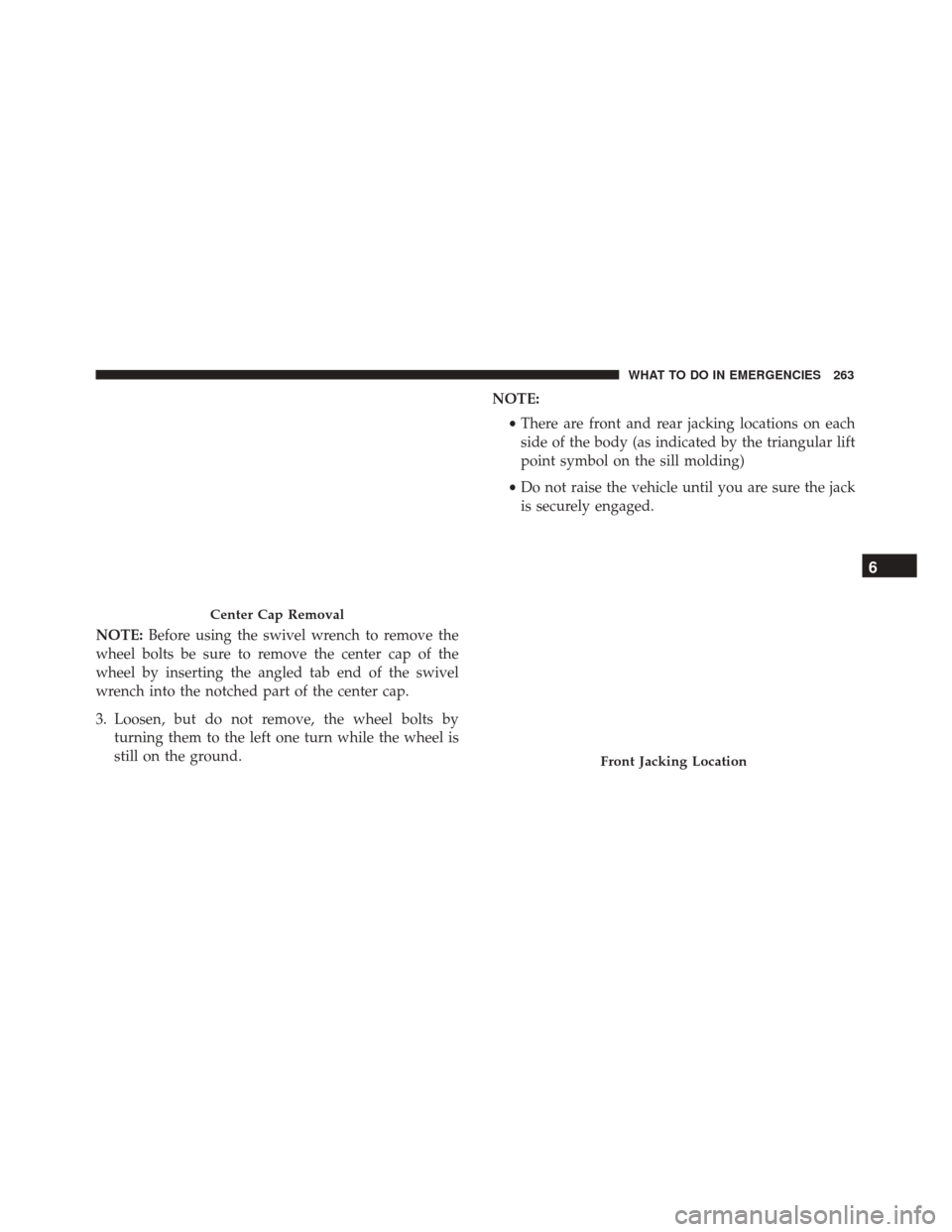

Center Cap Removal
Front Jacking Location
6
WHAT TO DO IN EMERGENCIES 263

4. Turn the jack screw to the left until the jack can beplaced under the jacking location. Once the jack is
positioned, turn the jack screw to the right until the
jack head is properly engaged with the lift area
closest to the wheel to be changed.WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and
hurt someone near it. Raise the vehicle only enough
to remove the tire.
5. Using the swivel wrench, raise the vehicle by turning the jack screw to the right. Raise the vehicle only
until the tire just clears the surface and enough
clearance is obtained to install the spare tire. Mini-
mum tire lift provides maximum stability.
Rear Jacking LocationJack Location
