TPMS Warnings
The Tire Pressure Monitoring Telltale Light will flash on
and off for 75 seconds and remain on solid when a
system fault is detected, an audible chime will be
activated and the “Service Tire Pressure Monitoring
System” text message will display. If the ignition key is
cycled, this sequence will repeat providing the system
fault still exists. The Tire Pressure Monitoring Telltale
Light will turn off when the fault condition no longer
exists. A system fault can occur with any of the follow-
ing scenarios:
•Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the
TPM sensors.
• Installing some form of aftermarket window tinting
that affects radio wave signals.
• Snow or ice around the wheels or wheel housings.
• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPM sensors.
NOTE: Your vehicle may be equipped with a compact
spare wheel and tire assembly. •
The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not
monitor the tire pressure in the compact spare tire.
• If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure
warning limit, upon the next ignition key cycle, a
chime will sound, the Tire Pressure Monitoring Tell-
tale Light and the Low inflation pressure left or right
front / rear tire message will still turn ON due to the
low tire.
• However, after driving the vehicle for up to 20
minutes above 15 mph (24 km/h), the Tire Pressure
Monitoring Telltale Light will flash on and off for
75 seconds and then remain on solid and the “Service
Tire Pressure Monitoring System” message will be
displayed.
• This occurs for each subsequent ignition key cycle, a
chime will sound and the Tire Pressure Monitoring
Telltale Light will flash on and off for 75 seconds and
then remain on solid and the “Service Tire Pressure
Monitoring System” message will be displayed.
• Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact
5
STARTING AND OPERATING 235

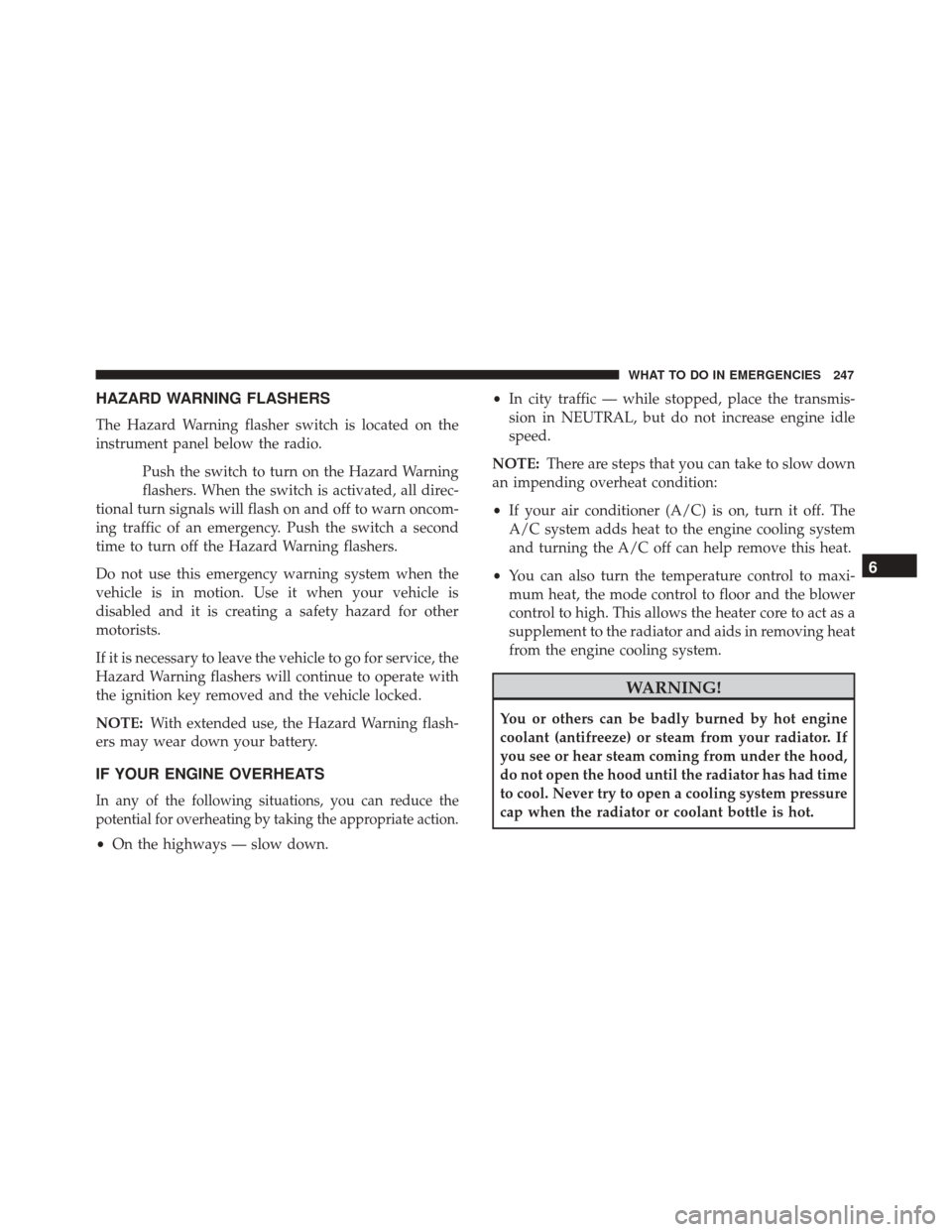

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the
instrument panel below the radio.Push the switch to turn on the Hazard Warning
flashers. When the switch is activated, all direc-
tional turn signals will flash on and off to warn oncom-
ing traffic of an emergency. Push the switch a second
time to turn off the Hazard Warning flashers.
Do not use this emergency warning system when the
vehicle is in motion. Use it when your vehicle is
disabled and it is creating a safety hazard for other
motorists.
If it is necessary to leave the vehicle to go for service, the
Hazard Warning flashers will continue to operate with
the ignition key removed and the vehicle locked.
NOTE: With extended use, the Hazard Warning flash-
ers may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On the highways — slow down. •
In city traffic — while stopped, place the transmis-
sion in NEUTRAL, but do not increase engine idle
speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The
A/C system adds heat to the engine cooling system
and turning the A/C off can help remove this heat.
• You can also turn the temperature control to maxi-
mum heat, the mode control to floor and the blower
control to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
6
WHAT TO DO IN EMERGENCIES 247

CAUTION!
•Do not use sling-type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
Automatic Transmission
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off
the ground).
If the ignition key is unavailable, or the vehicle’s battery
is discharged, refer to “Gear Selector Override” in this
section for instructions on shifting the transmission out
of PARK in order to move the vehicle.
CAUTION!
• DO NOT flat tow any vehicle equipped with an
automatic transmission. Damage to the drivetrain
will result. If these vehicles require towing, make
sure all drive wheels are OFF the ground.
• Towing this vehicle in violation of the above
requirements can cause severe transmission dam-
age. Damage from improper towing is not covered
under the New Vehicle Limited Warranty.
Manual Transmission
• Vehicle can be flat towed (all four wheels on the
ground) with the transmission in NEUTRAL.
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off
the ground).
6
WHAT TO DO IN EMERGENCIES 275

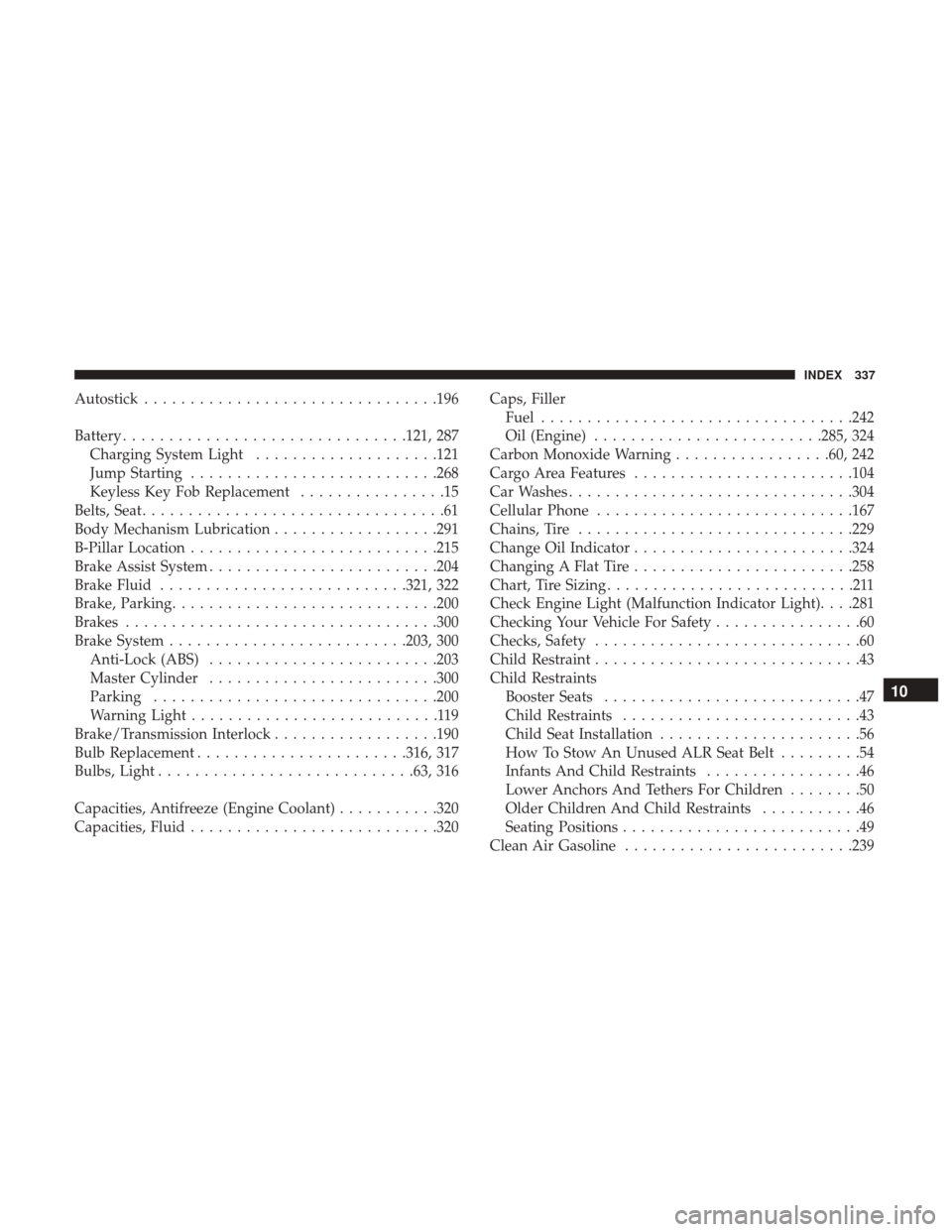

Autostick............................... .196
Battery .............................. .121, 287
Charging System Light ....................121
Jump Starting .......................... .268
Keyless Key Fob Replacement ................15
Belts, Seat .................................61
Body Mechanism Lubrication ..................291
B-Pillar Location .......................... .215
Brake Assist System ........................ .204
Brake Fluid .......................... .321, 322
Brake, Parking ............................ .200
Brakes ................................. .300
Brake System ......................... .203, 300
Anti-Lock (ABS) ........................ .203
Master Cylinder ........................ .300
Parking .............................. .200
Warning Light ...........................119
Brake/Transmission Interlock ..................190
Bulb Replacement ...................... .316, 317
Bulbs, Light ........................... .63, 316
Capacities, Antifreeze (Engine Coolant) ...........320
Capacities, Fluid .......................... .320Caps, Filler
Fuel ................................. .242
Oil (Engine) ........................ .285, 324
Carbon Monoxide Warning .................60, 242
Cargo Area Features ....................... .104
Car Washes .............................. .304
Cellular Phone ........................... .167
Chains, Tire ............................. .229
Change Oil Indicator ....................... .324
Changing A Flat Tire ....................... .258
Chart, Tire Sizing ...........................211
Check Engine Light (Malfunction Indicator Light). . . .281
Checking Your Vehicle For Safety ................60
Checks, Safety .............................60
Child Restraint .............................43
Child Restraints Booster
Seats............................47
Child Restraints ..........................43
Child Seat Installation ......................56
How To Stow An Unused ALR Seat Belt .........54
Infants And Child Restraints .................46
Lower Anchors And Tethers For Children ........50
Older Children And Child Restraints ...........46
Seating Positions ..........................49
Clean Air Gasoline ........................ .23910
INDEX 337

Fog Lights............................ .86, 131
Freeing A Stuck Vehicle ..................... .271
Fuel ................................... .239
Adding .............................. .242
Additives ............................. .241
Capacity .............................. .320
Clean Air ............................. .239
Ethanol .............................. .239
Filler Cap (Gas Cap) ..................... .242
Gasoline .............................. .239
Materials Added ........................ .241
Methanol ............................. .239
Requirements .......................... .239
Specifications .......................... .321
Tank Capacity .......................... .320
Fueling ................................. .242
Fuses .................................. .310
Gas Cap (Fuel Filler Cap) .................242, 243
Gasoline, Clean Air ........................ .239
Gasoline (Fuel) ........................ .239, 320
Gasoline, Reformulated ..................... .239
Gear Ranges ............................. .192
Gear Select Lever Override ....................272
General Information ........................ .238General Maintenance
....................... .283
Glass Cleaning ........................... .307
Hazard Driving Through Flowing, Rising, Or Shallow
Standing Water ......................... .198
Headlights ................................83
Cleaning .............................. .307
Passing ................................83
Switch .................................83
Heated Mirrors .............................73
Heated Seats ...............................78
Hill Start Assist ........................... .205
Holder, Cup ............................. .103
Hood Release ..............................
81
Ignition ...................................9
Key....................................9
Ignition Key Removal .........................9
Immobilizer (Sentry Key) ......................11
Instrument Cluster ..................... .123, 135
Instrument Cluster ........................110
Instrument Cluster Display Instrument Cluster Display ..................138
Instrument Panel And Controls .................109
340 INDEX

Instrument Panel Cover..................... .308
Instrument Panel Lens Cleaning ................308
Interior Appearance Care .....................306
Interior Lighting ............................85
Introduction ................................4
Jacking Instructions ........................ .261
Jack Location ............................ .258
Jack Operation ........................ .258, 261
Jump Starting ............................ .268
Key Fob Disarm The Alarm ........................12
Key Fob Battery Service (Remote Keyless Entry) .....15
Key-In Reminder ............................10
Key, Replacement ...........................11
Keys .....................................9
Key, Sentry (Immobilizer) ......................11
Lane Change Assist ..........................84
Lap/Shoulder Belts ..........................24
Latches ..................................63
Hood ..................................81
Lead Free Gasoline ........................ .239
Leaks, Fluid ...............................63 Life Of Tires
............................. .227
Liftgate (Sedan) .............................20
Light Bulbs ........................... .63, 316
Lights ............................. .63, 82, 83
AirBag ............................ .61, 118
Brake Assist Warning ..................... .209
Brake Warning ..........................119
Bulb Replacement ....................... .317
Cruise ............................ .136, 137
Engine Temperature Warning ................123
Exterior ................................63
Fog ................................. .131
High Beam ..............................83
Malfunction Indicator (Check Engine) ..........130
Park .............................. .83, 136
Passing ................................83
Seat Belt Reminder .......................118
Service ............................... .317
Tire Pressure Monitoring (TPMS) .............126
Traction Control ........................ .209
T

urn Signal ....................... .63, 84, 135
Warning (Instrument Cluster Description) . . . .123, 135
Loading Vehicle Tires................................. .215
10
INDEX 341

Operator Manual (Owner’s Manual)...............4
Overheating, Engine ....................... .247
Owner’s Manual (Operator Manual) ...........4,333
Paint Care ............................... .304
Parking Brake ............................ .200
Passing Light ..............................83
Pets .....................................59
Placard, Tire And Loading Information ...........216
Power Door Locks ..............................18
Mirrors ................................72
Outlet (Auxiliary Electrical Outlet) ............100
Steering .............................. .199
Sunroof ................................98
Windows ...............................19
Pregnant Women And Seat Belts .................29
Preparation For Jacking ..................... .261
Pretensioners Seat Belts ...............................30
Radial Ply Tires ........................... .221
Radio Frequency General Information .....................12, 17
Radio Operation .......................... .167Rear Liftgate (Sedan)
.........................20
Rear Window Features ...................... .105
Recreational Towing ........................ .244
Reformulated Gasoline ...................... .239
Refrigerant .............................. .288
Release, Hood ..............................81
Reminder, Seat Belt ..........................23
Remote Keyless Entry Disarm The Alarm ........................12
Power Convertible Top Function ..............13
Remote Sound System (Radio) Controls ...........165
Replacement Bulbs ........................ .316
Replacement Keys ...........................11
Replacement Parts ......................... .282
Replacement Tires ......................... .228
Reporting Safety Defects .....................333
Restraints, Child ............................43
Rotation, Tires ............................ .230
Safety Checks Inside Vehicle ...................61
Safety Checks Outside Vehicle ..................63
Safety

Defects, Reporting .....................333
Safety, Exhaust Gas ..........................60
Safety Information, Tire ..................... .210
Safety Tips ................................60
10
INDEX 343

Schedule, Maintenance...................... .324
Seat Belt Energy Management Feature .................30
Lap/Shoulder Belt Operation .................26
Lap/Shoulder Belts ........................24
Lap/Shoulder Belt Untwisting ................28
Pregnant Women .........................29
Seat Belt Extender .........................29
Seat Belt Pretensioner ......................30
Seat Belt Reminder ........................23
Seat Belt Maintenance ...................... .308
Seat Belt Reminder ..........................23
Seat Belts ............................. .23, 61
Child Restraint ...........................43
Extender ...............................29
Front Seat ........................ .23, 24, 26
Inspection ..............................61
Operating Instructions ......................26
Pregnant Women .........................29
Pretensioners ............................30
Rear Seat ...............................24
Reminder ..............................118
Untwisting Procedure ......................28
Seats ....................................74
Adjustment .............................74 Heated
.................................78
Security Alarm Disarm The System ........................12
Security Alarm ...........................12
Sentry Key (Immobilizer) ......................11
Service Assistance ......................... .330
Service Contract .......................... .332
Service Manuals .......................... .333
Shift Lever Override ....................... .272
Shift Speeds, Manual Transmission ..............188
Shoulder Belts .............................24
Signals, Turn ........................ .63, 84, 135
Snow Chains (Tire Chains) ....................229
Snow Tires .............................. .223
Spare Tire ..................... .223, 224, 225, 226
Spark Plugs ............................. .321
Speed Control Accel/Decel .............................93
Speed Control (Cruise Control) ..................90
Sport Mode .............................. .202
Starting ................................ .184
Automatic

Transmission ....................184
Cold Weather .......................... .185
Engine Fails To Start ..................... .186
Manual Transmission ..................... .184
344 INDEX
