Page 2 of 32
VEHICLES SOLD IN CANADA
With respect to any Vehicles Sold in Canada, the name FCA
US LLC shall be deemed to be deleted and the name FCA
Canada Inc. used in substitution therefore.
DRIVING AND ALCOHOL
Drunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-
drinking driver, call a cab, a friend, or use public trans-
portation.
WARNING!
Driving after drinking can lead to an accident.
Your perceptions are less sharp, your reflexes are
slower, and your judgment is impaired when you
have been drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
FCA US LLC reserves the right to make changes in design
and specifications, and/or make additions to or improve-
ments to its products without imposing any obligation
upon itself to install them on products previously manu-
factured.
Copyright © 2016 FCA US LLC
Page 8 of 32
DOOR LOCKS
Manual Door Locks
The power door locks can be manually locked from inside
the vehicle by using the door lock knob. To lock each door,
push the door lock knob on each door trim panel down-
ward. To unlock the front doors, pull the inside door
handle to the first detent. For Police vehicle, both rear
passenger doors are inoperable from the rear seat position,
inside of the vehicle. If the lock knob is down when the
door is closed, the door will lock. Therefore, make sure the
key is not inside the vehicle before closing the door.
WARNING!
•For personal security and safety in the event of an
collision, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a number
of reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
Manual Door Lock Knob
6 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 11 of 32

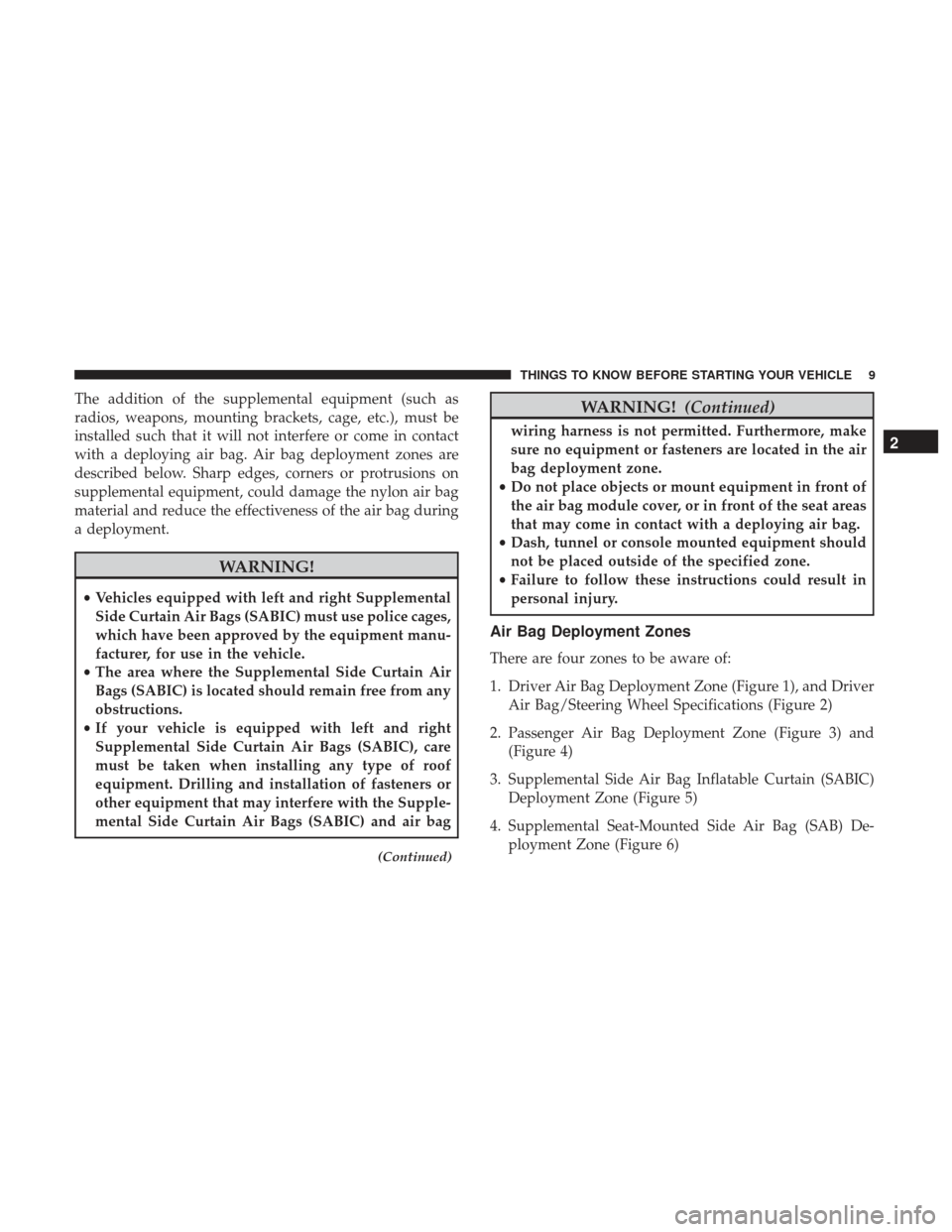

The addition of the supplemental equipment (such as
radios, weapons, mounting brackets, cage, etc.), must be
installed such that it will not interfere or come in contact
with a deploying air bag. Air bag deployment zones are
described below. Sharp edges, corners or protrusions on
supplemental equipment, could damage the nylon air bag
material and reduce the effectiveness of the air bag during
a deployment.
WARNING!
•Vehicles equipped with left and right Supplemental
Side Curtain Air Bags (SABIC) must use police cages,
which have been approved by the equipment manu-
facturer, for use in the vehicle.
• The area where the Supplemental Side Curtain Air
Bags (SABIC) is located should remain free from any
obstructions.
• If your vehicle is equipped with left and right
Supplemental Side Curtain Air Bags (SABIC), care
must be taken when installing any type of roof
equipment. Drilling and installation of fasteners or
other equipment that may interfere with the Supple-
mental Side Curtain Air Bags (SABIC) and air bag
(Continued)
WARNING! (Continued)
wiring harness is not permitted. Furthermore, make
sure no equipment or fasteners are located in the air
bag deployment zone.
• Do not place objects or mount equipment in front of
the air bag module cover, or in front of the seat areas
that may come in contact with a deploying air bag.
• Dash, tunnel or console mounted equipment should
not be placed outside of the specified zone.
• Failure to follow these instructions could result in
personal injury.
Air Bag Deployment Zones
There are four zones to be aware of:
1. Driver Air Bag Deployment Zone (Figure 1), and Driver Air Bag/Steering Wheel Specifications (Figure 2)
2. Passenger Air Bag Deployment Zone (Figure 3) and (Figure 4)
3. Supplemental Side Air Bag Inflatable Curtain (SABIC) Deployment Zone (Figure 5)
4. Supplemental Seat-Mounted Side Air Bag (SAB) De- ployment Zone (Figure 6)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9
