2017 DODGE DURANGO keyless

Using Fob With Integrated Key (Tip Start)
NOTE:Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
Do not press the accelerator. Use the fob with Integrated
Key to briefly place the ignition in the START position and
release it as soon as the starter engages. The starter motor
will continue to run, and it will disengage automatically
when the engine is running. If the engine fails to start, the
starter will disengage automatically in 10 seconds. If this
occurs, place the ignition in the LOCK/OFF position, wait
10 to 15 seconds, then repeat the “Normal Starting” proce-
dure.
Keyless Enter-N-Go — Ignition
This feature allows the driver to operate
the ignition switch with the push of a
button, as long as the Remote Start/
Keyless Enter-N-Go key fob is in the
passenger compartment.
Normal Starting
To Turn On The Engine Using The ENGINE
START/STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing the ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Place the gear selector in PARK, then push and release the ENGINE START/STOP button.
2. The ignition will return to the OFF position.
380 STARTING AND OPERATING

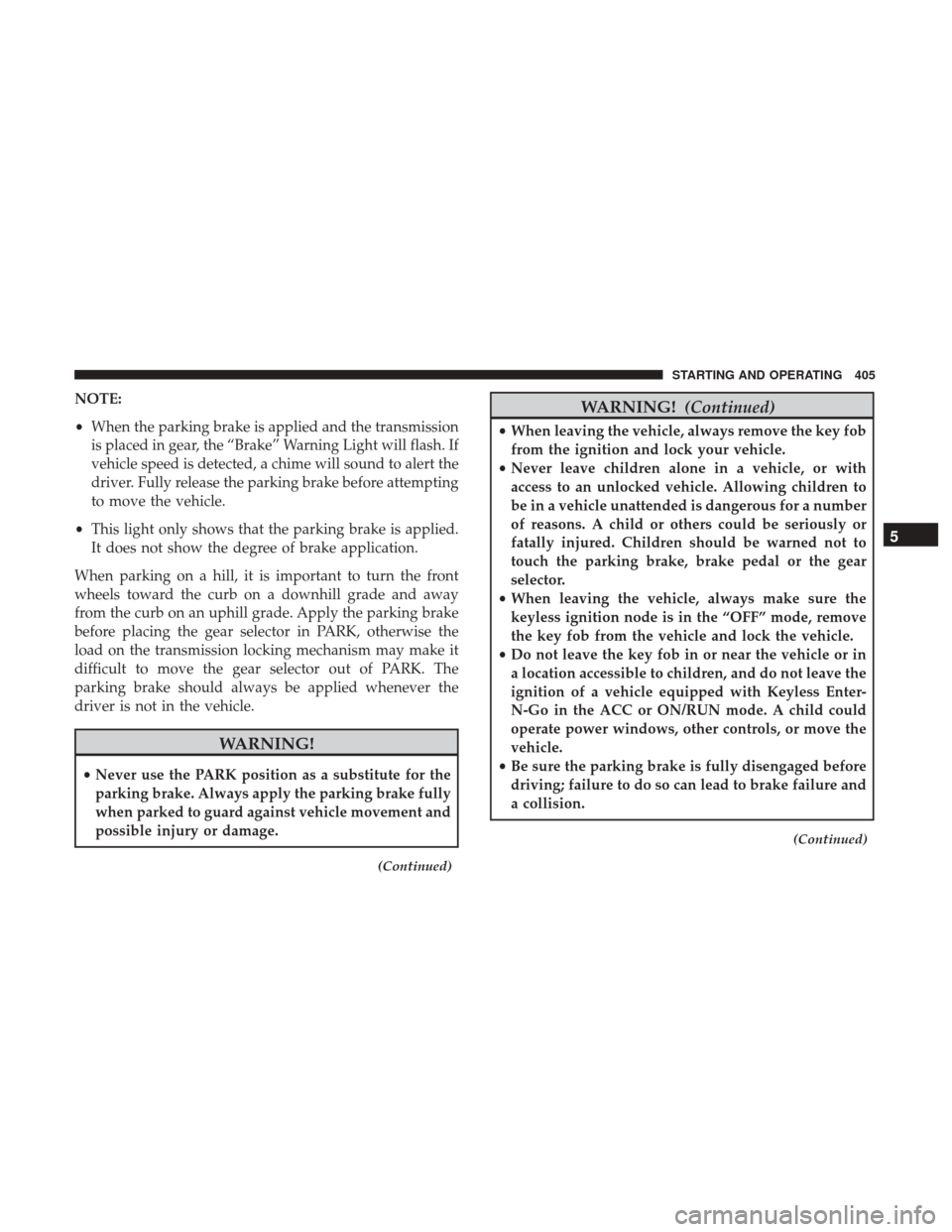

NOTE:
•When the parking brake is applied and the transmission
is placed in gear, the “Brake” Warning Light will flash. If
vehicle speed is detected, a chime will sound to alert the
driver. Fully release the parking brake before attempting
to move the vehicle.
• This light only shows that the parking brake is applied.
It does not show the degree of brake application.
When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. Apply the parking brake
before placing the gear selector in PARK, otherwise the
load on the transmission locking mechanism may make it
difficult to move the gear selector out of PARK. The
parking brake should always be applied whenever the
driver is not in the vehicle.
WARNING!
• Never use the PARK position as a substitute for the
parking brake. Always apply the parking brake fully
when parked to guard against vehicle movement and
possible injury or damage.
(Continued)
WARNING! (Continued)
•When leaving the vehicle, always remove the key fob
from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a number
of reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
• When leaving the vehicle, always make sure the
keyless ignition node is in the “OFF” mode, remove
the key fob from the vehicle and lock the vehicle.
• Do not leave the key fob in or near the vehicle or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Be sure the parking brake is fully disengaged before
driving; failure to do so can lead to brake failure and
a collision.
(Continued)
5
STARTING AND OPERATING 405

CavityCartridge Fuse Micro Fuse Description
F38 30 Amp Pink –Power Inverter 115V AC - If Equipped
F39 30 Amp Pink –Power Liftgate - If Equipped
F40 –10 Amp Red Daytime Running Lights/
Headlamp Leveling
F42 –20 Amp Yellow Horn
F44 –10 Amp Red Diagnostic Port
F49 –10 Amp Red Integrated Central Stack / Climate Control
F50 –20 Amp Yellow Air Suspension Control Module -
If Equipped
F51 –15 Amp Blue Ignition Node Module / Keyless Ignition /
Steering Column Lock
F52 –5 Amp Tan Battery Sensor
F53 –20 Amp Yellow Trailer Tow – Left Turn/Stop Lights -
If Equipped
F56 –15 Amp Blue Additional Content (Diesel engine only)
F57 –20 Amp Yellow NOX Sensor
F58 –15 Amp Blue HID Headlamps LH - If Equipped
F59 –10 Amp Red Purging Pump (Diesel engine only)
F60 –15 Amp Blue Transmission Control Module
536 MAINTAINING YOUR VEHICLE

Adding Fluid.......................... .528
Fluid And Filter Changes ...................528
Fluid Change .......................... .528
Fluid Level Check .....................527, 528
Fluid Type ......................... .527, 549
Gear Ranges ........................... .389
Special Additives ........................ .528
Auxiliary Electrical Outlet (Power Outlet) .........206
Auxiliary Power Outlet ..................... .206
Axle Fluid .............................. .549
Battery .............................. .241, 511
Charging System Light ....................241
Keyless Key Fob Replacement ................21
Belts, Seat .................................85
Blind Spot Monitoring ...................... .102
Body Mechanism Lubrication ..................516
B-Pillar Location .......................... .423
Brake Assist System ........................ .408
Brake Control System, Electronic ................406
Brake Fluid .......................... .525, 549
Brake System ......................... .406, 525
Anti-Lock (ABS) ........................ .406
Fluid Check ........................... .525
Master Cylinder ........................ .525Parking
.............................. .404
Warning Light .......................... .239
Brake/Transmission Interlock ..................387
Bulb Replacement ...................... .540, 542
Bulbs, Light ...............................88
Camera, Rear ............................ .192
Capacities, Fluid .......................... .545
Caps, Filler Fuel ................................. .487
Oil (Engine) ........................... .510
Radiator (Coolant Pressure) .................523
Carbon Monoxide Warning .................85,
448
Cargo Area Cover ......................... .220
Cargo Area Features ....................... .219
Cargo Compartment ....................... .219
Light ................................ .220
Luggage Carrier ........................ .223
Cargo Light ............................. .220
Cargo Tie-Downs .......................... .221
Car Washes .............................. .529
Cellular Phone ........................... .334
Center High Mounted Stop Light ...............544
Certification Label ......................... .451
Chains, Tire ............................. .437
10
INDEX 567

DipsticksOil (Engine) ........................... .508
Disabled Vehicle Towing .....................496
Disposal Antifreeze (Engine Coolant) .................523
Do Not Disturb ........................... .372
Door Ajar ............................... .244
Door Ajar Light ........................... .244
Door Locks ................................26
Child-Protection Door Lock — Rear Doors .......28
Door Locks .......................... .26, 28
KeyFob................................26
Remote ................................26
Remote Keyless Entry ......................26
Door Opener, Garage ....................... .196
Driver Information Display DID ................................. .262
Instrument Cluster Display ..................262
Driving ................................. .399
DVD Player (Video Entertainment System) .........316
Economy (Fuel) Mode ...................... .387
Electrical Outlet, Auxiliary (Power Outlet) .........206
Electric Rear Window Defrost ..................223
Electric Remote Mirrors ..................... .100Electronically Shifted Transfer Case
..............395
Electronic Brake Control System ................406
Anti-Lock Brake System ....................407
Traction Control System ....................411
Electronic Speed Control (Cruise Control) ......150, 153
Electronic Stability Control (ESC) ...............412
Electronic Throttle Control Warning Light .........243
Emergency, In Case Of Freeing Vehicle When Stuck .................491
Hazard Warning Flasher ...................474
Jacking ............................... .476
Jump Starting .......................... .488
Tow Hooks ............................ .492
Emission Control System Maintenance ............506
Engine Air Cleaner .............................511
Block Heater ........................... .385
Br

eak-In Recommendations ..................83
Compartment ....................... .503, 504
Compartment Identification ..............503, 504
Cooling .............................. .520
Exhaust Gas Caution ...................85, 448
Fails To Start ........................... .382
Flooded, Starting ........................ .382
Fuel Requirements ....................... .54510
INDEX 569

Instrument Panel And Controls.................234
Instrument Panel Lens Cleaning ................532
Interior Appearance Care .....................531
Intermittent Wipers (Delay Wipers) ..............144
Introduction ................................4
Inverter, Power ........................... .210
iPod/USB/MP3 Control ..................... .314
Jacking And Tire Changing Instructions ...........480
Jacking Instructions ........................ .481
Jack Location ............................ .477
Jack Operation ........................ .476, 481
Jump Starting ............................ .488
KeyFob..................................12 Arm The Alarm ..........................16
Disarm The Alarm ........................17
Panic Alarm .............................20
Programming Additional Key Fobs ..........16, 21
Unlock Liftgate ...........................36
Key Fob Battery Service (Remote Keyless Entry) .....21
Key Fob Programming (Remote Keyless Entry) . . . .19, 21
Key Fob, Remote Keyless Entry .................19
Key-In Reminder ............................13
Keyless Enter-N-Go ........................ .380Lock The Vehicle’s Doors
...................283
Passive Entry ............................30
Passive Entry Programming ..............30, 283
Unlock Liftgate ...................... .36, 283
Keyless Entry System ........................19
Keyless Go ................................11
Key, Replacement ...........................15
Keys ....................................11
Key, Sentry (Immobilizer) ......................14
Lane Change Assist ........................ .142
LaneSense ............................... .178
Lap/Shoulder Belts ..........................43
Latches ..................................88
Leaks, Fluid ...............................88
Life Of Tires ............................. .435
Liftgate ..................................36
Liftgate Window Wiper/Washer ................222
Light Bulbs ................................88
Lights ............................... .88,
135
AirBag ......................... .60, 86, 238
Automatic Headlights .....................136
Brake Assist Warning ..................... .414
Brake Warning ......................... .239
Bulb Replacement ....................... .542
572 INDEX

Pets.....................................83
Placard, Tire And Loading Information ...........424
Power Brakes ............................... .406
Distribution Center (Fuses) ..................534
Door Locks ..............................27
Inverter .............................. .210
Lift Gate ...............................38
Mirrors ............................... .100
Outlet (Auxiliary Electrical Outlet) ............206
Seats ..............................110,111
Steering ........................... .403, 549
Sunroof .............................. .203
Tilt/Telescoping Steering Column .............148
Windows ...............................34
Power Seats Forward ............................110,111
Rearward ...........................110,111
Recline ................................110
Pregnant Women And Seat Belts .................48
Preparation For Jacking ..................... .480
Pretensioners Seat Belts ...............................49
Programming Key Fobs (Remote Keyless Entry) ......19Quadra-Trac
............................. .395
Radial Ply Tires ........................... .429
Radiator Cap (Coolant Pressure Cap) .............523
Radio Frequency General Information .............14, 16, 23, 26, 33
Radio Operation .......................... .334
Radio Remote Controls ..................... .332
Radio (Sound Systems) ..................... .314
Rain Sensitive Wiper System ...................146
Rear Air Conditioning ...................... .343
Rear Axle (Differential) ..................... .526
Rear Camera ............................. .192
Rear Cross Path ........................... .107
Rear Cupholder ............................211
Rear ParkSense System ..................... .183
Rear Seat, Folding ......................... .123
Rear Window Features ...................... .222
Rear

Wiper/Washer ........................ .222
Reclining Front Seats ........................113
Recreational Towing ........................ .466
Shifting Into Transfer Case Neutral (N) .........468
Shifting Out Of Transfer Case Neutral (N) .......470
Reformulated Gasoline ...................... .445
Refrigerant .............................. .513
10
INDEX 575

Reminder, Seat Belt..........................41
Remote Control Starting System ...........................23
Remote Keyless Entry ........................19
Arm The Alarm ..........................16
Disarm The Alarm ........................17
Panic Alarm .............................20
Programming Additional Key Fobs ..........16, 21
Remote Sound System (Radio) Controls ...........332
Remote Starting Exit Remote Start Mode .....................25
Uconnect Customer Programmable Features . . .26, 285
Uconnect Settings ..................... .26, 285
Remote Starting System .......................23
Replacement Bulbs ........................ .540
Replacement Keys ...........................15
Replacement Parts ......................... .507
Replacement Tires ......................... .436
Reporting Safety Defects .....................561
Restraints, Child ............................63
Retractable Cargo Area Cover ..................220
Roll Over Warning ...........................5
Roof Type Carrier ......................... .223
Rotation, Tires ............................ .438Safety Checks Inside Vehicle
...................85
Safety Checks Outside Vehicle ..................88
Safety Defects, Reporting .....................561
Safety, Exhaust Gas ..........................85
Safety Information, Tire ..................... .417
Safety Tips ................................84
Schedule, Maintenance ...................... .552
Seat Belt Adjustable Upper Shoulder Belt Anchorage .......47
Automatic Locking Retractor (ALR) ............49
Energy Management Feature .................49
Lap/Shoulder Belt Operation .................45
Lap/Shoulder Belts ........................43
Lap/Shoulder Belt Untwisting ................46
Pregnant Women .........................48
Seat Belt Extender .........................48
Seat Belt Pretensioner ......................49
Seat Belt Reminder ........................41
Seat Belt Maintenance ...................... .533
Seat Belt Reminder ..........................41
Seat Belts ............................. .41, 85
Adjustable Shoulder Belt ....................47
Adjustable

Upper Shoulder Anchorage ..........47
Child Restraint ...........................63
Extender ...............................48
576 INDEX
