2017 Citroen GRAND C4 PICASSO RHD dashboard

241
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause
injuries with deployment of the airbags.
Advice
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
Curtain airbags
Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.
For the airbags to be fully effective, observe the safety recommendations below:
The vehicle's front door panels include side
impact sensors.
A damaged door or any unauthorised or
incorrectly executed work (modification or
repair) on the front doors or their interior trim
could compromise the operation of these
sensors - Risk of malfunction of the lateral
airbags!
Such work must only be done by a CITROËN
dealer or a qualified workshop.
6
Safety

310
Before changing a fuse:
F t he cause of the failure must be identified
and rectified,
F

a
ll electrical consumers must be switched
of f,
F

t
he vehicle must be immobilised with the
ignition off,
F

t
he failed fuse must be identified using the
tables and layout drawings in the following
pages.
Changing a fuse
Good Failed
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop. Tw e e z e r
Changing a fuse
The extraction tweezer is located in the
dashboard fusebox compartment.
For access to it:
F

o
pen the glove box,
F

u
nclip the cover by pulling at the top left,
then right,
F

d
isengage the cover completely, by
carefully pulling it in the direction indicated
by the arrow,
F

r
emove the tweezer.
Access to the tools
To change a fuse, you must:
F u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament,
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop.
In the event of a breakdown

312
Dashboard fuses
The two fuseboxes are located in the lower dashboard (left-hand side).
F
R
efer to "Access to the tools".
Fuse tables
Fusebox 1Fuse N° Rating Functions
F1 40 AHeated rear screen.
F2 20 AElectric door mirrors.
F5 30 APanoramic sunroof blind.
F6 20 A12 V socket.
F9 25 AHeated seats.
F10 20 ATrailer inter face unit.
F11 20 AAir conditioning fan.
F12 30 AElectric window motor.
Access to the fuses
In the event of a breakdown

333
Date (setting) ...................................................52
Daytime running lamps .................2 16, 301, 305
Deactivating the passenger airbag
............... 23

9
Deadlocking
...............................

........ 54, 56, 58
Defrosting
...............................

.......................104
Defrosting, front
............................................ 10

4
Demisting
...............................

.......................104
Demisting, front
............................................. 10

4
Demisting, rear
......................................1

04, 205
Demisting, rear screen
.........................1

04, 205
Dimensions
..............................

.....................330
Dipstick
................

.................................... 42, 274
Direction indicators
........2

12, 217, 301, 304-308
Display screen, instrument panel

.................14

4
Doors
..............................................................

.62
Driver’s attention warning

.............................18

8
Driving economically ......................................... 9
Driving positions (storing)

...............................79
D

riving time warning
..................................... 18

7
Dynamic stability control (DSC)

..... 3
2, 230, 232
Eco-driving
...............................

........................ 9
Eco-driving (advice)
.......................................... 9
E

conomy mode
...............................
..............267
Electronic brake force distribution (EBFD)

...23

0
Emergency Braking Assistance (EBA)

.........23

0
Emergency call
............................................. 2

28
Emergency warning lamps
................... 2

27, 283
F
Fatigue detection .................................. 187, 188
Filling the fuel tank ................................ 2
59 -261
Filter, air
...............

......................................... 277
Filter, oil
......................................................... 2

77
Filter, particle
........................................2

76, 277
Filter, passenger compartment
..................... 2

77
Fitting a wheel

...............................
................297
Fitting roof bars

............................................. 26

9
Fittings, boot

................................................. 11

6
Fittings, interior
..................................... 10

7, 108
Fittings, rear
...............................

...................112
Flap, fuel filler

...............................
.........259, 260
Flashing indicators
................................ 21

2, 217
Floor, concertina
............................................. 89
F

oglamps
..............................
........................301
Foglamps, front
.............2

10, 218, 301, 304, 309
Foglamps, rear
.............. 2

08, 210, 211, 307, 309
Folding the rear seats

.................. 8
4, 86, 88, 89
Fuel ............................................................ 9, 261
Fuel consumption
........................................ 9

, 51
E
D
Emissions control system, SCR .....................37
E nergy economy mode .................................2
67
Engine compartment
............................2

72, 273
Engine, Diesel

.........2
5, 261, 273, 321, 326, 327
Engine, petrol

................................2
61, 272, 322
Engines
..............................

.......... 322, 326, 327
Environment
...............................

.................9, 59
ESC/ASR
...............................

........................230Fuel tank........................................................
260
Fusebox, dashboard ..................................... 3
10
Fusebox, engine compartment
..................... 3

10
Fuses
................

.............................................310
Gauge, fuel.................................................... 259
Gearbox, automatic

.......... 9
, 139, 145, 278, 315
Gearbox, manual
......................9

, 138, 145, 278
Gear efficiency indicator

...............................14

4
Gear lever
..............................

........................... 9
Gear lever, manual gearbox

.........................13

8
Glove box

..............................................10

7, 108
Hands-free access

..........................................69
H

ands-free tailgate
................................... 6
7, 69
Hazard warning lamps
.......................... 2

27, 283
Hazard warning lamps, automatic operation
.................................... 2

27
G
H
.
Alphabetical index

83
.
1
17
18
1
1
20
19
21
22

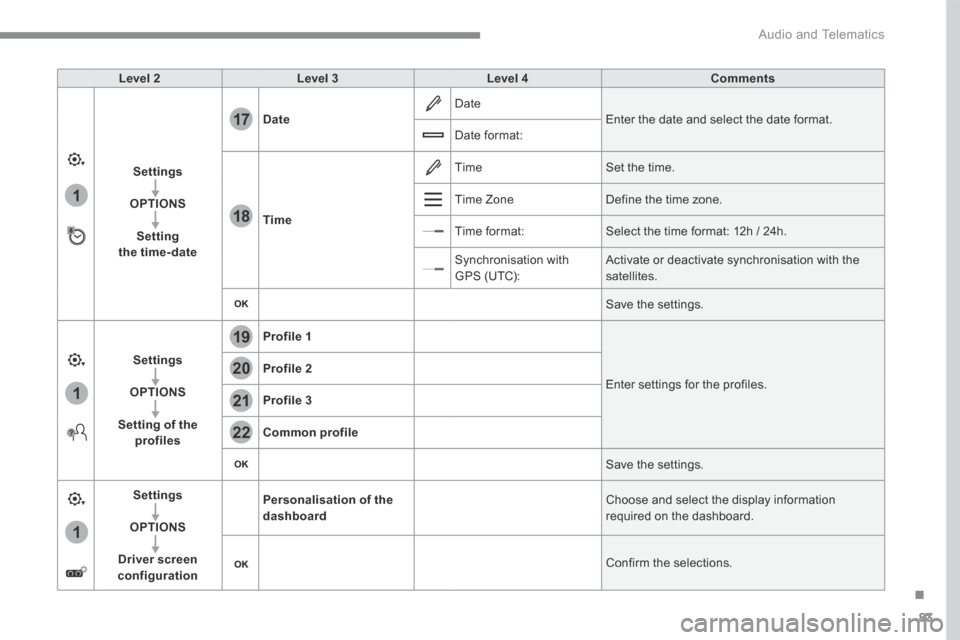

Audio and Telematics
Level 2Level 3Level 4Comments
Settings
OPTIONS
Setting the time-date
Date Date Enter the date and select the date format. Date format:
Time
Time Set the time.
Time Zone Define the time zone.
Time format: Select the time format: 12h / 24h.
Synchronisation with GPS (UTC): Activate or deactivate synchronisation with the satellites.
Save the settings.
Settings
OPTIONS
Setting of the profiles
Profile 1
Enter settings for the profiles. Profile 2
Profile 3
Common profile
Save the settings.
Settings
OPTIONS
Driver screen configuration
Personalisation of the dashboard Choose and select the display information required on the dashboard.
Confirm the selections.
