2017 Citroen GRAND C4 PICASSO start stop button

104
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Front demist -
defrost
F Press this button to demist or defrost the windscreen and side
windows as quickly as possible.
The indicator lamp in the button
comes on.
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
The system automatically manages the air
conditioning (depending on version), air
flow and air intake, and provides optimum
distribution towards the windscreen and side
windows.
F

T

o switch it off press this button again or
adjust the setting for air flow or distribution.
The indicator lamp goes off.
Rear screen demist -
defrost
Switching on
Switching off
F Press this button to demist / defrost the rear screen and
(depending on version) the door
mirrors.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
The rear screen demist - defrost
can only operate when the engine is
running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption.
F

I

t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing the
button again.
The indicator lamp associated with the button
goes off.
The indicator lamp associated with the button comes on.
Ease of use and comfort

110
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Central storage compartment
F To open the central storage compartment, pull the grip and lower the cover.
It is illuminated on opening.
A button on the upper part allows the lighting to
be deactivated.
230 V / 50 Hz power socket
A 230 V / 50 Hz socket (maximum power: 120 W)
i s fitted in the central storage box.
To use the socket:
F

o
pen the central storage box,
F

c
heck that the warning lamp is on green,
F

c
onnect your multimedia or other electrical
device (telephone charger, laptop
computer, CD-DVD player, baby food
warmer...).
This socket works with the engine running, as
well as in STOP mode with Stop & Start.
Depending on equipment, it may contain:
-

o

ne 230 V socket,
-

o

ne 12 V socket,
-

o

ne USB port,
-

o

ne auxiliary socket In the event of a fault with the socket, the green
warning lamp flashes.
Have it checked by a CITROËN dealer or a
qualified workshop. Connect only one device at a time to
the socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
As a safety measure, when electrical
consumption is high and when required
by the vehicle's electrical system
(particular weather conditions, electrical
overload...), the current supply to the
socket will be cut off; the green warning
lamp goes off.
Ease of use and comfort

127
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Starting-switching off the engine with the electronic key
F Place the gear selector lever at P or N for vehicles with an automatic gearbox or
neutral with a manual gearbox.
F

I
nsert the electronic key in the reader.
F

P
ress the brake pedal for vehicles with an
automatic gearbox, or fully declutch for
vehicles with a manual gearbox.
Starting the engine
For Diesel vehicles , in
temperatures below zero the
engine will not start until the
preheater warning lamp has
gone off.
If one of the starting conditions is not
met, a reminder message appears in
the instrument panel screen. In some
circumstances, it is necessary to
turn the steering wheel slightly while
pressing the "START/STOP" button
to assist unlocking of the steering;
a message warns you when this is
needed. F
B
riefly press the "
START/STOP"
button.
T

he steering column unlocks and
the engine starts more or less
immediately (see the advice for
Diesel versions). If this warning lamp comes on after
pressing "START/STOP", you should
hold the brake or clutch pedal down
until the warning lamp goes off and
do not press the START/STOP button
again before the engine starts.
4
Driving

128
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Electronic key left in the
reader
If the electronic key is left in the reader,
on opening the driver's door a message
appears to warn you.In the event of an emergency only,
the engine can be switched off
without any conditions. To do this,
press the "START/STOP" button for
about three seconds.
In this case the steering column locks
as soon as the vehicle stops.
Emergency stop
F Immobilise the vehicle.
F
P lace the gear selector lever at P or N for
vehicles with an automatic gearbox, or
neutral with a manual gearbox.
Switching off the engine
If the vehicle is not immobilised, the
engine will not stop. F

B
riefly press the "
START/STOP"
button
T
he engine stops and the
steering column locks.
F

R

emove the electronic key from the reader.
Switching off the engine leads to a loss
of braking assistance.
Driving

129
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Starting-switching off the engine with Keyless Entry and Starting
F With a manual gearbox, place the gear
lever in neutral.
F

P
ress the clutch pedal fully.
or
F

W
ith an automatic gearbox , place the
gear selector on P or N .
F

P
ress the brake pedal fully.
Diesel vehicles
In temperatures below zero,
the engine will not start until
the preheater warning lamp has
gone off.
Starting the engine
The presence of the "Keyless Entry and
Starting" electronic key in the recognition zone
is essential.
It is not necessary to place the electronic key in
the back-up reader. If the electronic key is not detected,
a message is displayed. Move the
electronic key into the recognition zone
so that the engine can be started.
In the event of a problem, refer to the
section "Key not detected / Back-up
starting".F
B riefly press the "
S TA R T/
STOP " button while maintaining
pressure on the pedal until the
engine starts.
If one of the starting conditions is not
met, a reminder message appears in the
instrument panel screen.
In some circumstances, it is necessary
to turn the steering wheel slightly while
pressing the " START/STOP " button
to assist unlocking of the steering; a
message warns you when this is needed. As a safety measure, never leave the
vehicle while the engine is running.
The steering column unlocks and the engine
starts more or less instantly.
See the advice below for Diesel versions.
If this warning lamp comes on after
pressing "START/STOP ", you should
hold the brake or clutch pedal down
until the warning lamp goes off and do
not press the " START/STOP" button
again before the engine starts.
4
Driving

130
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Key not detected
When the electronic key is in the recognition
zone and, after pressing the "START/STOP"
button, the engine does not start:
F
P
lace the gear selector at P or N for
vehicles with an automatic gearbox or
neutral for vehicles with a manual gearbox.
F

I
nsert the electronic key in the back-up
reader.
F

W

ith the electronic key inside
the vehicle, press the " S TA R T/
STOP " button.
The engine stops and the steering
column locks.
F

I

mmobilise the vehicle.
F

P

lace the gear selector at P or N for
vehicles with an automatic gearbox, or
neutral with a manual gearbox.
Switching off the engine
If the vehicle is not immobilised, the
engine will not stop.
Do not leave your vehicle with the
electronic key still inside. F

P
ress the brake pedal on vehicles with an
automatic gearbox, or fully declutch with a
manual gearbox.
F

P
ress the "START/STOP" button.
The engine starts.
Switching off the engine leads to a loss
of braking assistance.
Back-up starting
Driving

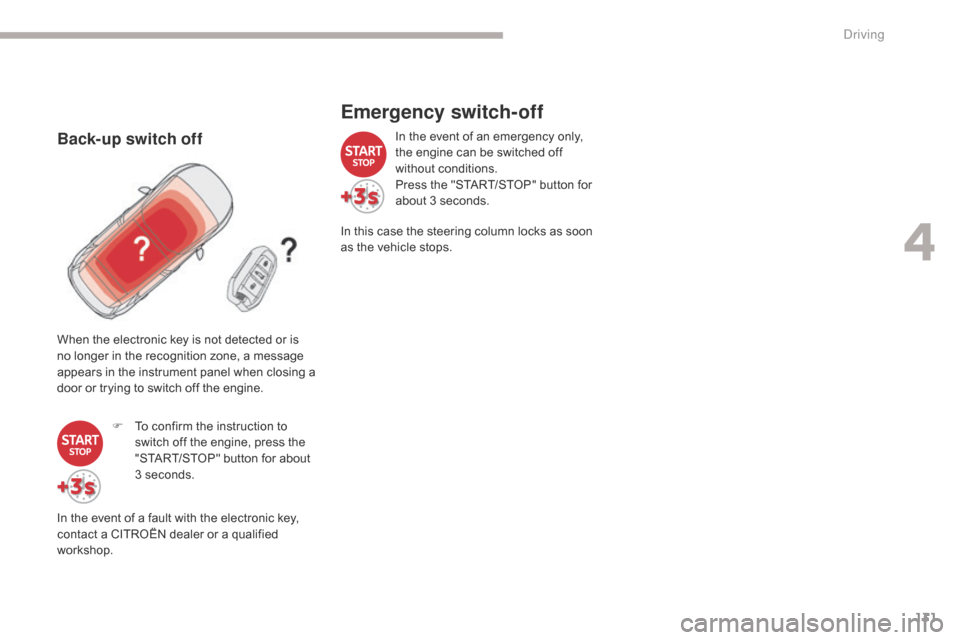

131
C4-Picasso-II_en_Chap04_conduite_ed02-2016
When the electronic key is not detected or is
no longer in the recognition zone, a message
appears in the instrument panel when closing a
door or trying to switch off the engine.
Emergency switch-off
In the event of an emergency only,
the engine can be switched off
without conditions.
Press the "START/STOP" button for
about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
F

T

o confirm the instruction to
switch off the engine, press the
"START/STOP" button for about
3 seconds.Back-up switch off
In the event of a fault with the electronic key,
contact a CITROËN dealer or a qualified
workshop.
4
Driving

132
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Switching the ignition on
(without starting)
With the ignition on, the system goes
into energy economy mode when
necessary to maintain the state of
charge of the battery.
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals
, allows the
ignition to be switched on.
F
P
ress the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F

P

ress the button again to switch off the
ignition and so allow the vehicle to be
locked.
Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer if required.
