List of tools*
Access to the spare wheel
The spare wheel is supported by a winch
carrier system underneath the vehicle.
Tyre under-inflation detection
The spare wheel is not fitted with a
sensor. The punctured wheel must be
repaired by a CITROËN dealer or a
qualified workshop.
All of these tools are specific to your
vehicle and can vary according to the level
of equipment. Do not use them for other
purposes.
1.
W

heelbrace.
F

or removing the wheel trim and removing
the wheel bolts.
2.
J

ack with integral handle.
F

or raising the vehicle.
3.
W

heel bolt cover tool.
F

or removing the bolt head finishers (caps)
on alloy wheels.
4.
W

heel trim remover.
F

or removing the alloy wheel finishers.
5.
S

ocket for the security bolts (located in the
glove box). F
or adapting the wheelbrace to the special
"security" bolts.
6.
Ch

ock.
F

or blocking the vehicle's wheels.
7.
W

heelbrace extension.
F

or slackening/tightening the spare wheel
carrier nut.
8.
R

emovable towing eye.
See the "Towing the vehicle" section.
* According to country of sale.
Practical information

207
DS5_en_Chap08_info-pratiques_ed01-2015
Putting the winch carrier and
spare wheel back in place
This procedure is to be carried out whether
the spare wheel is present or not. Without the
spare wheel, skip steps A and d
.
O

nly a "space-saver" type spare wheel can
be secured under the vehicle using the winch
c a r r i e r.
F

S
tow the jack in the box and refit the lid.
F

P
lace the closed box flat on the ground,
close to the rear of the vehicle.
F

S
traighten the spare wheel and pass the
link piece through the middle of the wheel.
F

I
nsert the link piece in the tool box
aperture. F
C entre the spare wheel on the tool box.
F

P
lace the assembly of wheel and tool box
under the rear of the vehicle.
F

R
aise the assembly of wheel and tool box
under the vehicle by turning the winch drive
nut anticlockwise using the wheelbrace 1
and the extension 7 . F
T ighten fully and check that the wheel is
horizontally flush against the floor.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake unless it has
been programmed to automatic mode,
switch off the ignition and engage first
gear* to block the wheels.
Check that the braking warning lamp
and the P warning lamp in the parking
brake control lever come on.
If necessary, place a chock against
the wheel opposite the wheel to be
changed.
The occupants must get out of the
vehicle and wait where they are safe.List of operations
F Depending on equipment, remove the cover from from each of bolts using the tool 3 or remove the wheel finisher using tool 4 .
F

F
it the security socket 5 on the wheelbrace 1 to slacken the security bolt (if fitted).
F

S
lacken the other bolts (no more than a 1/4 turn) using the wheelbrace 1 o n l y.
*


Position R for an electronic gearbox;
P for an automatic gearbox.
Never go underneath a vehicle raised
using a jack; use an axle stand.

DS5_en_Chap08_info-pratiques_ed01-2015
Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical sur face of
each bolt.
After changing a wheel
The wheel with the punctured tyre cannot
be fitted under the vehicle. It must be
stowed flat on the boot floor; use a cover
to protect the inside of the boot.
When using the "space-saver" type spare
wheel, do not exceed 50 mph (80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked by a
CITROËN dealer or a qualified workshop
without delay.
Have the punctured wheel repaired and
refitted to the vehicle as soon as possible.
List of operations
F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F

P
re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket
5 .
F


P
re-tighten the other bolts using the
wheelbrace 1 o n l y.

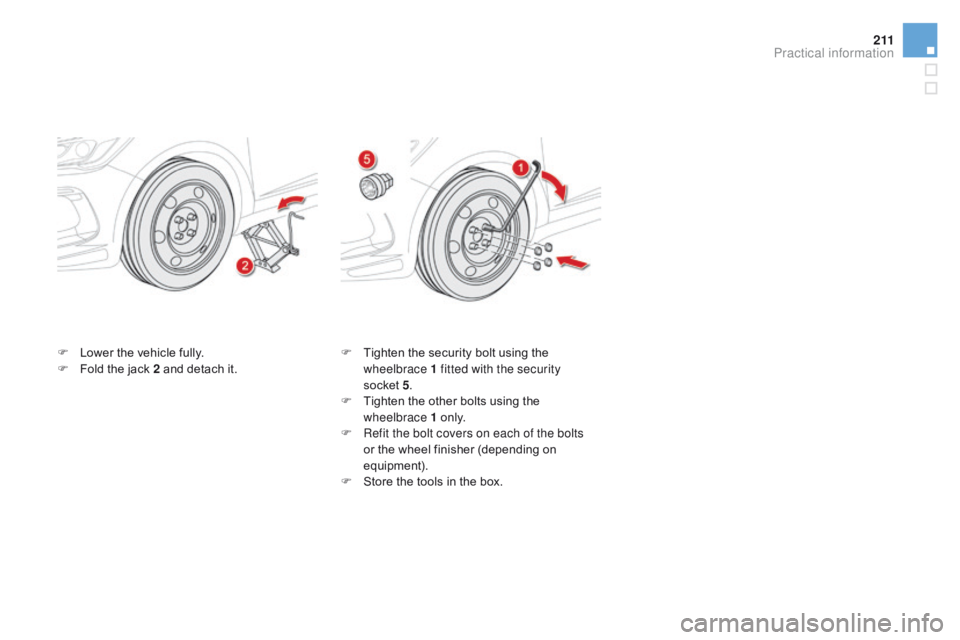

2 11
DS5_en_Chap08_info-pratiques_ed01-2015
F Lower the vehicle fully.
F F old the jack 2 and detach it. F
T ighten the security bolt using the
wheelbrace 1 fitted with the security
socket
5 .
F


T
ighten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the bolt covers on each of the bolts
or the wheel finisher (depending on
equipment).
F

S
tore the tools in the box.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
Towing your vehicleTowing another vehicle
F On the front bumper, unclip the cover
by pressing at the top to disengage the
securing lugs.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm. F
O n the rear bumper, unclip the cover by
levering at the left with the point of the
towing eye.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and drive at low speed and
for a short distance only.
F

P
lace the gear lever in neutral
(position N with an electronic or
automatic gearbox).
F
ailure to follow this advice could
result in damage to certain systems
(braking, transmission...) and the
absence of braking assistance the
next time the engine is started.
F U nlock the steering and release the
parking brake.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and drive at low speed and
for a short distance only.

233
DS5_en_Chap08_info-pratiques_ed01-2015
Fitting roof bars
Maximum authorised load evenly
distributed on the roof bars, for a
loading height not exceeding 40 cm
(with the exception of bicycle carriers):
70 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
When fitting transverse roof bars, take care to
position them correctly:
Use accessories recommended by
CITROËN

observing the manufacturer's
recommendations and fitting
instructions so as to avoid the risk
of damaging the body (deformation,
scratches, ...).
F

R

emove the cap using an allen
TM key.
F
P
ut the bars into position then fit and
tighten the securing screws. Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.
Practical information

235
DS5_en_Chap08_info-pratiques_ed01-2015
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's
recommendation and warranty.
"comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...*

T
o avoid any risk of jamming the pedals:
-

e
nsure that mats are correctly positioned
and secured,
-

n
ever fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...
"Protection":
mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations. The rear bodywork has been designed
to avoid spray.
