61
DS5_en_Chap02_ouvertures_ed01-2015

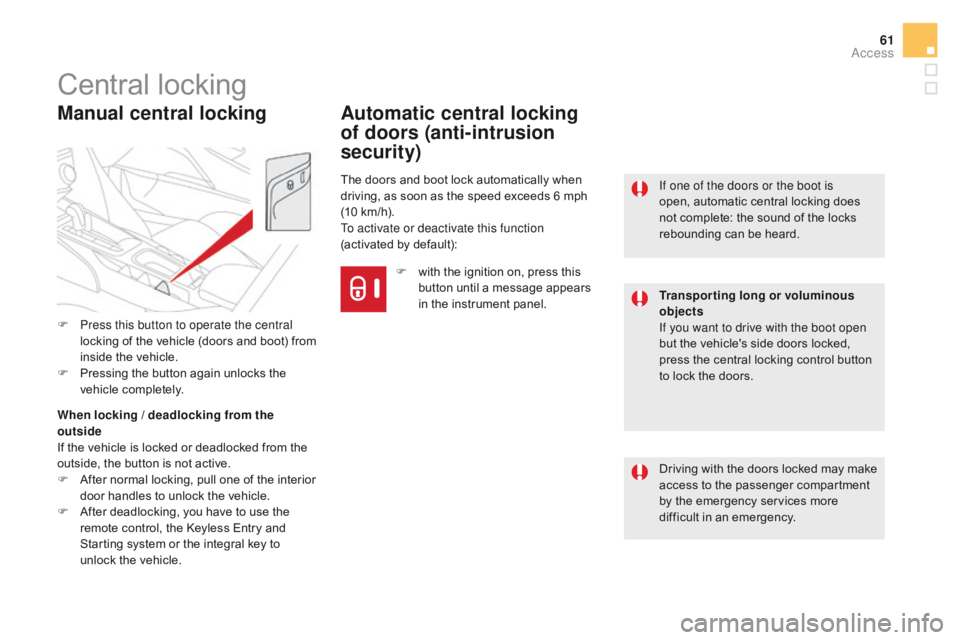

Central locking
Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency. If one of the doors or the boot is
open, automatic central locking does
not complete: the sound of the locks
rebounding can be heard.
Transporting long or voluminous
objects
If you want to drive with the boot open
but the vehicle's side doors locked,
press the central locking control button
to lock the doors.
Manual central locking
F Press this button to operate the central locking of the vehicle (doors and boot) from
inside the vehicle.
F

P
ressing the button again unlocks the
vehicle completely.
When locking / deadlocking from the
outside
If the vehicle is locked or deadlocked from the
outside, the button is not active.
F

A
fter normal locking, pull one of the interior
door handles to unlock the vehicle.
F

A
fter deadlocking, you have to use the
remote control, the Keyless Entry and
Starting system or the integral key to
unlock the vehicle.
Automatic central locking
of doors (anti-intrusion
security)
The doors and boot lock automatically when
driving, as soon as the speed exceeds 6 mph
(10 km/h).
To activate or deactivate this function
(activated by default):
F

w
ith the ignition on, press this
button until a message appears
in the instrument panel.
Access

OFF
63
DS5_en_Chap02_ouvertures_ed01-2015
System which protects and provides a deterrent
against theft and break-in. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
button or the wires of the siren are put
out of service or damaged.For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F Press the locking button on the remote control or lock the vehicle
using the Keyless Entry and
Starting system. Following an instruction to lock the
vehicle from the remote control or using
the Keyless Entry and Starting system,
the exterior perimeter monitoring is
activated after a delay of 5 seconds, the
interior volumetric monitoring after
45 seconds and the anti-tilt after
90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the
exterior perimeter monitoring will be
activated after a delay of 45 seconds.
F
P
ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.
deactivation of the volumetric
monitoring
The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.
The monitoring system is active: the indicator
lamp in the button flashes once per second.
Access

OFF
DS5_en_Chap02_ouvertures_ed01-2015
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
l
eaving a window partially open,
-

l
eaving a pet in the vehicle,
-

w
ashing your vehicle,
-

c
hanging a wheel,
-

h
aving your vehicle towed,
-

t
ransportation by sea.deactivation of the interior
volumetric and anti-tilt monitoring
F Switch of the ignition and within ten seconds, press this button
until the indicator lamp is on
continuously.
F

G
et out of the vehicle.
F

P
ress the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Where the vehicle locks itself again
automatically (occurs 30 seconds after
unlocking, if a door or the boot is not
opened), the monitoring system is not
reactivated automatically.
To reactivate it, the vehicle must be
unlocked and locked again, using the
remote control or the "Keyless Entry
and Starting" system.
To be effective, this deactivation must
be carried out each time the ignition is
switched off.

OFF
OFF
65
DS5_en_Chap02_ouvertures_ed01-2015
Reactivation of the interior
volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren and
flashing of the direction indicators for thirty
seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
F

P

ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.
F

P

ress the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second. When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
F

U
nlock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops.
The indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
* According to country.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
Access

67
DS5_en_Chap02_ouvertures_ed01-2015
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.
deactivating the rear
window controlsReinitialisation of the
electric windows
In the event of contact during operation of the windows, you must reverse the movement of
the window. To do this, press the switch concerned.
When operating the passenger electric window switches, the driver must ensure that no one
is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windows correctly.
Be particularly aware of children when operating the windows.
Be aware of passengers and other persons present close to the vehicle when closing the
windows remotely using the the electronic key or the Keyless Entry and Starting system. Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
-

l
ower the window completely, then raise
it. It will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-
c
ontinue to press the switch for at least one
second after reaching this position, window
closed.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear windows from the driver's
controls remain possible.
Access

151
DS5_en_Chap05_visibilite_ed01-2015
Exterior welcome
lighting
The remote switching on of the lighting makes
your approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.
Switching on
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.
Programming
The lighting duration is selected via
the vehicle configuration menu.
The duration of the welcome lighting is
associated with and identical to that of
the automatic guide-me-home lighting.
F

P

ress the open padlock on the
remote control or the door handle
with Keyless Entry and Starting.
Mirror spotlamps
Switching on
The spotlamps come on:
- w hen you unlock the vehicle,
-

w
hen you switch off the ignition,
-

w
hen you open a door,
-

w
hen you use the remote control to locate
the vehicle.
Switching off
They are timed to go off automatically. To make your approach to the vehicle easier,
these illuminate:
-
t
he zones facing the driver’s and
passenger’s doors,
-
t
he zones for ward of the door mirrors and
rear ward of the front doors.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
visibility

DS5_en_Chap08_info-pratiques_ed01-2015
The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not push the vehicle to start the
engine if you have an electronic or
automatic gearbox.Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area
and away from naked flames and
sources of sparks, so as to avoid the
risk of explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed
out to avoid the risk of explosion.
If the battery has been frozen,
before charging have it checked by
a CITROËN dealer or a qualified
workshop who will check that the
internal components have not been
damaged and the casing is not
cracked, which could cause a leak of
toxic and corrosive acid.
Do not reverse the polarity and use
only a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise (depending on
version):
-

t
he remote control key,
-

t
he electric blind(s),
-
...
S

ome functions are not available if the
battery is not sufficiently charged.

DS5_en_Chap12_index-recherche_ed01-2015
Key .............................................................52-57
Key, electronic ............................................ 5
2-53
Keyless Entry and Starting

.........5
4, 60, 99, 100
Key with remote control

.......................... 9
9, 100
Massage function ...........................................76
Mat ....... ........................................................... 84
Menu, touch screen tablet

.... 2
85, 289, 290, 292,
296, 304, 306, 308,318, 320, 322, 332, 334
Menu, audio system

...................................... 3

52
Menus (audio)

.............................. 3
04, 306, 308
MirrorLink connection
................................... 3

31
Mirror, rear view

.............................................. 81
M

irrors, door ............................................ 80, 126
Misfuel prevention
...............................

..........243
Mountings for ISOFIX seats

.........................17

2
MP3 CD

................
................................. 314, 357
Oil change

...............................
......................248
Oil consumption

............................................ 24

8
Oil filter
...............

........................................... 253
Oil level .................................................... 36, 248
Opening the boot

..............................
.. 52-54, 62
Opening the doors

...............................
..... 52, 54
Operation indicator lamps

.........................1

9 - 31Labels, identification .....................................2 78
Lamps, cleaning ............................................ 23
4
Lamps, warning and indicator

...................1

9 - 31
Lane Departure Warning System (LDWS)
....................................................... 12

5
Leather (care)
...............................

.................234
LEDs - light-emitting diodes

.......... 1
47, 214, 218
Level, AdBlue
® additive ................................. 25 5
Level, brake fluid ........................................... 24
9
Level, headlamp wash

.................................. 25

0
Level, power steering fluid

............................ 24

9
Levels and checks

................ 2
45, 246, 248 -251
Light-emitting diodes - LEDs

......... 1
47, 214, 218
Lighting
................

.......................................... 160
Lighting bulbs (replacement)

.................2

13 -2 20
Lighting control stalk

............................. 1
44, 150
Lighting dimmer

..............................
................37
Lighting, guide-me home

...................... 1
48, 150
Lighting, interior
.................................... 1

59, 160
Loading
..............................

..................... 14, 233
Load reduction mode

.................................... 2

27
Localised Assistance Call
............................. 28

2
Locating your vehicle

...................................... 55
L

ocking from the inside.................................... 61
Long objects, transporting

.............................. 86
L

ow fuel level

..............................
..................2 41
Lumbar
...............................

............................. 76
Jack .......................................................204, 205
Jack cable ............................................. 3 14, 359
JACK socket

...............................
..... 85, 314, 359
Jukebox
...............

.......................................... 317
Identification plates .......................................2 78
Ignition on...................................................... 10 0
Indicator lamps, status

...............................1

9 - 31
Indicators, direction
...................................... 18

2
Inflating accessories (using the kit)

..............20

3
Inflating tyres

..............................
............ 14, 277
Inputs for audio system

................... 8
5, 314, 359
Instrument panel lighting

................................37
In

strument panels
...............................
............18
Instrument panel screen

...............................11

8
Intelligent Traction Control
............................ 18

5
Interior fittings
................................................. 8

2
Interior mood lighting
.................................... 16

0
Internet
...............

................................... 326, 327
Internet browser
.................................... 3

26, 327
ISOFIX
...............

.................................... 172-176
ISOFIX mountings ......................................... 172
Navigation
...............................

..............290-303
Number plate lamps

......................................2

20
Main beam

...................... 2
0, 144, 213, 215, 217
Maintenance (advice)
.............................. 1

4, 234
Map reading lamps

.......................................15

9
Markings, identification
................................. 2

78
