DS4_en_Chap01_instruments-de-bord_ed01-2016
Customisable colour instrument panel - Type 1
1. Rev counter (x 1 000 rpm or tr/min).
2. Gear efficiency indicator or gear lever
position and gear for an automatic
gearbox.
3.
A

nalogue speedometer (mph or km/h).
4.
C

ruise control or speed limiter setting.
5.
D

igital speedometer (mph or km/h).
6.
E

ngine oil level indicator*.
Dials and screens Control buttons
7. Service indicator (
miles or km) then,
t

otal mileage recorder.
T

hese two functions are displayed
successively on switching on the ignition.
L

ighting dimmer setting (when making an
adjustment).
8.
T

rip mileage recorder (miles or km).
9.
F

uel gauge and associated low fuel
warning lamp.
10.
R

ange (miles or km) for the fuel (a) or the
AdBlue additive and SCR system (b) .A. D
ial COLOUR: customisation of the
background colour of the dials.
B.
S

creen COLOUR: customisation of the
background colour of the screens.
C.
L

ighting dimmer (available in night mode).
D.
R

eset the service indicator or the trip
mileage recorder.
*

Depending on version.
01
Instruments

15
DS4_en_Chap01_instruments-de-bord_ed01-2016
1. Rev counter (x 1 000 rpm or tr/min).
2. Gear efficiency indicator or gear lever
position and gear for an automatic
gearbox.
3.
S

peedometer (mph or km/h).
4.
C

entral screen.
5.
F

uel gauge and associated low fuel level
warning lamp.
Dials and screens
6. Trip mileage recorder (miles or km).
7. S ervice spanner (if a service is due or
missed),
t

otal mileage recorder (miles or km).
Control buttons
Customisable colour instrument panel - Type 2
A. Dial COLOUR: customisation of the background colour of the dials.
B.
S

creen COLOUR: customisation of the
background colour of the screens.
C.
D

ashboard lighting dimmer (in night mode).
D.
S

tart a manual test (procedure for checking
the status of systems and display of vehicle
a l e r t s).
R

eset service indicator or trip mileage
recorder.
01
Instruments

21
DS4_en_Chap01_instruments-de-bord_ed01-2016
Servicetemporarily,
accompanied by a
message. One or more minor faults for which
there is no specific warning lamp
have been detected. Identify the cause of the fault using the message
displayed in the screen.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate
the filter by driving at a speed of at least 40 mph
(60
km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a CITROËN
dealer or a qualified workshop.
fixed, accompanied by
a message. One or more major faults for which
there is no specific warning lamp
have been detected. Identify the cause of the fault using the message
displayed in the screen; you must then contact a
CITROËN dealer or a qualified workshop.
fixed, associated with the
flashing and then fixed
display of the service
indicator spanner.The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Warning
/indicator lampis on Cause Action/Observations
Engine self-
diagnosis systemflashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.
01
Instruments

23
DS4_en_Chap01_instruments-de-bord_ed01-2016
Power steeringfixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.
Under-inflation fixed. The pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Warning
/indicator lampis on Cause Action/Observations
Airbags on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a CITROËN dealer or a
qualified workshop.
01
Instruments

24
DS4_en_Chap01_instruments-de-bord_ed01-2016
Warning/indicator lampis on Cause Action/Observations
AdBlue
®
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Top-up the AdBlue® as soon as possible or go to a
CITROËN dealer or a qualified workshop.
+ flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the AdBlue
® to avoid a breakdown

or go to a CITROËN dealer or a qualified workshop.
flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up
the
AdBlue® or call on a CITROËN dealer or a qualified
workshop.
It is essential to add at least 3.8 litres of AdBlue
® to
the fluid tank
For topping-up or for more information on AdBlue
® and the SCR system , refer to the corresponding section.
01
Instruments

25
DS4_en_Chap01_instruments-de-bord_ed01-2016

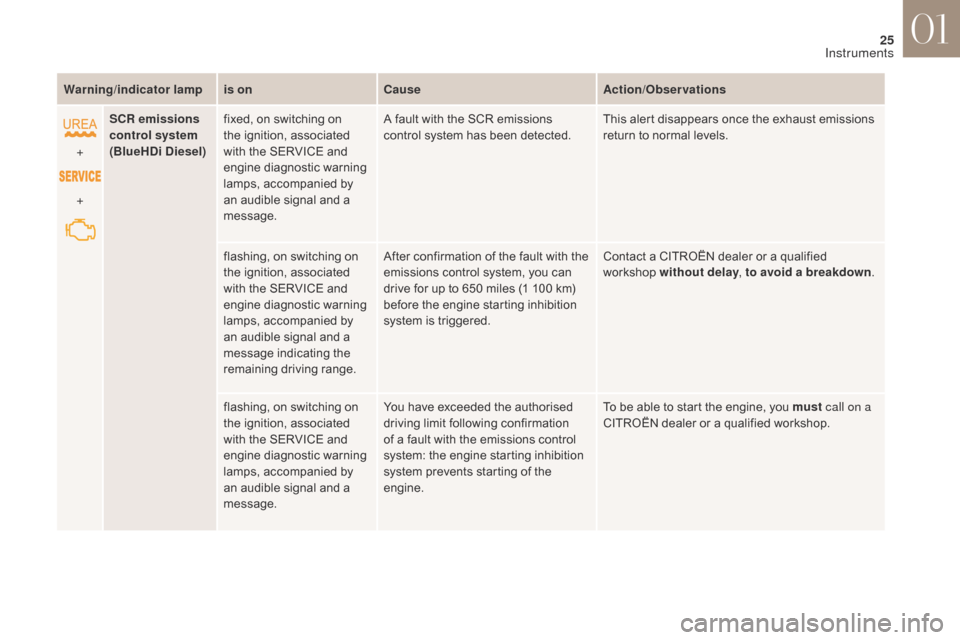

Warning/indicator lampis on Cause Action/Observations
+
+ SCR emissions
control system

(BlueHDi Diesel) fixed, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a CITROËN dealer or a qualified
workshop without delay
, to avoid a breakdown.
flashing, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must
call on a
CITROËN dealer or a qualified workshop.
01
Instruments

33
DS4_en_Chap01_instruments-de-bord_ed01-2016
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, at the same time as the servicing
information.
Engine oil level indicator*
The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than 30
minutes.
Oil level correct
This is indicated by the flashing of "OIL" or the
display of a message, accompanied by the
service warning lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking the levels
and in particular the oil level, refer to the
corresponding section. This is signalled by the flashing of "
OIL- -" or
the display of a message.
Contact a CITROËN dealer or a qualified
workshop.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking the levels
and in particular the oil level, refer to the
corresponding section.
* Depending on version.
Oil level incorrect Oil level indicator fault
01
Instruments

34
DS4_en_Chap01_instruments-de-bord_ed01-2016
System that informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.
The point at which the service is due is
calculated from the last service indicator zero
reset, according to the distance covered and
the time elapsed since the last service.
For BlueHDi Diesel versions, the level of
deterioration of the engine oil may also be
taken into account, depending on the country
of sale.
Service indicator
Between 600 miles (1 000 km)
and 1800 miles (3 000 km) remain
before the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The distance recorder
display line or a specific message in the
instrument panel central screen indicates the
distance remaining before the next service is due.
For example: 1 700 miles (2 800 km) remain
before the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:
A few seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.
More than 1800 miles (3000 km) remain
before the next service is due
When the ignition is switched on, no service
information appears in the instrument panel
central screen.
01
