4
DS4_en_Chap00b_vue-ensemble_ed01-2016
Exterior
Keyless Entry and Starting 70 -77
Remote control 6 4- 69, 77
-

o
pening / closing
-

b
ack-up control
-


battery
Alarm
8

3-86 Lighting control

1
28 -132
Headlamp adjustment
1

34
Guide-me-home lighting

1
31, 132
Welcome lighting

1
33
Directional lighting systems

1
35 -136
Changing bulbs
2

79-284
-

f
ront lamps
-

f
ront foglamps
-

s
ide repeaters
Wiper control

1
37-141
Changing a wiper blade

2
41 Door mirrors
1 00 -101
Blind spot sensors

2
10 -212
Doors

7
8 -79, 80
Keyless Entry and Starting

7
0 -77
-

o
pening / closing
-

b
ack-up control
Manual child lock

1
80
Electric windows

87
- 88
Fuel tank

2
27-230
Misfuel prevention

2
38
Roof bars

2
40
Braking assistance

1
54-155
Trajectory control

1
55 -156
Tyre under-inflation detection

2
04-205
Tyre pressures

2
04, 266, 270, 308
Snow chains

2
31
Temporary puncture repair kit

2
60 -270
Changing a wheel

2
71-278
-
tools
-

r
emoving / refitting
Boot

6
5, 70, 81- 82
Reversing camera

2
23
AdBlue, topping up

3
7- 42, 254-256
Changing bulbs
2

85-287
-

r
ear lamps
-

3
rd brake lamp
-

n
umber plate lamp
Parking sensors

2
21-222
Towbar

1
85, 238
Quickly detachable towball

2
33 -237
Towing
29

6-297

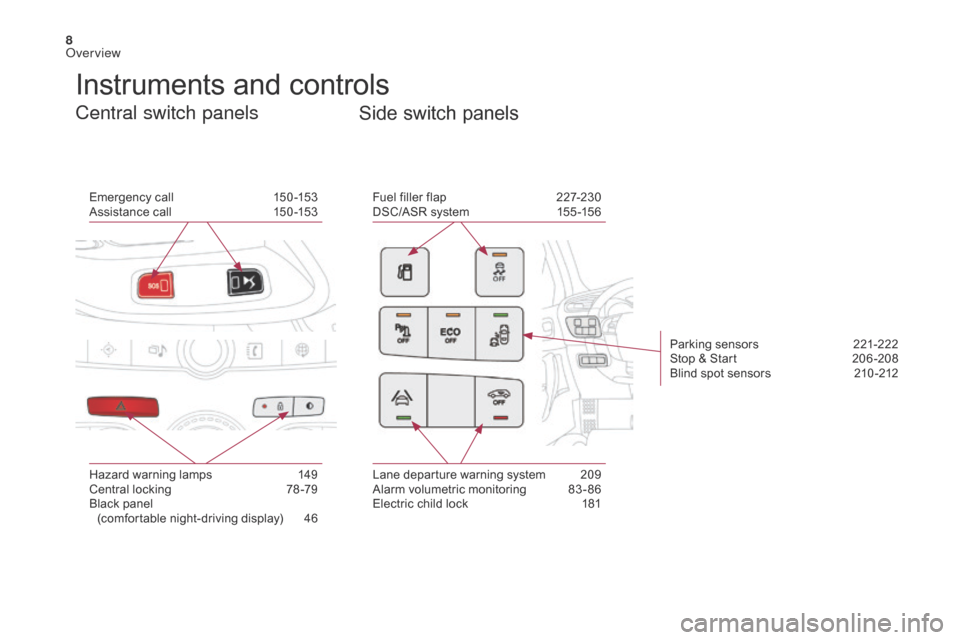

Over view

8
DS4_en_Chap00b_vue-ensemble_ed01-2016
Emergency call 150 -153
Assistance call 1 50 -153Fuel filler flap
2 27-230
DSC/ASR system 1 55 -156
Hazard warning lamps

1
49
Central locking

7
8 -79
Black panel (comfortable night-driving display)

4
6Lane departure warning system

2
09
Alarm volumetric monitoring

8
3 - 86
Electric child lock

1
81
Side switch panels
Central switch panels
Instruments and controls
Parking sensors 2 21-222
Stop & Start 2 06 -208
Blind spot sensors

2
10 -212
Over view

23
DS4_en_Chap01_instruments-de-bord_ed01-2016
Power steeringfixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.
Under-inflation fixed. The pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Warning
/indicator lampis on Cause Action/Observations
Airbags on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a CITROËN dealer or a
qualified workshop.
01
Instruments

47
DS4_en_Chap01_instruments-de-bord_ed01-2016
Monochrome screen C
This displays the following information:
- t ime,
-
d

ate,
-

a
mbient temperature (this flashes if there is
a risk of ice),
-

p
arking sensor information,
-

c
urrent audio source,
-

t
elephone or Bluetooth system information,
-

t
rip computer,
-

a
lert messages,
-

s
ettings menus for the screen and the
vehicle equipment.
Displays in the screen
From the control panel of your audio system,
you can press:
F
button A to chooses between the display
of audio information in full screen or the
shared display of audio and trip computer
information,
F
the "MENU" button for access to the main
menu ,
F

t
he "5" or " 6" buttons to scroll through the
items on the screen,
F

t
he "7" or " 8" buttons to change a setting
value,
F
the "OK" button to confirm,
or
F
the "Back" button to abandon the
operation in progress.
Controls
F Press the "MENU" button for access to the
main menu :
-

"
Multimedia",
-
"

Telephone",
-

"
Trip computer",
-

"
Bluetooth connection",
-
"

Personalisation-configuration",
F

P
ress the " 7" or " 8" button to select the
menu required, then confirm by pressing
the "OK" button.
Main menu
01
Instruments

51
DS4_en_Chap01_instruments-de-bord_ed01-2016
Touch screen tablet
This system gives access to:
- m enus for adjusting settings for vehicle
functions and systems,
-

a
udio and display settings menus,
-

a
udio system and telephone controls and
the display of associated information.
-

t
he display of the ambient temperature
(a blue snowflake appears if there is a risk
of i c e),
-

t
he display of the trip computer.
Recommendations
It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...). A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the touch screen tablet with wet
hands.
Uses a soft clean cloth to clean the touch
screen tablet.
General operation
Principles
Press the virtual buttons in the touch screen
tablet.
Each menu is displayed over one or two pages
(primary page and secondary page).
As a safety measure, the driver
should only carr y out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when driving.
And, depending on equipment, it also allows:
-

t

he display of visual parking sensors
information,
-

a

ccess to the controls for the navigation
system and Internet services, and the
display of associated information. After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
Use the "
Options" button to go to the
secondary page.
Use this button for access to
additional information and to the
settings for certain functions.
Use this button to confirm.
Use this button to quit or to return to
the primary page.
01
Instruments

102
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Rear view mirror
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
Day / night position
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
Automatic "electrochrome" model
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
F

P

ull the lever to change to the "night" anti-
dazzle position.
F
P
ush the lever to change to the normal
"day" position.
03
Ease of use and comfort

103
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

T

o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D

o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O

perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E

nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T

o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I

f the system does not produce cold air, switch it off and contact a CITROËN dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability. The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
Stop & Start
The heating and air conditioning systems only work when the engine is running.
To maintain a comfortable temperature in the passenger compartment, you can temporarily
deactivate the Stop & Start system.
For more information on Stop & Star t
, refer to the corresponding section.
03
