58
DS4_en_Chap01_instruments-de-bord_ed01-2016

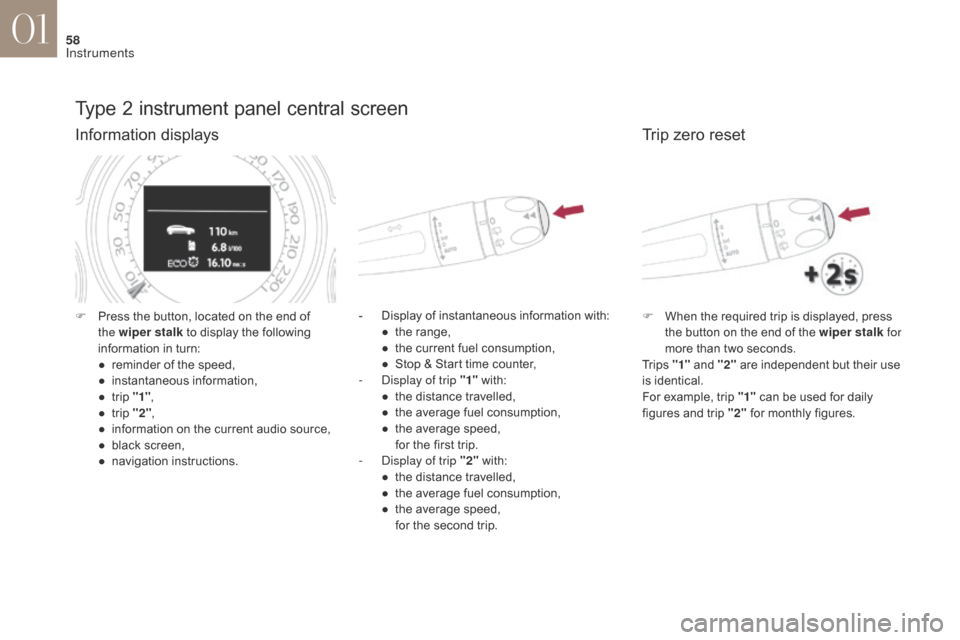

Type 2 instrument panel central screen
Information displays
- Display of instantaneous information with:● t he range,
●

t
he current fuel consumption,
●

S
top & Start time counter,
-

D
isplay of trip "1" with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the first trip.
-

D
isplay of trip "2" with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the second trip.
F
P
ress the button, located on the end of
the wiper stalk to display the following
information in turn:
●

r

eminder of the speed,
●
in

stantaneous information,
●

t

rip "1" ,
●

t

rip "2" ,
●

i

nformation on the current audio source,
●

b

lack screen,
●
n

avigation instructions.
Trip zero reset
F When the required trip is displayed, press the button on the end of the wiper stalk for
more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures and trip "2" for monthly figures.
01
Instruments

59
DS4_en_Chap01_instruments-de-bord_ed01-2016
Touch screen tablet
Display of information
Permanent display:Temporary display in a new window:
F

P
ress the end of the wiper control stalk for
access to the information and display the
different tabs.
The current instantaneous fuel consumption tab with:- the range,
- t he current fuel consumption,
-

t
he Stop & Start time counter.
The trip "1" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the first trip.
The trip "2" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the second trip.
Trip reset
F Select the " Driving" menu.
The trip computer information is displayed in
the primary page of the menu.
F

P

ress one of the buttons to display the
desired tab. F

W
hen the desired trip is
displayed, press the reset button
or press and hold the end of the
wiper control stalk.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
1.


"
Instantaneous ".
2.
" T

r i p 1
".
3.


"
Tr i p 2 ".
4.
" 0

0.0 / Reset
".
01
Instruments

60
DS4_en_Chap01_instruments-de-bord_ed01-2016
A few definitions…
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.This function is only displayed from
20
mph (30 km/h).
Range
(miles or km)
When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
Average fuel consumption
(mpg or l/100 km or km/l)
Average speed
(mph or km/h)
Stop & Star t time counter
(minutes / seconds or hours /
minutes)
Calculated since the last trip computer reset.
Calculated over the last few seconds.
The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).
Calculated since the last trip computer reset.
Distance travelled
(miles or km)
Calculated since the last trip computer reset.
A time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.
01
Instruments

75
DS4_en_Chap02_ouvertures_ed01-2016
Locking the passenger doors Unlocking the passenger doors

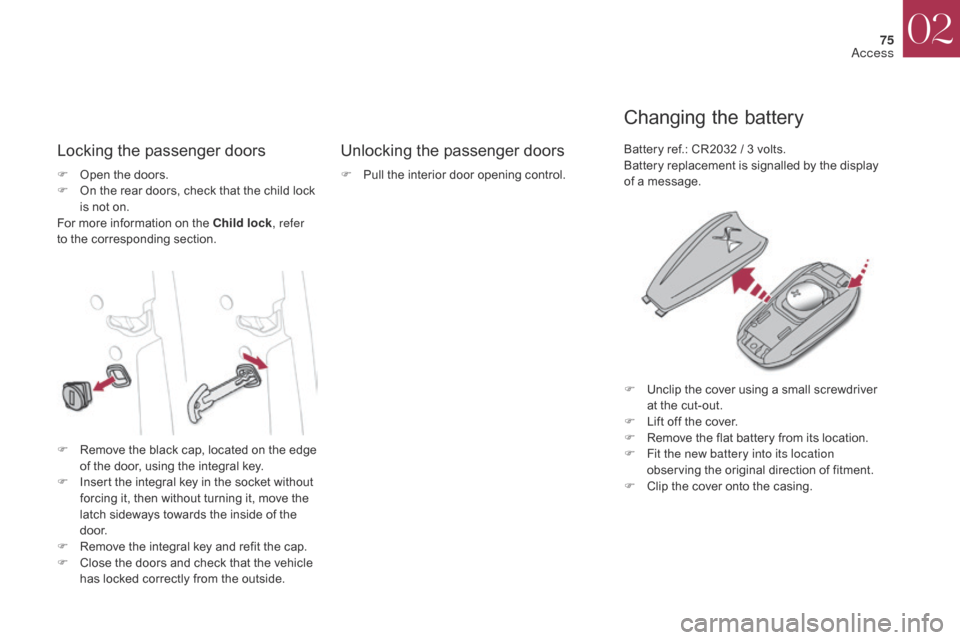

Changing the battery
F Open the doors.
F O n the rear doors, check that the child lock
is not on.
For more information on the Child lock , refer
to the corresponding section. F
P ull the interior door opening control.Battery ref.: CR2032 / 3 volts.
Battery replacement is signalled by the display
of a message.
F

U
nclip the cover using a small screwdriver
at the cut-out.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.
F

R
emove the black cap, located on the edge
of the door, using the integral key.
F

I
nsert the integral key in the socket without
forcing it, then without turning it, move the
latch sideways towards the inside of the
d o o r.
F

R
emove the integral key and refit the cap.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.
02
Access

79
DS4_en_Chap02_ouvertures_ed01-2016
This system allows automatic simultaneous locking of the doors and boot as soon as the speed of
the vehicle exceeds 6 mph (10 km/h).
Anti-intrusion security
OperationActivation / Deactivation
If one of the doors or the boot is open, the
automatic central locking does not take place.
Carrying long or
voluminous objects
If you want to drive with the boot open,
you should press the central locking
button to lock the doors. Other wise,
every time the speed of the vehicle
exceeds 6 mph (10 km/h), the locks
will rebound and the alerts mentioned
above will appear.
Pressing the central locking button unlocks the
vehicle.
Above 6 mph (10 km/h), this unlocking is
te m p o r a r y. Driving with the doors locked may
render access for the emergency
services difficult in an emergency.
This is signalled by the sound of
the locks rebounding, accompanied
by illumination of this symbol in the
instrument panel, an audible signal
and the display of an alert message.
F
W
ith the ignition on, press this button
until an audible signal starts and a
corresponding message is displayed.
The state of the system stays in memory when
switching off the ignition. You can activate or deactivate this function
permanently.
02
Access

81
DS4_en_Chap02_ouvertures_ed01-2016
Boot
The vehicle or just the boot is unlocked,
depending on the setting.Selective unlocking
By default, complete unlocking is activated.
This setting is done in the "Driving" menu,
then "Vehicle settings" and "Vehicle
access" .
When unlocking of the boot only is activated:
F

W
ith the electronic key on your person and
in the recognition zone A , press the boot
unlocking control to unlock just the boot,
then raise the tailgate.
Use this button for access to
additional information. F

L
ower the tailgate using one of the interior
grab handles.
Closing
Opening
F After unlocking the vehicle or the boot with
the Keyless Entry and Starting system
electronic key on your person in the
recognition zone A , press the boot opening
control then raise the tailgate. If the boot is not closed correctly:
-
w
ith the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied by
the display of an alert message
for a few seconds.
-
w
ith the vehicle moving (speed above
6 mph (10 km/h)), in addition to the warning
lamp and alert message, there is an an
audible signal for a few seconds.
Unlocking is signalled by rapid flashing of the
direction indicators for a few seconds.
Complete unlocking
02
Access

106
DS4_en_Chap03_ergonomie-et-confort_ed01-2016

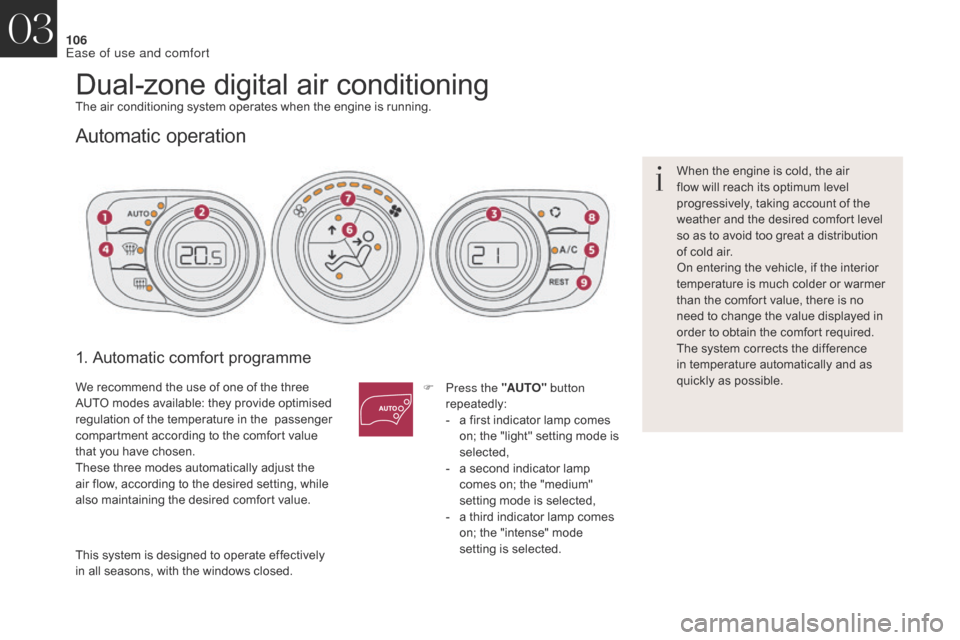

Dual-zone digital air conditioningThe air conditioning system operates when the engine is running.
Automatic operation
1. Automatic comfort programme
F Press the "AUTO" button
repeatedly:
-

a f
irst indicator lamp comes
on; the "light" setting mode is
selected,
-

a s
econd indicator lamp
comes on; the "medium"
setting mode is selected,
-

a t
hird indicator lamp comes
on; the "intense" mode
setting is selected. When the engine is cold, the air
flow will reach its optimum level
progressively, taking account of the
weather and the desired comfort level
so as to avoid too great a distribution
of cold air.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no
need to change the value displayed in
order to obtain the comfort required.
The system corrects the difference
in temperature automatically and as
quickly as possible.
This system is designed to operate effectively
in all seasons, with the windows closed. We recommend the use of one of the three
AUTO modes available: they provide optimised
regulation of the temperature in the

passenger
compartment according to the comfort value
that you have chosen.
These three modes automatically adjust the
air flow, according to the desired setting, while
also maintaining the desired comfort value.
03
Ease of use and comfort

107
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
2. Driver's side adjustment4. Automatic visibility programme
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.
F

T
urn control 2 or 3 to the left until
"LO" is displayed or to the right
until "HI" is displayed.
For more information on the
automatic visibility programme,
refer to the "Front demisting -
defrosting"
section.
3. Passenger's side adjustment
F Turn control 2 or 3 to the left
or to the right respectively
to decrease or increase this
value.
A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
You are advised to avoid a left / right setting
difference of more than 3.
Manual operation
If you wish, you can make a different choice
from that offered by the system by changing
a setting. The the "AUTO" indicator lamps go
off; the other functions will still be controlled
automatically.
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
The driver and front passenger can each adjust
the temperature to their requirements.
The value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
F

P
ressing the "AUTO"
button returns the system
to completely automatic
operation.
03
