2017 CITROEN DISPATCH SPACETOURER mirror

77
With the audio system
In the vehicle settings menu, activate/
deactivate "Hands-free access ".
With the touch screen
In the "Personalisation-Configuration " menu,
activate/deactivate " Hands-free access".
Then, if you want automatic locking after
closing the door, activate/deactivate " Hands-
free access self-locking ".
Deactivation
By default, hands-free access is activated.
The function can be deactivated in the vehicle
configuration menu.
Automatic locking
The vehicle locks itself following the hands-free
closing of a sliding door.
The automatic locking can be deactivated in
the vehicle configuration menu.
If your vehicle is not fitted with an
alarm, locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.
Operating fault
An audible signal repeated three times
indicates a fault with the system.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
2
Access

111

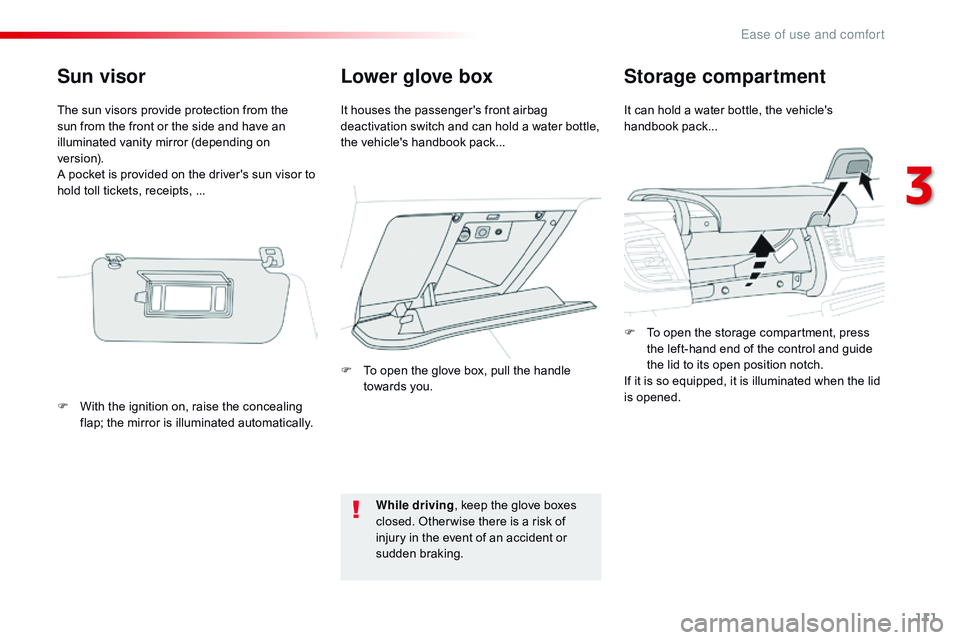

Lower glove boxStorage compartment
It can hold a water bottle, the vehicle's
handbook pack...
It houses the passenger's front airbag
deactivation switch and can hold a water bottle,
the vehicle's handbook pack...
While driving , keep the glove boxes
closed. Other wise there is a risk of
injury in the event of an accident or
sudden braking.
Sun visor
The sun visors provide protection from the
sun from the front or the side and have an
illuminated vanity mirror (depending on
ve r s i o n).
A pocket is provided on the driver's sun visor to
hold toll tickets, receipts,
...
F

W
ith the ignition on, raise the concealing
flap; the mirror is illuminated automatically. F

T
o open the glove box, pull the handle
towards you. F

T
o open the storage compartment, press
the left-hand end of the control and guide
the lid to its open position notch.
If it is so equipped, it is illuminated when the lid
is opened.
3
Ease of use and comfort

132
Door mirrors demist - defrost
Switching onSwitching off
F Press this button to demist /
defrost the door mirrors; its
indicator lamp comes on.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
Door mirror demisting and defrosting
only operates with the engine running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption. F
I
t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing this
button again; its indicator lamp
goes off.
Ease of use and comfort

133
Rear screen demist - defrost
Switching onSwitching off
F Press this button to demist /
defrost the rear screen and the
door mirrors (if your vehicle is
so equipped); its indicator lamp
comes on.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
Rear screen demisting and defrosting
only operates with the engine running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption. F
I
t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing this
button again; its indicator lamp
goes off.
3
Ease of use and comfort

141
F Move switch A to the right or to the left to select the corresponding mirror.
F

M
ove knob B in all four directions to adjust.
F

R
eturn switch A to the centre position.
Electric unfolding
The electric unfolding of the mirrors is possible
with the remote control or the key on unlocking
the vehicle, unless folding was selected using
switch A . In this case, pull the switch rear wards
from the centre position again.
Mirrors
Electric adjustments Electric foldingIf your vehicle is fitted with this function, the
mirrors can be folded electrically from the inside,
with the vehicle parked and the ignition on:
F Place switch A in the
centre position.
F

P
ull switch A rearwards.
From the outside, lock the vehicle using the
remote control or the key. The folding / unfolding on locking /
unlocking can be deactivated. Contact
a CITROËN dealer or a qualified
workshop.
It is possible to unfold the mirrors
manually if necessary.
Door mirrors
4
Lighting and visibility

142
Heated mirrors
OrAs a safety measure, the mirrors should
be adjusted to reduce the blind spots.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
For more information on Rear

screen demist - defrost , refer to the
corresponding section.
F
P
ress the heated rear window
button.
F
P
ress the heated mirror button.
If your vehicle has heated door mirrors:
Lighting and visibility

143
Rear view mirror
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Day / night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
Surveillance mirror
This mirror, placed on top of the central mirror,
enables the driver or front passenger to
observe all the rear seats.
Fitted on its own ball joint, its manual
adjustment is simple and provides a view of the
rear interior of the vehicle.
It can also be adjusted for improved visibility
during manoeuvres or when overtaking.
4
Lighting and visibility

147
Front daytime running
lamps
(light-emitting diodes)
If fitted to your vehicle, they come on
automatically when the engine is started,
when the lighting control stalk is in position "0"
or " AUTO ".
Automatic illumination of
headlamps
Activation
When a low level of ambient light is detected
by a sunshine sensor, the number plate lamps,
sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver. They can also come
on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.
Deactivation
F Turn the ring to another position.
Deactivation of the function is
accompanied by the display of a message.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on; this warning lamp is displayed
Contact a CITROËN dealer or a qualified
workshop. in the instrument panel accompanied by an
audible signal and/or a message.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the top of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
F

T

urn the ring to the "AUTO" position.
The activation of the function is
accompanied by the display of a message.
4
Lighting and visibility
