Warning / indicator lampStateCause Action / Observations
+ Engine auto-
diagnosis
system
fixed, associated with
the STOP warning
lamp. A major engine fault has been
detected.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Diesel engine
pre-heating fixed.
The ignition switch is at the
2
nd position (igntion on).
Or
T
he " START/STOP " button has been
pressed. Wait until the warning lamp goes off before starting.Once it goes off, starting is immediate, on condition that:- the clutch pedal is pressed fully down with a
manual gearbox,
-

p
ressure is maintained on the brake pedal with an
automatic or electronic gearbox.
The period of illumination of the warning lamp is determined by
the ambient conditions (up to about thirty seconds in extreme
conditions).
If the engine does not start, switch the ignition off and then on,
wait until the warning lamp goes off again, then start the engine.
Engine auto-
diagnosis
system fixed.
The emission control system has a
fault.The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.
flashing.The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
+ fixed, associated with
the SERVICE warning
lamp.
A minor engine fault has been
detected.
Have it checked by a CITROËN dealer or a qualified
workshop.
1
Instruments

20
Warning / indicator lampStateCause Action / Observations
Foot on the
brake pedal fixed.
The brake pedal must be pressed. With an automatic or electronic gearbox, press the
brake pedal, engine running, before releasing the
parking brake, to release the selector lever and come
out of position P or N.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Foot on the
clutch fixed.
In the STOP mode of Stop & Start,
the change to START mode is denied
because the clutch pedal is not fully
down. If your vehicle has a manual gearbox, you must
declutch fully to allow the change to engine
START
mode.
Under-inflation
fixed, accompanied by
an audible signal and
a message. The pressure in one or more tyres is
too low.
Check the tyre pressures as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection
,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.The system has a fault: the tyre
pressures are no longer monitored.
Check the tyre pressures as soon as possible.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Instruments

22
Warning / indicator lampStateCause Action / Observations
Passenger's
front airbag fixed in the seat belt
and front passenger's
airbag warning lamps
display. The control switch, located at the
passenger's end of the dashboard, is
set to the "OFF"
position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the airbags (airbag warning lamp on). Turn the control switch to the "ON"
position to activate
the passenger's front airbag; in this case, you must
not install a child seat in the rear ward facing position
on this seat.
Airbags
on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off. This warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a CITROËN dealer or a
qualified workshop.
Passenger 's
front airbag fixed.
The control switch, located at the
passenger's end of the dashboard, is
at the "ON" position.
The passenger's front airbag is
activated.
In this case, do not install a rear ward
facing child seat on the front
passenger seat. Turn the control switch to the "
OFF" position to
deactivate the passenger's front airbag.
You can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp
on).
Instruments

24

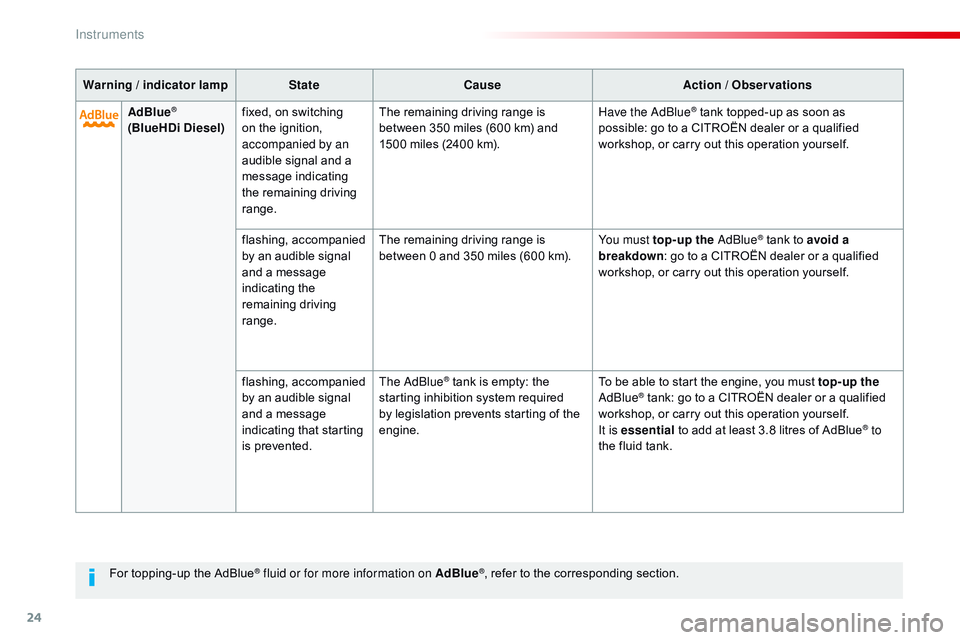

For topping-up the AdBlue® fluid or for more information on AdBlue®, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
AdBlue
®
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the AdBlue® tank topped-up as soon as
possible: go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range. The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the AdBlue
® tank to avoid a
breakdown : go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself.
flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up the
AdBlue® tank: go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself.
It is essential to add at least 3.8 litres of AdBlue
® to
the fluid tank.
Instruments

25
Spacetourer-VP_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system

(BlueHDi Diesel) fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a CITROËN dealer or a qualified workshop
without delay
, to avoid a breakdown .
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must
call on a
CITROËN dealer or a qualified workshop.
1
Instruments

26
Warning / indicator lampStateCause Action / Observations
Rear foglamps fixed. The rear foglamps are on. Turn the ring on the stalk rear ward to switch off the
rear foglamps.
Service
on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated message,
for example:
-

l
ow engine oil level,
-

l
ow screenwash/headlamp wash fluid level,
-

d
ischarged remote control battery,
-

l
ow tyre pressures,
-

s
aturation of the particle filter (FAP) on Diesel
vehicles.
-
...
F

or more information on Checks and in particular the
particle filter, refer to the corresponding section.
For any other faults, contact a CITROËN dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a CITROËN dealer or a qualified workshop.
+ fixed, associated with
flashing and then fixed
display of the service
spanner.The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Instruments

27
Spacetourer-VP_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Automatic
wiping fixed.
The wiper control has been pushed
down. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Automatic
headlamp
dipping fixed.
The lighting control stalk is in the
"AUTO " position, and the function
has been activated.
The main beam headlamps come
on if the exterior lighting and driving
conditions permit. The camera, located at the top of the windscreen,
manages the operation of main beam, depending on
the ambient lighting and driving conditions.
For more information on Automatic headlamp
dipping
, refer to the corresponding section.
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start system
has put the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Blind spot
monitoring
system fixed.
The blind spot monitoring system has
been activated. For more information on the Blind spot monitoring
system, refer to the corresponding section.
1
Instruments

29
Spacetourer-VP_en_Chap01_instruments-de-bord_ed01-2016
With the engine running, when the needle is:
- i n zone A , the temperature of the engine
coolant is correct,
-

i
n zone B, the temperature of the engine
coolant is too high; the maximum
temperature and the central STOP warning
lamps come on, accompanied by an
audible signal and a warning message in
the touch screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a CITROËN dealer or a qualified
workshop. After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top-up the level:
F

w
ait at least one hour for the engine to
cool,
F
u
nscrew the cap two turns to allow the
pressure to drop,
F w hen the pressure has dropped, remove
the cap,
F

t
op-up the level to the "MA X" mark.
Be aware of the risk of burns when
topping-up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).
Engine coolant temperature Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
For BlueHDi Diesel versions, the degree of
deterioration of the engine oil is also taken into
account (depending on the country of sale).Checking the level
1
Instruments
