Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
Rear lamps
(side-hinged rear doors)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
F

W
hile holding the lamp in place, press the
clip on the inside then carefully remove the
lamp.
F

D
isconnect the electrical connector.
For vehicles with interior trim, contact
a CITROËN dealer or a qualified
workshop to have the work done.
1.
B

rake lamps / sidelamps.
Ty

p e B, P21/5W-21/5W
2.
D

irection indicators.
Ty

p e B, PY21W-21W (amber)
3.
R

eversing lamps.
Ty

p e B, P21W-21W.
4.
F

oglamps / sidelamps.
Ty

p e B, 21/4W-21/4W. F

I
dentify the failed bulb then open the rear
doors.
F
S
pread the three lugs slightly, then extract
the bulb holder.
F

R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F

C
hange the bulb.
To reassemble, carry out these operations in
reverse order.
F

F
rom inside, remove the ventilation grille, if
your vehicle has one.
F

F
rom outside, unscrew the two lamp fixing
screws.
8
In the event of a breakdown

306
Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
Number plate lamps
(side-hinged doors)
Ty p e A, W5W-5W
F

R

emove the plastic cover using a small
screwdriver.
F

U

sing a screwdriver through the aperture,
push the lamp towards the outside.
F

D

isconnect the electrical connector.
F

R

emove the lamp.
F

T

urn the bulb holder a quarter turn anti-
clockwise.
F

C

hange the failed bulb.
To refit, press on the lamp to clip it in place.
Third brake lamp
(side-hinged doors)
Ty p e A , W5W-5W
To refit, press on the lens to clip it in place.
F

O
pen the left hand rear door. F

I
nsert a thin screwdriver into one of the
cut-outs in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the failed bulb.
In the event of a breakdown

308
Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
Rear lamps
(tailgate)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
F

W
hile holding the lamp in place, press the
clip on the inside then carefully remove the
lamp.
F

D
isconnect the electrical connector.
F

I
dentify the failed bulb then open the boot.
For vehicles with interior trim, contact
a CITROËN dealer or a qualified
workshop to have the work done.
1.
B

rake lamps / sidelamps.
Ty

p e B, P21/5W-21/5W.
2.
D

irection indicators.
Ty

p e B, PY21W-21W (amber)
3.
R

eversing lamps.
Ty

p e B, P21W-21W
4.
F

oglamps / sidelamps.
Ty

p e B, P21/4W-21/4W. F

F
rom inside, remove the cover, if your
vehicle has one.
F

F
rom the outside, press on the inner clips
on the plastic finisher then tip it towards the
outside to remove it.
F

U
nscrew the two lamp fixing screws.F

S
pread the three lugs slightly, then extract
the bulb holder.
F

R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F

C
hange the bulb.
To reassemble, carry out these operations in
reverse order.
In the event of a breakdown

309
Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
To refit, press on the lens to clip it in place.
F

U

nclip the trim at each end by turning it
upwards.
F

P

ull on the trim to disengage the central
clips, then remove it.
F

U

sing a screwdriver through the aperture,
push the lamp towards the outside.
F

D

isconnect the electrical connector.
F

R

emove the lamp.
F

T

urn the bulb holder a quarter turn anti-
clockwise.
F

C

hange the failed bulb.
To refit, carry out these operations in reverse
o r d e r.
To refit the lamp and trim, press on them to clip
them in place.

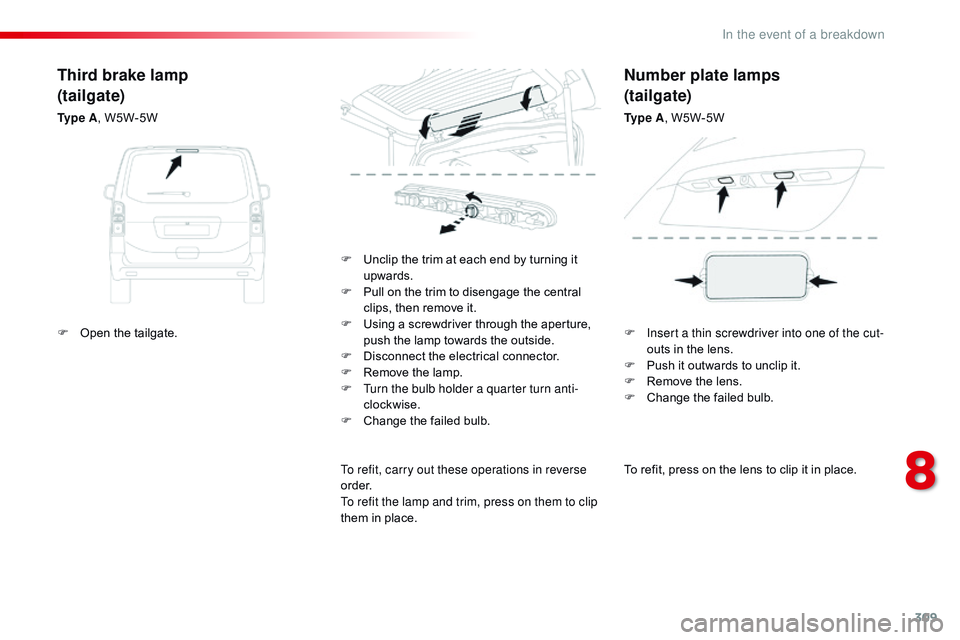

Third brake lamp
(tailgate)
Ty p e A , W5W-5W
Number plate lamps
(tailgate)
Ty p e A, W5W-5W
F

O

pen the tailgate. F

I
nsert a thin screwdriver into one of the cut-
outs in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the failed bulb.
8
In the event of a breakdown

366
22
23
1
Spacetourer-VP_en_Chap10b_NAC-1_ed01-2016
Settings specific to
connected navigation
For access to connected navigation,
you have to select the option:
"Authorise sending information ".
Select " Options ".
Select " Alerts".
-

" Allow declaration of danger
areas "
-

" Guidance to final destination
on foot "
-

" Authorise sending
information "
Activate or deactivate:
Activate or deactivate "
Warn of
danger zones ". The display of danger zones is
conditioned by the legislation in force
and subscription to the service.
The temperature displayed at 6 o'clock
in the morning will be the maximum
temperature for the day.
The temperature displayed at 6 o'clock
in the evening will be the minimum
temperature for the night. Select "
Settings ".
Press Navigation
to display the
primary page.
Press the " MENU" button to go to the
secondary page.
Display the weather
Select " Weather ".
Press this button to display the first
level of information.
Press this button to display the
detailed weather information. Select " View map ".
Press Navigation
to display the
primary page.
Press this button to display the list of
services.
