2017 CITROEN DISPATCH SPACETOURER DAG engine

322
Spacetourer-VP_en_Chap08_En-cas-de-panne_ed01-2016
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.
Running out of fuel (Diesel)
For more information on Diesel misfuel
prevention, refer to the corresponding
section. F
A dd at least five litres of Diesel fuel to the
tank.
F

O
pen the bonnet.
F

I
f necessary, unclip the styling cover for
access to the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter to start the engine
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

R
efit the styling cover and clip it in place.
F

C
lose the bonnet.
1.6 HDi engine
(except BlueHDi)
If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.
BlueHDi engine
F Fill the fuel tank with at least five litres of Diesel.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 6 seconds and switch off the
ignition.
F

R
epeat the operation 10 times.
F

O
perate the starter to run the engine.
Other engines
F Add at least five litres of Diesel fuel to the tank.
F

O
pen the bonnet.
F

I
f necessary, unclip the styling cover for
access to the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter to start the engine
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

R
efit the styling cover and clip it in place.
F

C
lose the bonnet.
In the event of a breakdown

324
Spacetourer-VP_en_Chap09_caracteristiques-techniques_ed01-2016
Engines
Engine characteristics
The engine characteristics (capacity, maximum
power, maximum power speed, fuel,
CO
2 emissions...) for your vehicle are given in
the registration document, as well as in sales
brochures.
These characteristics correspond to the values
type-approved on a test bed, under conditions
defined in European legislation
(Directive 1999/99/EC).
For more information, contact a CITROËN
dealer or a qualified workshop.
Weights
The kerb weight is equal to the unladen
weight + driver (75 kg).
The GTW and towed load values indicated
apply up to a maximum altitude of
1
000 metres; the towed load mentioned
must be reduced by 10 % for every additional
1
000 metres..
The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GV W of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools). High ambient temperatures may result
in a reduction in the per formance of the
vehicle to protect the engine; when the
ambient temperature is higher than
37 °C, limit the towed weight.
If the ambient temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling. Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
Never exceed 60 mph (100 km/h) when
towing (comply with the legislation in
force in your country).
GV W:
gross vehicle weight, the maximum authorised
vehicle weight.
GT W: gross train weight, the maximum authorised weight of vehicle plus trailer.
Weights and towed loads
The maximum weights and towed loads for your
vehicle are given are given in the registration
document, as well as in sales brochures.
These values are also present on the
manufacturer's plate or label.
For more information, contact a CITROËN
dealer or a qualified workshop.
Technical data

325
Spacetourer-VP_en_Chap09_caracteristiques-techniques_ed01-2016

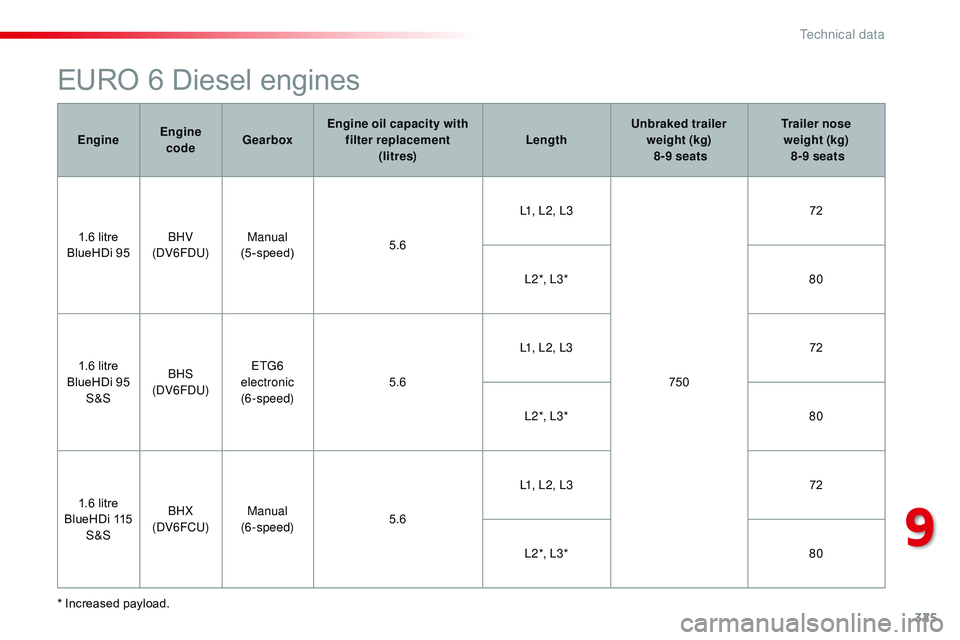

EURO 6 Diesel engines
* Increased payload.Engine
Engine
code Gearbox Engine oil capacity with
filter replacement (litres) LengthUnbraked trailer
weight (kg)
8-9 seats Trailer nose
weight (kg)
8-9 seats
1.6 litre
BlueHDi 95 BHV
(DV6FDU) Manual
(5-speed) 5.6L1, L2, L3
75072
L 2 *, L 3 * 80
1.6 litre
BlueHDi 95 S&S BHS
(DV6FDU) ETG6
electronic (6-speed) 5.6L1, L2, L3
72
L 2 *, L 3 * 80
1.6 litre
BlueHDi 115 S&S BHX
(DV6FCU) Manual
(6-speed) 5.6L1, L2, L3
72
L 2 *, L 3 * 80
9
Technical data

326
Spacetourer-VP_en_Chap09_caracteristiques-techniques_ed01-2016
* Increased payload.Engine
Engine
code Gearbox Engine oil capacity with
filter replacement (litres) LengthUnbraked trailer
weigt (kg)
8-9 seats Trailer nose
weight (kg)
8-9 seats
2 litre BlueHDi
150 S&SAHX
(DW10FD) Manual
(6-speed) 6 .1L1, L2, L3
75092
L 2 *, L 3 * 10 0
2 litre BlueHDi
180 S&SAHH
(DW10 FC) E AT 6
automatic (6-speed) 5 .1L1, L2, L3
80
L 2 *, L 3 * 88
Technical data

332
FM/87.5 MHz
87.5MHz12:13
23 °C 87.5 MHz
Spacetourer-VP_en_Chap10b_NAC-1_ed01-2016
First steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.
Volume. Use the buttons either side of the touch screen
for access to the menus, then press the virtual
buttons in the touch screen. All of the touch
areas of the screen are white.
Each menu is displayed in one or two pages
(primary page and secondary page).
Secondary page
Primary page The touch screen is of the
"capacitive"
t

ype.
To clean the screen, use a soft,
non-abrasive cloth (spectacles cloth)
with no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.
Audio and Telematics

418
Spacetourer-VP_en_Chap10b_NAC-1_ed01-2016
QUESTIONANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources. For optimum sound quality, the audio settings for Loudness,
Ambience, Treble, Bass and Volume can be adapted to the different
sound sources, which may result in audible differences when
changing source. Check that the audio settings for Loudness,
Ambience, Treble, Bass and Volume are adapted
to the sources listened to. Adjust the Balance,
Treble and Bass to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
With the engine off, the
system switches off after a
few minutes of use. When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
Audio and Telematics

420
Spacetourer-VP_en_Chap10c_RCC-1_ed01-2016
First steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.
Volume.Use the buttons either side of the touch screen
for access to the menus, then press the virtual
buttons in the touch screen. All of the touch
areas of the screen are white.
Each menu is displayed in one or two pages
(primary page and secondary page).
Secondary page
Primary page The touch screen is of the "capacitive"
type.
To clean the screen, use a soft,
non-abrasive cloth (spectacles cloth)
with no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.
Audio and Telematics

472
Spacetourer-VP_en_Chap10c_RCC-1_ed01-2016
QUESTIONANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources. For optimum sound quality, the audio settings for Loudness,
Ambience, Treble, Bass and Volume can be adapted to the different
sound sources, which may result in audible differences when
changing source. Check that the audio settings for Loudness,
Ambience, Treble, Bass and Volume are adapted
to the sources listened to. Adjust the Balance,
Treble and Bass to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
With the engine off, the
system switches off after a
few minutes of use. When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
Audio and Telematics
