Spare fuses
The spare fuses are located under the engine
compartment fusebox cover.The cover does not contain spare
fuses with an amperage of 7.5 A, 25 A
or 30 A. If one of the fuses with these
amperages develops a fault, replace it
with the following fuse:
A 7.5 A fuse must be replaced with the
10 A spare fuse
, a 25 A fuse with the
20 A spare fuse and a 30 A fuse with
the audio system fuse (N° 31) .
Fuse N°
Rating
33 10 A
34 15 A
35 20 A
In the event of a breakdown

211
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
12 V battery
The battery is located under the bonnet.
To gain access to it:
F
o
pen the bonnet using the interior release
lever, then the exterior catch,
F

s
ecure the bonnet stay,
Access to the battery
Procedure for charging your battery when it is flat or for starting the engine using another battery and jump leads.
F
r
emove the retaining pins A,
F

r
emove the protective cover B,
F

r
emove the retaining pins C,
F

r
emove the air duct D.
General
If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.
The batteries contain harmful
substances such as sulphuric acid and
lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
Before handling the battery, protect
your eyes and face.
All work on the battery must be carried
out in a ventilated area and away from
naked flames or sources of sparks, to
avoid any risk of explosion and fire.
Wash your hands when you have
finished.
8
In the event of a breakdown

212
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
Check the electrolyte level and top up if
necessary.
For more information on Checking levels,
refer to the corresponding section.
Starting using another
battery
F Connect the red cable to the (+) terminal of the flat battery A , then to the (+) terminal of
the slave battery B . F
C onnect one end of the green or black
cable to the (-) terminal of the slave
battery


B.
F

C
onnect the other end of the green or black
cable to the earth point C on your vehicle
(engine mounting).
F

O
perate the starter, let the engine run.
F

W
ait until the engine returns to idle and
disconnect the cables.
F

R

aise the protective cover on
the (+) terminal.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
In the event of a breakdown

213
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
If you intend to charge your vehicle's
battery yourself, use only a charger
compatible with lead batteries, with a
nominal voltage of 12 V.F

D
isconnect the battery from the vehicle, if
necessary.
F

F
ollow the instructions for use provided by
the manufacturer of the charger.
F

R
econnect, starting with the (-) terminal.
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.Charging the battery using
a battery charger
Follow the instructions for use provided
by the manufacturer of the charger.
Never invert the polarities.
Never start the engine by connecting a
battery charger.
Never use a battery booster of 24 V or
higher.
Check first that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not touch.
Switch off all power-consuming
equipment on the two vehicles (audio
system, wipers, lamps, etc.).
Ensure that the slave cables do not
pass near the moving parts of the
engine (fan, belt, etc.).
Do not disconnect the (+) terminal while
the engine is running.
8
In the event of a breakdown

214
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
Do not invert the polarities and use only a 12 V charger.
Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to start the engine if it is fitted with a CVT gearbox.
Disconnecting the battery
To maintain a sufficient level of charge
to start the engine, it is advisable to
disconnect the battery if the vehicle is not
going to be used for a very long period.
Before disconnecting the battery:
F
C
lose all the doors and windows,
the
tailgate and the roof.
F

S
witch off all power-consuming
equipment (audio system, wipers,
lamps, etc.).
F

S
witch off the ignition and wait
4
m

inutes.
Once you have gained access to
the
battery, start by disconnecting
the (-) terminal.
Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of the
electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must reinitialise certain equipment yourself,
such as:
-

T
he remote control key or the electronic
key (depending on version).
-

T
he electric blind(s).
-

T
he electric windows.
-

T
he date and time.
-

T
he stored radio stations. Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
Never try to charge a frozen battery.
If the battery has been frozen, have
it checked by a CITROËN dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of
the battery (up to about 8 hours).
In the event of a breakdown

215
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016
Towing the vehicle
Towing your vehicle
2 wheel drive (2WD) versions: towing
with the wheels on the ground
General recommendations
Towing with the wheels on the ground
is only possible on 2 wheel drive (2WD)
versions.
F

F

it the towing bar to the towing eye on the
chassis, located under the front bumper.
Observe the legislation in force in your
c o unt r y.
Ensure that the weight of the towing vehicle is
higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on
the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
-

v

ehicle broken down on a motor way or
fast road,
-

f

our-wheel drive vehicle,
-

w

hen it is not possible to put the gearbox
into neutral, unlock the steering, or
release the parking brake,
-

t

owing with only two wheels on the
ground,
-

w

here there is no approved towing arm
available... F

P
ut the gear lever into neutral (position N
for the CVT gearbox).
F
U
nlock the steering by turning the ignition
switch to the " ON" position (or to " ON"
mode for vehicles fitted with the "Keyless
Entry and Starting" system).
F
R
elease the parking brake.
F S witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and travel slowly for a short
distance only.
8
In the event of a breakdown

218
C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

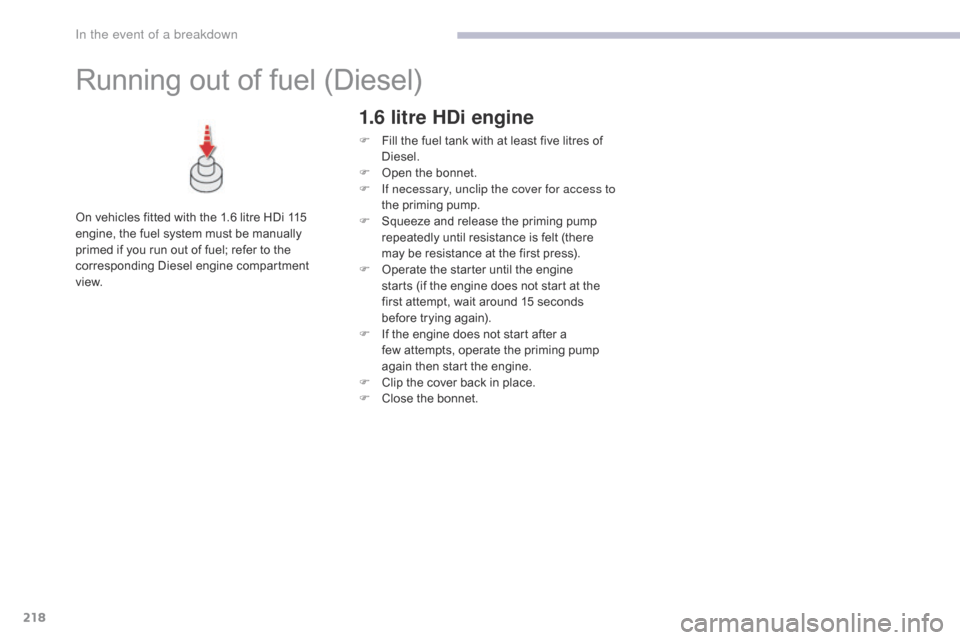

Running out of fuel (Diesel)
On vehicles fitted with the 1.6 litre HDi 115
engine, the fuel system must be manually
primed if you run out of fuel; refer to the
corresponding Diesel engine compartment
view.
1.6 litre HDi engine
F Fill the fuel tank with at least five litres of Diesel.
F

O
pen the bonnet.
F

I
f necessary, unclip the cover for access to
the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter until the engine
starts (if the engine does not start at the
first
attempt, wait around 15 seconds
before trying again).
F

I
f the engine does not start after a
few
attempts, operate the priming pump
again then start the engine.
F

C
lip the cover back in place.
F

C
lose the bonnet.
In the event of a breakdown

219
C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines and gearboxes
.../S : model fitted with the Stop & Start (AS&G) function.
PETROL ENGINES
1.6 litre 1152.0 litre 150
GEARBOXES Manual
(5-speed) CVT
(6-speed) Manual
(5-speed) CVT
(6-speed)
Model codes : BU... NKZ0

NKZ0/S NKZ9
NKZ9/S AFYR

AFZ7 AFYV
AFZM AFYT

AFZH AFZ9 AFYW

AFZP
AFZC
Transmission mode 2WD2WD2WD 4WD2WD 4WD
Cubic capacity (cc) 1 5901 998
Bore x stroke (mm) 75 x 9086 x 86
Max power*: EU standard (kW) 86113
Max power engine speed (rpm) 6 0006 000
Max torque: EU standard (Nm) 15 419 9
Max torque engine speed (rpm) 4 0004 200
Fuel UnleadedUnleaded
Catalytic converter Ye sYe s
OIL CAPACITY (in litres)
Engine (with filter replacement) 4.24.3
9
