2017 Citroen C4 AIRCROSS bluetooth

271
C4-Aircross_en_Chap10b_Mitsu6_ed01-2016
Level 1Level 2 Level 3 Comments
CD Repeat
Press to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
PlaybackPress to start play of the selected track.
Go Up 1 levelPress to go up one level.
Go to ROOTPress to open the folder structure.
SDRepeat
Press to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
PlaybackPress to start play of the selected track.
Go Up 1 levelPress to go up one level.
Go to ROOTPress to open the folder structure.
USB/iPod
Repeat
Press to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
PlaybackPress to start play of the selected track.
Bluetooth AudioRepeat
Press to play the track repeatedly.
ScanPress to play the start of each track for around 9 seconds.
RandomPress to play the tracks in random order.
TrackPress to start play of the selected track.
AUXManage play from the portable device.

08
288
C4-Aircross_en_Chap10b_Mitsu6_ed01-2016
Press the MODE button then "Bluetooth Audio" to
start Bluetooth mode.
Pairing a telephone
In the Bluetooth menu on your telephone, select the
system name in the list of devices detected.
Enter the code "1212" in the telephone and confirm. Select the telephone to connect then press this
button.
Press "Select Device to Connect".
Wait until the telephone detected is displayed.
Press SETTINGS
. Press "Edit" to connect the telephone.
Press "System " then "Pairing". You can register or delete a device in the list.
BLUETOOTH® STREAMING - TELEPHONE

289
C4-Aircross_en_Chap10c_Mitsu5_ed01-2016
AUDIO-CD TOUCH SCREEN
SYSTEM
The system is protected in such a way that it will only
operate in your vehicle.
01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
Contents
03

General
operation
02

Steering mounted
controls
04
Radio
05
Music
06
Bluetooth
® telephone p.
p. p.
p.
p.
p. 290
291
293
300
305
310

02
291
C4-Aircross_en_Chap10c_Mitsu5_ed01-2016
STEERING MOUNTED CONTROLS
Increase / reduce audio volume.Search for a higher / lower radio frequency.
Next / previous CD track.
CD fast forward / back.
Long press: audio system on / off.
Short press: selection of the source in the
following order (in a loop):
CD, USB, iPod, Bluetooth, AUX, FM, MW, LW.

03
293
C4-Aircross_en_Chap10c_Mitsu5_ed01-2016
GENERAL OPERATION
Description of controls - Menus
Setting:
-

switch of
f the screen,
-

adjust the touch beep,
-


adjust the time or display it continuously
,
-

select the guidance voice,
-


select the picture quality for the screen and reversing
camera,
-


select RDS.
FM

/
MW / LW: select a radio
station from:
-

frequency modulation (FM),
-


medium wave (MW),
-


long wave (L

W).
BT Audio: connect a Bluetooth
(2.0) telephone then play the
music files by streaming. AUX: connect a portable player
to the Jack auxiliary socket then
play the music files.
Phone: make or receive
telephone calls.
Change from one screen
to the other. Voice: use the voice
commands.
USB / iPod®: connect a
portable player by USB or an
iPod
®, then play the music files.
CD: play the music files
through the CD player
(WAV, MP3, WMA, AAC).
DAB: select the digital
radio (Digital Audio
Broadcasting).

06
310
BLUETOOTH® TELEPHONE
Press the MENU button, then "Next" to display
the choice of source. Activate the Bluetooth function on the telephone
and ensure that it is "visible to all" (refer to the
configuration instructions for your telephone).
Press "Phone".Press the arrow.
Press "Bluetooth Setting ". Press "Register Device
".
Pairing a Bluetooth® telephone from
the audio systemFor reasons of safety and because the sustained attention of the
driver is needed, operations of matching a Bluetooth® mobile phone
with the audio system's hands-free function must be done with the
vehicle stationary.
"Hands Free system " should be displayed on
your telephone.
Select it and then enter the code displayed in
the audio system.
Your telephone is added to the list in the audio
system.
If necessary, refer to the instructions for your
mobile telephone.
The services available depend on the network, the SIM card and
the

compatibility of the Bluetooth
® telephone used.
Refer to the instructions for your telephone and to your service
provider for the services you have access to.

06
3 11
C4-Aircross_en_Chap10c_Mitsu5_ed01-2016

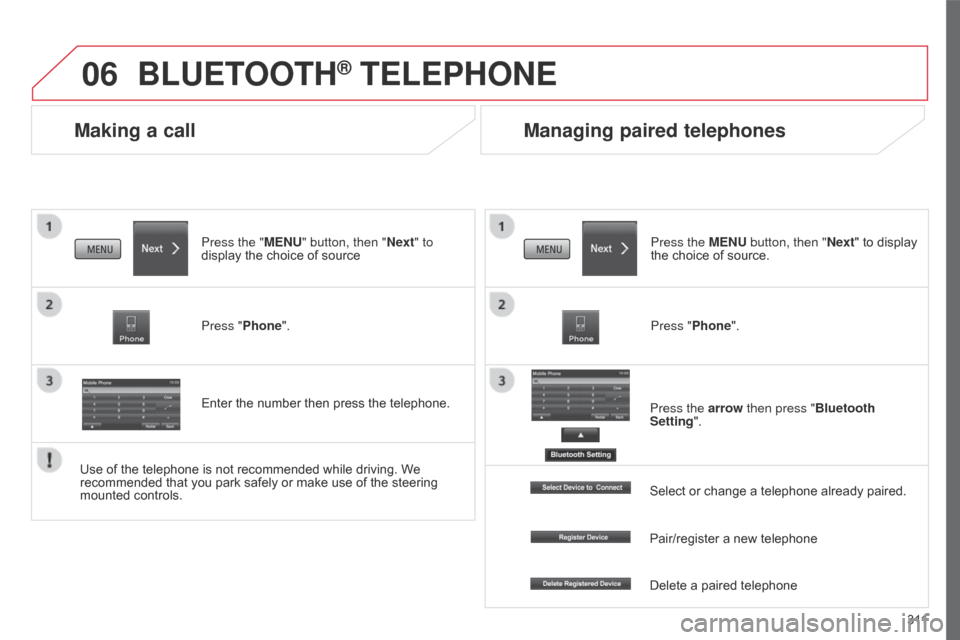

Making a call
BLUETOOTH® TELEPHONE
Press the "MENU" button, then "Next" to
display the choice of source
Press "Phone".
Enter the number then press the telephone.
Managing paired telephones
Press the MENU button, then "Next" to display
the choice of source.
Press "Phone".
Press the arrow then press "Bluetooth
Setting".
Use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls. Select or change a telephone already paired.
Pair/register a new telephone
Delete a paired telephone

313
C4-Aircross_en_Chap10d_Mitsu4_ed01-2016
AUDIO-CD system
The system is protected in such a way that it will only
operate in your vehicle.01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

Steering mounted
controls
03

General
operation
04
Radio
05

Music media players
06


USB player
07

BLUETOOTH
® streaming
Error messages p.
p.
p.
p.
p.
p.
p.
p. 314
316
317
319
326
331
333
335
