1. Sidelamps (R10W).
2. Brake lamps (P21W).
3.
D

irection indicators (PY21W).
4.
R

eversing lamp (P21W), left-hand side, or
Foglamp (PR21W), right-hand side.
Rear lamps
Changing bulbs
To reassemble, carry out these operations in
reverse order. F
S
pread the bulb holder retaining tabs and
remove the bulb holder.
F
T
urn the bulb a quarter turn and change it.
These bulbs are changed from inside the boot.
F

O

pen the boot.
F

R

emove the access cover on the
corresponding side trim.
F
D
isconnect the lamp unit connector.
F
S
lacken and remove the nut ( take care not
to drop it inside the wing ).
F

U

nclip the lamp unit and carefully remove
it by pulling it horizontally towards the
outside. Take care to engage the lamp unit in its
guides, while keeping it in line with the
vehicle.
Tighten sufficiently to ensure sealing,
but without damaging the lamp.
It may be necessary to use slip joint pliers or
the wheelbrace (depending on equipment) to
remove the nut.
8
In the event of a breakdown

234
Third brake lamp
(4 T10 W5W bulbs)
F With the boot open, unclip the plastic covers.
F

P
ush on the two lugs using a screwdriver.
F

R
emove the lamp via the exterior of the
tailgate.
F

D
isconnect the connector.
F

T
urn the bulb-holder corresponding to
the failed bulb a quarter of a turn and
remove
it.
F

P
ull the bulb and change it.
Number plate lamps
(W5W)
To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F
I
nsert a thin screwdriver into the lens cut-
out.
F

L
ift it to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
To refit, press on the lens to clip it in place.
To refit, carry out these operations in reverse
order, checking that the screen wash nozzle is
on the left-hand side.
In the event of a breakdown

235
Courtesy lamp (W5W)
F Using a small flat blade screwdriver, unclip the console assembly surrounding the
courtesy lamp.
F

R
emove the failed bulb and change it.
F

R
efit the console around the courtesy
lamp, ensuring that it is clipped in correctly.
Boot (W5W)
F Unclip the lamp by pushing the body from behind.
F

R
emove the bulb and change.
F

R
efit the lamp.
Interior lighting
Courtesy lamp with LEDs
For the replacement of the light-emitting
diodes (LEDs), contact a CITROËN dealer or a
qualified workshop.
8
In the event of a breakdown

246
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
Quick-release terminal clamp
Disconnecting the (+) terminal
F Ra ise the lever A fully to release the
clamp
B .
F


R
emove the clamp B by lifting it off. The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of
the battery (up to about 8 hours).
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Before disconnecting the battery:
F

c
lose all openings (doors, boot, windows),
F
s
witch off all electrical consumers (audio
system, wipers, lighting, etc.),
F
s
witch off the ignition and wait for
four
m
inutes.
At the battery, it is only necessary to
disconnect the (+) terminal.
Disconnecting the battery
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself initialise or reset certain systems,
such as:
-

t
he remote control or electronic key
(depending on version),
-

t
he electric windows,
-

t
he date and time,
-

t
he radio preset stations.
Following reconnection of the battery
Reconnecting the (+) terminal
F Ra ise the lever A fully.
F

R
efit the open clamp B on the (+) terminal.
F

P
ush the clamp B fully down.
F

L
ower the lever A to lock the clamp B .
In the event of a breakdown

247

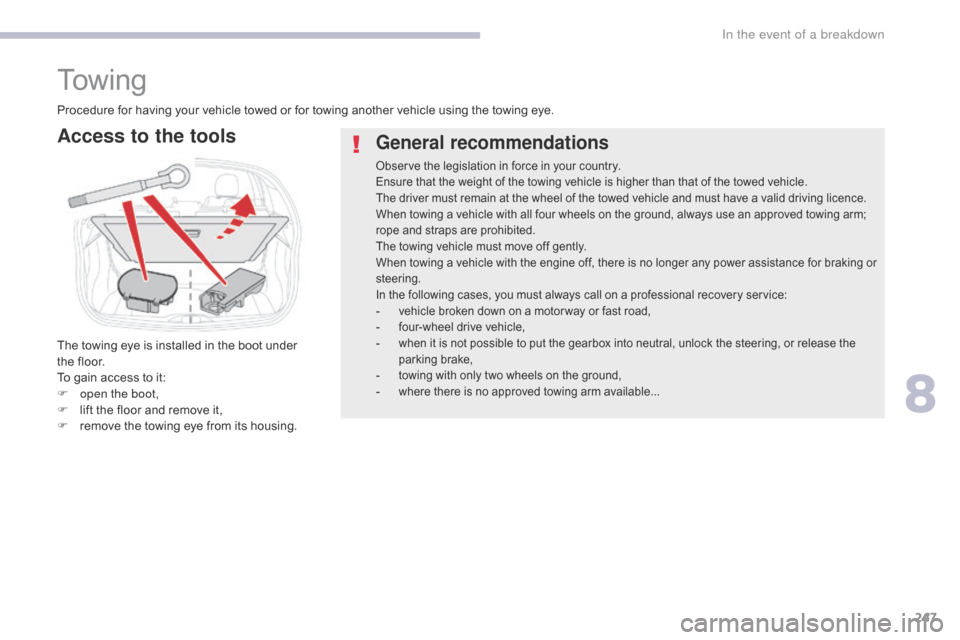

To w i n g
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing arm;
rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for braking or
steering.
In the following cases, you must always call on a professional recovery service:
- vehicle broken down on a motor way or fast road,- four-wheel drive vehicle,- when it is not possible to put the gearbox into neutral, unlock the steering, or release the
parking brake,
- towing with only two wheels on the ground,- where there is no approved towing arm available...
Procedure for having your vehicle towed or for towing another vehicle using the towing eye.
Access to the tools
The towing eye is installed in the boot under
the floor.
To gain access to it:
F
o
pen the boot,
F

l
ift the floor and remove it,
F

r
emove the towing eye from its housing.
8
In the event of a breakdown

254
