Linked with the Guide-me-home
lighting
Association with the automatic illumination
of headlamps provides the guide-me-home
lighting with the following additional options:
-
a
utomatic activation of guide-me-home
lighting when automatic illumination of
headlamps is switched on (in the vehicle
parameters of the multifunction screen
configuration menu),
-

s
election of the duration of maintaining of
the lighting for 15, 30 or 60 seconds in the
vehicle parameters of the multifunction
screen configuration menu (except for
monochrome screen A where this is
preset).
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps come
on, this warning lamp is displayed
in the instrument panel and/or a message appears
in the multifunction screen, accompanied by an
audible signal.
Contact a CITROËN dealer or a qualified workshop.
In fog or snow, the sunshine
sensor may detect sufficient light.
Therefore, the lamps will not come on
automatically.
Do not cover the sunshine sensor,
linked with the rain sensor and located
in the centre of the windscreen behind
the rear view mirror; the associated
functions would no longer be controlled.
Automatic illumination of
headlamps
The sidelamps and dipped beam headlamps are
switched on automatically, without any action on the part
of the driver, when a low level of external light is detected
or in certain cases of activation of the windscreen wipers.
As soon as the brightness returns to a sufficient level or
after the windscreen wipers are switched off, the lamps
are switched off automatically.
Activation
F Turn ring A to the "AUTO" position. The automatic
illumination of headlamps is accompanied by a
message in the multifunction screen.
Deactivation
F Turn ring A to a position other than "AUTO" . Deactivation is accompanied by a
message in the multifunction screen.
5
Visibility

86
C3Picasso_en_Chap06_amenagement_ed01-2015

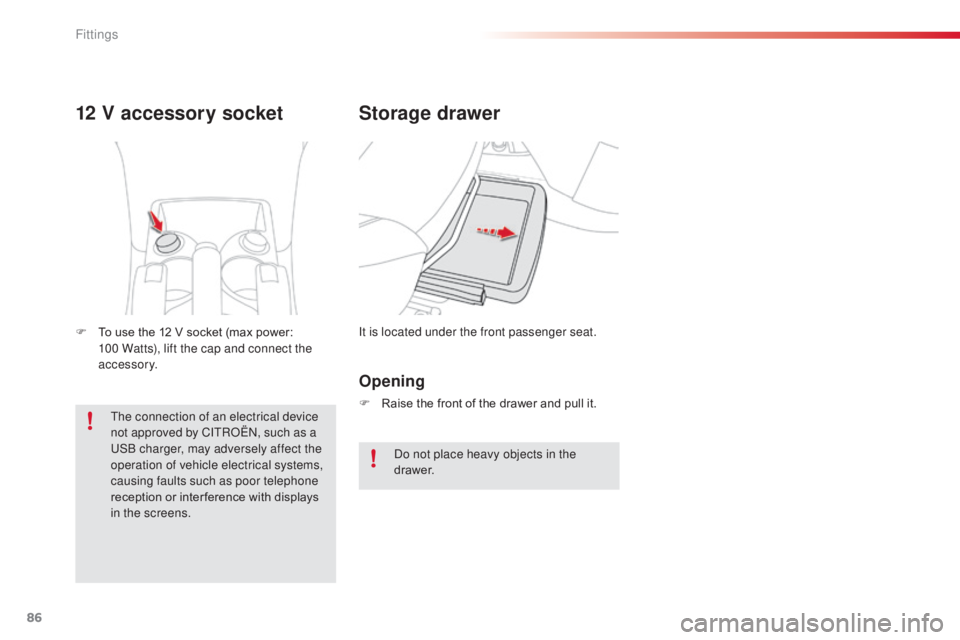

Storage drawer
It is located under the front passenger seat.
12 V accessory socket
F To use the 12 V socket (max power:
100 Watts), lift the cap and connect the
accessory.
Opening
F Raise the front of the drawer and pull it.
Do not place heavy objects in the
drawer.
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Fittings

110
C3Picasso_en_Chap08_securite_ed01-2015
Under-inflation alert
This is given by fixed illumination of
this warning lamp, accompanied by
an audible signal and, depending on
equipment, the display of a message.
F

R

educe speed immediately, avoid
excessive steering movements and sudden
braking.
F

S

top the vehicle as soon as it is safe
to do so.
The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check. The alert is maintained until the system
is reinitialised.
F
I n the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (depending on equipment),
or
F

i
f you have a compressor, such as the one
in the temporary puncture repair kit, check
the pressures of the four tyres when cold,
or
F

i
f it is not possible to make this check
immediately, drive carefully at reduced
speed.
Reinitialisation
It is necessary to reinitialise the system every
time one or more tyre pressure is adjusted, and
after changing one or more wheels.
A label attached to the middle pillar, driver's
side, gives a reminder of this.
Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the
tyre pressure label.
The under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
Safety

111
C3Picasso_en_Chap08_securite_ed01-2015
The system is reinitialised with the ignition
on and the vehicle stationary, via the vehicle
configuration menu.
F
P
ress the MENU button for access to the
main menu.
F

P
ress the " 5" or " 6" button to select
the Veh conf ig menu, then confirm by
pressing the OK button.
F

P
ress the " 5" or " 6" button to select
" Reinit inflat ", then confirm by pressing
the OK button.
F

Sel
ect "yes" or " no" then press OK.
A m

essage is displayed asking you to
confirm the instruction.
F

C
onfirm by pressing the OK button.
F

C
onform then quit the menu. F

P
ress the MENU button for access to the
main.
F

P
ress the "5" or " 6" button to select the
menu, " Personalisation-configuration "
then confirm by pressing the button OK.
F

P
ress the "5" or " 6" button to select the
" Define vehicle parameters ", menu, then
confirm by pressing the OK button.The new pressure settings registered are
considered to be reference values by the
system.
Vehicles without audio or
navigation system Vehicles with audio system
F Press the "
5" or " 6" button to select
the " Tyre pressures ", menu then the
" Reinitialisation " menu, then confirm by
pressing the OK button.
A

message confirms the reinitialisation.
8
Safety

115
C3Picasso_en_Chap08_securite_ed01-2015
Seat belt not fastened /
unfastened warning lamp
Fastening
F Pull the strap, then insert the tongue in the
buckle.
F

C
heck that the seat belt is fastened
correctly by pulling the strap.
Height adjustment
F To lower the attachment point, squeeze the control A and slide it downwards.
F

T
o raise the attachment point, slide the
control A upwards.
When the ignition is switched on, this
warning lamp comes on, either on the
instrument panel or on the seat belt and
passenger's front airbag warning lamp
display, if the driver and/or the front
passenger has not fastened their seat belt.
Unfastening
F Press the red button on the buckle.
F G uide the seat belt as it rolls up.
Seat belts
Front seat belts
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
From approximately 12 mph (20 km/h) this warning
lamp flashes for two minutes accompanied by
an audible signal. Once these two minutes have
elapsed, this warning lamp remains on until the driver
and/or the front passenger fastens their seat belt.
8
Safety

116
C3Picasso_en_Chap08_securite_ed01-2015
Seat belt not fastened /
unfastened warning lamp display
1. Front and/or rear seat belts not fastened / unfastened warning lamp.
2.
F

ront left seat belt warning lamp.
3.
F

ront right seat belt warning lamp.
4.
R

ear right seat belt warning lamp.
5.
R

ear centre seat belt warning lamp.
6.
R

ear left seat belt warning lamp.
Rear seat belts
The rear seats are each fitted with a three-point
inertia reel seat belt with force limiter (with the
exception of the rear centre seat).
Locking
When the rear side side belts are not being
used, you can lock them in place. To do so:
F
Ra
ise the grip A to its maximum height.
Fastening
F Pull the strap, then insert the tongue in the buckle.
F

C
heck that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F G uide the seat belt as it rolls up.
The corresponding warning lamp 2 or 3 comes
on in red on the seat belt and passenger's front
airbag warning lamp display if the seat belt is
not fastened or is unfastened.Seat belt unfastened warning
lamp
This warning lamp comes on, either on
the instrument panel or on the seat belt
and passenger's front airbag warning
lamp display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h), this warning lamp
flashes for two minutes accompanied by an audible signal
of increasing volume. Once these two minutes have
elapsed, this warning lamp remains on until the one or
more rear passengers fasten their seat belt.
Safety

117
C3Picasso_en_Chap08_securite_ed01-2015
2nd row rear centre seat belt
Removal and storing
F Press the red button on the buckle B, then on the buckle A .
F

G
uide the strap as it rolls up and bring the
tongue B , then A
onto the magnet of the
attachment point on the roof.
Installation
F Pull the strap and insert the tongue A in the left-hand buckle.
F

I
nsert the tongue B in the right-hand
buckle.
F

C
heck the fastening of each buckle by
pulling the strap.
The seat belt for the rear centre seat of the
2
nd row is incorporated at the rear left of the roof.
Seat belt unfastened warning
lamp display
When the ignition is switched on, the
corresponding warning lamps
4, 5 and 6 come
on in red for approximately 30 seconds, if the
seat belt is not fastened.
When the engine is running or the vehicle is
moving, the corresponding warning lamp 4, 5 or
6 comes on in red, accompanied by an audible
signal and a message on the multifunction
screen, if a rear passenger has unfastened
their seat belt.
8
Safety

120
C3Picasso_en_Chap08_securite_ed01-2015
Operating fault
If this warning lamp comes on in the
instrument panel, you must contact
a CITROËN dealer or a qualified
workshop to have the system
checked. The airbags may no longer
be deployed in the event of a serious
impact.
Reactivation
When you remove the rear ward facing child
seat, with the ignition off, turn switch 1 to the
"ON" position to reactivate the airbag and so
assure the safety of your front passenger in the
event of an impact.
With the ignition on, this warning
lamp comes on in the instrument
panel or in the seat belt and
passenger's front airbag warning
lamp display for approximately one
minute, if the passenger's front
airbag is activated.
According to version, this warning
lamp comes on either in the
instrument panel or on the seat belt
and passenger's front airbag warning
lamp display when the ignition is on
and until the airbag is reactivated.
Deactivation
Only the passenger's front airbag can be
deactivated:
F

w
ith the ignition off , insert the key in the
passenger airbag deactivation switch 1 ,
F

t
urn it to the "OFF" position,
F

t
hen, remove the key keeping the switch
in this position . To assure the safety of your child, it is
imperative that the passenger's front
airbag is deactivated when you install a
"rear ward facing" child seat on the front
passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Safety
