2017 CITROEN C3 AIRCROSS boot

76
Caution, when putting the armrest back
in place, ensure that it is properly locked
and that the red indicator for each strap is
no longer visible. Otherwise, passenger
safety could be compromised if sharp
braking occurs or if there is a collision.
The contents of the boot may be thrown
forward – Risk of serious injury!
12 V accessory socket
Do not exceed the maximum power rating
of the socket (risk of damage to your
device). The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays in
the screens.
F

T
o connect a 12 V accessory (maximum
power: 120 watts), lift the cover and plug in
the correct adapter.
Boot fittings
1. Rear shelf.
(see details below)
2. Hooks.
(see details on following page)
3. Closed side storage compartments.
(see details on following page)
4. Boot floor (2 positions). 5.
Stowing rings.
6. Storage compar tment beneath the boot
carpet.
(see details on following page)
Rear shelf
To remove the shelf:
F
u nhook the two cords,
F

r
aise the shelf slightly to unclip it, then
remove it.
There are several options for storing the shelf:
-
ei

ther upright behind the front seats,
-

o
r upright against the rear seats in the boot.
Ease of use and comfort

77

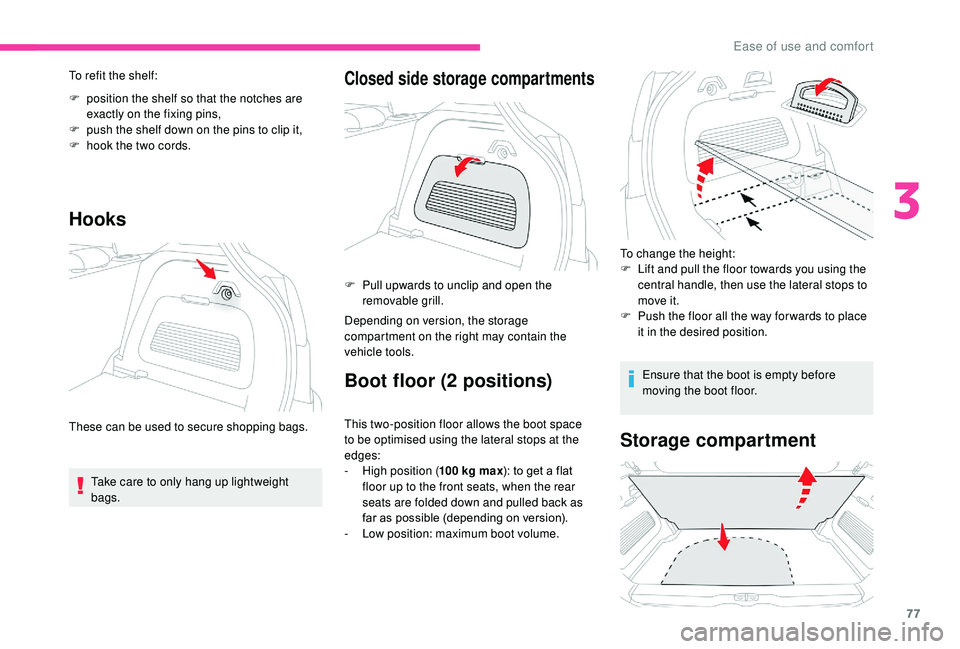

To refit the shelf:
F
p
osition the shelf so that the notches are
exactly on the fixing pins,
F

p
ush the shelf down on the pins to clip it,
F

h
ook the two cords.
Hooks
Take care to only hang up lightweight
bags.
Closed side storage compartments
F Pull upwards to unclip and open the removable grill.
Depending on version, the storage
compartment on the right may contain the
vehicle tools.
Boot floor (2 positions)
This two-position floor allows the boot space
to be optimised using the lateral stops at the
edges:
-
Hig

h position ( 100
kg max): to get a flat
floor up to the front seats, when the rear
seats are folded down and pulled back as
far as possible (depending on version).
-

L
ow position: maximum boot volume. To change the height:
F

L
ift and pull the floor towards you using the
central handle, then use the lateral stops to
move it.
F
P
ush the floor all the way for wards to place
it in the desired position.
Ensure that the boot is empty before
moving the boot floor.
Storage compartmentThese can be used to secure shopping bags.
3
Ease of use and comfort

78
Depending on version, it includes:
- a t emporary puncture repair kit with the
vehicle tools,
-

a s
pare wheel with or without the vehicle
tools.
F

R
aise the boot floor as far as possible to
access the storage compartment.
Courtesy lamps
1. Front courtesy lamp
2. Front map reading lamps
3. Rear courtesy lamp
4. Rear map reading lamps
Front and rear courtesy lamps
In this position, the courtesy lamp
comes on gradually:
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-
w

hen opening a door,
-

w

hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-

w

hen the vehicle is locked,
-

w

hen the ignition is switched on,
-

3

0

seconds after the last door is closed. Permanently off.
Permanent lighting.
Front and rear map reading
lamps
F With the ignition on, operate the corresponding switch.
Take care not to put anything in contact
with the courtesy lamps.
In "permanent lighting" mode, the lighting time
varies according to the circumstances:
-

w

hen the ignition is off, approximately ten
minutes,
-

i

n energy saving mode, approximately thirty
seconds,
-
w

ith the engine running, unlimited. When the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if it
is in the "permanently off " position.
To switch off the rear courtesy lamp, put it
in the "permanently off " position.
Ease of use and comfort

87
Manual controls
The windscreen wipers are controlled directly
by the driver.
With manual wiping
With AUTO wiping
Windscreen wipers
Wiping speed control stalk: raise or lower the
stalk to the desired position.Normal wiping (moderate rain).
Intermittent wiping (proportional to
the speed of the vehicle).
Of f.
Single wipe (press downwards or
pull the stalk briefly towards you,
then release).
Automatic wiping (press down,
then release) or single wipe (pull
the stalk briefly towards you).
Rear wiper
Rear wiper selection ring: Of f.
Intermittent wiping (proportional to
the speed of the vehicle). Wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are operating.
Activation/Deactivation
The function is activated or deactivated via the
vehicle configuration menu.
This function is activated by default.
If a significant accumulation of snow or ice
is present, or when using a bicycle carrier
on the boot, deactivate the automatic rear
w i p e r.
Without audio system
F In the " COMFORT " menu on the instrument
panel display, activate/deactivate " REAR
WIPE REV " (automatic wiping in reverse).
Fast wiping (heavy rain). or
4
Lighting and visibility

171
F Hold the towball 5 firmly in one hand; using the other hand, pull and turn star wheel 6
fully in a clockwise direction; do not release
the star wheel.
F

R
emove the cap from the lock.
F
I
nsert the key into the lock 7
.
F
O
pen the lock using the key.
F Extract the towball from the bottom of its
carrier 1.
F

R
elease the star wheel; this automatically stops
in the unlocked position and the red mark on
the star wheel lines up with the white mark on
the towball (position B ).
Maintenance
Correct operation is only possible if the towball
and its carrier are kept clean.
Before cleaning the vehicle with a high-
pressure jet wash, the towball must be removed
and the protective plug fitted to the carrier.
Apply the label provided to a clearly visible
area, close to the carrier or in the boot.
Go to a CITROËN dealer or a qualified
workshop for any work on the towbar
system.
F

R
efit protective plug 2 to carrier 1
.
F
C
arefully stow the towball in its bag away
from knocks and dirt.
Towing device
Load distribution
F D istribute the load in the trailer so that
the heaviest items are as close as
possible to the axle and the nose weight
approaches the maximum permitted without
exceeding


it.
Air density decreases with altitude, thus
reducing engine performance. The maximum
load which can be towed must be reduced by
10% per 1,000
metres of altitude.
Use towing devices and their genuine
harnesses approved by CITROËN. It is
recommended that the installation be
per formed by a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a CITROËN
dealer, it must still be fitted in accordance
with the vehicle manufacturer's
instructions.
Certain driving assistance or manoeuvring
assistance functions are automatically
disabled if an approved towbar is used.
7
Practical information

185
Repair procedure
F Park the vehicle without obstructing any traffic and apply the parking brake.
F

F
ollow the safety instructions (hazard warning
lamps, warning triangle, wearing high visibility
vest, etc.) according to the legislation in force
in the country where you are driving.
F

S
witch off the ignition.
F Uncoil the pipe stowed under the compressor.
Access to the kit
This kit is installed in the storage box, under
the boot floor.
List of tools
1. Temporary puncture repair kit.
Contains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures.
2. Socket for the security bolts (located in the
glove box or in the tool box) (depending on
ve r s i o n).
For adapting the wheelbrace to the special
"security" bolts.
3. Removable towing eye.
4. Flat blade screwdriver.
Allows the cover plate on the front or
rear bumper to be opened to screw in the
removable towing eye 3.
For more information on Towing the vehicle
and using the removable towing eye, refer to
the corresponding section.
Composition of the kit
1. 12 V compressor, with built-in pressure
gauge.
2. Bottle of sealant, with built-in hose.
3. Speed limit sticker.
The speed limit sticker must be secured
to the interior of the vehicle in the driver's
field of vision, to remind you that a wheel
is in temporary use.
Do not exceed a speed of 50
mph
(80
km/h) when driving with a tyre repaired
using this type of kit.
8
In the event of a breakdown

189
List of tools
1.Wheelbrace.
For removing the wheel bolts.
2. Jack with integrated handle.
Used to raise the vehicle.
3. Wheel bolt cover removal tool.
Removes the central bolt covers on alloy
wheels.
4. Removable towing eye.
5. Socket for the security bolts (located in the
glove box or in the tool box) (depending on
country of sale).
For adapting the wheelbrace to the special
"security" bolts. 6.
Flat blade screwdriver.
Allows the cover plate on the front or
rear bumper to be opened to screw in the
removable towing eye 4 .
For more information on To w i n g , refer to the
corresponding section.
All of these tools are specific to your
vehicle and may vary according to the
level of equipment.
Do not use them for any other purposes.
The jack must only be used to change a
wheel with a damaged or punctured tyre.
Do not use any jack other than the one
supplied with this vehicle.
If the vehicle does not have its original jack,
contact a CITROËN dealer or a qualified
workshop to obtain the correct jack for it.
The jack meets European standards,
as defined in the Machinery
Directive


2006/42/EC.
The jack does not require any
maintenance.
Access to the tools
The tools are located in the boot. Depending on
version, they are either under the floor or behind
the removable grille of the right compartment.
To gain access to them:
F

o
pen the boot,
F

t
hen, depending on version, lift the floor using
the grip, remove it and remove the carpet.
F

o
r, open the removable grille to the right by
pulling from the top.
8
In the event of a breakdown

190
Access to the spare wheel
Removing the wheel
The spare wheel is installed in the boot, under
t h e f l o o r.
F
U
nclip and remove the tool storage box
or pull out the polystyrene cover plate
(depending on version).
F

U
nscrew the central nut. F

R
emove the fastening device (nut and bolt).
F
R
aise the spare wheel towards you from the
r e a r.
F
T
ake the wheel out of the boot.
Putting the wheel back in place
F Put the wheel back in its housing.
F
S lacken the nut on the bolt by a few turns. If there is no wheel in the well, the
fastening device (nut and bolt) cannot be
refitted.
Removing a wheel
* Position
P for the automatic gearbox
Parking the vehicle
Stop the vehicle where it does not block
traffic: the ground must be level, stable
and non-slippery.
Apply the parking brake, switch off the
ignition and engage first gear* so as to
block the wheels.
Check that the parking brake warning
lamp comes on fixed in the instrument
panel.
The occupants must get out of the vehicle
and wait in a safe place.
Make sure that the jack is correctly
positioned at one of the vehicle's jacking
points.
Incorrect use of the jack could cause the
vehicle to collapse.
Never go underneath a vehicle raised
using a jack; use an axle stand.
F

P

osition the fastening device (nut and bolt)
in the middle of the wheel.
F

T

ighten the central nut to retain the wheel
c o r r e c t l y.
F

C

lip the tool storage box back into place
or reinsert the polystyrene cover plate
(depending on version).
In the event of a breakdown
