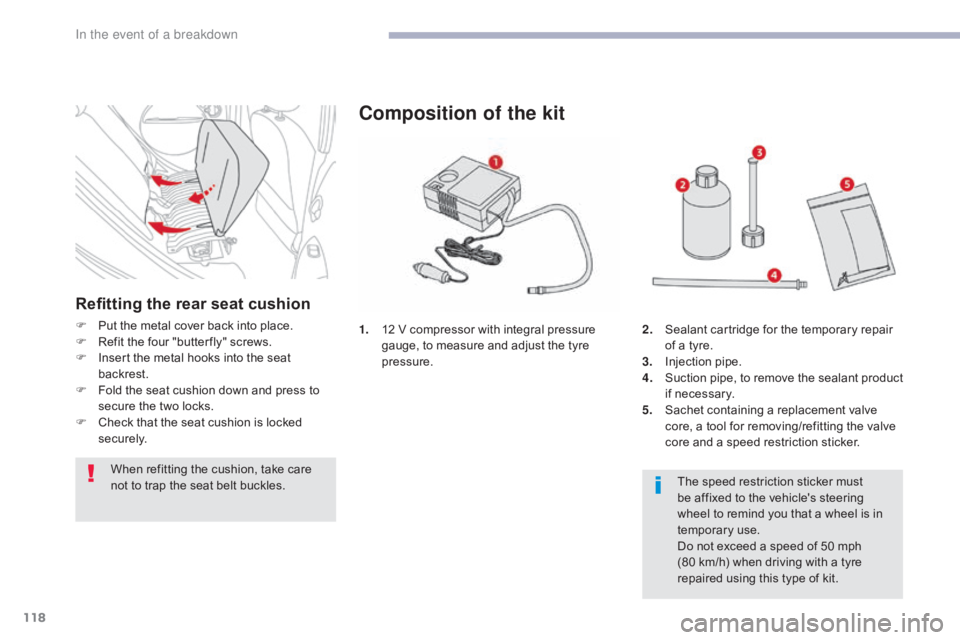

1. 12 V compressor with integral pressure gauge, to measure and adjust the tyre
pressure.
Composition of the kit
2. Sealant cartridge for the temporary repair of a tyre.
3.
I

njection pipe.
4.
S

uction pipe, to remove the sealant product
if necessary.
5.
S

achet containing a replacement valve
core, a tool for removing/refitting the valve
core and a speed restriction sticker.
The speed restriction sticker must
be affixed to the vehicle's steering
wheel to
remind you that a wheel is in
temporary use.
Do not exceed a speed of 50 mph
(80
km/h) when driving with a tyre
repaired using this type of kit.
Refitting the rear seat cushion
F Put the metal cover back into place.
F R efit the four "butter fly" screws.
F

I
nsert the metal hooks into the seat
backrest.
F

F
old the seat cushion down and press to
secure the two locks.
F

C
heck that the seat cushion is locked
securely.
When refitting the cushion, take care
not to trap the seat belt buckles.
In the event of a breakdown

119
Repair procedure
1. Sealing
F Switch off the ignition.
F I ndicate, on the speed restriction sticker
provided, the wheel to be repaired, then fix
it to the steering wheel as a reminder that a
wheel is in temporary use.
F

S
hake the sealant cartridge, remove the
cap and screw on the injection pipe. F

R
emove the valve cap for the tyre to be
repaired.
F R emove the valve core using the tool
provided, and store it in a clean place.
F

C
onnect the injection pipe to the valve of
the tyre to be repaired. F

T
ap the sealant cartridge (top down)
several times with your hand, so as to
inject all of the product into the tyre.
F

R
emove the injection pipe.
F

R
efit the valve core and tighten it using the
tool provided.
Take care, this product is harmful if swallowed and causes irritation to the eyes.
Keep it out of reach of children.
The use-by date of the sealant is marked on the cartridge.
After use, do not discard the empty cartridge but take it to a CITROËN dealer or to an
authorised waste disposal site.
Do not forget to obtain a replacement cartridge; they are available from a CITROËN dealer
or a qualified workshop.
Avoid removing any foreign bodies
which have penetrated into the tyre.
8
In the event of a breakdown

151
Use only USB memory sticks formatted to
FAT32 (File Allocation Table).The use of genuine Apple
® USB cables
is recommended to ensure correct
operation.
On a single disc, the CD player can read up
to 255 MP3 files spread over 8 folder levels
with a maximum of 192 folders. However, it is
recommended that this be kept to 2 levels so
as to limit the time taken to access and play
the CD.
During play, the folder structure is not
observed.
Do not connect a hard disk or USB device other
than audio players to the USB port. This may
cause damage to your installation.
To protect the system, do not use a
USB hub.
Bluetooth® audio streaming
Streaming allows music files on a telephone to
be heard via the vehicle's speakers.
Connect the telephone: see the " Telephone"
section.
In the " Bluetooth : Audio" menu, select the
telephone to connect.
The audio system connects automatically to a
newly paired telephone.
The control of common tracks is possible
via the audio system control buttons and
the steering mounted controls**. Contextual
information can be displayed in the screen. Activate the streaming source by
pressing the SRC/TEL
* button.
The audio quality depends on the quality of the
transmission from the telephone.
*

I
n certain cases, the playing of audio files
must be initiated from the telephone.
** If the telephone supports the function.
Connecting Apple® players
Connect the Apple® player to the USB port
using a suitable cable (not supplied).
Play starts automatically.
Management of the device is via the audio
system controls.
The classifications available are those on the
portable player connected (artists / albums /
genres / playlists / audiobooks / podcasts).
The software version of the audio system may
not be compatible with the generation of your
Apple
® player.
.
