2017 CITROEN C-ELYSÉE dashboard

15
C-elysee_en_Chap01_controle-de-marche_ed01-2016
C-elysee_en_Chap01_controle-de-marche_ed01-2016
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
T his   is   may   be   accompanied   by   an   audible   signal   and   a   message   in   the   screen.
Warning / indicator lamp StateCause Action / Observations
Passenger's
airbag system fixed.
The
  control,   located   in   the   glove   box,
i

s set to the OFF
 p
osition.
The
  passenger's   front   airbag   is
d

eactivated.
You
  can   install   a   rear ward   facing
c

hild   seat,   unless   there   is   a   fault   with
t

he   operation   of   the   airbags   (Airbag
w

arning   lamp   on).Set the control to the ON
position to activate the
passenger's
  front   airbag.
In
  this   case,   do   not   fit   a   child   seat   in   the   rear ward
f

acing   position.
ESP/ASR fixed. The
  button,   located   at   the   bottom
l

eft   of   the   dashboard,   is   pressed.   Its
i

ndicator   lamp   is   on.
The
  ESP/ASR   is   deactivated.
ESP:
  electronic   stability   programme.
ASR:
  anti-slip   regulation.Press
  the   button   to   activate   the   ESP/ASR.   Its   indicator
l

amp   goes   off.
The
  ESP/ASR   system   is   activated   automatically   when
t

he   vehicle   is   started.
If
  deactivated,   the   system   is   reactivated   automatically
f

rom   around   30   mph   (50   km/h).
1
Monitoring

40
C-elysee_en_Chap02_ouvertures_ed01-2016
Boot
Opening
Unlocking and releasing the boot
using the remote control
F Press the centre button on the remote   control   for   more   than
on

e second.
The
  boot   lid   is   released   and   opens
s

li g ht l y.
Releasing the boot from the
inside
Opening the boot
F Raise  the   boot   lid   to   its   fully   open   position.
F
L
ower   the   boot   lid   using   one   of   the   interior
g

rab
 han
dles.
Closing
Electric boot opening
- when the engine is running , this
warning lam p c omes o n, a ccompanied b

y   a   message   in   the   multifunction
 s

creen   for   a   few   seconds,
- when the vehicle is moving   (speed   above
6   mph   (10   km/h)),   this   warning   lamp   comes o

n,   accompanied   by   an   audible   signal   and

a

  message   in   the   multifunction   screen   for

a

  few   seconds.
F

P

ress

the

boot

opening

switch

located

o

n

the

left

of

the

dashboard

(electric

boot

o

pening).


or
Mechanical boot opening
There is no associated warning for the boot lid n ot   being   fully   closed.
You
  should   ensure   that   the   boot   is   closed
c

o r r e c t l y.
If
  the   boot   is   not   closed   correctly:
F

R

aise

the

control

lever

below

the

driver's

d

oor

(mechanical

boot

opening).
The

boot

lid

is

released

and

opens

slightly.
Access

106
C-elysee_en_Chap07_securite_ed01-2016
Anti-slip regulation (ASR)
and electronic stability
programme (ESP)
The anti-slip regulation (also known as Traction Control)   optimises   traction   to   prevent   skidding o

f   the   wheels,   by   acting   on   the   brakes   of   the
 d

riving   wheels   and   on   the   engine.
The
  electronic   stability   programme   acts   on   the
 b

rake   of   one   or   more   wheels   and   on   the   engine
 t

o   keep   the   vehicle   on   the   trajectory   required   by
 t

he   driver,   within   the   limits   of   the   laws   of   physics.
This
  is   indicated   by   flashing   of   this
w

arning   lamp   in   the   instrument   panel. The
  ASR /ESP   systems   offer
e

xceptional   safety   in   normal   driving,   but
t

his   should   not   encourage   the   driver   to
t

ake   extra   risks   or   drive   at   high   speed.
The
  correct   functioning   of   these
s

ystems   depends   on   observation   of
t

he
 ma
nufacturer's
 r
ecommendations
 r

egarding   the   wheels   (tyres   and   rims),
t

he   braking   components,   the   electronic
c

omponents   and   the   assembly
a

nd   repair   procedures   used   by   the
C

ITROËN   dealer   network.
After
  an   impact,   have   these   systems
c

hecked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Operating fault
Illumination of the warning lamp, accompanid   by   a   message   in   the
s

creen   indicates   a   malfunction   of
t

hese   systems.
Reactivation
These systems are reactivated automatically every   time   the   ignition   is   switched   of,   or   from
3

0   mph   (50   km/h).
F

P
ress   this   button   again   to   reactivate   them
m

anually.
 T

he   lamp   in   the   button   goes   off.
The
  symbol   going   off   in   the   instrument   panel
i

ndicates   the   reactivation   of   the   ASR   and
ES

P systems.
Deactivation
In exceptional conditions (starting a vehicle which   is   bogged   down,   stuck   in   snow,   on   soft
g

round,   ...),   it   may   be   advisable   to   deactivate
t

he   ASR   and   ESP   systems,   so   that   the   wheels
c

an   move   freely   and   regain   grip.
Trajectory control systems
Activation
These systems are activated automatically each   time   the   vehicle   is   started.
They
  come   into   operation   in   the   event   of   a   grip
o

r
 t
rajectory
 pro
blem. The
  display   of   this   symbol   indicates
t

hat   the   ASR   and   ESP   systems   are
d

eactivated.
F

P
ress   this   button   button,   located   on
t

he   dashboard   (driver's   side),   until   the
c

orresponding   symbol   appears   in   the  i
nstrument   panel   screen. T
he   lamp   in   the   button   comes   on.Contact
  a   CITROËN   dealer   or   a   qualified
w

orkshop   to   have   the   ASR /ESP   systems
c

hecked.
Coasting   with   the   engine   off   results   in   a
 l

oss   of   power   assistance   for   the   steering.
S

110
C-elysee_en_Chap07_securite_ed01-2016
Airbags
Designed to contribute towards the safety of the   occupants   in   the   event   of   violent   collisions.
T

he   airbags   supplement   the   action   of   the   force-
limiting
  seat   belts.
If
  a   collision   occurs,   the   electronic   detectors
r

ecord   and   analyse   the   front   and   side   impacts
s

ustained   in   the   impact   detection   zones:
-

i
n   the   case   of   a   serious   impact,   the   airbags
a

re   deployed   instantly   and   contribute
t

owards   better   protection   of   the   occupants
o

f   the   vehicle;   immediately   after   the   impact,
t

he   airbags   deflate   rapidly   so   that   they
d

o   not   hinder   visibility   or   the   exit   of   the
o

ccupants,
-

i
n   the   case   of   a   minor   or   rear   impact   or   in
c

ertain   roll-over   conditions,   the   airbags
m

ay   not   be   deployed;   the   seat   belt   alone
c

ontributes   towards   providing   your
p

rotection   in   these   situations.
The airbags do not operate when the
ignition is switched off.
This
  equipment   will   only   deploy   once.
I

f   a   second   impact   occurs   (during   the
s

ame   or   a   subsequent   accident),   the
a

irbag   will   not   be   deployed   again.The
  deployment   of   an   airbag   is
a

ccompanied   by   a   slight   emission
o

f   smoke   and   a   noise,   due   to   the
d

etonation   of   the   pyrotechnic   charge
i

ncorporated   in   the   system.
This
  smoke   is   not   harmful,   but   sensitive
i

ndividuals   may   experience   slight
ir

ritation.
The
  detonation   noise   associated   with
t

he   deployment   of   an   airbag   may   result
i

n   a   slight   loss   of   hearing   for   a   short
t

ime.
Impact detection zones
A. Front  impact   zone.
B. S ide   impact   zone.
Front airbags
Deployment
The airbags are deployed, except the passenger's front   airbag   if   it   has   been   deactivated,   in   the   event o

f   a   serious   front   impact   to   all   or   part   of   the   front
 i

mpact   zone   A,   in   the   longitudinal   centreline   of   the
 v

ehicle   on   a   horizontal   plane   and   directed   from   the
 f

ront   to   the   rear   of   the   vehicle.
The
  front   airbag   inflates   between   the   thorax   and
 h

ead   of   the   front   occupant   of   the   vehicle   and   the
 s

teering   wheel,   driver's   side,   and   the   dashboard,
 p

assenger's   side   to   cushion   their   for ward
 m

ovement.
System
  which   protects   the   driver   and   front
p

assenger   in   the   event   of   a   serious   front   impact
i

n   order   to   limit   the   risk   of   injury   to   the   head   and
t

horax.
The   driver's   airbag   is   fitted   in   the   centre   of   the
s

teering   wheel;   the   front   passenger's   airbag   is
f

itted   in   the   dashboard   above   the   glove   box.
Safety

113
C-elysee_en_Chap07_securite_ed01-2016
Sit in a normal upright position.
W ear   a   correctly   adjusted   seat   belt.
Do
  not   leave   anything   between   the
o

ccupants   and   the   airbags   (a   child,   pet,
o

bject...),   nor   fix   or   attach   anything   close   to
t

he   inflation   trajectory   of   the   airbags;   this
c

ould   cause   injuries   during   their   deployment.
Never
  modify   the   original   definition   of   your
v

ehicle,   particularly   in   the   area   directly
a

round   the   airbags.
After
  an   accident   or   if   the   vehicle   has   been
s

tolen   or   broken   into,   have   the   airbag
s

ystems   checked.
All
  work   on   the   airbag   system   must   be
c

arried   out   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Even
  if   all   of   the   precautions   mentioned
a

re   observed,   a   risk   of   injury   or   of   minor
b

urns   to   the   head,   chest   or   arms   when   an
a

irbag   is   deployed   cannot   be   ruled   out.   The
b

ag   inflates   almost   instantly   (within   a   few
m

illiseconds)   then   deflates   within   the   same
t

ime   discharging   the   hot   gas   via   openings
p

rovided   for   this   purpose.Lateral airbags
Use only approved covers on the seats, compatible   with   the   deployment   the   lateral
a

irbags.   For   information   on   the   range   of   seat
c

overs suitable for your vehicle, you can
contact
  a   CITROËN dealer.
For
  more   information   on   accessories,   refer
t

o   the   corresponding   section.
Do
  not   fix   or   attach   anything   to   the   seat
b

acks   (clothing...).   This   could   cause   injury
t

o   the   chest   or   arms   if   the   lateral   airbag   is
d

eployed.
Do
  not   sit   with   the   upper   part   of   the   body   any
n

earer   to   the   door   than   necessary.
Front airbags
Do not drive holding the steering wheel by its spokes   or   resting   your   hands   on   the   centre
p

art   of   the   wheel.
Passengers
  must   not   place   their   feet   on   the
das

hboard.
Do
  not   smoke   as   deployment   of   the   airbags
c

an   cause   burns   or   the   risk   of   injury   from   a
c

igarette   or   pipe.
Never


remove

or

pierce

the

steering

wheel

or
 h

it   it   violently.
Do
  not   fit   or   attach   anything   to   the   steering
w

heel   or   dashboard,   this   could   cause
i

njuries   with   deployment   of   the   airbags.
Advice
For the airbags to be fully effective, observe the safety recommendations below:
7
Safety

159
C-elysee_en_Chap09_info-pratiques_ed01-2016
Changing a fuse
The extraction tweezer is fitted to the back of the   dashboard   fusebox   cover.
F

u
nclip   the   cover   by   pulling   at   the   top   right,
t

hen left,
F

d
isengage   the   cover   completely   and   turn   it
o

ve r,
Access to the tools
F remove   the   tweezer.
9
Practical information

161
C-elysee_en_Chap09_info-pratiques_ed01-2016
Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand   side).
Access to the fuses
F Refer  to   the   paragraph   "Access   to   the   tools".Fuse N°
Rating Functions
F02 5 AHeadlamp   adjusters,   diagnostic   socket,   air   conditioning
panel.
F09 5 AAlarm,
 alar
m
 (
accessory).
F11 5 AAdditional
 h
eating.
F13 5 AParking   sensors,   parking   sensors
(accessory)
F14 10 AAir
 c
onditioning
 pan
el.
F16 15 ACigarette   lighter,   12   V   socket.
F17 15 AAudio   system,   audio   system   (accessory).
F18 20 AAudio
  system   /   Bluetooth,   audio   system   (accessory).
F19 5 AMonochrome
  screen   C.
F23 5 ACourtesy
  lamps,   map   reading   lamps.
F26 15 AHorn.
F27 15 AScreenwash
 pu

mp.
F28 5 AAnti-theft.
Fuse tables
9
Practical information

180
C-elysee_en_Chap10_verifications_ed01-2016

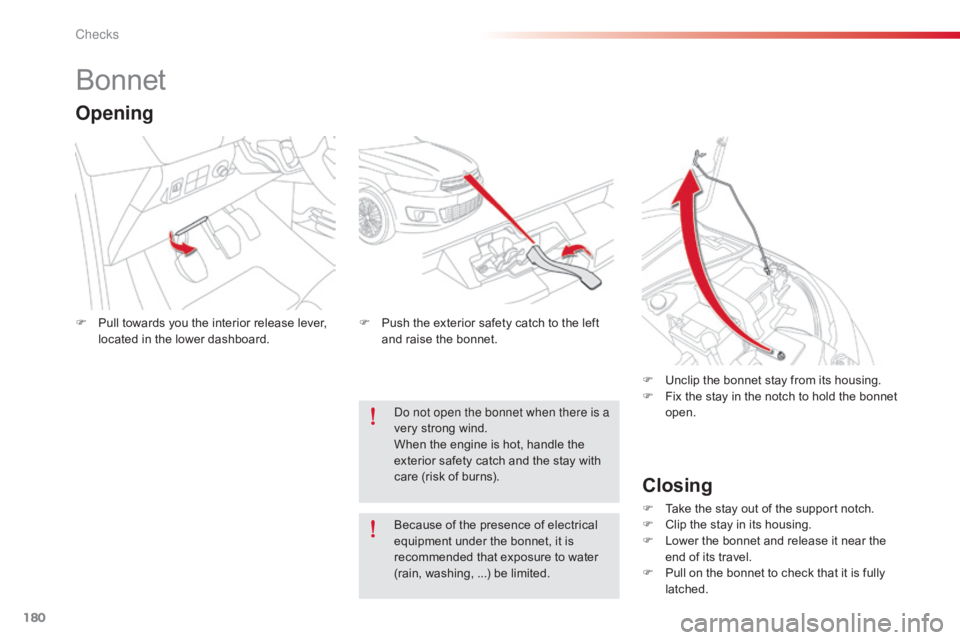

Bonnet
Closing
F Take  the   stay   out   of   the   support   notch.
F  C lip   the   stay   in   its   housing.
F

L
ower   the   bonnet   and   release   it   near   the
e

nd   of   its   travel.
F

P
ull   on   the   bonnet   to   check   that   it   is   fully
l

atched.
F

U
nclip   the   bonnet   stay   from   its   housing.
F
F
ix   the   stay   in   the   notch   to   hold   the   bonnet
ope

n.
Do not open the bonnet when there is a
very

strong

wind.
When

the

engine

is

hot,

handle

the

e

xterior

safety

catch

and

the

stay

with

c

are

(risk

of

burns).
Opening
F Push
  the   exterior   safety   catch   to   the   left  a
nd   raise   the   bonnet.
F
 P
ull

towards

you

the

interior

release

lever,
 l
ocated

in

the

lower

dashboard.
Because
  of   the   presence   of   electrical
e

quipment   under   the   bonnet,   it   is
r

ecommended   that   exposure   to   water
(

rain,   washing,   ...)   be   limited.
Checks
