2017 CHRYSLER PACIFICA fold seats

•When returning the seat to the original position, the
headrest must be folded back to the original position.Easy Entry
Easy Tilt Seat — With Or Without Child Seat Installed
The 2nd row seats can be tilted forward for easy entry
into the third row with or without a child seat installed.
1. Located in the seatback of the second row seat is a handle that provides easier access to the third row by
tilting the seat forward.
Fold Headrest To Upward Position
3
GETTING TO KNOW YOUR VEHICLE 65

WARNING!
Do not use this feature with a child in seat. Serious
injury or death my occur.
Easy Entry — With The Seat Folded Flat
The seats can be folded and tilted for more accessibility
for passengers to enter and exit the third row.
1. Without a child seat installed, you can fold the seat by pulling the recliner handle on the bottom part of the
seat. Before pulling the recliner lever, make sure the
arm rests are folded up.
2. Pull the strap on the back of the seat and the seat willtilt forward.
Recliner Lever
3
GETTING TO KNOW YOUR VEHICLE 67

NOTE:This process is for when there is no child seat
installed. Use the easy entry lever if a child seat is
installed.
Stow ’n Go Seating
On vehicles equipped with Stow ’n Go seating, the
second and third row seats can be folded into the floor for
convenient storage.
Stow ‘n Go Assist — If Equipped
On vehicles equipped with the Stow ‘n Go Assist feature,
the front seat will move forward automatically to a
location that will allow the second row Stow ‘n Go seat
movement, without interference by the front seat. After
the second row Stow ‘n Go seat movement is completed,
the front seat will automatically move back to the previ-
ous location once the Stow ‘n Go Assist button is pushed
again. The Stow ‘n Go Assist feature is available to both the
front driver and passenger power seats.
WARNING!
During power seat operation, personal injury or
cargo damage may occur. Ensure the front seat is not
occupied and the seat travel path is clear.
A one-touch Stow ‘n Go Assist button is located on the
B-pillar trim panel, just in front of the power sliding door.3
GETTING TO KNOW YOUR VEHICLE 69

•For information on storage bin function with the
seats rearward refer to “Second Row Floor Storage
Bins” in “Internal Equipment” for further informa-
tion.
2. Pull the latch located near the second row seat to open the floor panel. 3. Pull the floor panel and position it toward the front
seats while folding the top half down and rest it
against the front seats.
Floor Latch
Push Panel Forward
3
GETTING TO KNOW YOUR VEHICLE 73

NOTE:•Push the lock rod inward for the locked position.
• Pull outward on the lock rod for the unlocked
position. 2. Pull the latch located near the second row seat to open
the floor panel.
3. Pull the floor panel and position it toward the front seats while folding the top half down and rest it
against the front seats.
Lock Rod
Floor Latch
3
GETTING TO KNOW YOUR VEHICLE 77

WARNING!
•In a collision, you or others in your vehicle could
be injured if seats are not properly latched to their
floor attachments. Always be sure the seats are
fully latched.
• Sitting in a seat with the head restraint in its
lowered position could result in serious injury or
death in a collision. Always make sure the head
restraints are in their upright positions when the
seat is to be occupied.
Second Row Removable 8th Seat — If Equipped
While the 8th seat does not stow in the floor, it is foldable
and removable for added cargo space. The release strap is located on the front of the seat, near
the floor. To remove the seat, pull the release strap to
release the rear latches. The seat assembly can now be
removed from the vehicle by moving it in a rearward
direction from the detent positions in the floor.
Second Row 8th Seat Fold Flat Strap
80 GETTING TO KNOW YOUR VEHICLE

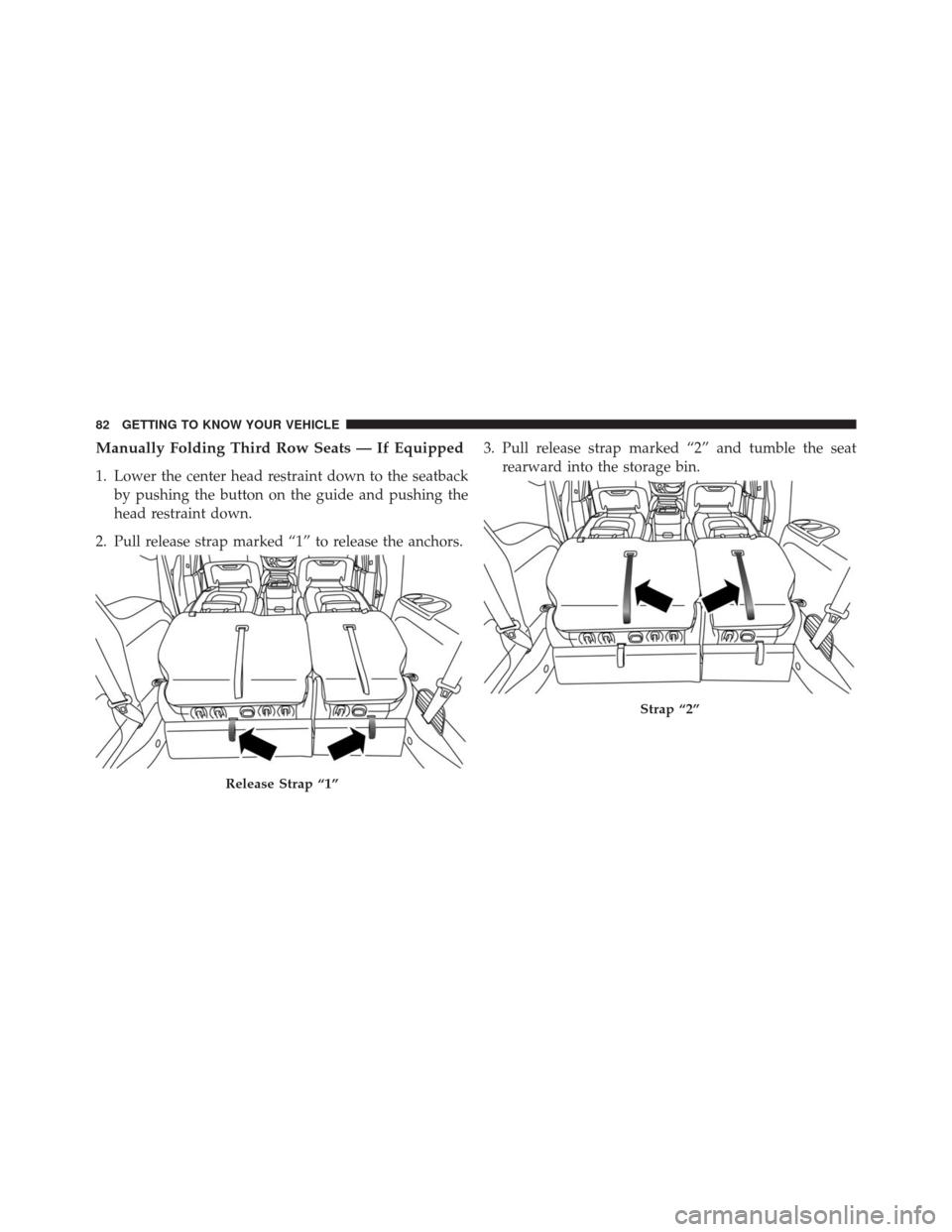

Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatbackby pushing the button on the guide and pushing the
head restraint down.
2. Pull release strap marked “1” to release the anchors. 3. Pull release strap marked “2” and tumble the seat
rearward into the storage bin.
Release Strap “1”
Strap “2”
82 GETTING TO KNOW YOUR VEHICLE

To Unfold Third Row Seats
1. Pull up on the assist strap to lift the seat out of thestorage bin and push the seat forward until the
anchors latch. 2. Pulling strap “2” releases the seatback to return to its
full upright position.
3. Raise the head restraint to its upright position.
Stowed Third Row Seat
Strap “2”
3
GETTING TO KNOW YOUR VEHICLE 83
