2017 CHRYSLER PACIFICA can c

CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go,
always remember to place the ignition in the OFF
position.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE Key
Fobs. Duplication of RKE Key Fobs may be performed at
an authorized dealer. This procedure consists of pro-
gramming a blank RKE Key Fob to the vehicle electron-
ics. A blank RKE Key Fob is one that has never been
programmed. NOTE:
When having the Sentry Key Immobilizer System
serviced, bring all vehicle keys with you to an authorized
dealer.
KeySense Features — If Equipped
This feature provides the vehicle owner with the ability
to identify a specific vehicle key for which a customized
category of vehicle settings can be applied to determine
the driving experience for other drivers of the vehicle.
The vehicle settings are protected by a unique 4-digit
PIN, which the vehicle owner creates when accessing the
specific settings for the first time.
This feature also has additional features that are always
enabled when the specific key is in use that cannot be set
by the vehicle owner. While this specific RKE Key Fob is
in use, the vehicle will respond accordingly to the cus-
tomized vehicle settings and mandatory features. This
includes enhanced driving assistance features, increased
driver alerts, and the locking of certain optional features.
28 GETTING TO KNOW YOUR VEHICLE

IGNITION SWITCH
This feature allows the driver to operate the ignition
switch with the push of a button, as long as the RKE Key
Fob is in the passenger compartment, and the drivers foot
on the brake pedal.
The Keyless Push Button Ignition has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.The ignition can be placed in the following positions:
OFF
•The engine is stopped.
• Some electrical devices are available.
Keyless Push Button Ignition
30 GETTING TO KNOW YOUR VEHICLE

ACC
•The engine is stopped.
• Some electrical devices are still available.
ON/RUN
• Driving position.
• All the electrical devices are available.
START
• Start the engine.
In case the ignition switch does not change with the push
of a button, the RKE Key Fob may have a low or dead
battery. In this situation, a back up method can be used to
operate the ignition switch. Put the nose side (side
opposite of the emergency key) of the RKE Key Fob
against the ENGINE START/STOP button and push to
operate the ignition switch. NOTE:
The vehicle will not start if the RKE Key Fob is
located inside the cargo area AND the liftgate is opened.
Keyless Push Button Ignition
3
GETTING TO KNOW YOUR VEHICLE 31

REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the RKE Key Fob to start the
engine conveniently from outside the vehicle
while still maintaining security. The system has
a range of 328 ft (100 m).
The Remote Starting System also activates the Climate
Control, vented seats (if equipped) in temperatures above
80° F (26.7° C), and the optional heated seats, and
optional heated steering wheel in temperatures below
40° F (4.4° C).
NOTE:
• The vehicle must be equipped with an automatic
transmission to be equipped with Remote Start.
• Obstructions between the vehicle and RKE Key Fob
may reduce this range.
Remote Start Cancel Message — If Equipped
The following messages will display in the instrument
cluster if the vehicle fails to remote start or exits remote
start prematurely:
• Remote Start Cancelled — Door Open
• Remote Start Cancelled — Hood Open
• Remote Start Cancelled — Fuel Low
• Remote Start Cancelled — Liftgate Open
• Remote Start Cancelled — Too Cold
• Remote Start Cancelled — Time Expired
• Remote Start Disabled — Start Vehicle To Reset
The message will stay active until the ignition is placed in
the ON/RUN position.
3
GETTING TO KNOW YOUR VEHICLE 33

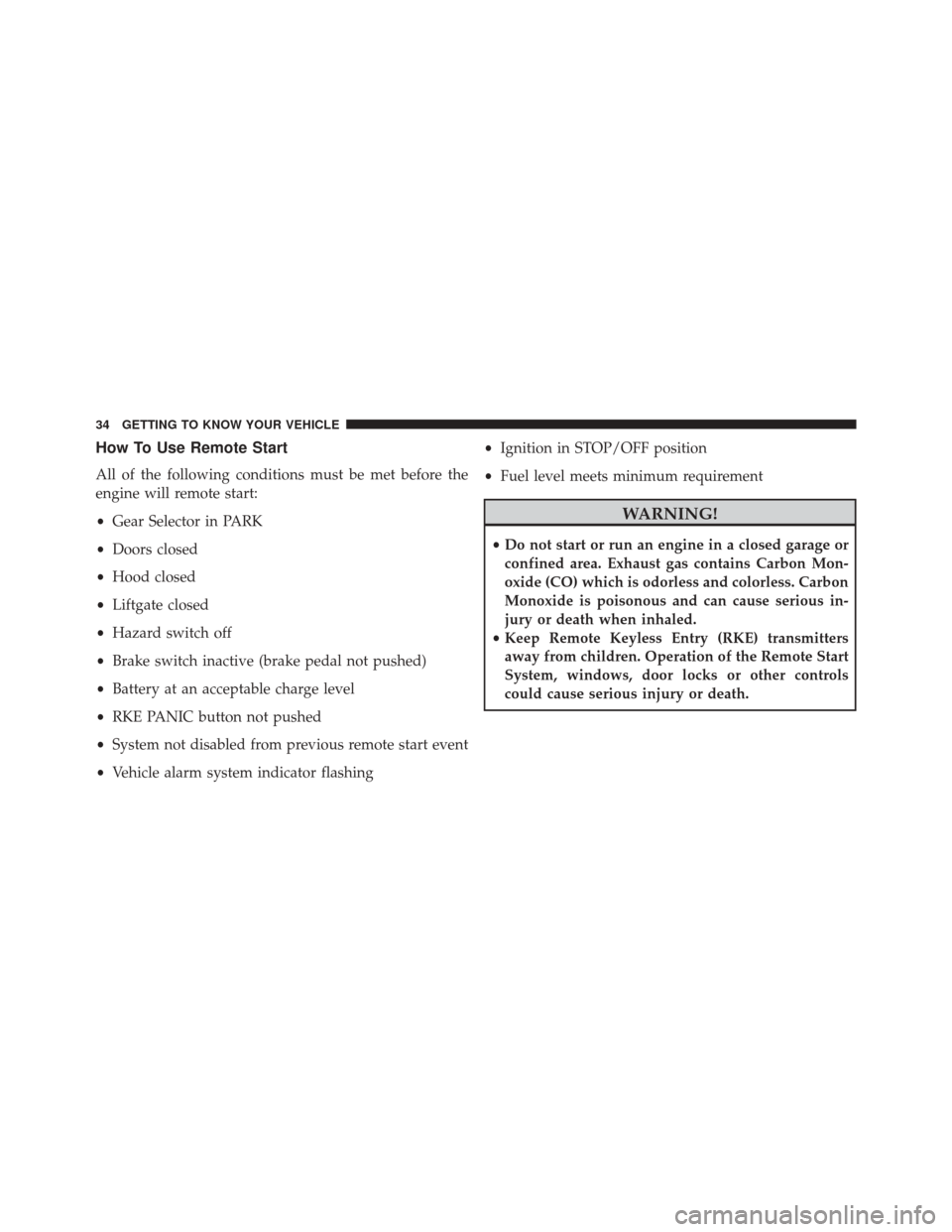

How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Gear Selector in PARK
• Doors closed
• Hood closed
• Liftgate closed
• Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• RKE PANIC button not pushed
• System not disabled from previous remote start event
• Vehicle alarm system indicator flashing •
Ignition in STOP/OFF position
• Fuel level meets minimum requirement
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious in-
jury or death when inhaled.
• Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
34 GETTING TO KNOW YOUR VEHICLE

NOTE:For vehicles equipped with the Keyless Enter-
N-Go — Passive Entry feature, the message “Remote
Start Active — Push Start Button” will display in the 3.5”
EVIC or 7” DID until you push the START button.
Remote Start Comfort Systems — If Equipped
When Remote Start is activated, the Climate Control,
vented seats (if equipped) are also activated in tempera-
tures above 80° F (26.7° C), and the optional heated seats,
and optional heated steering wheel in temperatures
below 40° F (4.4° C).. These features will stay on through
the duration of Remote Start or until the ignition switch
is cycled to the ON/RUN position.
NOTE: The Remote Start Comfort System can be acti-
vated and deactivated through the Uconnect Settings. For
more information on Remote Start Comfort System op-
eration, refer to “Uconnect Settings” in “Multimedia.”
Remote Start Windshield Wiper De–Icer
Activation — If Equipped
When Remote Start is active and the outside ambient
temperature is less than 40° F (4.4° C), the Windshield
Wiper De-Icer will be enabled. Exiting Remote Start will
resume previous operation, except if the Windshield
Wiper De-Icer is active. The Windshield Wiper De-Icer
timer and operation will continue.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
36 GETTING TO KNOW YOUR VEHICLE

2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter (RKE Key Fob) to pre-
vent unauthorized vehicle operation. Therefore, only
RKE Key Fob that are programmed to the vehicle can be used to start and operate the vehicle. The system will
shut the engine off in two seconds if an invalid Key Fob
is used to start the engine.
After turning the ignition switch to the ON/RUN posi-
tion, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after
the bulb check, it indicates that someone used an invalid
RKE Key Fob to start the engine. Either of these condi-
tions will result in the engine being shut off after two
seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
3
GETTING TO KNOW YOUR VEHICLE 37

2. Perform one of the following methods to lock thevehicle:
• Push LOCK on the interior power door lock switch
with the driver and/or passenger door open.
• Push the LOCK button on the exterior Passive Entry
Door Handle with a valid RKE Key Fob available in
the same exterior zone (refer to Keyless Enter-N-Go
— Passive Entry inGetting To Know Your Vehicle
for further information).
• Push the LOCK button on the RKE Key Fob.
3. If any doors are open, close them.
To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
• Push the UNLOCK button on the RKE Key Fob. •
Grasp the Passive Entry Unlock Door Handle (if
equipped, refer to Keyless Enter-N-Go — Passive
Entry inGetting To Know Your Vehicle for further
information).
• Cycle the vehicle ignition system out of the OFF
position.
• For vehicles equipped with Keyless Enter-N-Go —
Passive Entry, push the keyless ignition START/
STOP button (requires at least one valid RKE Key
Fob in the vehicle).
NOTE:
• The driver’s door key cylinder and the liftgate button
on the RKE Key Fob cannot arm or disarm the Vehicle
Security Alarm.
• The Vehicle Security Alarm remains armed during
power liftgate entry. Pushing the liftgate button will
3
GETTING TO KNOW YOUR VEHICLE 39
