Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 229
release the accelerator pedal, the
speed returns to the original set
vehicle speed.
When Increasing Vehicle Speed
When the cruise control resume
switch is operated, the speed
increases while the switch is held.
After the speed is increased to the
desired vehicle speed, and the
switch is released, the speed is set
at the increased vehicle speed.
If you want to increase the speed
quickly, press the accelerator pedal
and accelerate to the desired
vehicle speed. Then, operate the
cruise control set switch.When Increasing Vehicle Speed
Slightly
If the cruise control resume switch is
operated and released immediately,
the set vehicle speed increases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3500 model) or 10 times
(4500 model) consecutively.
When Decreasing Vehicle Speed
When the cruise control set switch
is operated, the speed decreases
while the switch is held.
After the speed is decreased to the
desired vehicle speed, and the
switch is released, the speed is setat the decreased vehicle speed.
If you want to decrease the speed
quickly, press the brake pedal to
cancel cruise control and decelerate
to the desired vehicle speed. Then,
operate the cruise control set switch
When Decreasing Vehicle Speed
Slightly
If the cruise control set switch is
operated and released immediately,
the set vehicle speed decreases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3500 model) or 10 times
(4500 model) consecutively.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 247
For diesel vehicles, when working
on the fuel line or fuel filter, remove
the fuel tank filler cap. The fuel
system is under pressure and the
fuel will overspill unless the
pressure is relieved, possibly
leading to combustion or a fire.
Do not make engine adjustments
yourself. Be sure to consult your
dealer.
Use only appropriate tools.
Oils, brake fluid and engine coolant
have lubrication, cooling and rust
prevention functions. If these liquids
deteriorate through loss or
contamination, it will cause a
decline in the performance of the
parts and such problems as seizure
or malfunctioning. Replenish or
change these liquids when
performing the checks (daily and
periodic checks) as required by the
relevant regulations or in
accordance with the Maintenance
Schedule (when either the specified
driving distance or period of time,
whichever comes first, has expired).Confirm that all systems and
components are normal after
performing the work.
Do not leave the removed parts or
tools in the engine compartment.
They could damage the equipment if
caught in the belts or other moving
components.
Dirty water, dirt and other impurities
seriously impair the effectiveness of
the oil, grease and fluids, and
damage the parts. Exercise all due
caution to prevent waste or other
refuse from coming in contact with
parts or materials that have been
removed when changing or
replenishing them.
Do not step on the engine or climb
onto it. You could cause an engine
failure by, for example, damaging
the cylinder head cover or various
connectors.
Electric Welding
Careless electric welding of vehicle
parts can cause welding current to
flow back through the vehicle’s
ground circuit and damage electrical
and electronic parts so that they donot function normally. Whenever
electric welding is necessary,
consult your dealer.
Cab Tilting
Before Tilting the Cab (Single Cab
Model)
{Warning
To help avoid personal injury and
property damage:
. Park the vehicle on level
ground and check that there
is enough space in front of
and above the cab.
. Set the parking brake firmly
and block the front wheels.
. Move the selector lever in
the "P" position.
. Secure loose articles in
the cab.
. Stop the engine.
. Close the cab door.
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 249
4. Lower the cab and push thehandle (2) down firmly to lock.
{Warning
To help avoid personal injury or
death, be sure the tilt cab is
securely locked in the lowered
position before operating the
vehicle.
You and others could be seriously
injured.
Engine Compartment
Overview
3.0L L4 Diesel Engine
5.2L L4 Diesel Engine
6.0L V8 Gasoline Engine

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 263
.Diesel Engine Dipstick H
(HOT) —Transmission fluid
temperature Approx. 70 -
80 °C (158 - 176 °F).
. For diesel engines, the “C
(COLD)” range on the
dipstick is a guide used by
your dealer for specialized
equipment used to replace
or service the automatic
transmission fluid. When
performing your own
inspections, always use the
“H (HOT)” range after
warming up the vehicle.
The fluid must be hot to
ensure an accurate check.
The fluid level rises as
temperature increases.
6. If the fluid level is too low, add the specified fluid through the
dipstick guide tube. Also, check
whether there are no fluid
leaks.
7. Insert the dipstick securely into position.{Warning
Be extremely careful not to burn
yourself when checking the oil
level if the engine temperature is
high. Protect yourself with
gloves etc.
You and others could be seriously
injured.
Discarded parts, oil, grease and
fluids could have an adverse effect
on the environment. It is difficult to
dispose of these, so have your
dealer handle all checks and
replacements.
Engine Air Cleaner/Filter
Air Cleaner
Use of clogged air cleaner element
not only causes a deterioration in
the engine output but also increased
fuel consumption and dark exhaust
smoke. Be sure to use a genuine air cleaner
element. If other air cleaner element
is used, it may cause the sensor to
output a wrong signal.
See
Maintenance Schedule 0345.
Air Cleaner Indicator Light
(Diesel Vehicles Only)
When the air cleaner indicator light
comes on, check the air cleaner
element. If the air cleaner element is
clogged, replace the air cleaner
element.
See Vehicle Messages (Diesel
Only) 097.
See Maintenance Schedule 0345.
Engine Coolant
Protection of Engine against
Overcooling
Overcooling of the engine not only
accelerates wear of the vital engine
parts but also hurts fuel economy.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
266 Vehicle Care
{Warning
For storage, close the cap of
coolant container securely and
keep it in a place inaccessible to
children.
You and others could be seriously
injured.
Using any coolant other than that
recommended by your dealer could
cause damage to the engine,
radiator or heater core. In particular,
use of coolants containing borate
salts or silicates may result in
engine or radiator corrosion,
causing engine coolant leaks and
other problems.
To dilute the coolant, use distilled
water or deionized water.
Do not use the coolant at any
coolant concentration other than
that specified. If the coolant
concentration is 60% or higher,
overheating is likely to occur, while
if it is 30% or lower, anti-corrosion
function is not provided sufficiently. Using coolant at any coolant
concentration other than that
specified may reduce anti-freezing
performance, and engine coolant
may freeze.
If the engine coolant decreases
rapidly, go immediately to the
nearest dealer for a check and
repair.
Checking the Engine Coolant
Level
For the single cab model, the
engine coolant reserve tank is
located behind the front-right wheel.
See
Cab Tilting 0247.
For the 3.0L diesel and the 6.0L
crew cab models, the engine
coolant reserve tank is under the
access panel beneath the left rear
seat. See Engine Cover 0250.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
268 Vehicle Care

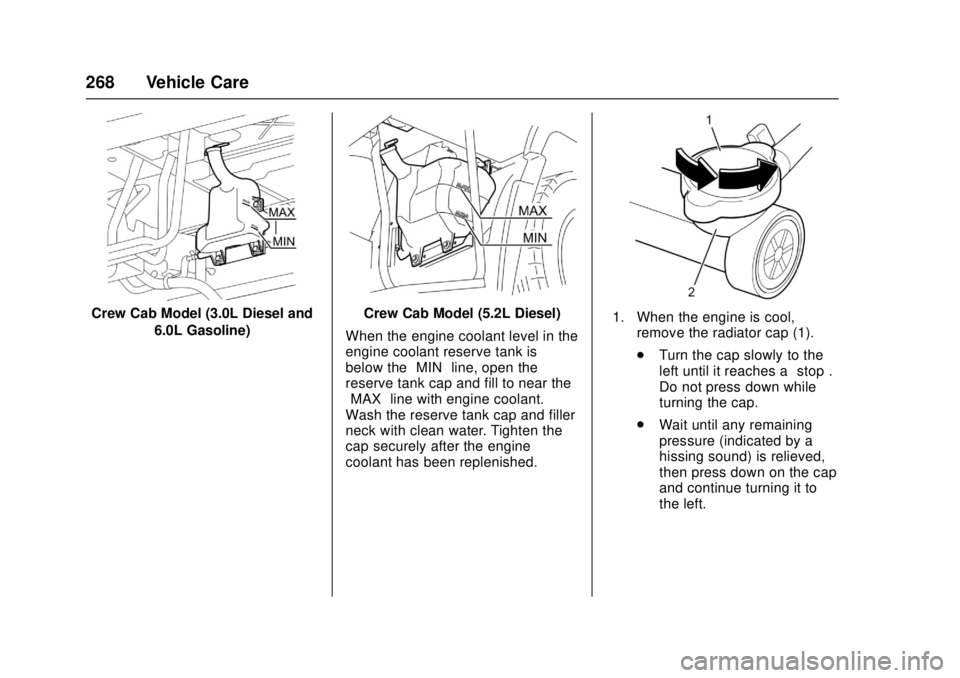

Crew Cab Model (3.0L Diesel and6.0L Gasoline)Crew Cab Model (5.2L Diesel)
When the engine coolant level in the
engine coolant reserve tank is
below the “MIN”line, open the
reserve tank cap and fill to near the
“MAX” line with engine coolant.
Wash the reserve tank cap and filler
neck with clean water. Tighten the
cap securely after the engine
coolant has been replenished.1. When the engine is cool, remove the radiator cap (1).
.Turn the cap slowly to the
left until it reaches a “stop”.
Do not press down while
turning the cap.
. Wait until any remaining
pressure (indicated by a
hissing sound) is relieved,
then press down on the cap
and continue turning it to
the left.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 273
Power Steering Fluid
The power steering fluid level must
be checked and it must be changed
according to the Maintenance
Schedule. SeeMaintenance
Schedule 0345.
When replenishing power steering
fluid or flushing the power steering
system, always use ATF
(Dexron
®-VI). Failure to use the
proper fluid may damage the power
steering system seals and hoses,
leading to fluid leakage.
Checking the Power Steering
Fluid Level
For the 3.0L diesel vehicles, the
fluid level is correct if it is between
the “MAX” and“MIN” lines on the
reserve tank. If the level is lower
that the “MIN”line, add fluid up to
the “MAX” line.
For the 5.2L diesel vehicles, the
fluid level is correct if it is between
the“MAX” and“MIN” lines on the
reserve tank. If the level is lower
that the “MIN”line, add fluid up to
the “MAX” line.
The reserve tank is located at the
rear of the engine compartment on
the right. When you have finished
checking the fluid level, securely
install the cap and cover.
For single cab gasoline vehicles, the
fluid level is correct if it is between
the "MAX" and "MIN" lines on the oil
dipstick. If the level is lower than the
"MIN" line, add fluid up to the
"MAX" line.
The reserve tank is located at the
front left side of the engine.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
274 Vehicle Care
For crew cab gasoline vehicles,
open inspection sub cover, by
pulling the lock lever (red) (1) on the
driver’s seat cushion (2) to unlock it,
raise the cushion and remove the
sub cover. See Engine Cover0250.
When you have finished checking
the fluid level, securely install
the cap.The fluid level is correct if it is
between the "MAX" and "MIN" lines
on the oil dipstick. If the level is
lower than the "MIN" line, add fluid
up to the "MAX" line.
{Warning
Before adding fluid, clean the
area around the cap and pour
fluid from a clean jug or filler.
Foreign matter getting in the tank
may cause power steering system
failure. (Continued)
Warning (Continued)
Do not mix the recommended
power steering fluid with fluids of
other brands. Due to chemical
reactions, any mixture of
differently branded fluids may
cause failure of the system.
You and others could be seriously
injured.
Washer Fluid
Windshield Washer Fluid
The windshield washer is equipped
on the windshield wiper arm.
Check the level of fluid in the
windshield washer fluid tank. In
addition, spray windshield washer
fluid and operate the windshield
wipers to check for any areas not
properly wiped. At this time, also
check the spraying condition of the
windshield washer.
Inspect the washer fluid level
regularly, especially during bad
weather conditions.
