2017 CHEVROLET EQUINOX coolant

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
Vehicle Care 217
Engine Overheating
The vehicle has an indicator to warn
of engine overheating. There is an
engine coolant temperature warning
light on the vehicle's instrument
panel. SeeEngine Coolant
Temperature Gauge 0103.
The decision may be made not to lift
the hood when this warning
appears, but instead get service
help right away. See Roadside
Assistance Program 0296.
If the decision to lift the hood is
made, make sure the vehicle is
parked on a level surface.
Then check to see if the engine
cooling fan(s) are running. If the
engine is overheating, the fan(s)
should be running. If they are not,
do not continue to run the engine
and have the vehicle serviced.
Caution
Running the engine without
coolant may cause damage or a
fire. Vehicle damage would not be
covered by the vehicle warranty.
If Steam is Coming from the
Engine Compartment
{Warning
Steam from an overheated engine
can burn you badly, even if you
just open the hood. Stay away
from the engine if you see or hear
steam coming from it. Just turn it
off and get everyone away from
the vehicle until it cools down.
Wait until there is no sign of
steam or coolant before you open
the hood.
If you keep driving when the
engine is overheated, the liquids
in it can catch fire. You or others
could be badly burned. Stop the
engine if it overheats, and get out
of the vehicle until the engine
is cool.
If No Steam is Coming from
the Engine Compartment
If an engine overheat warning is
displayed but no steam can be seen
or heard, the problem may not be
too serious. Sometimes the engine
can get a little too hot when the
vehicle:
. Climbs a long hill on a hot day.
. Stops after high-speed driving.
. Idles for long periods in traffic.
. Tows a trailer.
If the overheat warning is displayed
with no sign of steam: 1. Turn the air conditioning off.
2. Turn the heater on to the highest temperature and to the
highest fan speed. Open the
windows as necessary.
3. When it is safe to do so, pull off the road, shift to P (Park) or
N (Neutral) and let the
engine idle.
If the temperature overheat gauge is
no longer in the overheat zone or an
overheat warning no longer

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
Vehicle Care 219
Caution
Use of the incorrect fluid may
damage the vehicle and the
damages may not be covered by
the vehicle warranty. Always use
the correct fluid listed in
Recommended Fluids and
Lubricants0285.
Washer Fluid
What to Use
When windshield washer fluid is
needed, be sure to read the
manufacturer's instructions before
use. If operating the vehicle in an
area where the temperature may fall
below freezing, use a fluid that has
sufficient protection against
freezing.
Adding Washer Fluid
Open the cap with the washer
symbol on it. Add washer fluid until
the tank is full. See Engine
Compartment Overview 0204 for
reservoir location.
Caution
. Do not use washer fluid that
contains any type of water
repellent coating. This can
cause the wiper blades to
chatter or skip.
. Do not use engine coolant
(antifreeze) in the
windshield washer. It can
damage the windshield
washer system and paint.
(Continued)
Caution (Continued)
.Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
. When using concentrated
washer fluid, follow the
manufacturer instructions for
adding water.
. Fill the washer fluid tank
only three-quarters full when
it is very cold. This allows
for fluid expansion if
freezing occurs, which could
damage the tank if it is
completely full.
Brakes
Disc brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or can

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
238 Vehicle Care

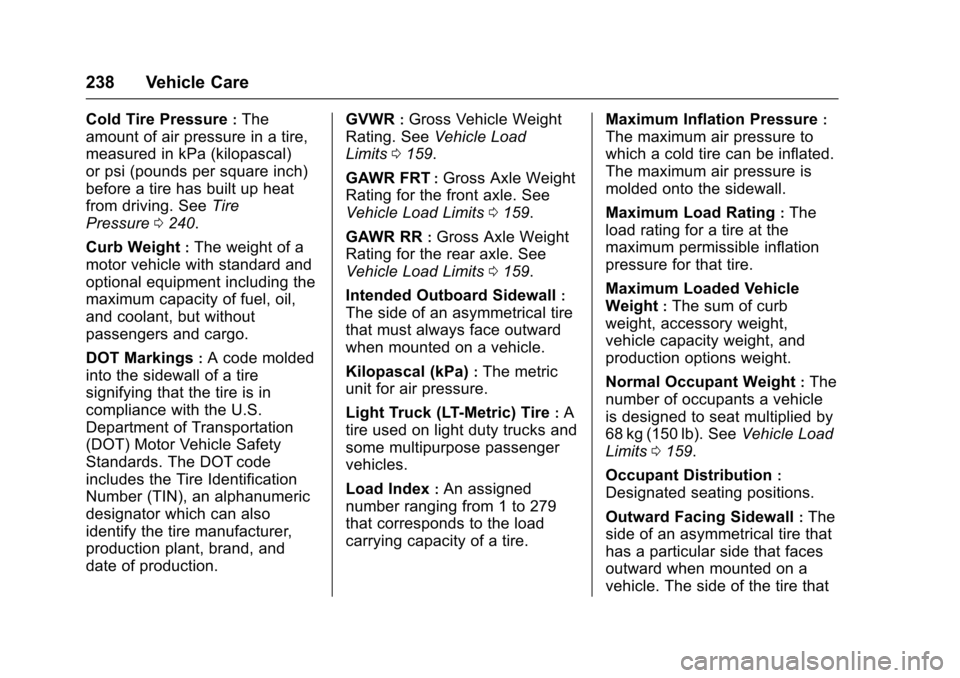

Cold Tire Pressure:The
amount of air pressure in a tire,
measured in kPa (kilopascal)
or psi (pounds per square inch)
before a tire has built up heat
from driving. See Tire
Pressure 0240.
Curb Weight
:The weight of a
motor vehicle with standard and
optional equipment including the
maximum capacity of fuel, oil,
and coolant, but without
passengers and cargo.
DOT Markings
:A code molded
into the sidewall of a tire
signifying that the tire is in
compliance with the U.S.
Department of Transportation
(DOT) Motor Vehicle Safety
Standards. The DOT code
includes the Tire Identification
Number (TIN), an alphanumeric
designator which can also
identify the tire manufacturer,
production plant, brand, and
date of production. GVWR
:Gross Vehicle Weight
Rating. See Vehicle Load
Limits 0159.
GAWR FRT
:Gross Axle Weight
Rating for the front axle. See
Vehicle Load Limits 0159.
GAWR RR
:Gross Axle Weight
Rating for the rear axle. See
Vehicle Load Limits 0159.
Intended Outboard Sidewall
:
The side of an asymmetrical tire
that must always face outward
when mounted on a vehicle.
Kilopascal (kPa)
:The metric
unit for air pressure.
Light Truck (LT-Metric) Tire
:A
tire used on light duty trucks and
some multipurpose passenger
vehicles.
Load Index
:An assigned
number ranging from 1 to 279
that corresponds to the load
carrying capacity of a tire. Maximum Inflation Pressure
:
The maximum air pressure to
which a cold tire can be inflated.
The maximum air pressure is
molded onto the sidewall.
Maximum Load Rating
:The
load rating for a tire at the
maximum permissible inflation
pressure for that tire.
Maximum Loaded Vehicle
Weight
:The sum of curb
weight, accessory weight,
vehicle capacity weight, and
production options weight.
Normal Occupant Weight
:The
number of occupants a vehicle
is designed to seat multiplied by
68 kg (150 lb). See Vehicle Load
Limits 0159.
Occupant Distribution
:
Designated seating positions.
Outward Facing Sidewall
:The
side of an asymmetrical tire that
has a particular side that faces
outward when mounted on a
vehicle. The side of the tire that

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
Service and Maintenance 277
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the
engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and
filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
SeeEngine Oil Life System 0210.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0245.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system. See Engine
Oil 0207 andEngine Oil Life
System 0210.
. Check engine coolant level. See
Engine Coolant 0213.
. Check windshield washer fluid
level. See Washer Fluid 0219. .
Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0266. Replace worn or
damaged wiper blades.
See Wiper Blade
Replacement 0223.
. Check tire inflation pressures.
See Tire Pressure 0240.
. Inspect tire wear. See Tire
Inspection 0245.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/
Filter 0211.
. Inspect brake system. See
Exterior Care 0266.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
Service and Maintenance 285
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity
grade. ACDelco dexos1 Synthetic Blend is recommended. See Engine
Oil 0207.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant.
See Engine Coolant 0213.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818, in Canada 19299819).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Hydraulic Power Steering System (V6 engines only) DEXRON
®-VI Automatic Transmission Fluid.
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Transfer Case (All-Wheel Drive) Transfer Case Fluid (GM Part No. 88900401, in Canada 89021678).
Power Liftgate Actuator Ball Joint, Hood Latch Assembly, Secondary
Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in
Canada 89021674) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
318 Index
Compass . . . . . . . . . . . . . . . . . . . . . . . . 98Messages . . . . . . . . . . . . . . . . . . . . .117
Connections OnStar
®. . . . . . . . . . . . . . . . . . . . . . 308
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 175
Control of a Vehicle . . . . . . . . . . . . . 149
Convenience Net . . . . . . . . . . . . . . . . 93
Convex Mirrors . . . . . . . . . . . . . . . . . . 38
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . 213
Engine Temperature Gauge . . 103
Cooling System . . . . . . . . . . . . . . . . . 212 Engine Messages . . . . . . . . . . . . .118
Courtesy Transportation
Program . . . . . . . . . . . . . . . . . . . . . . . 298
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Engine . . . . . . . . . . . . . . . . . . . . . . . . 207
Cruise Control . . . . . . . . . . . . . . . . . . 177
Light . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Messages . . . . . . . . . . . . . . . . . . . . .117
Cupholders . . . . . . . . . . . . . . . . . . . . . . 91
Customer Assistance . . . . . . . . . . . 295 Offices . . . . . . . . . . . . . . . . . . . . . . . . 294
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 295 Customer Information
Service Publications
Ordering Information . . . . . . . . 301
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 292
D
Damage Repair, Collision . . . . . . . 299
Danger, Warning, and Caution . . . . 3
Data CollectionInfotainment System . . . . . . . . . . 305
OnStar . . . . . . . . . . . . . . . . . . . . . . . 305
Data Recorders, Event . . . . . . . . . 304
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 134
Defensive Driving . . . . . . . . . . . . . . . 148
Delayed Locking . . . . . . . . . . . . . . . . . 31
Diagnostics OnStar
®. . . . . . . . . . . . . . . . . . . . . . 310
Distracted Driving . . . . . . . . . . . . . . . 148
Dome Lamps . . . . . . . . . . . . . . . . . . . 136
Door Ajar Messages . . . . . . . . . . . . . . . .117
Delayed Locking . . . . . . . . . . . . . . . . 31
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Power Locks . . . . . . . . . . . . . . . . . . . . 31
Drive Belt Routing, Engine . . . . . . 291
Drive Systems All-Wheel Drive . . . . . . . . . . 173, 222 Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . 113
Driving Characteristics andTowing Tips . . . . . . . . . . . . . . . . . 193
Defensive . . . . . . . . . . . . . . . . . . . . . 148
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 148
For Better Fuel Economy . . . . . . . 23
Hill and Mountain Roads . . . . . . 156
If the Vehicle is Stuck . . . . . . . . . 158
Loss of Control . . . . . . . . . . . . . . . 151
Off-Road . . . . . . . . . . . . . . . . . . . . . 151
Off-Road Recovery . . . . . . . . . . . 150
Vehicle Load Limits . . . . . . . . . . . 159
Wet Roads . . . . . . . . . . . . . . . . . . . 155
Winter . . . . . . . . . . . . . . . . . . . . . . . . 157
E
E85 or FlexFuel . . . . . . . . . . . . . . . . 190
ECO Button . . . . . . . . . . . . . . . . . . . . 172
Economy Mode Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Electrical Equipment, Add-On . . . . . . . . . . . . . . . . . . . . . . . 199
Electrical System Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 228
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 227

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
Index 319
Electrical System (cont'd)Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 231
Emergency
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 307
Engine Air Cleaner/Filter . . . . . . . . . . . . . .211
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 106
Compartment Overview . . . . . . . 204
Coolant . . . . . . . . . . . . . . . . . . . . . . . 213
Coolant Heater . . . . . . . . . . . . . . . 166
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 103
Cooling System . . . . . . . . . . . . . . . 212
Cooling System Messages . . . .118
Cover . . . . . . . . . . . . . . . . . . . . . . . . . 207
Drive Belt Routing . . . . . . . . . . . . 291
Exhaust . . . . . . . . . . . . . . . . . . . . . . 169
Oil Life System . . . . . . . . . . . . . . . 210
Oil Messages . . . . . . . . . . . . . . . . . .118
Oil Pressure Light . . . . . . . . . . . . . 111
Overheating . . . . . . . . . . . . . . . . . . 217
Power Messages . . . . . . . . . . . . . .119
Running While Parked . . . . . . . . 170
Starting . . . . . . . . . . . . . . . . . . . . . . . 165
Entry Lighting . . . . . . . . . . . . . . . . . . . 137
Equipment, Towing . . . . . . . . . . . . . 198 Event Data Recorders . . . . . . . . . . 304
Exit Lighting . . . . . . . . . . . . . . . . . . . . 137
Extender, Safety Belt . . . . . . . . . . . . 59
Exterior Lamp Controls . . . . . . . . . 133
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 138
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . .211
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 133
Flashers, Hazard Warning . . . . . . 135
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 251 Changing . . . . . . . . . . . . . . . . . . . . . 253
FlexFuel
E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 274
Fluid Automatic Transmission . . . . . . .211
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 220
Power Steering . . . . . . . . . . . . . . . 218
Washer . . . . . . . . . . . . . . . . . . . . . . . 219
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 135 Bulb Replacement . . . . . . . . . . . . 225
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 183 Forward Collision Alert
(FCA) Warning Light . . . . . . . . . . 109
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 302
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 46
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 51
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Additives . . . . . . . . . . . . . . . . . . . . . 190
Economy Driving . . . . . . . . . . . . . . . 23
Economy Light . . . . . . . . . . . . . . . . 111
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 192
Filling the Tank . . . . . . . . . . . . . . . 191
Foreign Countries . . . . . . . . . . . . 190
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 102
Low Fuel Warning Light . . . . . . . .112
Requirements, California . . . . . 189
System Messages . . . . . . . . . . . . .119
Fuel Economy Mode . . . . . . . . . . . . 172
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 227 Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 228
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 231

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9918169) - 2017 - CRC - 3/23/16
320 Index
G
Garage Door Opener . . . . . . . . . . . 130Programming . . . . . . . . . . . . . . . . . 130
Gauges Engine Coolant
Temperature . . . . . . . . . . . . . . . . 103
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Odometer . . . . . . . . . . . . . . . . . . . . . 102
Speedometer . . . . . . . . . . . . . . . . . 102
Tachometer . . . . . . . . . . . . . . . . . . . 102
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 100
General Information Service and Maintenance . . . . . 275
Towing . . . . . . . . . . . . . . . . . . . . . . . . 193
Vehicle Care . . . . . . . . . . . . . . . . . . 201
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 91
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 296
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 225
Hazard Warning Flashers . . . . . . . 135
Head Restraints . . . . . . . . . . . . . . . . . 45
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 225
Automatic . . . . . . . . . . . . . . . . . . . . . 134
Bulb Replacement . . . . . . . . . . . . 225 Headlamps (cont'd)
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 134
Flash-to-Pass . . . . . . . . . . . . . . . . . 133
High-Beam On Light . . . . . . . . . . .112
High/Low Beam Changer . . . . . 133
Lamps On Reminder . . . . . . . . . .113
Heated Front Seats . . . . . . . . . . . . . . 51
Heated Mirrors . . . . . . . . . . . . . . . . . . . 39
Heater Engine Coolant . . . . . . . . . . . . . . . 166
Heating and Air Conditioning . . . . . . . . . . . . . . 140, 142
High-Beam On Light . . . . . . . . . . . . 112
Hill and Mountain Roads . . . . . . . . 156
Hill Start Assist (HSA) . . . . . . . . . . 175
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
How to Wear Safety Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 54I
Ignition Positions . . . . . . . . . . . . . . . 163
Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . . . 223
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 37
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 109 Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 74
Infotainment . . . . . . . . . . . . . . . . . . . . 139
Infotainment System . . . . . . . . . . . . 305
Instrument Cluster . . . . . . . . . . . . . . 101
Interior Rearview Mirrors . . . . . . . . . 40
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 260
K
Key and Lock Messages . . . . . . . . 119
Keyless EntryRemote (RKE) System . . . . . . . . . 26
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
L
Labeling, Tire Sidewall . . . . . . . . . . 234
Lamps
Daytime Running (DRL) . . . . . . 134
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 136
Exterior Controls . . . . . . . . . . . . . . 133
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 138
License Plate . . . . . . . . . . . . . . . . . 226
Malfunction Indicator . . . . . . . . . 106
On Reminder . . . . . . . . . . . . . . . . . .113
