Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16

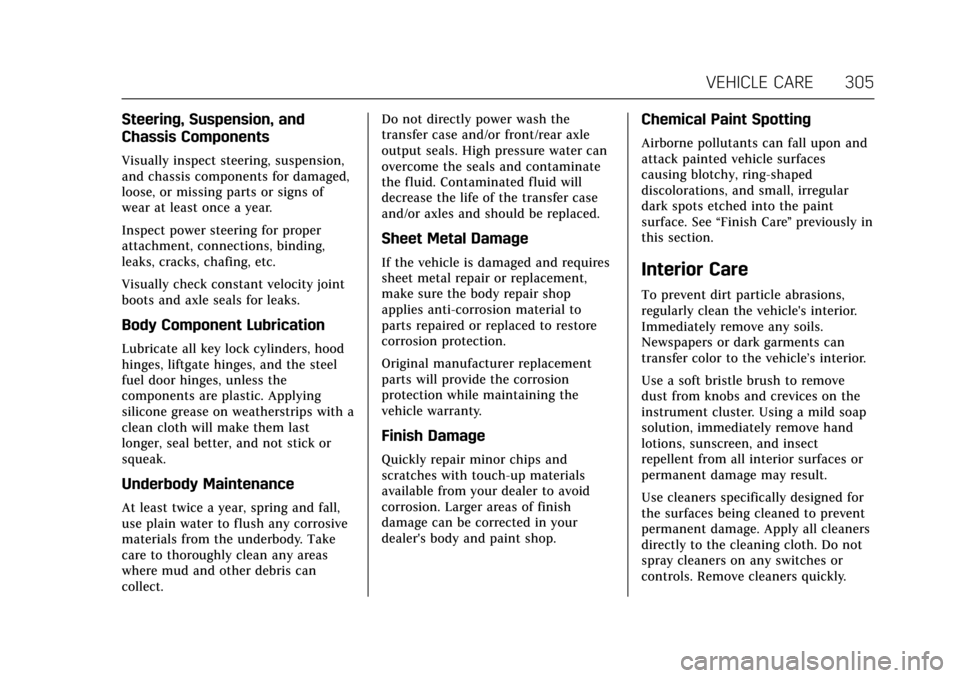

VEHICLE CARE 305
Steering, Suspension, and
Chassis Components
Visually inspect steering, suspension,
and chassis components for damaged,
loose, or missing parts or signs of
wear at least once a year.
Inspect power steering for proper
attachment, connections, binding,
leaks, cracks, chafing, etc.
Visually check constant velocity joint
boots and axle seals for leaks.
Body Component Lubrication
Lubricate all key lock cylinders, hood
hinges, liftgate hinges, and the steel
fuel door hinges, unless the
components are plastic. Applying
silicone grease on weatherstrips with a
clean cloth will make them last
longer, seal better, and not stick or
squeak.
Underbody Maintenance
At least twice a year, spring and fall,
use plain water to flush any corrosive
materials from the underbody. Take
care to thoroughly clean any areas
where mud and other debris can
collect.Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate
the fluid. Contaminated fluid will
decrease the life of the transfer case
and/or axles and should be replaced.
Sheet Metal Damage
If the vehicle is damaged and requires
sheet metal repair or replacement,
make sure the body repair shop
applies anti-corrosion material to
parts repaired or replaced to restore
corrosion protection.
Original manufacturer replacement
parts will provide the corrosion
protection while maintaining the
vehicle warranty.
Finish Damage
Quickly repair minor chips and
scratches with touch-up materials
available from your dealer to avoid
corrosion. Larger areas of finish
damage can be corrected in your
dealer's body and paint shop.
Chemical Paint Spotting
Airborne pollutants can fall upon and
attack painted vehicle surfaces
causing blotchy, ring-shaped
discolorations, and small, irregular
dark spots etched into the paint
surface. See
“Finish Care”previously in
this section.
Interior Care
To prevent dirt particle abrasions,
regularly clean the vehicle's interior.
Immediately remove any soils.
Newspapers or dark garments can
transfer color to the vehicle’s interior.
Use a soft bristle brush to remove
dust from knobs and crevices on the
instrument cluster. Using a mild soap
solution, immediately remove hand
lotions, sunscreen, and insect
repellent from all interior surfaces or
permanent damage may result.
Use cleaners specifically designed for
the surfaces being cleaned to prevent
permanent damage. Apply all cleaners
directly to the cleaning cloth. Do not
spray cleaners on any switches or
controls. Remove cleaners quickly.
Page 319 of 337
Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
318 SERVICE AND MAINTENANCE
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Automatic Transmission DEXRON
®-HP Automatic Transmission Fluid (GM Part No. 19331925).
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®Coolant. See
Engine Coolant 0256.
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity grade.
ACDelco dexos1 Synthetic Blend is recommended. See Engine Oil0250.
Hood Latch Assembly, Secondary Latch,
Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668) or lubricant meeting
requirements of NLGI #2, Category LB or GC-LB.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818).
Key Lock Cylinders, Hood, and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241).
Rear Axle (Non-Limited Slip Differential) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88863089).
Transfer Case (All-Wheel Drive) Transfer Case Fluid (GM Part No. 19331044). Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770) or Dielectric Silicone Grease (GM Part No. 12345579).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.
Page 332 of 337
Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
INDEX 331
Heated and Ventilated RearSeats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 46
Heating . . . . . . . . . . . . . . . . . . . . . . . . .171, 178
High-Beam On Light . . . . . . . . . . . . . . . . 134
High-Speed Operation . . . . . . . . . . . . . . 280
Hill and Mountain Roads . . . . . . . . . . 188
Hill Start Assist (HSA) . . . . . . . . . . . . . 207
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . .171, 178
I
Ignition Positions . . . . . . . . . . . . . . . . . . . 195
Indicator Pedestrian Ahead . . . . . . . . . . . . . . . . . 131
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . 131
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . 170
Instrument Cluster . . . . . . . . . . . .115, 118
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . . . . 103
Instrument Panel Overview . . . . . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . . . 47
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . 296
K
Key and Lock Messages . . . . . . . . . . . . 145
Keyless Entry
Remote (RKE) System . . . . . . . . . . . . . . 29
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
L
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Daytime Running (DRL) . . . . . . . . . . 165
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Exterior Controls . . . . . . . . . . . . . . . . . . 163
Exterior Lamps Off Reminder . . . . 164
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
License Plate . . . . . . . . . . . . . . . . . . . . . . 267
Malfunction Indicator . . . . . . . . . . . . 127
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 145
On Reminder . . . . . . . . . . . . . . . . . . . . . . 135
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Lane Change Alert (LCA) . . . . . . . . . . . 236
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . . . . 238
Lane Keep Assist (LKA) . . . . . . . . . . . . 238
Lane Keep Assist Light . . . . . . . . . . . . . 131
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . 69 LATCH System
Replacing Parts after a Crash . . . . . . 97
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . 91
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . 267
Light, Auto Stop Mode . . . . . . . . . . . . . 134
Lighter, Cigarette . . . . . . . . . . . . . . . . . . . 114
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Illumination Control . . . . . . . . . . . . . . 167
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 Airbag Readiness . . . . . . . . . . . . . . . . . 126
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . 130
Brake System Warning . . . . . . . . . . . 129
Charging System . . . . . . . . . . . . . . . . . . 127
Cruise Control . . . . . . . . . . . . . . . . . . . . . 135
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Electric Parking Brake . . . . . . . . . . . . 130
Engine Coolant Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . . . 132
Engine Oil Pressure . . . . . . . . . . . . . . . 133
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 165
High-Beam On . . . . . . . . . . . . . . . . . . . . 134
High/Low Beam Changer . . . . . . . . . 164
Low Fuel Warning . . . . . . . . . . . . . . . . 134
Page 333 of 337
Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
332 INDEX
Lights (cont'd)Safety Belt Reminders . . . . . . . . . . . . 125
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Service Electric Parking Brake . . . 130
StabiliTrak
®OFF . . . . . . . . . . . . . . . . . . 132
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 133
Traction Control System (TCS)/StabiliTrak
®. . . . . . . . . . . . . . 132
Traction Off . . . . . . . . . . . . . . . . . . . . . . . 131
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . 38
Delayed Locking . . . . . . . . . . . . . . . . . . . . 37
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lockout Protection . . . . . . . . . . . . . . . . . 38
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Loss of Control . . . . . . . . . . . . . . . . . . . . . . 187
Low Fuel Warning Light . . . . . . . . . . . 134
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . 278
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . 91
Lumbar Adjustment . . . . . . . . . . . . . 58, 65 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
M
Maintenance
Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Maintenance Schedule . . . . . . . . . . . . . 311 Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . 318
Malfunction Indicator Lamp . . . . . . . 127
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . 203
Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Memory Features . . . . . . . . . . . . . . . . . . . . 12
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . 61
Messages Airbag System . . . . . . . . . . . . . . . . . . . . . 149
Battery Voltage and Charging . . . . 141
Brake System . . . . . . . . . . . . . . . . . . . . . . 142
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Engine Cooling System . . . . . . . . . . . 143
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 144
Engine Power . . . . . . . . . . . . . . . . . . . . . 144
Fuel System . . . . . . . . . . . . . . . . . . . . . . . 145
Key and Lock . . . . . . . . . . . . . . . . . . . . . . 145
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Object Detection System . . . . . . . . . 145
Ride Control System . . . . . . . . . . . . . . 148
Safety Belt . . . . . . . . . . . . . . . . . . . . . . . . . 149
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Service Vehicle . . . . . . . . . . . . . . . . . . . . 149
Starting the Vehicle . . . . . . . . . . . . . . 150 Messages (cont'd)
Steering System . . . . . . . . . . . . . . . . . . . 149
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Transmission . . . . . . . . . . . . . . . . . . . . . . 151
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Vehicle Reminder . . . . . . . . . . . . . . . . . 151
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . 151
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . 151
Window . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . 47
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . 46
Automatic Dimming Rearview . . . . . 47
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . 46
Mirrors, Interior Rearview . . . . . . . . . . . 47
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209 Driver Control . . . . . . . . . . . . . . . . . . . . . 209
Monitor System, Tire Pressure . . . . . 280
N
Net, Convenience . . . . . . . . . . . . . . . . . . . 105
New Vehicle Break-In . . . . . . . . . . . . . . . 194
Night Vision System . . . . . . . . . . . . . . . . 234
Page 334 of 337
Cadillac CT6 Owner Manual (GMNA-Localizing-MidEast-10293390) - 2017 -
CRC - 6/21/16
INDEX 333
O
Object Detection SystemMessages . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Engine Oil Life System . . . . . . . . . . . 252
Engine Oil Pressure Gauge . . . . . . . 123
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Pressure Light . . . . . . . . . . . . . . . . . . . . . 133
Older Children, Restraints . . . . . . . . . . . 85
Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Overheating, Engine . . . . . . . . . . . . . . . . 259
P
Park Shifting Into . . . . . . . . . . . . . . . . . . . . . . 198
Shifting Out of . . . . . . . . . . . . . . . . . . . . 199
Parking Brake and P (Park)
Mechanism Check . . . . . . . . . . . . . . . 265
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Over Things That Burn . . . . . . . . . . . 200
Parking Assist . . . . . . . . . . . . . . . . . . . . . . . 222 Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . 222
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Passenger Sensing System . . . . . . . . . . 79
Pedestrian Ahead Indicator . . . . . . . . 131
Personalization
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Power
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Protection, Battery . . . . . . . . . . . . . . . . 169
Retained Accessory (RAP) . . . . . . . . 198
Seat Adjustment . . . . . . . . . . . . . . . . . . . . 58
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Pregnancy, Using Safety Belts . . . . . . 72
Privacy Vehicle Data Recording . . . . . . . . . . 325
R
Reading Lamps . . . . . . . . . . . . . . . . . . . . . 167
Rear Camera Mirror . . . . . . . . . . . . . . . . . 47
Rear Seat Pass-Through Door . . . . . . . 67
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Heated and Ventilated . . . . . . . . . . . . . 66
Rear Storage . . . . . . . . . . . . . . . . . . . . . . . . 104 Rear Vision Camera (RVC) . . . . . . . . . 222
Rear Window Sunshade . . . . . . . . . . . . . 51
Rearview Mirrors
Automatic Dimming . . . . . . . . . . . . . . . . 47
Reclining Seatbacks . . . . . . . . . . . . . . . . . 60
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . 318
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . 320
Recreational Vehicle Towing . . . . . . . 299
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Remote Vehicle Start . . . . . . . . . . . . . . . . 34
Replacement Bulbs . . . . . . . . . . . . . . . . . 267
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Maintenance . . . . . . . . . . . . . . . . . . . . . . 319
Replacing Airbag System . . . . . . . . . . . . 85
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . . 97
Replacing Safety Belt System
Parts after a Crash . . . . . . . . . . . . . . . . . 73
Restraints Where to Put . . . . . . . . . . . . . . . . . . . . . . . . 90
Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . . . . . . . 198
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . 46
