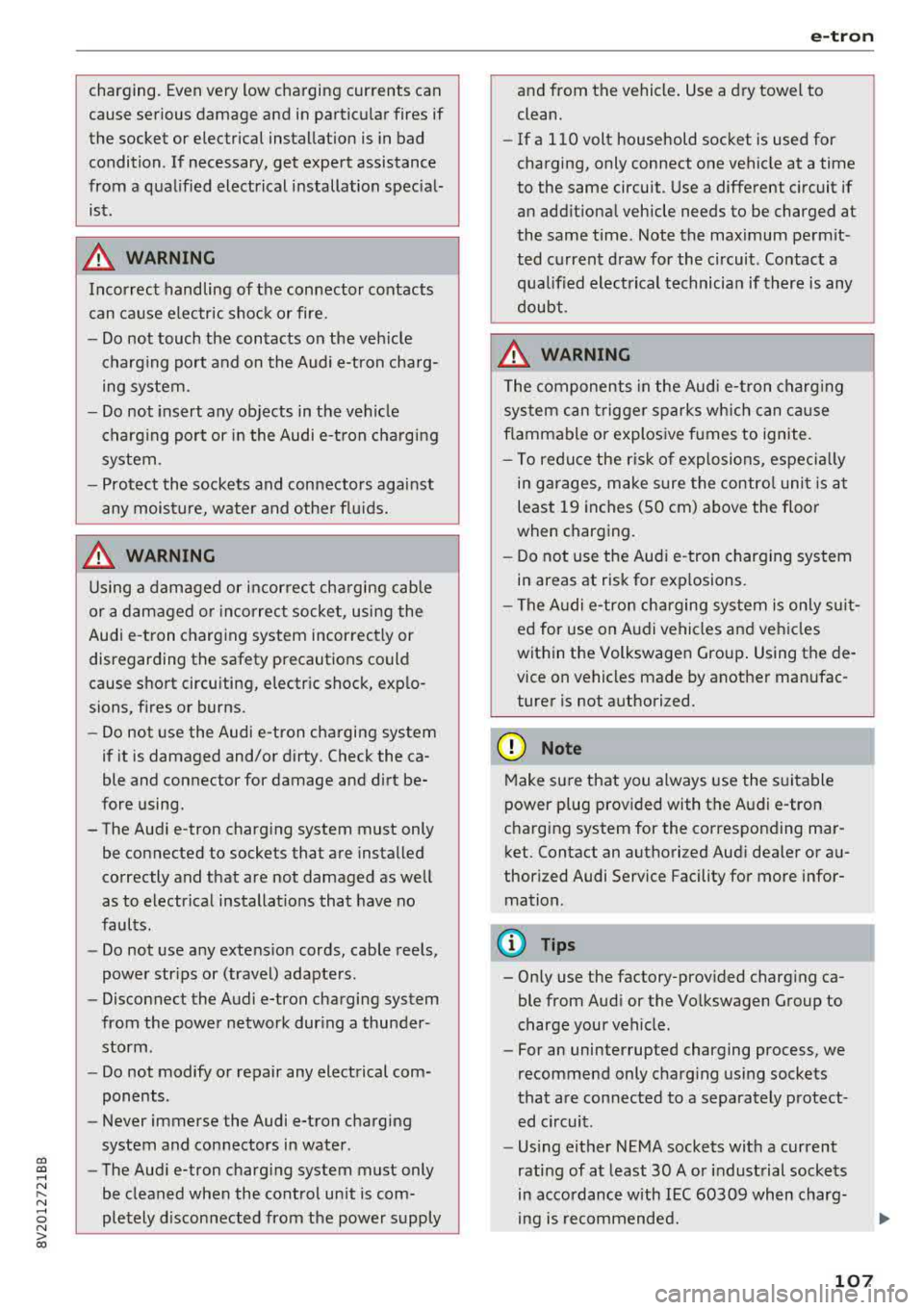

charging. Even very low charging currents can
cause serious damage and in partic ular fires if
the socket or e lectrical installation is in bad
condition . If necessary, get expert assistance
from a qual ified electrical installation spec ial­
ist .
A WARNING
Incorrect handling of the connector contacts
can cause e lectric shock or fire.
- Do not touch the contacts on the veh icle
charg ing port and on the Audi e-tron cha rg­
ing system .
- Do not insert any objects in the vehicle
charg ing port or i n the Audi e-t ron charging
system.
- Protect the sockets and connectors against
any moisture, water and other flu ids.
A WARNING
Using a damaged or incorrect cha rging cable
or a damaged or incorrect socket, using the
Audi e -tron charging system incorrectly or
disregarding the safety precautions could
cause short circuiting, electric shock, explo­
sions, fires or burns.
- Do not use the Audi e-tron charging system
if it is damaged and/or dirty . Check the ca­
ble and connector for damage and dirt be­
fore using.
- The Audi e-tron charging system must only be connected to sockets that are installed
correctly and that are not damaged as well
as to electr ical installat ions that have no
faults.
- Do not use any extens ion cords, cable reels,
power str ips or (travel) adapters .
- Disconnect the Audi e-tron charging system
from the power network dur ing a thunder ­
storm .
- Do not modify or repair any electrical com­
ponents .
- Never immerse the Audi e-tron charging
system and connectors in water .
- The Audi e-tron charg ing system must only
be cleaned when the control unit is com­
pletely d isconnected from the power supply
e-tron
and from the vehicle . Use a dry towel to
clean.
- If a 110 volt household socket is used for
charging, only connect one vehicle at a time
to the same circuit . Use a different c ircuit if
an add it ional vehicle needs to be charged at
the same time. Note the maximum perm it ­
ted c urrent draw for the c ircuit . Contact a
qualified electrical technicia n if there is any
doubt .
A WARNING
The components in the Audi e-tron charg ing
system can trigger sparks which can ca use
f lammable or explosive fumes to ignite.
- To reduce the r isk of exp losions, espec ia lly
in garages, make sure the contro l uni t is a t
least 19 inches (50 cm) above the floor
when charging.
- Do not use the Audi e-tron charging system
in areas at risk for exp losions .
- The A udi e -tron charging system is only suit­
ed for use on A udi vehicles and veh icles
within the Volkswagen Group . Using the de ·
vice on vehicles made by another manufac­
turer is not authori zed.
(D Note
Make su re that you a lways use the suitable
power plug provided with the Audi e-tron
charging system for the corresponding mar­ ket . Contact an authori zed Aud i dealer or au­
thorized Audi Service Facility for more infor­ mation .
(D Tips
- Only use the factory-prov ided charg ing ca­
ble from Aud i or the Vo lkswagen Group to
charge your vehicle.
- For an uninterrupted charging process, we
recommend only charg ing using sockets
that are connected to a separately protect­
ed circuit .
- Us ing either NEMA sockets with a current
rating of at least 30 A or industrial sockets
in accordance w ith IEC 60309 when charg­
ing is recommended.
107

Checking and Filling
Fueling
Fig . 265 -Applies to: veh icles wi tho ut p lug -in hybrid dr ive­
ri ght rea r side of t he veh icle: ope nin g the fuel filter door
Fig. 266 Fue l fi ll er doo r w it h attached fuel cap
Plug-in hybrid drive* : Please a lso read the infor­
matio n under
¢page 105, Refueling.
The fuel filler door is unlocked or locked by the
central locking system.
Op en ing th e fuel cap
"' Applies to : vehicles with p lug-in hybri d drive :
Also read the information found
in c> page 105,
Opening the fuel filler door .
"'Applies to : vehicles wi tho ut plug-in hybrid
dr ive: Press the left side of the fuel filler door
to open it-arrow-
¢ fig . 265.
"' Unscrew the tank cap counterclockw ise.
"' Place the cap from above on the open fue l filler
door ¢ fig. 266.
Closing th e fu el cap
"' Turn the fuel cap clockwise until you hear it
lock.
"' Close the fuel fille r door unt il it l atches.
Once the pump nozzle sw itches off, the fuel tank
is
" full" . Do not fi ll the tank more . Otherw ise the
expansion space in the tank will be f illed.
314
The correct fuel type for your vehicle can be
found on a label located on the inside of the fuel
filler door. For additional informat ion on fuel,
see
¢ page 312.
The fuel tank capacity of your ve hicle is listed in
the
T echn ical Dat a section ¢ page 375.
To avoid fuel spilling or evaporat ing from the fuel
tank always close fue l fi ller cap properly and
completely . An improperly closed fuel fi ller cap
may also cause the MIL
l amp ¢ page 23 to come
on .
_& WARNING
Not pay ing attention when fueling or han­
dling fuel incorrectly can lead to fires, explo­
sions or serious injur ies.
-Fue l ignites easily and can cause serious
burns and other injur ies.
-
-If you do not switch the engine off when fu­
eling and/or do not insert the fuel nozzle
completely into the tank open ing, fuel can
leak out or run over . Leaked fuel ca n ign ite
and start a fire.
-Do not use the telephone while f ueling. The
elec tromagnetic rays ca n cause sparks,
which can ignite fue l vapors and start a fire.
- Do not sit in your vehicle wh ile fue ling. If
you must make an exception and ente r your
veh icle agai n while fueling, close the door
an d touch me tal to d ischarge stat ic elect ric­
ity before to uching the f uel nozz le . Static
electricity can create spa rks, which can ig ­
nite vapors when fueling.
-Do not smoke or have an open flame in the
area when fueling your vehicle or fi lling a
fue l container because this increases the
risk of an explosion.
-For your safety, carrying fuel containers in
your vehicle is not recommended. W hether
fu ll or empty, the container can leak and
cause a fire in the event of an acc ident.
- If you must make an exception and trans- port a fuel container, note the fo llow ing:
- Never fill the fuel container with fuel
while i t is in o r on the vehicle. Static e lec­
tricity is discharged whe n filling w hich can
.,._

a, a, ..... N
" N ..... 0 N > 00

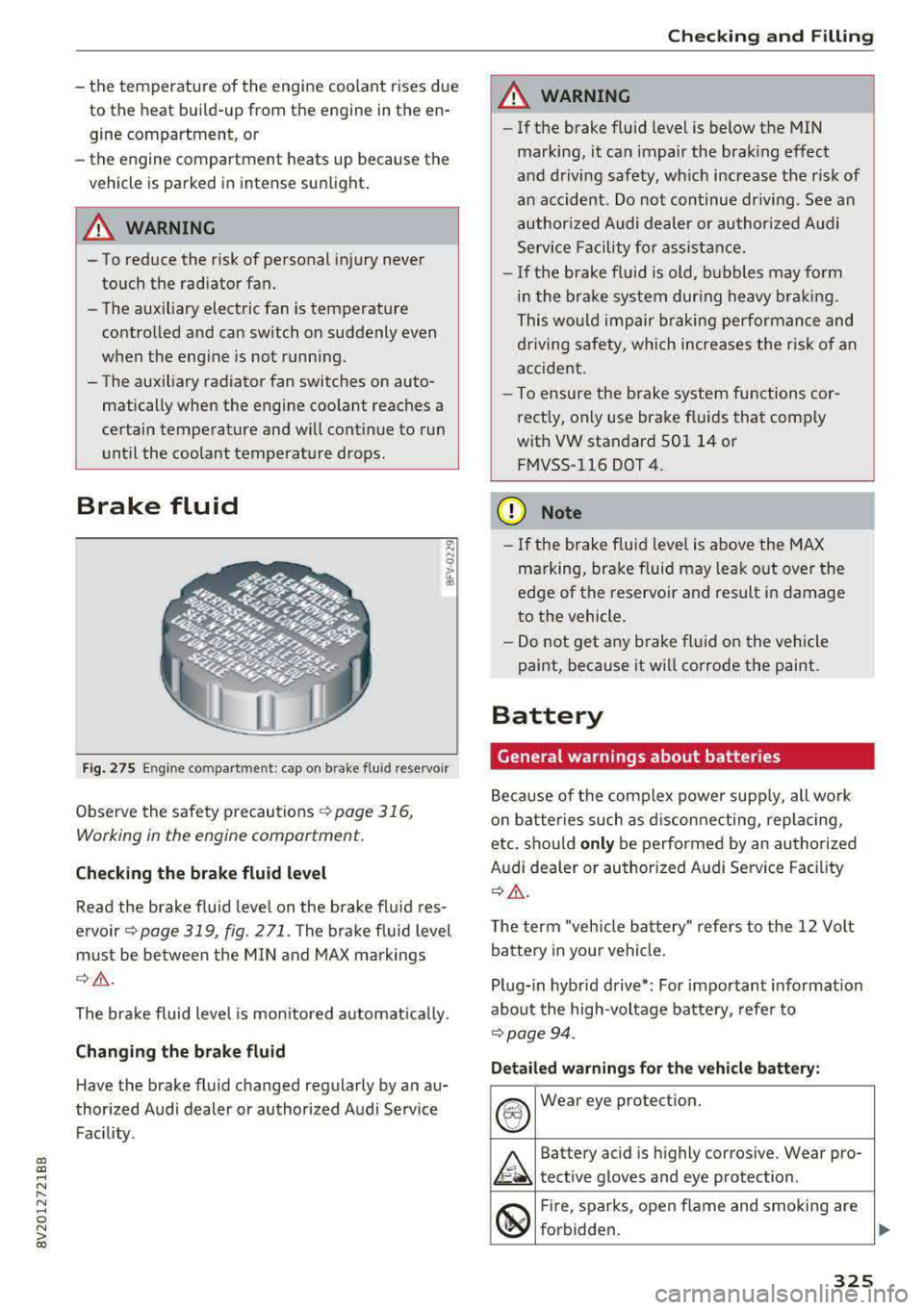

- the temperature of the engine coolant r ises due
to the heat bui ld-up from the engine in the en­
gine compartment , or
- the engine compartment heats up because the
vehicle is parked in intense su nlight .
_& WARNING
- To reduce the risk of personal injury never
touch the radiator fan .
- The auxiliary elect ric fan is temperature
contro lled and can switch on suddenly even
w hen the eng ine is not running.
- The auxiliary radiator fan switches on auto­ matically when the engine coo lant reaches a
certain temperature and will cont inue to run
until the coolant temperat ure drops.
Brake fluid
Fi g. 27 5 Engine co mpartment: cap on b rake f lu id reservoir
Observe the safety p recau tions ¢ page 316,
Working in the engine compartment .
Checking the brake fluid level
Read the brake f lu id leve l on the brake fl uid res­
e rvo ir
Q page 319 , fig. 271. The bra ke fluid level
must be be tween the M IN and MAX m ark ings
¢ _& .
The brake fluid level is mon itored a utomat ica lly .
Changing the brake fluid H ave the brake fluid changed regularly by an au­
thor ized Audi dealer or authorized Audi Service
Facility .
-
Checking and Filling
A WARNING
=
-If the brake fluid level is below the MIN
marking, it can impair the brak ing effect
and d riving safety, wh ich increase the risk of
a n accident . Do no t continue dr iving . See a n
a uthor ized Audi dealer or author ized A udi
Serv ice F acility for a ssistance.
- I f the b rake fl uid is old, b ubbles may form
i n t he bra ke sys tem dur ing heavy bra king.
This wo uld impair braking per formance an d
d riving safety, which increases the r is k of an
accident.
- T o ensu re the brake system fu nctions cor­
rectly, only use brake fluids that comp ly
with VW standard 501 14 or F M VSS -116 DOT 4.
(D Note
- If the brake flu id leve l is above the MAX
marking, bra ke f luid may leak o ut over the
edge of the reservo ir and result in damage
to the vehicle.
- Do not get any b rake fl uid on the vehicle
paint, because it wi ll corrode the paint.
Battery
General warnings about batteries
B ecause of the complex power supp ly, all work
o n batter ies such as d iscon necti ng, replac ing,
etc. should only be performed by an authori ze d
Audi dealer or au thor ized A udi Service Fac ility
Q _& .
The term "veh icle batte ry" refe rs to the 1 2 Vol t
battery in your vehicle .
P lug- in hybr id driv e*: For important informat ion
abou t the high-vol tage batte ry, refe r to
Qpage 94.
Detail ed warnings fo r the vehicle battery :
®
Wear eye protect ion.
A
Battery acid is h ighly corros ive. Wear pro-
tect ive gloves and eye protection.
@
F ir e, sparks, open flame and smoking are
forbidden .
325

Techni cal data
Technical data
Vehicle data
XXXXX XX -X -X X XX XXX XX
®-+ : :::ti/:: XXXXXXXX XX X X X XX XXXX
IYP /l'YP! XXX XXX
XX XXXXXXX XX X X XX
XXX
K W XXX
f,\__J_ I IIJIORl ©+ ~
1
:tr:l~
1
XXXX I XXXX XXX I XX
II. -AlJSliT. / OPTIONS
EOA 7D5 4U B 6XM SS G SR W
2 EH JO Z l lB lAS lBA
3FC 5 MU 7X l
FDA 9G3 OG7 O YH OJF
TL 6 3 KA 8EH UlA X 9B O Z7
lX W
80 3 908 8Z4 02D
7T6 C V7
7KO 4 X3
2K2
3 l4 4 KC 3Y O 413 5 D2
lS A 7GB 0 1A 4GO
XX . X XX X XX X XXXX
Fig. 312 Veh icl e ident if ic ation labe l
Vehicle Identification Number (VIN )
The VIN numbe r is lo cated i n the following pla­
ces :
0
0
~ :x: ... IX)
- In the Infotainment system: selec t*: select
IM ENU I button > Vehicle > left control b utton>
Ser vice & che cks > Vehicl e information .
-on the vehicle identification label
- u nder the windshield on the driver's side*
Vehicle identification label
The vehicle identification label ¢ fig. 312 is locat­
ed in the luggage compartment under the cargo
floor cover.
The information of the vehicle identification label
can also be found in your Warranty
& Mainte·
nance booklet.
The sticker contains the following vehicle data :
(D Vehicle Iden tifica tion Number (VIN)
@ Vehicle type, engine output, transmission
@ Eng ine and transm ission codes
@ Pa int and interior codes
374
@ Optional equipment numbers
Safety compliance sticker
The safety compliance sticker is your assurance
that your new vehicle complies with all applicable Federal Motor Veh icle Safety S tandards which
were in ef fect at the time the vehicle was manu­
factu red. You can find this sticker on the door
jamb on the driver's side. It shows the month and year of production and the veh icle identification
number of your veh icle (perforation) as well as
the Gross Vehicle Weight Ra ting (GVWR) and the
Gross Axle We ight Rating (GAWR).
H igh volt age warning label
The hig h voltage warn ing label is located in the
engine compartment next to the engine hood
re­
lease. The spark ignition system complies w ith
the Canadian s tandard ICES-002.
Notes about technical
data
The values may diffe r for som e markets depend­
i ng o n eq uipment installed in certa in mar kets
and the me asur ing me thods .
Please note that the specifica tions listed in the
vehicle documentat ion a lways take precedence .
(D Tips
Missing technical data was not ava ilable at
the time of pr int ing .
Weights
Gross Vehicle Weight Rating
The Gross Vehicle We ight Rating (GVWR), and
the Gross Axle Weig ht Rating (GAWR) for front
and rea r are listed on a sticker on the door jamb
o n the dr iver's side .
The Gross Vehicle We ight Rating includes the
weight of the bas ic vehicle plus full fuel tank, oil
and coolant , plus maximum load, which includes
passenger weight ( 150 lbs/68 kg per des ignated
seat ing pos ition) and luggage
weight ¢& . ..,_
