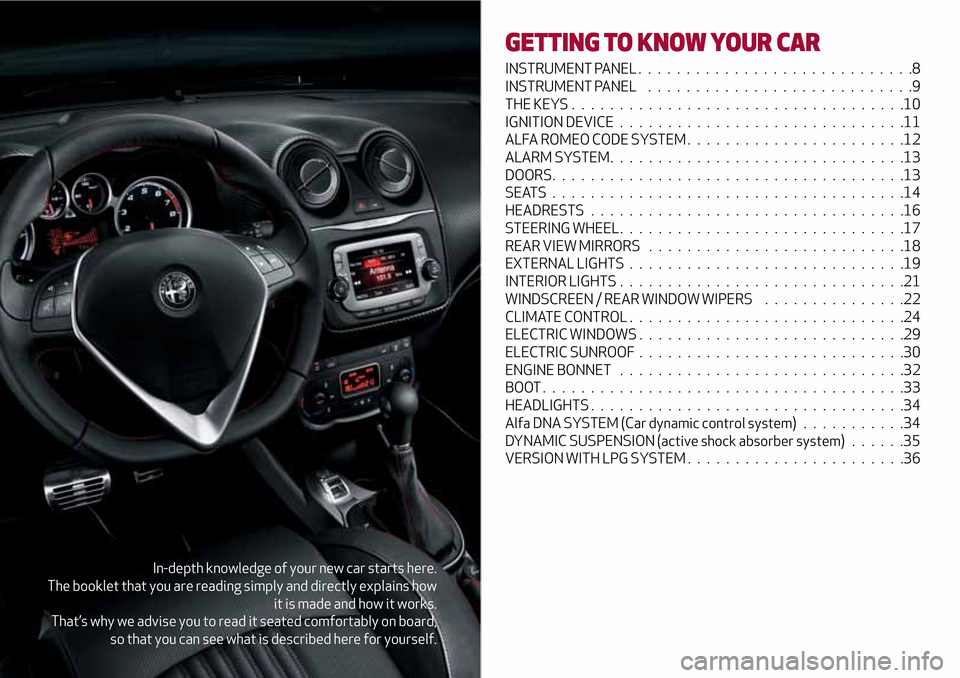

In-depth knowledge of your new car starts here.
The booklet that you are reading simply and directly explains how
it is made and how it works.
That’s why we advise you to read it seated comfortably on board,
so that you can see what is described here for yourself.
GETTING TO KNOW YOUR CAR
INSTRUMENT PANEL . . . . . . . ......................8
INSTRUMENT PANEL . . . .........................9
THEKEYS...................................10
IGNITION DEVICE . . ............................11
ALFA ROMEO CODE SYSTEM . . . ....................12
ALARM SYSTEM ...............................13
DOORS.....................................13
SEATS.....................................14
HEADRESTS.................................16
STEERING WHEEL..............................17
REAR VIEW MIRRORS . . . . . ......................18
EXTERNAL LIGHTS .............................19
INTERIOR LIGHTS . . . ...........................21
WINDSCREEN / REAR WINDOW WIPERS ...............22
CLIMATE CONTROL . . . . .........................24
ELECTRIC WINDOWS ............................29
ELECTRIC SUNROOF . . . .........................30
ENGINE BONNET . .............................32
BOOT......................................33
HEADLIGHTS . . . . . . . . . . .......................34
Alfa DNA SYSTEM (Car dynamic control system) . . .........34
DYNAMIC SUSPENSION (active shock absorber system) . . . . . .35
VERSION WITH LPG SYSTEM . . . . . . .................36

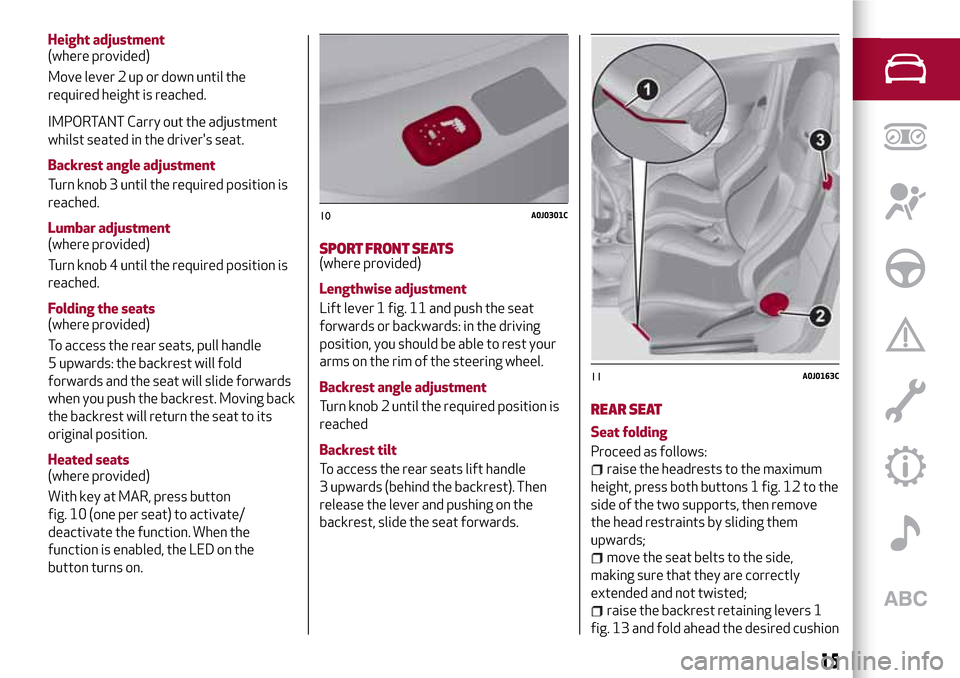

Height adjustment
(where provided)
Move lever 2 up or down until the
required height is reached.
IMPORTANT Carry out the adjustment
whilst seated in the driver's seat.
Backrest angle adjustment
Turn knob 3 until the required position is
reached.
Lumbar adjustment
(where provided)
Turn knob 4 until the required position is
reached.
Folding the seats
(where provided)
To access the rear seats, pull handle
5 upwards: the backrest will fold
forwards and the seat will slide forwards
when you push the backrest. Moving back
the backrest will return the seat to its
original position.
Heated seats
(where provided)
With key at MAR, press button
fig. 10 (one per seat) to activate/
deactivate the function. When the
function is enabled, the LED on the
button turns on.
SPORT FRONT SEATS(where provided)
Lengthwise adjustment
Lift lever 1 fig. 11 and push the seat
forwards or backwards: in the driving
position, you should be able to rest your
arms on the rim of the steering wheel.
Backrest angle adjustment
Turn knob 2 until the required position is
reached
Backrest tilt
To access the rear seats lift handle
3 upwards (behind the backrest). Then
release the lever and pushing on the
backrest, slide the seat forwards.
REAR SEAT
Seat folding
Proceed as follows:
raise the headrests to the maximum
height, press both buttons 1 fig. 12 to the
side of the two supports, then remove
the head restraints by sliding them
upwards;
move the seat belts to the side,
making sure that they are correctly
extended and not twisted;
raise the backrest retaining levers 1
fig. 13 and fold ahead the desired cushion
10A0J0301C
11A0J0163C
15

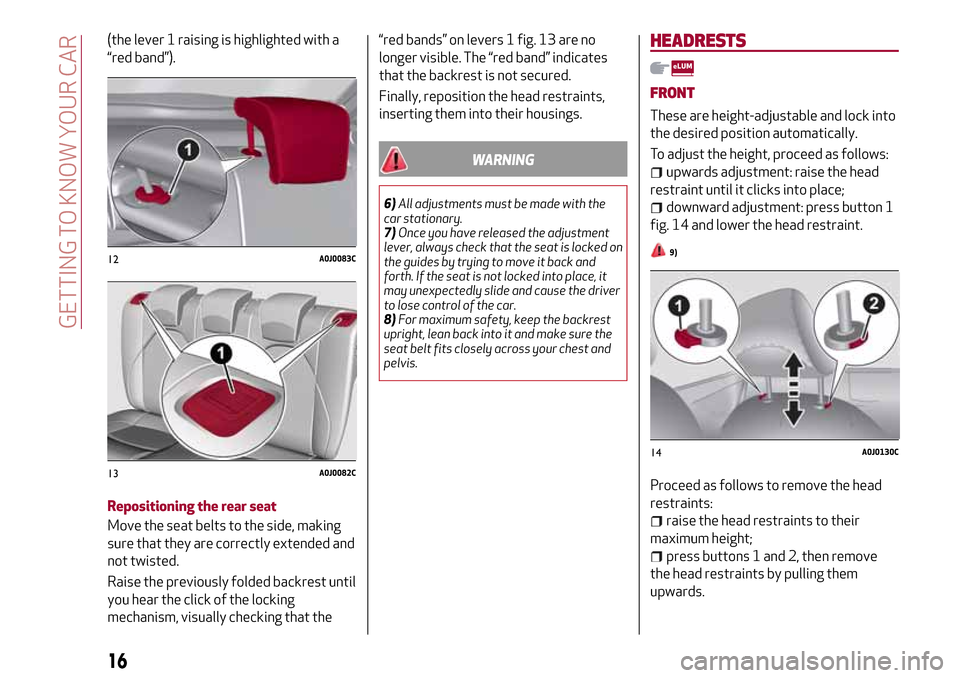

(the lever 1 raising is highlighted with a
“red band”).
Repositioning the rear seat
Move the seat belts to the side, making
sure that they are correctly extended and
not twisted.
Raise the previously folded backrest until
you hear the click of the locking
mechanism, visually checking that the“red bands” on levers 1 fig. 13 are no
longer visible. The “red band” indicates
that the backrest is not secured.
Finally, reposition the head restraints,
inserting them into their housings.
WARNING
6)All adjustments must be made with the
car stationary.
7)Once you have released the adjustment
lever, always check that the seat is locked on
the guides by trying to move it back and
forth. If the seat is not locked into place, it
may unexpectedly slide and cause the driver
to lose control of the car.
8)For maximum safety, keep the backrest
upright, lean back into it and make sure the
seat belt fits closely across your chest and
pelvis.
HEADRESTS
FRONT
These are height-adjustable and lock into
the desired position automatically.
To adjust the height, proceed as follows:
upwards adjustment: raise the head
restraint until it clicks into place;
downward adjustment: press button 1
fig. 14 and lower the head restraint.
9)
Proceed as follows to remove the head
restraints:
raise the head restraints to their
maximum height;
press buttons 1 and 2, then remove
the head restraints by pulling them
upwards.
12A0J0083C
13A0J0082C
14A0J0130C
16
