2017 Alfa Romeo Giulietta technical specifications

IDENTIFICATION DATA
The identification data of the vehicle are:
VIN plate;
Chassis marking;
Bodywork paint identification plate;
Engine marking.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
This plate is fitted to the engine
compartment front crossmember and
contains the following identification data
fig. 124:
B: Type-approval number
C: Vehicle type identification code
D: Chassis number
E: Maximum permitted weight of vehicle
fully laden
F: Maximum permitted weight of vehicle
fully laden plus trailerG: Maximum permitted weight on front
axle
H: Maximum permitted weight on second
(rear) axle
I: Engine type
L: Bodywork version code
M Spares number
N: Smoke opacity index (for diesel
engines)
124A0K0024C
144
TECHNICAL SPECIFICATIONS
A: Name of Manufacturer

ENGINE
GENERAL INFORMATION 1.4 Turbo petrol 120 HP 1.4 Turbo Petrol/LPG 120 HP
Engine code 940B7000 940B7000
Cycle
Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 72.0 × 84.0
Total displacement (cm³) 1368 1368
Compression ratio 9.8 9.8
LPG PETROL
Maximum power (EC) (kW) 88 88 88
Maximum power (EEC) (HP) 120 120 120
corresponding engine speed (rpm) 5000 5000 5000
Maximum torque (EC) (Nm) 215 215 215
Maximum torque (EC) (kgm) 22 22 22
corresponding engine speed (rpm) 2500 2500 2500
Spark plugs NGK IKR9J8 NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)LPG for motor
vehicles
(EN589 Specification)Unleaded petrol
95 R.O.N. (EN
228 specifications)
146
TECHNICAL SPECIFICATIONS

GENERAL INFORMATION 1.4 Turbo MultiAir 170 HP 1750 Turbo Petrol 240 HP(*)
Engine code 940A2000 940B2000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 83.0 × 80.5
Total displacement (cm³) 1368 1742
Compression ratio 10 9.25 ± 0.25
Maximum power (EC) (kW) 125 177
Maximum power (EEC) (HP) 170 240
corresponding engine speed (rpm) 5500 5750
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 230 250 300 340
Maximum torque (EC) (kgm) 23.4 25.4 30.5 34.6
corresponding engine speed (rpm) 2250 2500 1850 2000
Spark plugs NGK IKR9J8 NGK ILKAR7D6G
Fuel95 RON or 98 RON (EN228 specification)
unleaded petrol95 RON or 98 RON
(EN228 specification) unleaded petrol
(*) For versions/markets, where provided
148
TECHNICAL SPECIFICATIONS

GENERAL INFORMATION2.0 JTDM136CV2.0 JTDM150 HP
Engine code 940C4000 940C3000
Cycle
Diesel Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 83 × 90.4 83 × 90.4
Total displacement (cm³) 1956 1956
Compression ratio 16.5 16.5
NATURAL DYNAMIC
Maximum power (EC) (kW) 100 103 110
Maximum power (EEC) (HP) 136 140 150
corresponding engine speed (rpm) 4500 4000 4500
NATURAL DYNAMIC NATURAL DYNAMIC
Maximum torque (EC) (Nm) 320 380 320 380
Maximum torque (EC) (kgm) 32.5 38.7 32.5 38.7
corresponding engine speed (rpm) 1500 1750 1500 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
150
TECHNICAL SPECIFICATIONS

WHEELS
RIMS AND TYRES PROVIDED
Versions Wheels Tyres provided Snow tyresSpace saver spare wheel
Rim Tyre
1.4 Turbo Petrol
1.4 Turbo MultiAir
1.6 JTD
M2.0 JTDM
7Jx16 H2 ET 41 205/55 R16 91V 205/55 R16 91Q
T135/
70 R16 100M
T125/
80 R17 99M4Bx16ET22
4Bx17ET25 7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
7 1/2 Jx18 H2 ET 41
(*)225/40 R18 92W
REINFORCED(*) (**)225/40 R18 92Q
REINFORCED
1.4 Turbo Petrol
(***)1.4 Turbo MultiAir(***)1.6 JTDM(***)2.0 JTDM(***)
7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/
80 R17 99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED
(**)225/40 R18 92Q
REINFORCED
1750 Turbo Petrol
(*)
7 1/2 Jx17 H2 ET 41 225/45 R17 91W 225/45 R17 91Q
T125/
80 R17 99M4Bx17ET25
7 1/2 Jx18 H2 ET 41225/40 R18 92W
REINFORCED
(**)225/40 R18 92Q
REINFORCED
(*) For versions/markets, where provided
(**) Tyres which cannot be fitted with chains
(***) Versions with oversized brake calipers
On versions with 205/55 R16” and 225/45 R17” tyres, use smaller snow chains with a maximum projection of 9 mm beyond the tyre
profile.
152
TECHNICAL SPECIFICATIONS

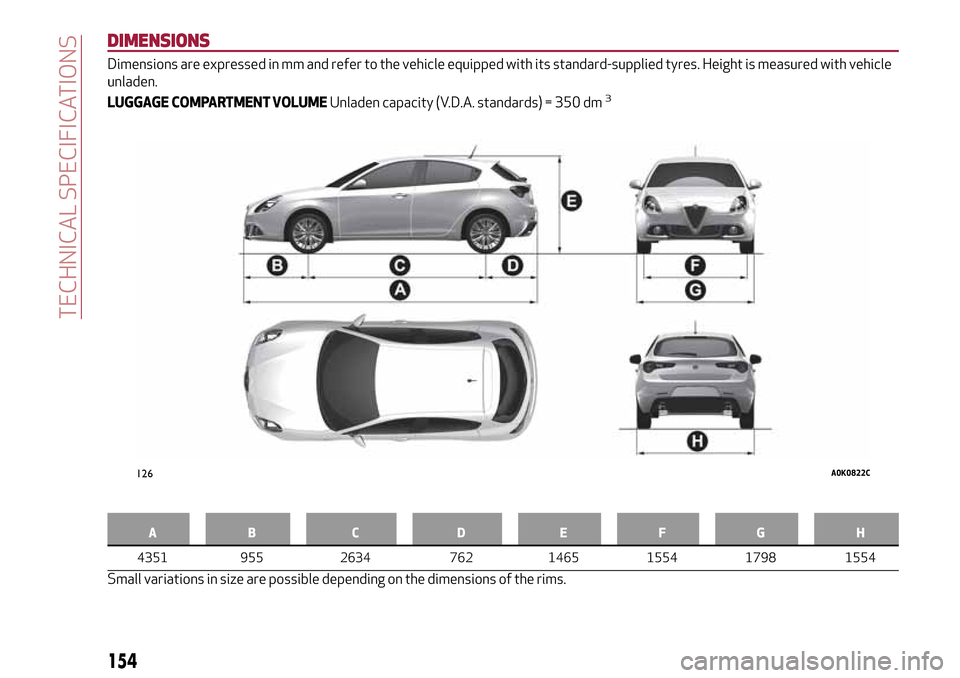

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with vehicle
unladen.
LUGGAGE COMPARTMENT VOLUMEUnladen capacity (V.D.A. standards) = 350 dm
3
AB C D EFGH
4351 955 2634 762 1465 1554 1798 1554
Small variations in size are possible depending on the dimensions of the rims.
126A0K0822C
154
TECHNICAL SPECIFICATIONS

Weights1.4 Turbo Petrol/LPG
120 HP1750 Turbo Petrol
240 HP TCT(*)1.6 JTDM(**)
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)1317 1320 1310
Payload including the driver
(***)503 535 540
Maximum permitted loads
(****)
– front axle 1100 1100 1100
– rear axle 890 850 850
– total 1820 1855 1850
Towable loads (kg)
– braked trailer 1300 1000 1300
– trailer without brakes 500 500 500
Maximum load on roof 50 50 50
Maximum load on tow hitch (trailer with brakes) 60 60 60
(*) For versions/markets, where provided
(**) Versions with manual gearbox
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the
maximum permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum
permitted loads.
156
TECHNICAL SPECIFICATIONS

REFUELLING
1.4 Turbo Petrol 1.4 Turbo Multi Air
Prescribed fuels and original
lubricants
litres kg litres kg
Fuel tank 60 – 60 –Unleaded petrol not less than
95 RON (EN
228 specification) including a reserve of 8 - 10 – 8 - 10 –
Engine cooling system (with
climate control)5.7 5.0 5.7 5.0Mixture of distilled water and
PARAFLU fluid
UP50%(*)
Engine sump 2.75 2.3 3.1 2.6SELENIA StAR P.E. (1.4 Turbo
Petrol versions)
SELENIA DIGITEK P.E.
(1.4 Turbo MultiAir versions) Engine sump and filter 3.1 2.6 3.5 2.9
Transmission casing/differential 2.0 1.7 2.0 1.7TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
(Anti-lock braking system)0.83 0.78 0.83 0.78 TUTELA TOP 4 or TOP 5
Windscreen/rear
window/headlight washer fluid
reservoir
(**)2.8 (4.6) 2.5 (4.1) 2.8 (4.6) 2.5 (4.1)Mixture of water and liquid
PETRONAS DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised
water.
(**) Values in brackets refer to versions with headlight washer
