2017 Acura TLX fuse box

Visual Index
6
Quick Reference Guide❙Power Window Switches (P158)
❙Driver’s Front Airbag (P42)
❙Driver’s Knee Airbag (P46)
❙Door Mirror Controls (P178)
❙Power Door Lock Master Switch (P150)
❙Accessory Power Socket (P192)
❙Auxiliary Input Jack (P209)
❙Accessory Power Socket (P192)
❙USB Port (P209)
❙Rearview Mirror (P177)
❙Hood Release Handle (P442)
❙Memory Buttons (P175)
❙SET Button (P175)
❙Glove Box (P188)
❙Passenger’s Front Airbag (P42)
❙Driver’s Side Interior Fuse Boxes (P522)
❙Electric Parking Brake Switch (P400)
❙Integrated Dynamics System Button
(P346)
❙Shift Button*
Electronic Gear Selector (P331)
❙Automatic Brake Hold Button
(P404)
❙Shift Lever*
Dual Clutch Transmission (P338)
❙Auto Idle Stop OFF Button* (P342)
17 ACURA TLX-31TZ36200.book 6 ページ ２０１６年６月１０日　金曜日　午後６時３９分

520
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
Sub Fuse Box60 A
ABS/VSA Motor40 A
ABS/VSA FSR20 A
Main Fan*2, *330 A
Main Fuse125 A
2
IG Main30 A
F/B Main60 A
F/B Main 260 A
Headlight Main30 A
IG Main 230 A
Starter Cut 140 A
Injector*2, *320 ASub Fan*1
Rear Defroster40 A
Main Fan*130 ASub Fan*2, *3
Wiper30 A
Heater Motor40 A*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
3
Headlight Washer*2, *3(30 A)
Left Electric Parking Brake30 A
Right Electric Parking Brake30 A
SH-AWD*320 A
4− −
5−−
6− −
7−−
8STRLD*1, *27.5 A
9Interior Lights*1, *25 A
10 Headlight Low/High Main 20 A
11Oil Level7.5 A
12 Front Fog Lights*(7.5 A)
13Passenger’s Power Seat Reclining20 A
14 Hazard 15 A
15IGP215 A
16 IG Coil 15 A
17Stop*1, *210 A
Circuit ProtectedAmps
* Not available on all models
17 ACURA TLX-31TZ36200.book 520 ページ ２０１６年６月１０日　金曜日　午後６時３９分

521
uuFuses uFuse Locations
Continued
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD
Circuit ProtectedAmps
18 Horn 10 A
19Audio*1, *220 A
Interior Light*35 A
20 ACM*2, *320 A
Injector*1
21FI Main15 A
22 DBW 15 A
23TCU/SBW*2, *310 A
24 Premium AMP 30 A
25MG Clutch7.5 A
26 Passenger’s Power Seat
Sliding 20 A
27Small*1, *215 A*1
(15 A)*2
28
BMS 7.5 A
29Back Up10 A
Located near the washer fluid cap. Push the
tabs to open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Left Headlight Low Beam7.5 A
2Right Headlight Low Beam7.5 A
3Right Headlight High Beam7.5 A
4 Left Headlight High Beam 7.5 A
17 ACURA TLX-31TZ36200.book 521 ページ ２０１６年６月１０日　金曜日　午後６時３９分

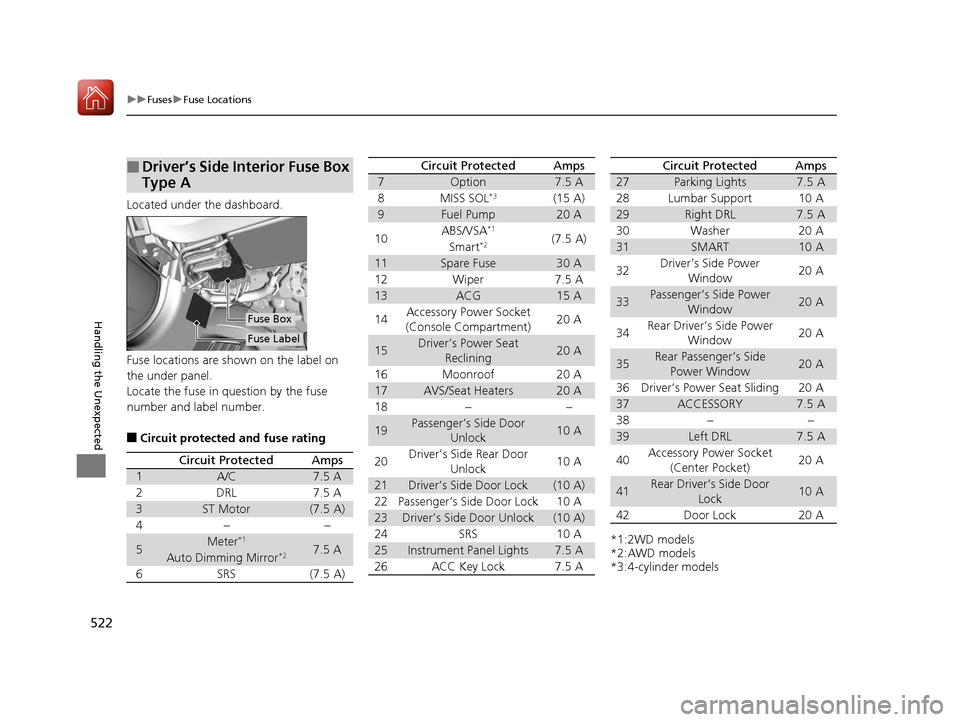

522
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Driver’s Side Interior Fuse Box
Type A
Fuse Label
Fuse Box
Circuit ProtectedAmps
1A/C7.5 A
2DRL7.5 A
3ST Motor(7.5 A)
4−−
5Meter*17.5 AAuto Dimming Mirror*2
6SRS(7.5 A)
7Option7.5 A
8MISS SOL*3(15 A)
9Fuel Pump20 A
10ABS/VSA*1(7.5 A)Smart*2
11Spare Fuse30 A
12Wiper7.5 A
13ACG15 A
14Accessory Power Socket
(Console Compartment)20 A
15Driver’s Power Seat Reclining20 A
16Moonroof20 A
17AVS/Seat Heaters20 A
18−−
19Passenger’s Side Door Unlock10 A
20Driver’s Side Rear Door
Unlock10 A
21Driver’s Side Door Lock(10 A)
22Passenger’s Side Door Lock10 A
23Driver’s Side Door Unlock(10 A)
24SRS10 A
25Instrument Panel Lights7.5 A
26ACC Key Lock7.5 A
Circuit ProtectedAmps
*1:2WD models
*2:AWD models
*3:4-cylinder models
27Parking Lights7.5 A
28Lumbar Support10 A
29Right DRL7.5 A
30Washer20 A
31SMART10 A
32Driver’s Side Power Window20 A
33Passenger’s Side Power Window20 A
34Rear Driver’s Side Power Window20 A
35Rear Passenger’s Side
Power Window20 A
36Driver’s Power Seat Sliding20 A
37ACCESSORY7.5 A
38−−
39Left DRL7.5 A
40Accessory Power Socket (Center Pocket)20 A
41Rear Driver’s Side Door Lock10 A
42Door Lock20 A
Circuit ProtectedAmps
17 ACURA TLX-31TZ36200.book 522 ページ ２０１６年６月１０日　金曜日　午後６時３９分

523
uuFuses uFuse Locations
Handling the Unexpected
*1:2WD models
*2:AWD models
Circuit ProtectedAmps
A−−
B− −
CMeter*27.5 A
DBack Up*210 A
EStop*27.5 A
F Parking Lights*215 A
GAudio ACC*27.5 A
Rear Seat Heater*, *1, *2(15 A)
AABS/VSA*27.5 A
BMICU*27.5 A
C−−
D− −
ESTRLD*27.5 A
FAudio*220 A
GACM*27.5 A
Heated Steering Wheel*, *1, *2(10 A)
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Grasp the bottom edge of the outer
panel.
2. Pull the panel towards you, then remove
it.
Fuse locations are shown on the outer
panel.
■Driver’s Side Interior Fuse Box
Type B
Outer Panel
Fuse Box
Fuse Label
■Circuit protected and fuse rating
*1:AWD models
Circuit ProtectedAmps
1P-AWS L(40 A)
2e-pretensioner Right*(20 A)
3e-pretensioner Left*(20 A)
4ACC Radar*(10 A)
5Idle Stop*1(30 A)
6P-AWS R(40 A)
7FR DE-ICE*(15 A)
8Idle Stop*1(30 A)
* Not available on all models
17 ACURA TLX-31TZ36200.book 523 ページ ２０１６年６月１０日　金曜日　午後６時３９分

524
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 520 to 523.
There is a fuse puller in the engine compartment fuse
box located near the brake fluid reservoir.
Combined Fuse
Blown
Fuse
Fuse Puller
17 ACURA TLX-31TZ36200.book 524 ページ ２０１６年６月１０日　金曜日　午後６時３９分

545
Index
Brake ...................................................... 452
Dual Clutch Transmission ........................ 451
Engine Coolant ....................................... 449
Windshield Washer ................................. 452
Fog Lights ................................................. 168
Foot Brake ................................................ 403
Forward Collision Warning (FCW) with Pedestrian Detection ............................. 367
Front Airbags (SRS) .................................... 42
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................................ 179
Adjusting ................................................ 179
Front Sensor Camera ............................... 351
Fuel ..................................................... 21, 427
Economy................................................. 430
Gauge .................................................... 117
Instant Fuel Economy .............................. 124
Low Fuel Indicator..................................... 79
Range ..................................................... 124
Recommendation............................ 427, 530
Refueling ................................................ 427
Fuel Economy ........................................... 430
Fuel Fill Door ...................................... 21, 428
Fuses ......................................................... 520
Inspecting and Changing ........................ 524
Locations ........................ 520, 521, 522, 523
G
Gasoline (Fuel)
Economy................................................. 430 Gauge ..................................................... 117
Information ............................................. 427
Instant Fuel Economy ............................... 124
Low Fuel Indicator ..................................... 79
Refueling ................................................. 427
Gauges ...................................................... 117
Gear Position Indicator ...................... 75, 332
Gear Shift Lever Positions
Dual Clutch Transmission ......................... 338
Gear Shift Positions Automatic Transmission ........................... 331
Glass (care) ........................................ 477, 479
Glove Box .................................................. 188
H
Handling the Unexpected ........................ 483
HandsFreeLink ® (HFL) ............................... 278
Auto Answer ........................................... 293
Automatic Import of Cellular Phonebook
and Call History ..................................... 295
Automatic Transferring ............................ 293
Displaying Messages ................................ 308
HFL Buttons ............................................. 278
HFL Menus .............................................. 280
HFL Status Display ................................... 279
Limitations for Manua l Operation ............ 279
Making a Call .......................................... 299
Options During a Call .............................. 305
Phone Setup ............................................ 285
Receiving a Call ....................................... 304 Receiving a Text/E-mail Message.............. 306
Ring Tone................................................ 294
Selecting a Mail Account ......................... 307
Speed Dial ............................................... 296
To Create a Security PIN .......................... 292
To Set Up a Text/E-mail Message
Option................................................... 290
Use Contact Photo .................................. 294
Hazard Warning Button .............................. 4
Head Restraints ........................................ 181
Headlight Washers ................................... 171
Headlights ................................................. 165
Aiming .................................................... 453
Automatic Operation............................... 166
Dimming ......................................... 165, 168
Operating................................................ 165
Heated Steering Wheel ............................ 195
Heaters (Seat) ................................... 196, 197
HFL (HandsFreeLink ®)............................... 278
High Beam Indicator .................................. 83
Hill Start Assist System ............................. 328
HomeLink ® Universal Transceiver ............ 275
I
Identification Numbers ............................ 532
Vehicle Identification Number (VIN), Engine
Number and Transmission Number ........ 532
Illumination Control ................................. 172
Immobilizer System .................................. 155
Indicator.................................................... 83
17 ACURA TLX-31TZ36200.book 545 ページ ２０１６年６月１０日　金曜日　午後６時３９分
