2017 Acura TLX display

114
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but the temperature inside the front
sensor camera is too high. The LKAS cancels
automatically. The beeper sounds simultaneously.●Use the climate control system to cool down the
camera.
●Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2 Front Sensor Camera* P. 351
●Appears when the area around the camera is blocked by
dirt, mud, etc. Stop your ve hicle in a safe place, and
wipe it off with a soft cloth.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●Have your vehicle checked by a dealer if the indicator
and message come back on after you cleaned the area
around the camera.
Models with LKAS
* Not available on all models
17 ACURA TLX-31TZ36200.book 114 ページ ２０１６年６月１０日　金曜日　午後６時３９分

115
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.
●Appears when Auto Idle St op does not activate for
some reason.
●Appears when the engine restarts automatically.●Appears when the battery temperature is around 14°F
(−10°C) or lower.
●Appears when Auto Idle Stop does not activate because
the climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.
●Appears when Auto Idle Stop does not activate because
the engine coolant temperature is low or high.
2 Auto Idle Stop* P. 342
●Appears when Auto Idle Stop does not activate because
the battery charge level is low.●Appears even though the ba ttery is fully charged
- The system may not read the battery amount correctly.
Drive for a few minutes.
●Appears after charging the battery or jump
starting - Disconnect the negative - cable once and
reconnect it again to the ba ttery. Drive a few minutes.
Models with Auto Idle Stop
* Not available on all models
17 ACURA TLX-31TZ36200.book 115 ページ ２０１６年６月１０日　金曜日　午後６時３９分

116
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when Auto Idle Stop does not activate because
the pressure to the brake pedal is not enough.●Depress the brake pedal firmly.
●Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.
●Appears when the system is under the following
conditions while Auto Idle Stop activates:
●The battery charge level is low.●The battery temperature is around 14°F (−10°C) or
lower.
●The climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.
●The humidity in the interior is high.
●The engine restarts automatically in a few seconds.
2 Starting the Engine P. 322
Models with Auto Idle Stop
17 ACURA TLX-31TZ36200.book 116 ページ ２０１６年６月１０日　金曜日　午後６時３９分

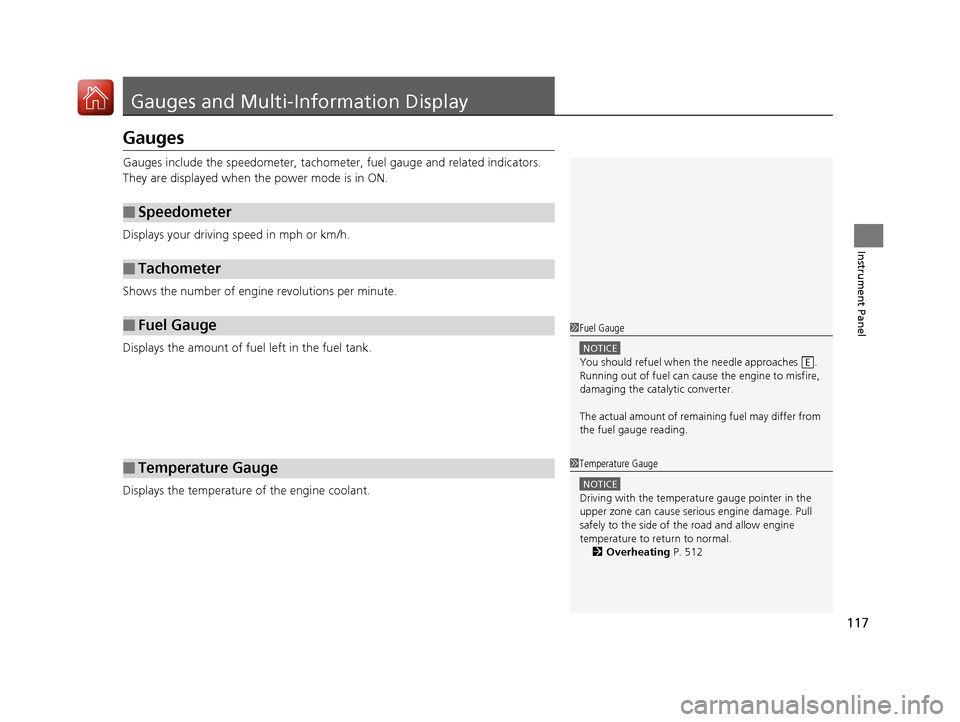

117
Instrument Panel
Gauges and Multi-Information Display
Gauges
Gauges include the speedometer, tachometer, fuel gauge and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 512
17 ACURA TLX-31TZ36200.book 117 ページ ２０１６年６月１０日　金曜日　午後６時３９分

118
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Multi-Information Display
The multi-information display shows the od ometer, trip meter, outside temperature
indicator, and other gauges. It also disp lays important messages such as warnings
and other helpful information.
17 ACURA TLX-31TZ36200.book 118 ページ ２０１６年６月１０日　金曜日　午後６時３９分

119
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Main displays
Roll the right selector wheel to change the display.
■Switching the Display
Models with full color display
QTRight Selector Wheel
Engine Oil Life
Vehicle Settings Elapsed Time
OFF
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass
*Tire Pressure for
Each TireTurn-by-Turn
Directions
*Integrated
Dynamics System
Integrated
Dynamics System/
SH-AWD®
*
* Not available on all models
17 ACURA TLX-31TZ36200.book 119 ページ ２０１６年６月１０日　金曜日　午後６時３９分

120
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Models without fu ll color display
Right Selector Wheel Engine Oil Life
Vehicle Settings Elapsed Time
OFF
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Tire Pressure for
Each Tire Integrated
Dynamics System
17 ACURA TLX-31TZ36200.book 120 ページ ２０１６年６月１０日　金曜日　午後６時３９分

121
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■Lower displays
Press the TRIP button to change the display.
Models with full color display
Odometer Trip ATrip B
Outside temperature
TRIP Button
TRIP
TRIPTRIP
