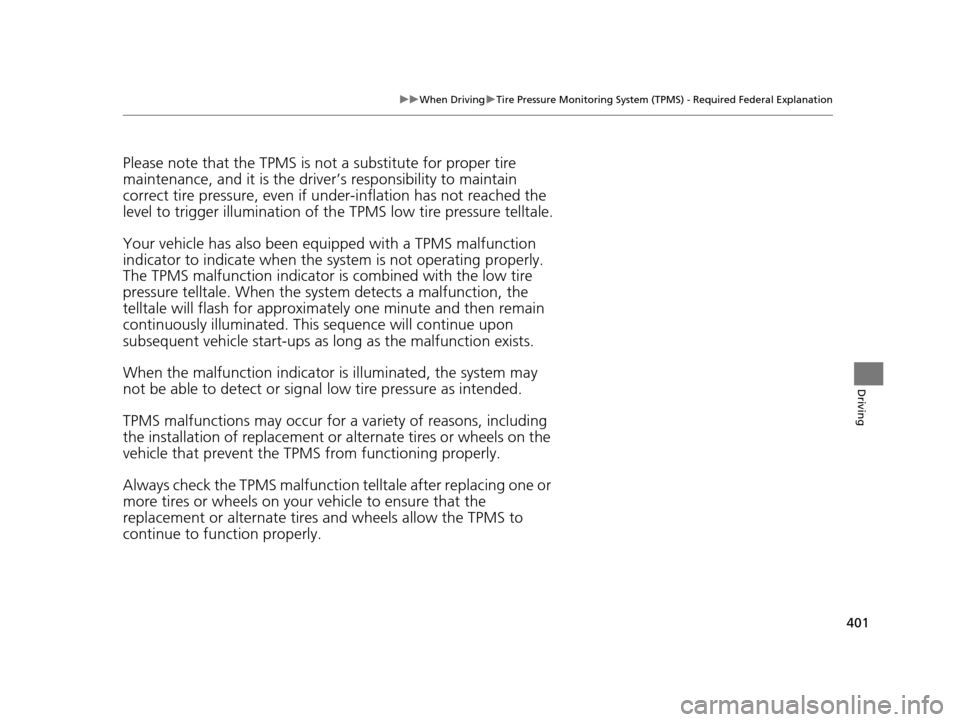

2017 Acura RLX TPMS

401
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
17 ACURA RLX-31TY26300.book 401 ページ ２０１６年６月１７日　金曜日　午前８時１２分

477
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause the ABS and vehicle stability assist (VSA®)
system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specificati ons match those of the original wheels.
If you replace a wheel, only use TPMS spec ified wheels approved for your vehicle.1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
17 ACURA RLX-31TY26300.book 477 ページ ２０１６年６月１７日　金曜日　午前８時１２分

489
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 490
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 491
Changing a Flat Tire ......................... 503
Engine Does Not Start Checking the Engine ........................ 509
If the Keyless Access Remote Battery is Weak ............................................. 510
Emergency Engine Stop ................... 511
Jump Starting .................................... 512
Shift Lever Does Not Move .............. 515
Overheating How to Handle Overheating ............. 516 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 518
If the Charging System Indicator Comes
On ................................................. 518
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 519
If the Brake System Indicator (Red) Comes On .. 519
If the Electric Power Steering (EPS) System Indicator Comes On .............................. 520
If the Electric Parking Brake System Indicator Comes On............................................. 520
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 521
Fuses Fuse Locations ................................. 522
Inspecting and Changing Fuses ........ 526
Emergency Towing ........................... 527
When You Cannot Unlock the Fuel Fill Door ................................................. 528
When You Cannot Open the Trunk ..... 529
Refueling
Refueling From a Portable Fuel Container ... 530
17 ACURA RLX-31TY26300.book 489 ページ ２０１６年６月１７日　金曜日　午前８時１２分

uuIf a Tire Goes Flat uChanging a Flat Tire
508
Handling the Unexpected
1. Place the flat tire face down in the spare tire
well.
2. Wrap the spacer cone and spare tire wing
bolt with cloth or paper, and store them in
the spare tire well.
3. Store the jack and tools in the tool case.
Place the tool case and the trunk floor lid on
the flat tire.
4. Close the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informati on display, but this is normal.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer Cone
Wing Bolt
■TPMS and the Spare Tire1TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
17 ACURA RLX-31TY26300.book 508 ページ ２０１６年６月１７日　金曜日　午前８時１２分

521
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, ch ange the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
17 ACURA RLX-31TY26300.book 521 ページ ２０１６年６月１７日　金曜日　午前８時１２分

535
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with industry Canada licence -exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference th at may cause undesired operation of the device.
AcuraLink
Audio System
Blind Spot Information System
Bluetooth® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigati on Braking SystemTM
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback
17 ACURA RLX-31TY26300.book 535 ページ ２０１６年６月１７日　金曜日　午前８時１２分

550
Index
Collision Mitigation Braking SystemTM (CMBSTM) ............................ 84, 85
CRUISE CONTROL .............................. 78, 357
CRUISE MAIN .................................... 78, 356
Door and Trunk Open ................................ 29
Electric Parking Brake................................. 69
Electric Parking Brake System ............. 69, 520
Electric Power Steering (EPS) System .. 74, 520
Forward Collision Wa rning (FCW) .............. 79
High Beam................................................. 77
Immobilizer System .................................... 77
Keyless Access System ............................... 78
Lane Departure Warning (LDW) ................. 80
Lane Keeping Assist System (LKAS) .... 83, 388
Lights On ................................................... 77
Low Fuel .................................................... 73
Low Oil Pressure ................................ 68, 518
Low Tire Pressure/TPMS ............. 76, 398, 400
Malfunction Indicator Lamp ............... 72, 519
Precision All-Wheel Steer
TM (P-AWS ®)
System ..................................................... 78
Road Departure Mitigation (RDM) .............. 81
Seat Belt Reminder .............................. 31, 73
Security System Alarm ............................... 77
Shift Lever Position .................................... 72
SPORT Mode ..................................... 78, 355
Supplemental Restraint System ............ 49, 74
System Message ........................................ 76
Transmission .............................................. 72
Turn Signal ................................................ 77 Vehicle Stability Assist (VSA
®)
System ............................................ 75, 393
VSA ® OFF .......................................... 75, 394
Information .............................................. 531
Instant Fuel Economy ............................... 101
Instrument Panel ........................................ 67
Brightness Control................................... 148
Interface Dial ............................................ 196
Interior Lights ........................................... 163
Interior Rearview Mirror .......................... 153
J
Jack (Wheel Nut Wrench) ........................ 506
Jump Starting ........................................... 512
K
Key Number Tag ....................................... 117
Keyless Access System .............................. 118
Keyless Lockout Prevention ..................... 122
Keys ........................................................... 115
Lockout Prevention.................................. 122
Number Tag ............................................ 117
Rear Door Won’t Open............................ 126
Remote Transmitter ................................. 120
Two-way Keyless Access Remote ..... 123, 346
Types and Functions ................................ 115
Kickdown (Automatic Transmission) ....... 350
L
Lane Departure Warning (LDW)............. 378
Lane Keeping Assist System (LKAS) ........ 386
Language (HFL) ........................................ 291
LATCH (Child Seats) ................................... 57
Lights ................................................ 141, 462
Automatic............................................... 142
Bulb Replacement ................................... 462
Daytime Running Lights .......................... 144
High Beam Indicator ................................. 77
Interior.................................................... 163
Light Switches......................................... 141
Lights On Indicator.................................... 77
Turn Signals ............................................ 140
Load Limits ............................................... 341
Locking/Unlocking ................................... 115
Auto Door Locking/Unlocking ................. 127
Childproof Door Locks ............................ 126
From Inside ............................................. 124
From Outside .......................................... 118
Keys........................................................ 115
Using a Key............................................. 122
Lockout Prevention System ..................... 122
Low Battery Charge ................................. 518
Low Fuel Indicator ..................................... 73
Low Keyless Access Remote Signal Strength .................................................. 117
Low Oil Pressure Indicator ................. 68, 518
Lower Anchors ........................................... 57
Luggage (Maximum Load Limit) ............. 341
Lumbar Support ....................................... 157
17 ACURA RLX-31TY26300.book 550 ページ ２０１６年６月１７日　金曜日　午前８時１２分

553
Index
Tire Pressure Monitoring System (TPMS) ..................................................... 398
Indicator ........................................... 76, 521
Tires .......................................................... 471
Air Pressure..................................... 472, 533
Chains .................................................... 479
Checking and Maintaining ...................... 471
Flat Tire (Puncture) .......................... 491, 503
Inspection ............................................... 471
Labeling .................................................. 472
Regulations ............................................. 474
Rotation.................................................. 478
Spare (Optional) .............................. 503, 533
Summer .......................................... 479, 488
Temporary Tire Repair Kit ........................ 492
Wear Indicators....................................... 476
Winter .................................................... 479
Tools ......................................................... 490
Towing a Trailer ....................................... 343
Towing Your Vehicle ............................... 343
Emergency .............................................. 527
TPMS (Tire Pressure Monitoring
System) .................................................... 398
Transmission ....................................... 17, 351
Automatic................................. 17, 350, 351
Fluid ....................................................... 460
Number .................................................. 534
Sequential Shift Mode............................. 353
Shift Lever Position Indicator ............. 72, 352
TRIP Button ................................................ 99
Trip Meter ................................................ 100 Troubleshooting
....................................... 489
Blown Fuse .............................. 522, 524, 525
Brake Pedal Vibrates .................................. 21
Buzzer Sounds When Opening Door .......... 22
Emergency Towing .................................. 527
Engine Won’t Start .................................. 509
Flat Tire/Puncture ............................. 491, 503
Noise When Braking .................................. 22
Overheating ............................................ 516
Premium Gasoline ........................... 437, 532
Rear Door Won’t Open ...................... 21, 126
Shift Lever Does Not Move ...................... 515
Warning Indicators .................................... 68
Trunk ......................................................... 128
Lid ........................................................... 128
Light Bulbs .............................................. 532
Release Handle ........................................ 529
Unable to Open ....................................... 529
Trunk Pass-through Cover ........................ 174
Turn Signals .............................................. 140
Indicators (Instrument Panel) ...................... 77
Turn-by-Turn Directions ........................... 101
Two-way Keyless Access Remote ..... 123, 346
U
Unlocking the Doors................................ 118
Unlocking the Front Doors from the Inside ................................................. 12, 124
USB Flash Drives ........................................ 261
USB Port .................................................... 193 Using the Keyless Access System
............. 118
V
Valet Mode............................................... 166
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 534
Vehicle Stability Assist (VSA ®).................. 393
Off Button............................................... 394
Off Indicator...................................... 75, 394
System Indicator ................................ 75, 393
Viscosity (Oil) .................................... 453, 533
VSA ® (Vehicle Stability Assist) .................. 393
W
Warning and Information Messages ......... 86
Warning Indicator On/Blinking ............... 518
Warning Labels ........................................... 65
Warranties (Warranty Manual provided
separately) .............................................. 539
Watts ......................................................... 532
Wear Indicators (Tire) .............................. 476
Wheel Nut Wrench (Jack Handle) ........... 506
Window Washers ..................................... 145
Adding/Refilling Fluid .............................. 461
Switch ..................................................... 145
Windows (Opening and Closing) ............ 134
Windshield
Cleaning ......................................... 484, 487
Defrosting/Defogging .............................. 188
17 ACURA RLX-31TY26300.book 553 ページ ２０１６年６月１７日　金曜日　午前８時１２分
