2017 Acura RLX Hybrid tow

Continued519
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
• Greater than 19 psi (130 kPa), but less
than 36 psi (250 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 36 psi
(250 kPa).
2 Inflating an Under-inflated Tire P. 520
Then drive carefully for 10 more minutes or
until you reach the nearest service station.
Do not exceed 50 mph (80 km/h).
u You should repeat this procedure as long
as the air pressure is within this range.
7. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
8. Repackage and properly stow the kit.
AIR ONLY
side
ON
1 Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Pressure Relief Button
17 ACURA RLX E-AWD-31TY36300.book 519 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

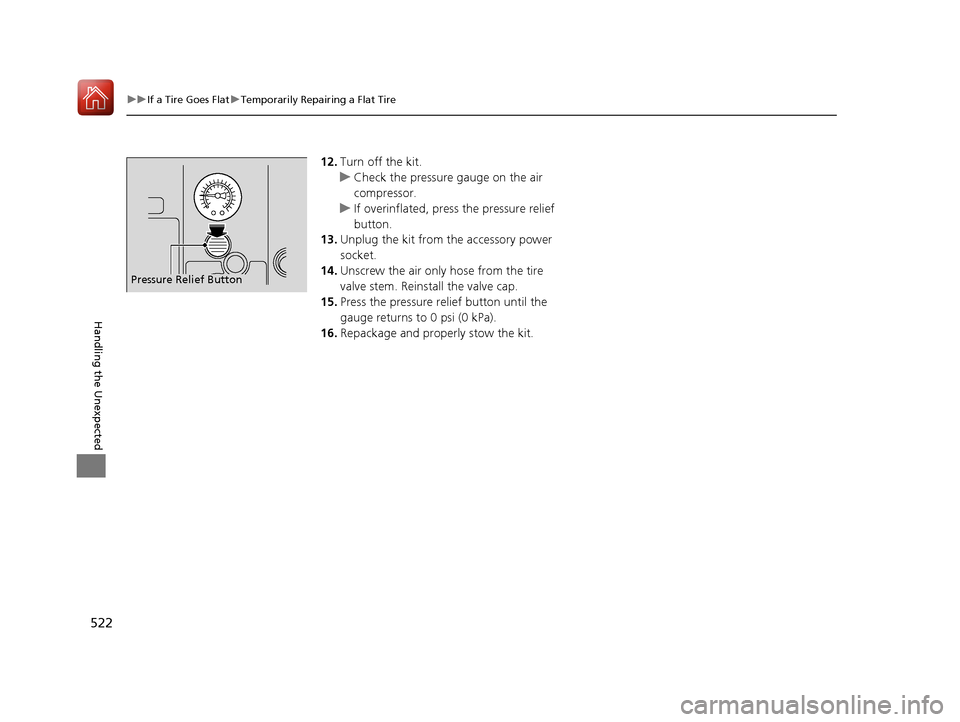

522
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the air only hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
17 ACURA RLX E-AWD-31TY36300.book 522 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

541
uuIndicator, Coming On/Blinking uIf the Transmission Indicator Blin ks along with the Warning Message
Handling the Unexpected
If the Transmission Indicator Blinks along with the
Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioned.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Change the gear position to
(N when you turn the power system on.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 364
1If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to turn on the power system.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 548
17 ACURA RLX E-AWD-31TY36300.book 541 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

545
uuFuses uFuse Locations
Continued
Handling the Unexpected
25Start DIAG7.5 A
26Air Conditioning7.5 A
27Daytime Running Lights7.5 A
28ACC Key Lock7.5 A
29Driver’s Lumbar Support7.5 A
30SMART10 A
31−−
32Driver’s Power Seat
Reclining20 A
33Left e-pretensioner(20 A)
34IG1 Box30 A
Circuit ProtectedAmpsLocated inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1.Pry on the lower edge of the panel using
a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Pull the outer panel towards you, then
remove it.
Outer Panel
Fuse locations are shown on the image
below.
Locate the fuse in question by the fuse
number in the image and chart.
■Circuit protected and fuse rating
3
12
Fuse Box
Circuit ProtectedAmps
1IG Main 130 A
2ST MG30 A
3IG Main 230 A
17 ACURA RLX E-AWD-31TY36300.book 545 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

548
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
17 ACURA RLX E-AWD-31TY36300.book 548 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

549
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Release Lever
17 ACURA RLX E-AWD-31TY36300.book 549 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

575
Index
Side Airbags............................................... 52
Side Curtain Airbags .................................. 54
SiriusXM ® Radio ....................................... 242
Snow Tires ................................................ 496
Sounds Unique to the SPORT HYBRID
SH-AWD® System...................................... 13
Spare Tire (Optional) ....................... 523, 555
Spark Plugs ............................................... 554
Specifications ........................................... 554
Specified Fuel ................................... 455, 554
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®)....... 411
SPORT Mode ............................................. 378
SPORT Mode Indicator ....................... 86, 378
SRS Airbags (Airbags) ................................ 46
Steering Wheel Adjusting ................................................ 171
Stopping ................................................... 434
Summer Tires ............................................ 496
Supplemental Restraint System (SRS) ....... 46
Surround View Camera System ............... 445
Switches (Around the Steering
Wheel) ............................................ 4, 5, 155
System Message Indicator ......................... 84
T
Temperature
High Temperature Indicator ...................... 83
Low Temperature Indicator ....................... 83
Temperature Sensor ................................ 209 Temporary Tire Repair Kit
........................ 512
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ..................................................... 414
Indicator ............................................ 84, 540
Tires ........................................................... 488
Air Pressure ..................................... 489, 555
Chains ..................................................... 496
Checking and Maintaining ....................... 488
Flat Tire (Puncture) ................................... 511
Inspection ................................................ 488
Labeling .................................................. 489
Regulations ............................................. 491
Rotation .................................................. 495
Spare (Optional) .............................. 523, 555
Summer .................................................. 496
Temporary Tire Repair Kit ........................ 512
Wear Indicators ....................................... 493
Winter ..................................................... 496
Tools .......................................................... 510
Towing a Trailer ....................................... 363
Towing Your Vehicle ................................ 363
Emergency .............................................. 548
TPMS (Tire Pressure Monitoring
System) .................................................... 414
Transmission ....................................... 23, 371
Dual Clutch ............................... 23, 370, 371
Fluid ........................................................ 478
Gear Position Indicator ...................... 80, 373
Number ................................................... 556 Sequential Mode ..................................... 376
TRIP Button ............................................... 109
Trip Meter ................................................. 110
Troubleshooting ....................................... 509
Blown Fuse.............................. 542, 544, 546
Brake Pedal Vibrates .................................. 28
Buzzer Sounds When Opening Door.......... 28
Emergency Towing .................................. 548
Flat Tire/Puncture ............................ 511, 523
Noise When Braking .................................. 29
Overheating ............................................ 535
Power System Won’t Start ....................... 529
Premium Gasoline ........................... 455, 554
Rear Door Won’t Open...................... 28, 144
Warning Indicators .................................... 74
Trunk ......................................................... 146
Lid........................................................... 146
Light Bulbs .............................................. 554
Release Handle ........................................ 550
Unable to Open....................................... 550
Turn Signals .............................................. 158
Indicators (Instrument Panel) ..................... 85
Turn-by-Turn Directions ................... 111, 127
Turning on the Power .............................. 364
Does Not Activate ................................... 529
Jump Starting .......................................... 532
Remote Engine Start................................ 366
Two-way Keyless Access Remote ..... 141, 366
