2017 Acura MDX CD player

227
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 228
USB Ports ......................................... 229
Auxiliary Input Jack .......................... 230
Audio System Theft Protection ......... 230
Audio Remote Controls .................... 231
Audio System Basic Operation ........ 232
On Demand Multi-Use Display
TM....... 233
Audio/Information Screen ................ 239
Adjusting the Sound ........................ 243
Display Setup ................................... 244
Playing AM/FM Radio ....................... 245
Playing SiriusXM ® Radio ................... 249 Playing a CD .................................... 260
Playing an iPod ................................ 263
Playing Internet Radio ...................... 267
Playing a USB Flash Drive ................. 270
Playing
Bluetooth ® Audio................. 273
Siri Eyes Free .................................... 275
Audio Error Messages CD Player ......................................... 276
iPod/USB Flash Drive ........................ 277
Pandora ®......................................... 278
Aha
TM Radio ..................................... 280 General Information on the Audio
SystemSiriusXM ® Radio Service ................... 281
Recommended CDs ......................... 282
Compatible iPod, iPhone, and USB Flash Drives ................................................. 284
Customized Features ........................ 285
Defaulting All the Settings ............... 306
HomeLink ® Universal Transceiver ... 307
Bluetooth ® HandsFreeLink®
Using HFL ........................................ 310
HFL Menus ...................................... 312
Compass
*.......................................... 344
* Not available on all models
17 ACURA MDX-31TZ56300.book 227 ページ ２０１６年５月１３日　金曜日　午後７時４６分

229
uuAudio System uUSB Ports
Features
USB Ports
■In the consol e compartment
The USB port (1.0 A) is for playing audio files
on a USB flash drive and connecting a cellular
phone and charging device.
The USB ports (2.5 A) are only for charging
devices.
■On the back of the console
compartment
The USB ports (2.5 A) are only for charging
devices.
1 USB Ports
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an extension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend keeping y our data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit the following website:
•U.S.: www.apple.com/ipod .•Canada: www.apple.com/ca/ipod.
The USB port can supply up to 1.0 A or 2.5 A of
power. It does not output 1.0 A or 2.5 A unless
requested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Set the power mode to ACCESSORY or ON first.
This port is for battery charge only. You cannot play
music even if you have conne cted a music player to it.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB Ports (2.5 A)
USB Ports (2.5 A)
USB Port (1.0 A)
17 ACURA MDX-31TZ56300.book 229 ページ ２０１６年５月１３日　金曜日　午後７時４６分

276
Features

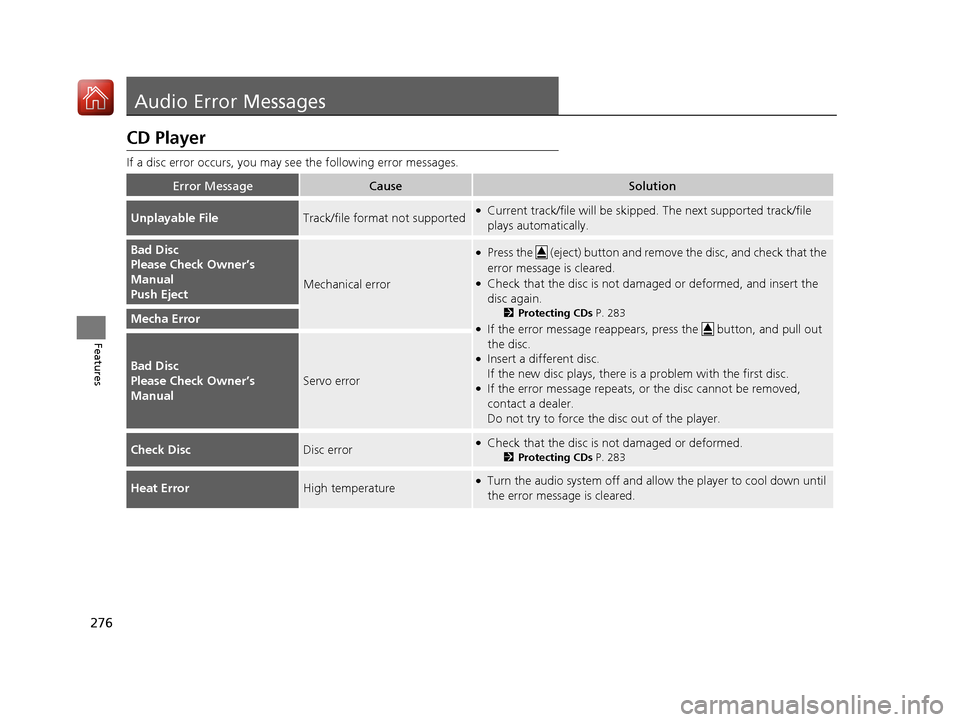

Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
Error MessageCauseSolution
Unplayable FileTrack/file format not supported●Current track/file will be skippe d. The next supported track/file
plays automatically.
Bad Disc
Please Check Owner’s
Manual
Push Eject
Mechanical error
●Press the (eject) button and remove the disc, and check that the
error message is cleared.
●Check that the disc is not damaged or deformed, and insert the
disc again.
2 Protecting CDs P. 283
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error
Bad Disc
Please Check Owner’s
Manual
Servo error
Check DiscDisc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 283
Heat ErrorHigh temperature●Turn the audio system off and allo w the player to cool down until
the error message is cleared.
17 ACURA MDX-31TZ56300.book 276 ページ ２０１６年５月１３日　金曜日　午後７時４６分

283
uuGeneral Information on the Audio System uRecommended CDs
Features
■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean cloth from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign obje cts into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer rings or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
17 ACURA MDX-31TZ56300.book 283 ページ ２０１６年５月１３日　金曜日　午後７時４６分

284
uuGeneral Information on the Audio System uCompatible iPod, iPhone, and USB Flash Drives
Features
Compatible iPod, iPhone, and USB Flash Drives
• A USB flash drive of 256 MB or higher is recommended.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 6th generation) released between 2007 and 2015
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4s /iPhone 5/iPhone 5c/iPhone 5s/iPhone 6/
iPhone 6 Plus/iPhone 6s/iPhone 6s Plus
■USB Flash Drives
1 iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
17 ACURA MDX-31TZ56300.book 284 ページ ２０１６年５月１３日　金曜日　午後７時４６分

573
Index
Shifting ................................................... 374
Auxiliary Input Jack ................................. 230
Average Fuel Economy ............................ 119
Average Speed ......................................... 120
AWD ......................................................... 423
B
Back-Up Light ........................................... 484
Battery ...................................................... 499
Charging System Indicator ................ 78, 541
Jump Starting ......................................... 537
Maintenance (Checking the Battery) ....... 499
Belts (Seat) .................................................. 33
Beverage Holders ..................................... 205
Blind Spot Information (BSI) System ....... 421
Indicator ................................................... 95
Bluetooth ® Audio ..................................... 273
Bluetooth ® HandsFreeLink ®.................... 310
Booster Seats (For Children) ...................... 70
Brake System ............................................ 428
Anti-lock Brake System (ABS) .................. 434
Automatic Brake Hold ............................. 432
Brake Assist System................................. 435
Brake System Indicator .............................. 75
Fluid ....................................................... 480
Foot Brake .............................................. 431
Indicator ..................................... 74, 75, 543
Parking Brake.......................................... 428
Brake System (Amber)
Indicator ................................................... 75 Brake System (Red)
Indicator ............................................ 74, 543
Brightness Control (Instrument Panel) .... 178
BSI (Blind Spot Information) System ....... 421
Bulb Replacement .................................... 481
Back-Up Light .......................................... 484
Brake Light and Rear Turn Signal Light ..... 482
Fog Lights ................................................ 481
Front Turn Signal/ Parking, Daytime
Running and Front Side Marker Lights ... 481
Headlights ............................................... 481
High-Mount Brake Light .......................... 485
Puddle Lights ........................................... 485
Rear License Plate Lights .......................... 485
Side Turn Signal/Em ergency Indicator
Lights .................................................... 481
Taillights .................................................. 484
Taillights/Rear Side Maker Lights .............. 483
Bulb Specifications ................................... 560
C
Car Wash Mode........................................ 378
Carbon Monoxide Gas ................................ 71
Carrying Cargo .................................. 349, 351
CD Player ................................................... 260
Center Pocket ........................................... 204
Certification Label .................................... 562
Changing Bulbs ......................................... 481
Charging System Indicator ................. 78, 541Child Safety
................................................. 56
Childproof Door Locks............................. 148
Child Seat .................................................... 56
Booster Seats ............................................ 70
Child Seat for Infants................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 64
Larger Children ......................................... 69
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 508
Cleaning the Interior ................................ 506
Client Service Information ....................... 570
Climate Control System ............................ 213
Changing the Mode ................................ 216
Defrosting the Windshield and Windows ............................................... 220
Dust and Pollen Filter............................... 505
Rear Climate Control System ................... 221
Sensors ................................................... 225
Synchronized Mode................................. 217
Using Automatic Climate Control ............ 213
Clock .......................................................... 134
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 436
Coat Hook ................................................. 209
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 436
Compact Spare Tire .......................... 515, 561
17 ACURA MDX-31TZ56300.book 573 ページ ２０１６年５月１３日　金曜日　午後７時４６分
